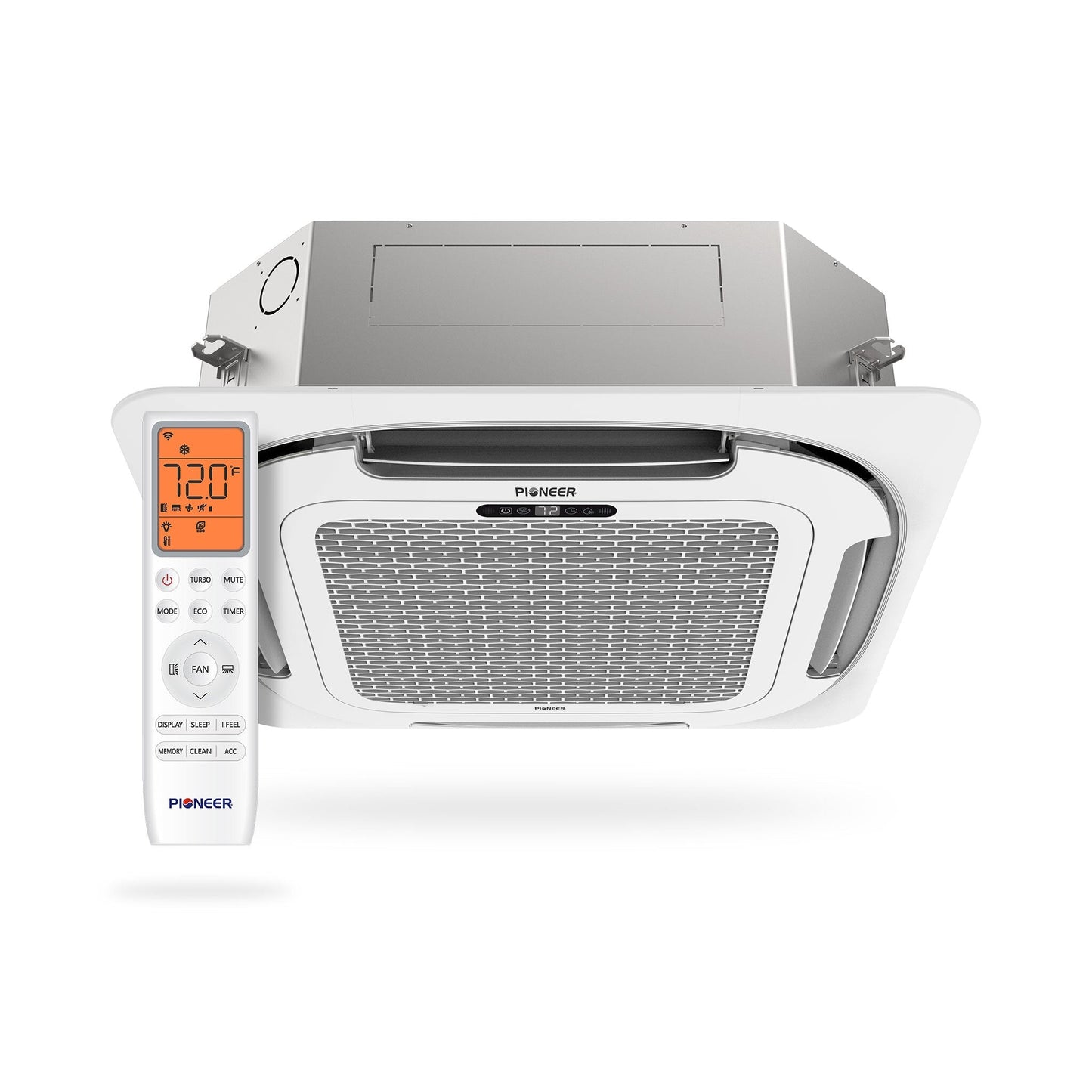

Pioneer Multi Zone 24,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - CT024GLSILCFHG-10S
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 24,000 BTU/h
-
Suitable Area: 750~1,000 Sq.F
-
Indoor Unit
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
-
Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
-
Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
-
Net / Gross Weight: 51.8 / 59.5 lbs
-
Decorative Panel
-
Part Number: CT2460DPNL
-
Product Dimensions (WDH): 37-3/8" x 37-3/8" x 2-7/8"
-
Carton Dimensions (WDH): 41-1/2" x 41-1/2" x 3"-1/2
-
Net / Gross Weight: 13.2 / 19.8 lbs
Compatibility

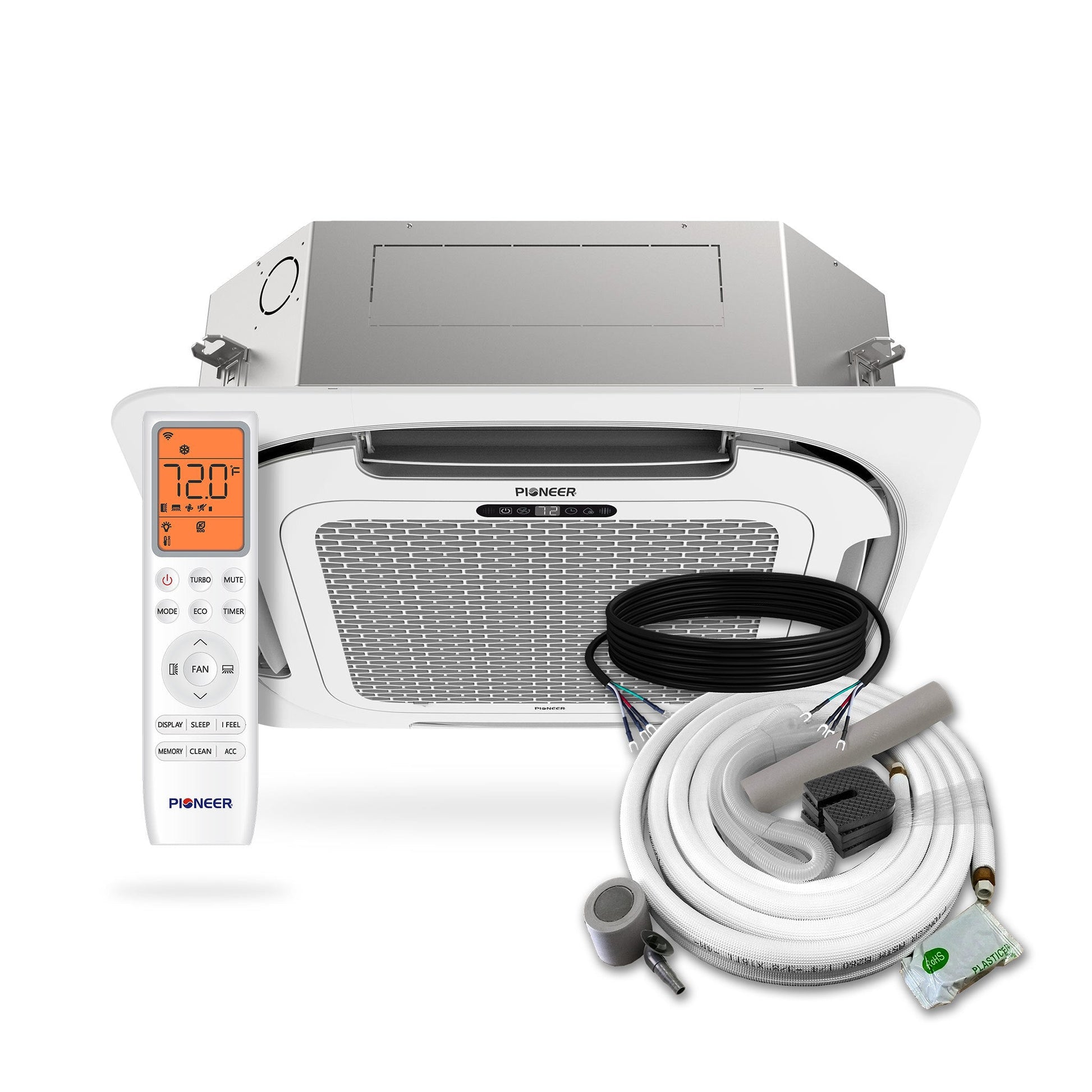

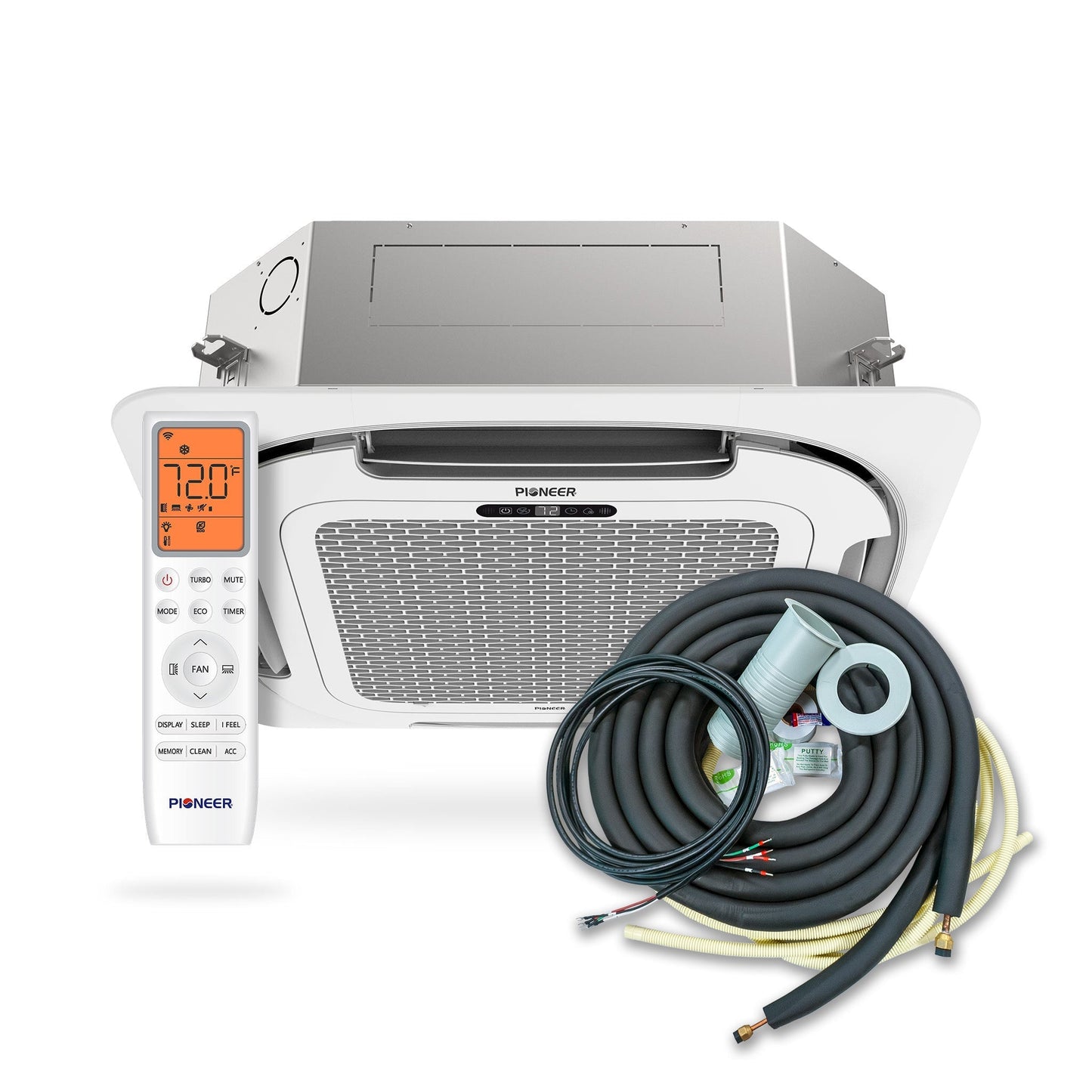

What's Included
-
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
Powerful 24,000 BTU capacity designed for large rooms or open spaces.
-
Slim ceiling cassette design with 4-way airflow for even comfort.
-
Wi-Fi enabled for convenient remote operation and smart scheduling.
-
Compatible with Pioneer® Quantum Ultra Multi-Zone outdoor systems.
-
Inverter++ technology ensures quiet, energy-efficient heating and cooling.
Q&A
Q: Is this unit ductless or ducted?
A: This is a ductless ceiling cassette indoor section.
Q: Can it both cool and heat?
A: Yes, when paired with a compatible outdoor unit, it functions as a heat pump system.
Q: Does it include Wi-Fi control?
A: Yes, built-in Wi-Fi allows remote control via smartphone or smart home integration.
Q: Is this a complete system?
A: No, this listing is for the indoor cassette unit only; outdoor unit sold separately.
Maintenance Tips
-
Clean the air filters every 1–2 months for optimal airflow.
-
Keep cassette vents free of dust and obstructions.
-
Ensure proper ceiling clearance for efficient airflow distribution.
-
Schedule professional servicing annually for system efficiency and refrigerant checks.
