Pioneer Multi Zone 24,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - RT024GLSILCFHG-10S
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 24,000 BTU/h
-
Suitable Area: 750~1000 Sq.F
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 741/623/558/529/470 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 51/49/46/39/34 dB(A)
-
Product Dimensions (WDH): 43-1/4" x 17-3/4" x 7-7/8" Inches
-
Carton Dimensions (WDH): 50-3/4" x 22-1/4" x 9-7/8" Inches
-
Net / Gross Weight: 50.7 / 58.4 lbs
Compatibility

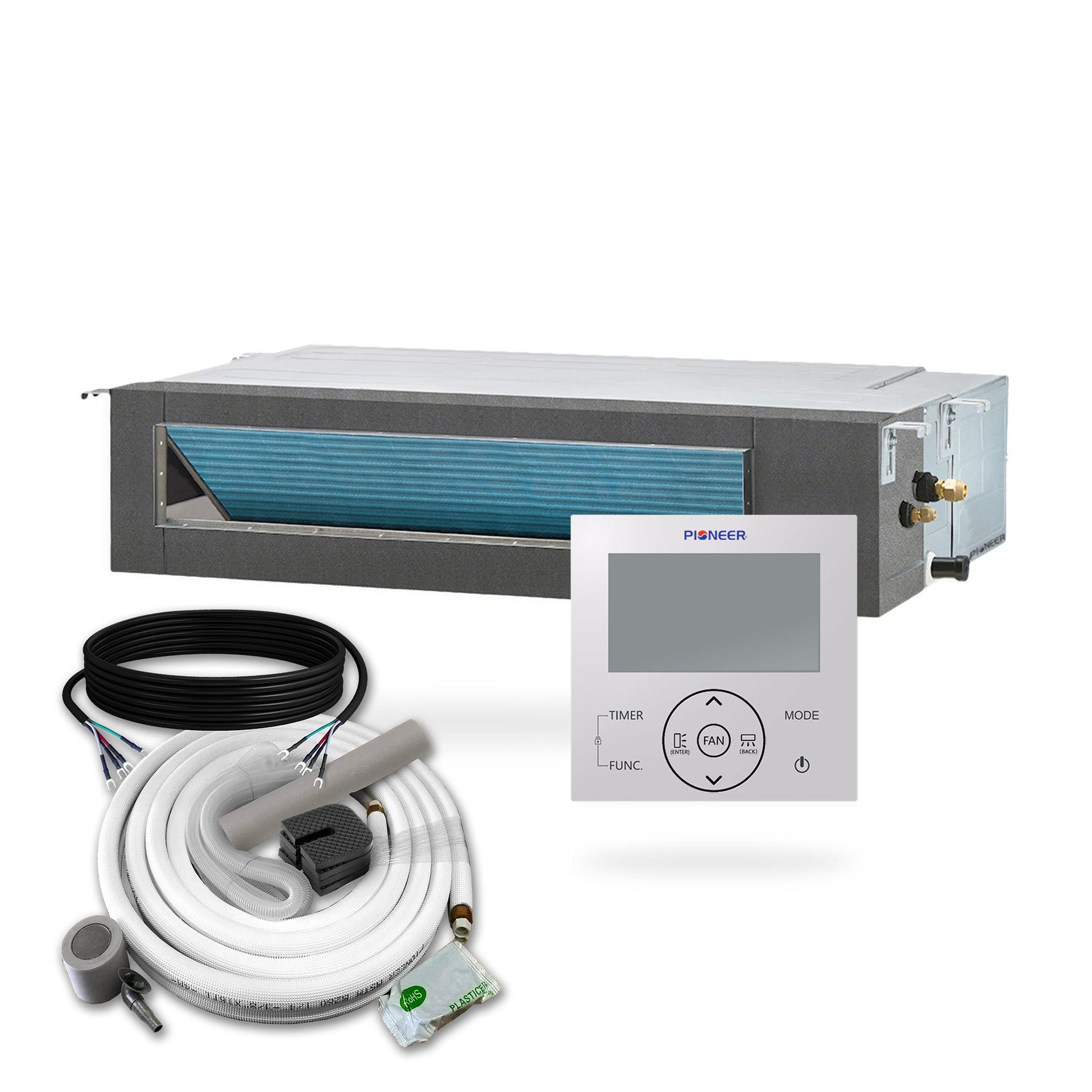

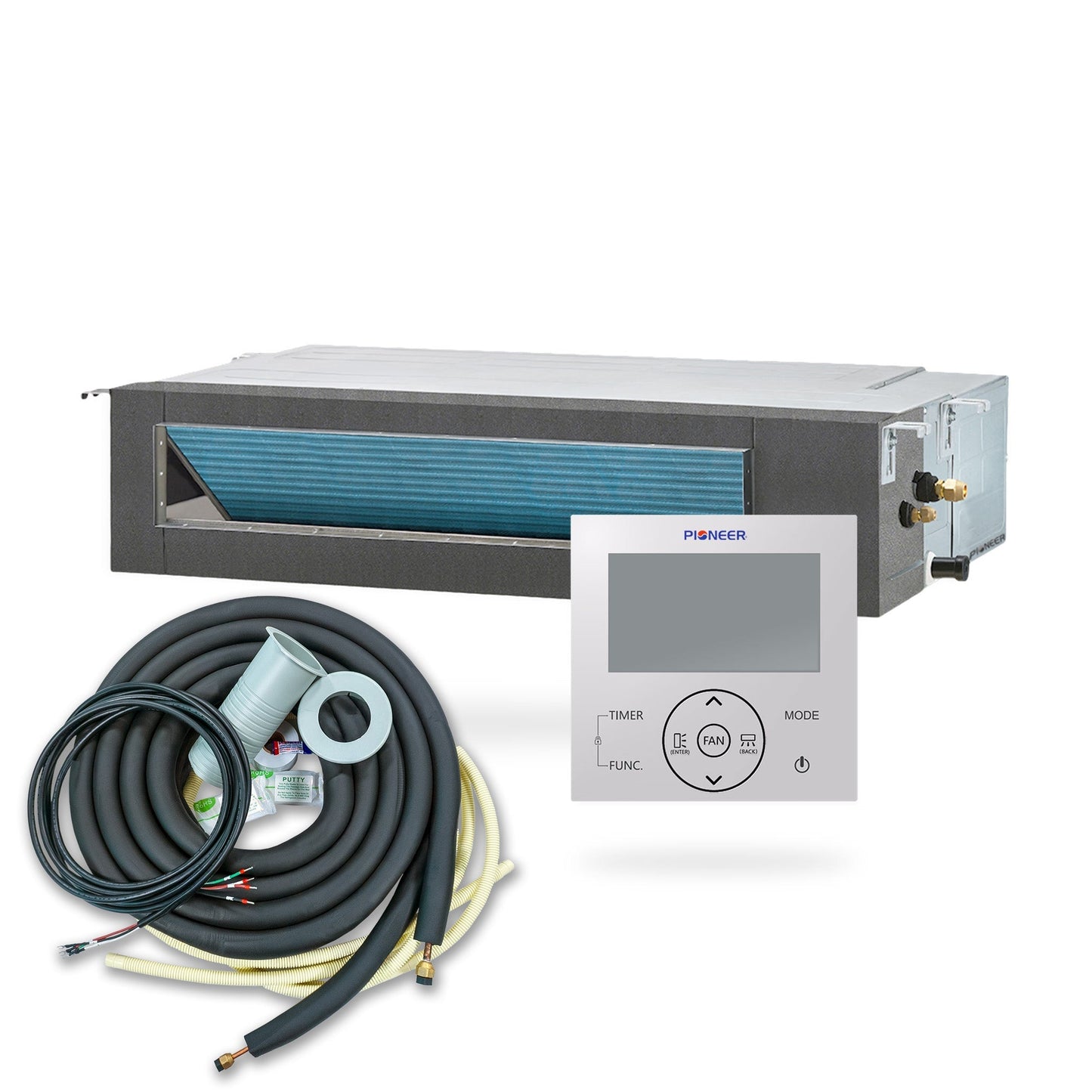

What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
24,000 BTU ceiling-concealed indoor unit designed for Pioneer multi-zone systems.
-
Ductable design allows discreet installation with hidden airflow distribution.
-
Quantum Ultra series with Inverter++ ensures high efficiency and stable performance.
-
Wi-Fi enabled for easy remote operation and smart home control.
-
Perfect for large rooms or open areas needing unobtrusive climate control.
Q&A
Q: Can this indoor unit function alone?
A: No, it must be paired with a compatible Pioneer multi-zone outdoor system.
Q: Does it support both heating and cooling?
A: Yes, when connected to the outdoor unit, it works as both AC and heat pump.
Q: Is this unit ductable?
A: Yes, it’s designed for concealed ceiling installation with duct connections.
Maintenance Tips
-
Clean filters regularly to maintain airflow and efficiency.
-
Inspect ducts and vents periodically to prevent blockages.
-
Keep Wi-Fi module updated for reliable smart controls.
-
Schedule annual servicing for refrigerant checks and system inspection.
