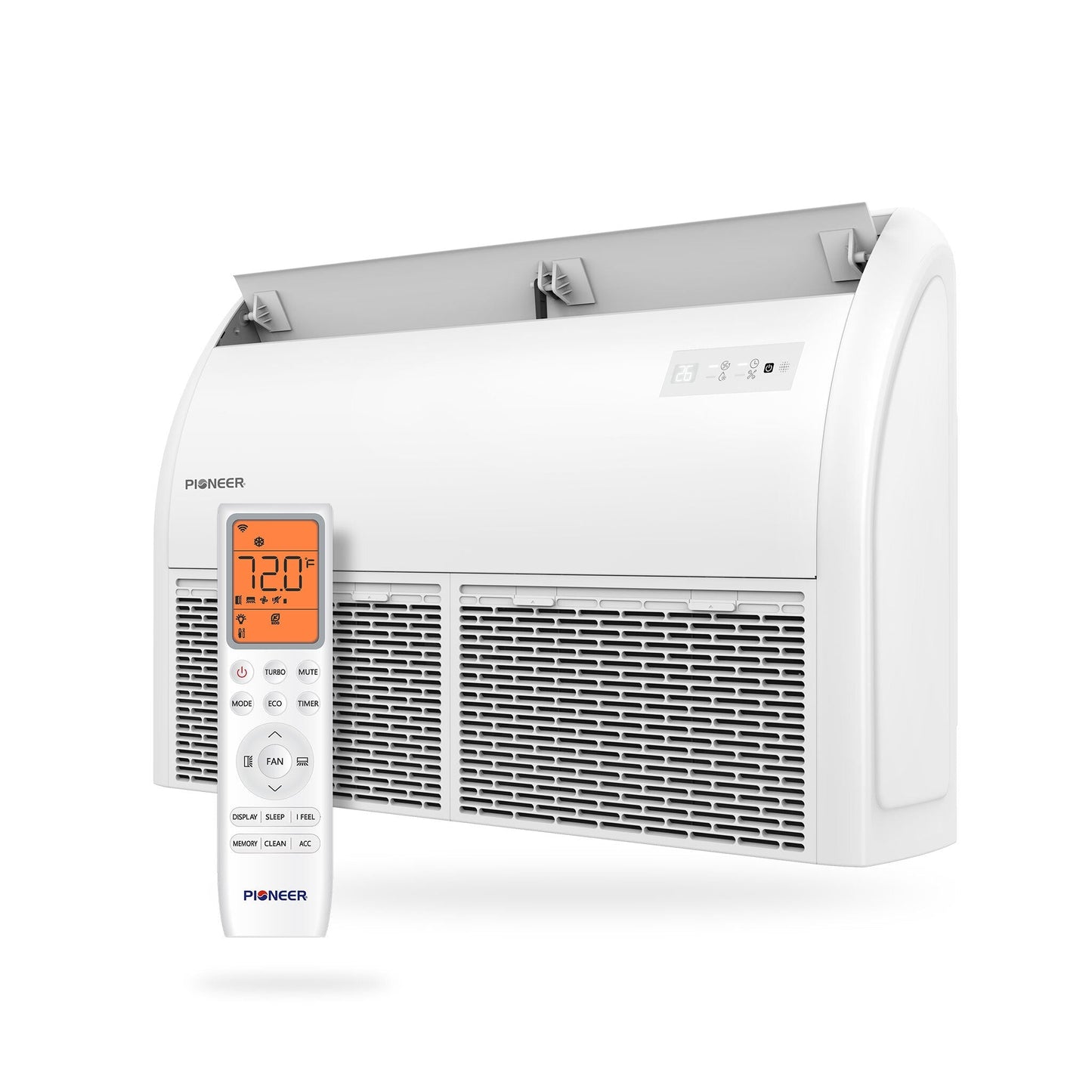

Pioneer Multi Zone 24,000 BTU Quantum Ultra Floor-Ceiling Flex Mount Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - UT024GLSILCFHG-10S
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 24,000 BTU/h
-
Suitable Area: 750~1000 Sq.F
-
Indoor Unit
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 647/588/517/470/412 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 53/52/48/44/40 dB(A)
-
Product Dimensions (WDH): 41"-1/2 x 9"-1/4 x 26"-1/2 Inches
-
Carton Dimensions (WDH): 44"-3/4 x 11"-1/8 x 30"-1/8 Inches
-
Net / Gross Weight: 57.3 / 70.5 lbs
Compatibility
What's Included
-
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App

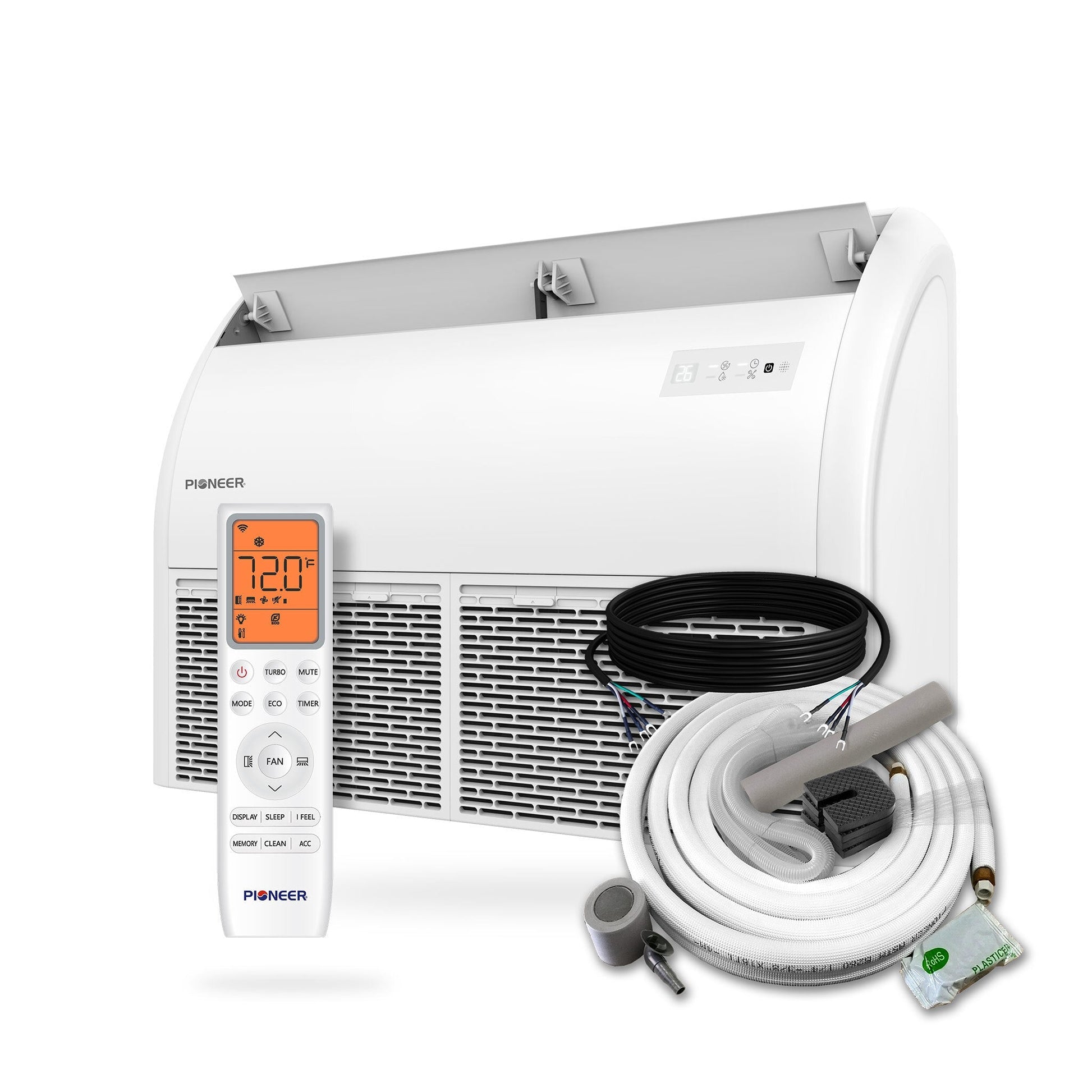

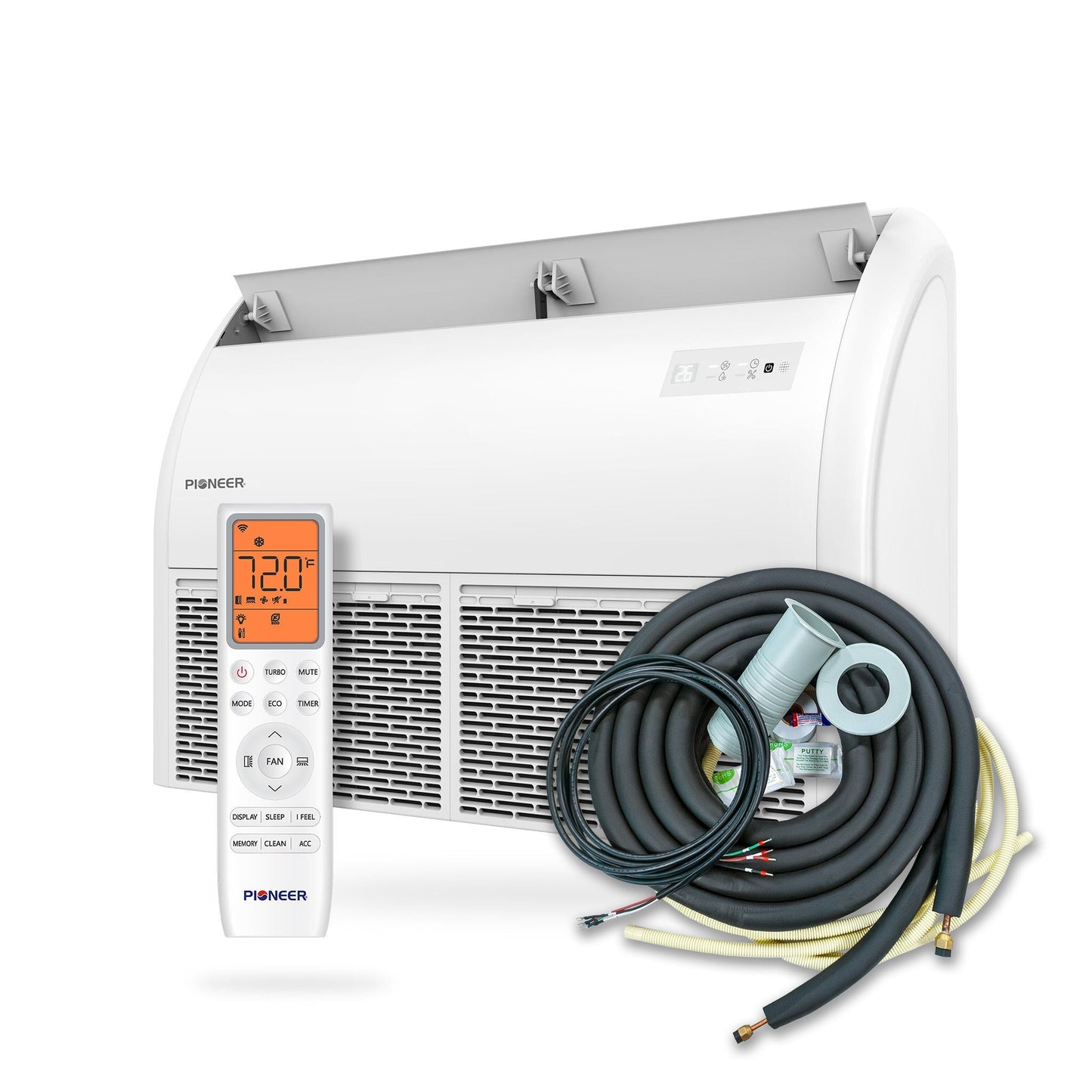

- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
24,000 BTU indoor unit designed for Pioneer Quantum Ultra multi-zone systems.
-
Flexible floor or ceiling mount installation adapts to different room layouts.
-
Wi-Fi enabled for smart remote control via mobile app.
-
Inverter++ technology ensures quiet, energy-efficient heating and cooling.
-
230V power supply supports larger spaces and heavy-duty performance.
Q&A
Q: Can this unit work as a standalone system?
A: No, it must be paired with a compatible Pioneer Quantum Ultra outdoor condenser.
Q: What room size is it best for?
A: Suitable for large rooms, open floor plans, or commercial applications up to ~1,000 sq. ft.
Q: Can it be mounted on either floor or ceiling?
A: Yes, the flex design allows both floor-mount and ceiling-mount installation.
Maintenance Tips
-
Clean return air filters every 2–4 weeks for optimal performance.
-
Keep airflow vents clear of obstructions to maintain efficiency.
-
Inspect condensate drainage and refrigerant lines annually.
-
Schedule yearly professional maintenance for long-term reliability.
