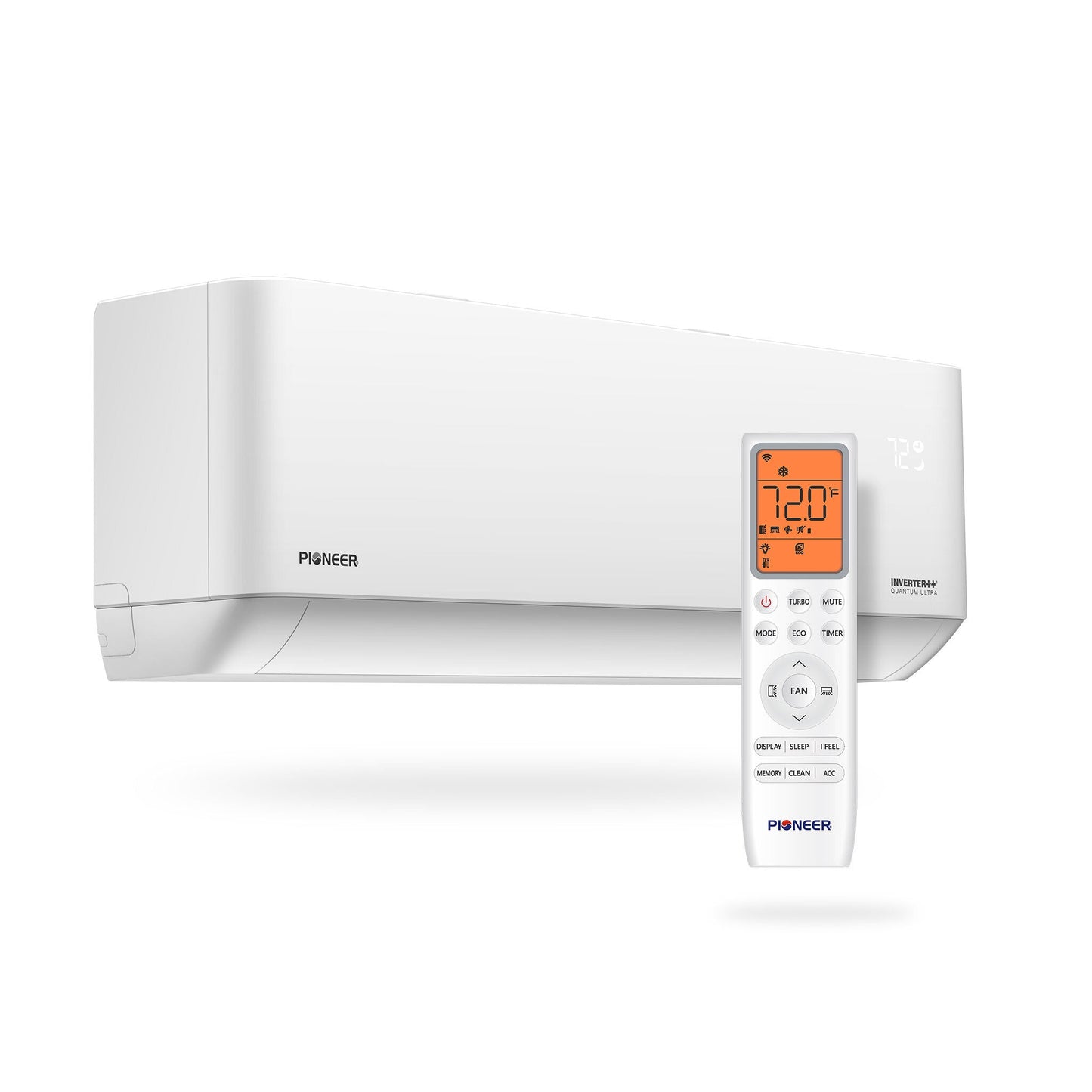

Pioneer Multi Zone 24,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - WT024GLSI24HLG-10S
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 25,000 BTU/h
-
Suitable Area: 600~950 Sq.F
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
-
Product Dimensions (WDH): 43-1/8" x 8-3/4" x 13" Inches
-
Carton Dimensions (WDH): 45-7/8" x 11-5/8" x 16" Inches
-
Net / Gross Weight: 30.9 / 35.3 lbs
- Piping Diameter: 1/4-5/8"
Compatibility
Manuals
- Technical Brochure
- Installation and User's Manual

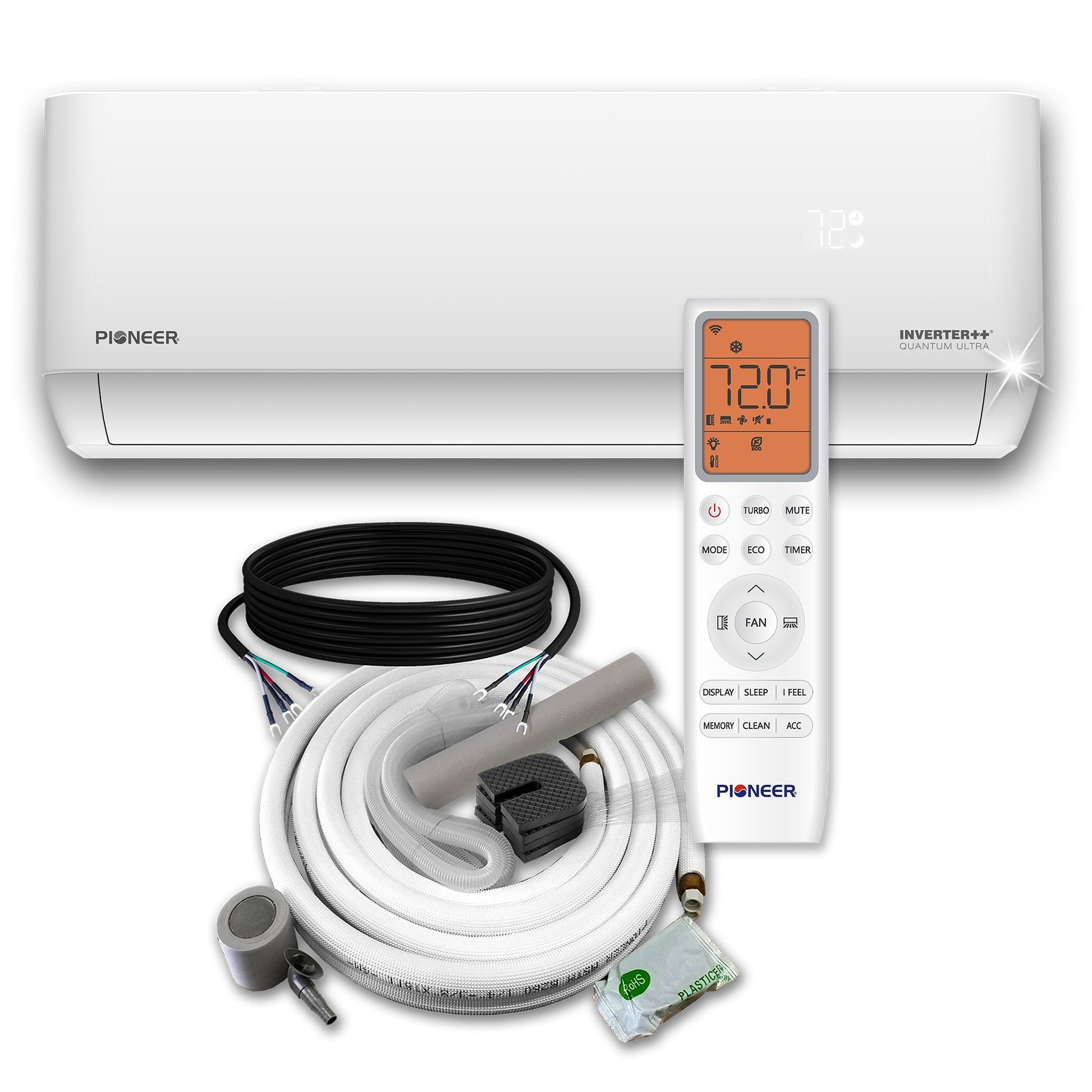

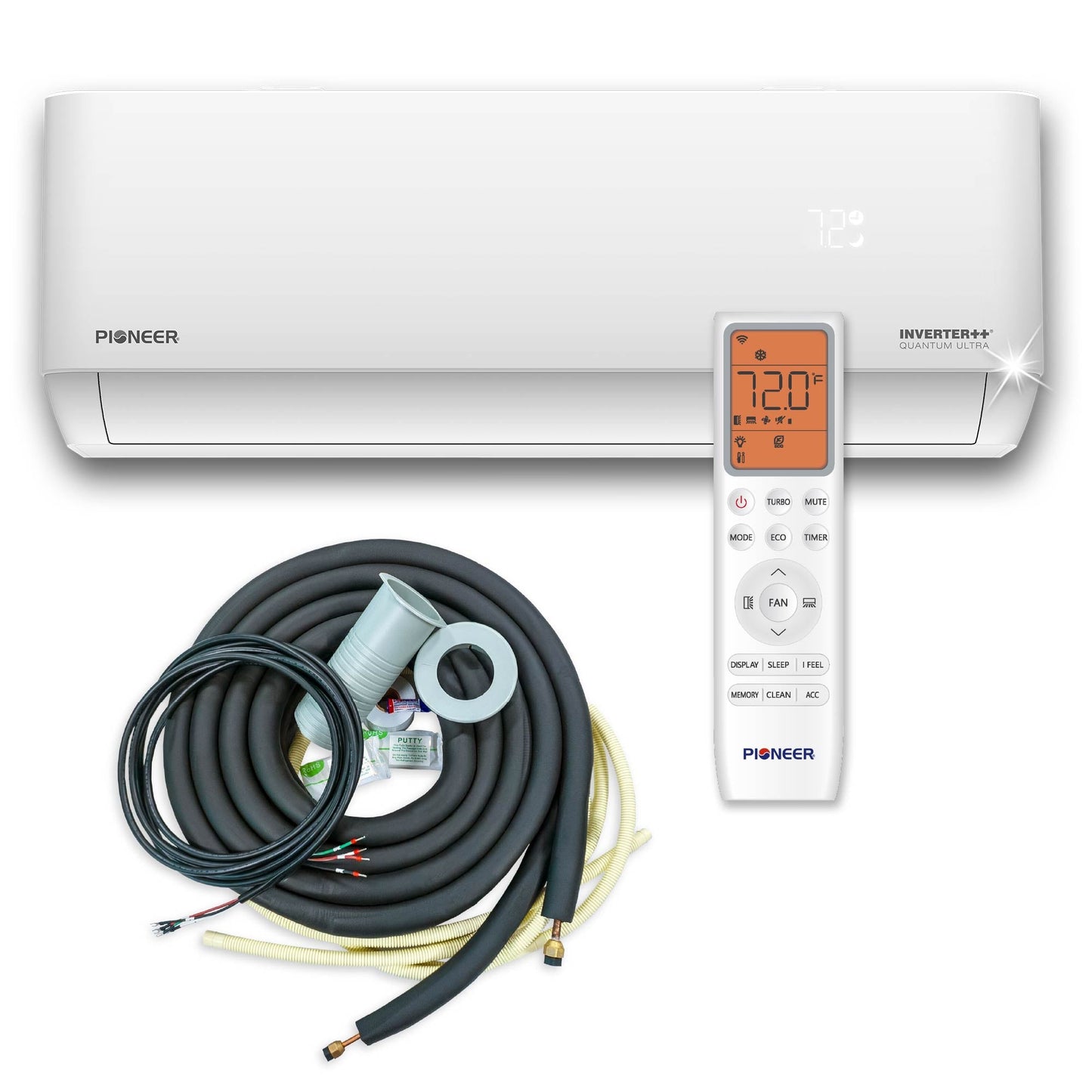

What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
Strong 24,000 BTU capacity, ideal for large rooms and open areas.
-
Sleek wall-mounted design provides efficient heating and cooling.
-
Wi-Fi enabled for smart control and scheduling from anywhere.
-
Compatible with Pioneer® Quantum Ultra Multi-Zone outdoor systems.
-
Inverter++ technology delivers quiet operation and maximum energy efficiency.
Q&A
Q: Is this indoor unit compatible with all Pioneer® outdoor systems?
A: It is specifically designed for use with Quantum Ultra Multi-Zone outdoor units.
Q: Does it provide both heating and cooling?
A: Yes, when paired with a compatible outdoor section, it functions as a heat pump.
Q: Does it include Wi-Fi connectivity?
A: Yes, Wi-Fi is built-in for smartphone and smart home control.
Q: Is this a complete system?
A: No, this listing is for the indoor wall-mounted unit only; outdoor unit sold separately.
Maintenance Tips
-
Clean or replace filters every 1–2 months to maintain airflow.
-
Wipe down the wall unit regularly to prevent dust buildup.
-
Keep the airflow vents unobstructed for efficient operation.
-
Arrange annual professional service to check refrigerant and overall performance.
