Pioneer Multi Zone 9,000 BTU 24 SEER Wall Mount Air Handler - WS009GMFI22HLE-25

Pioneer Multi Zone 9,000 BTU 24 SEER Wall Mount Air Handler - WS009GMFI22HLE-25

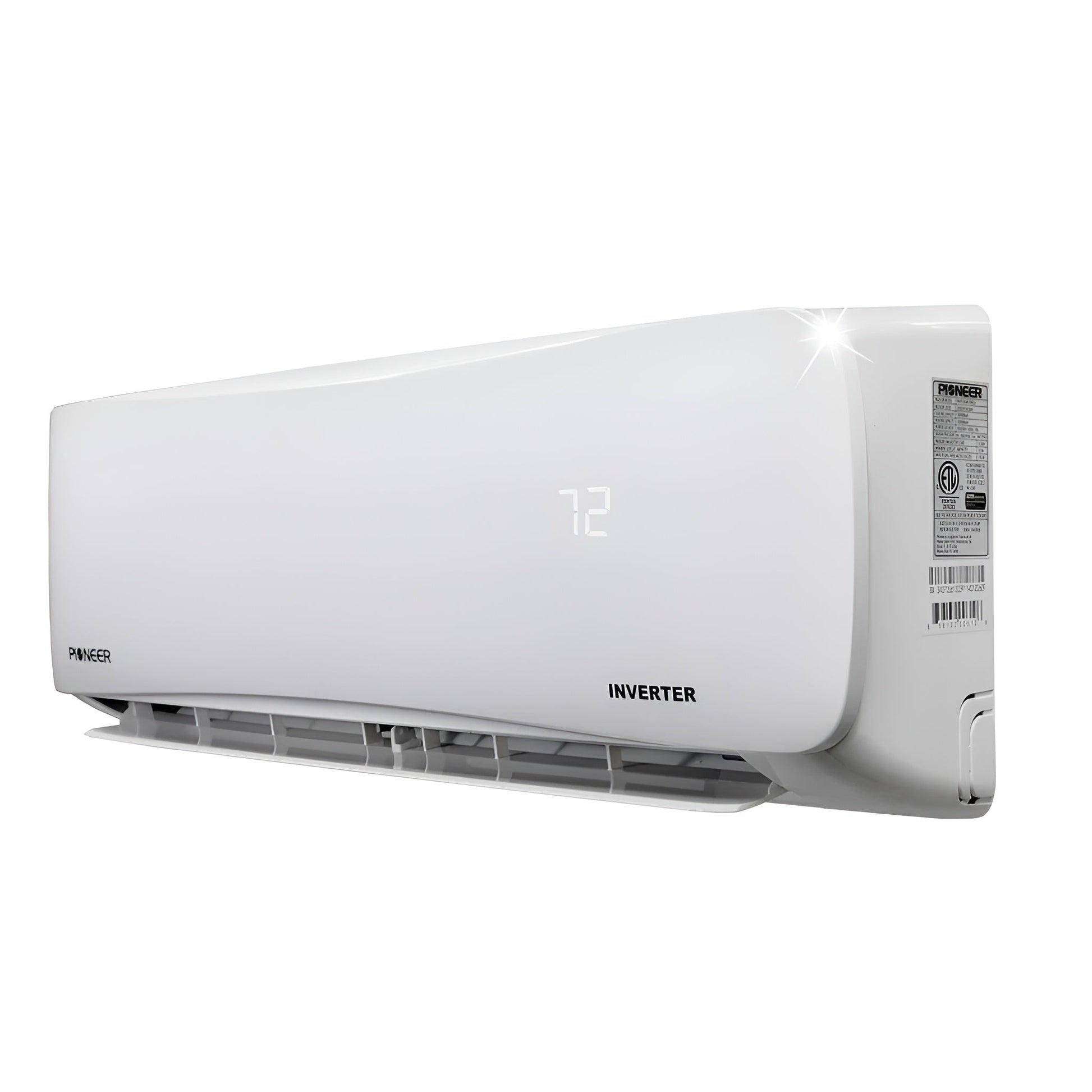

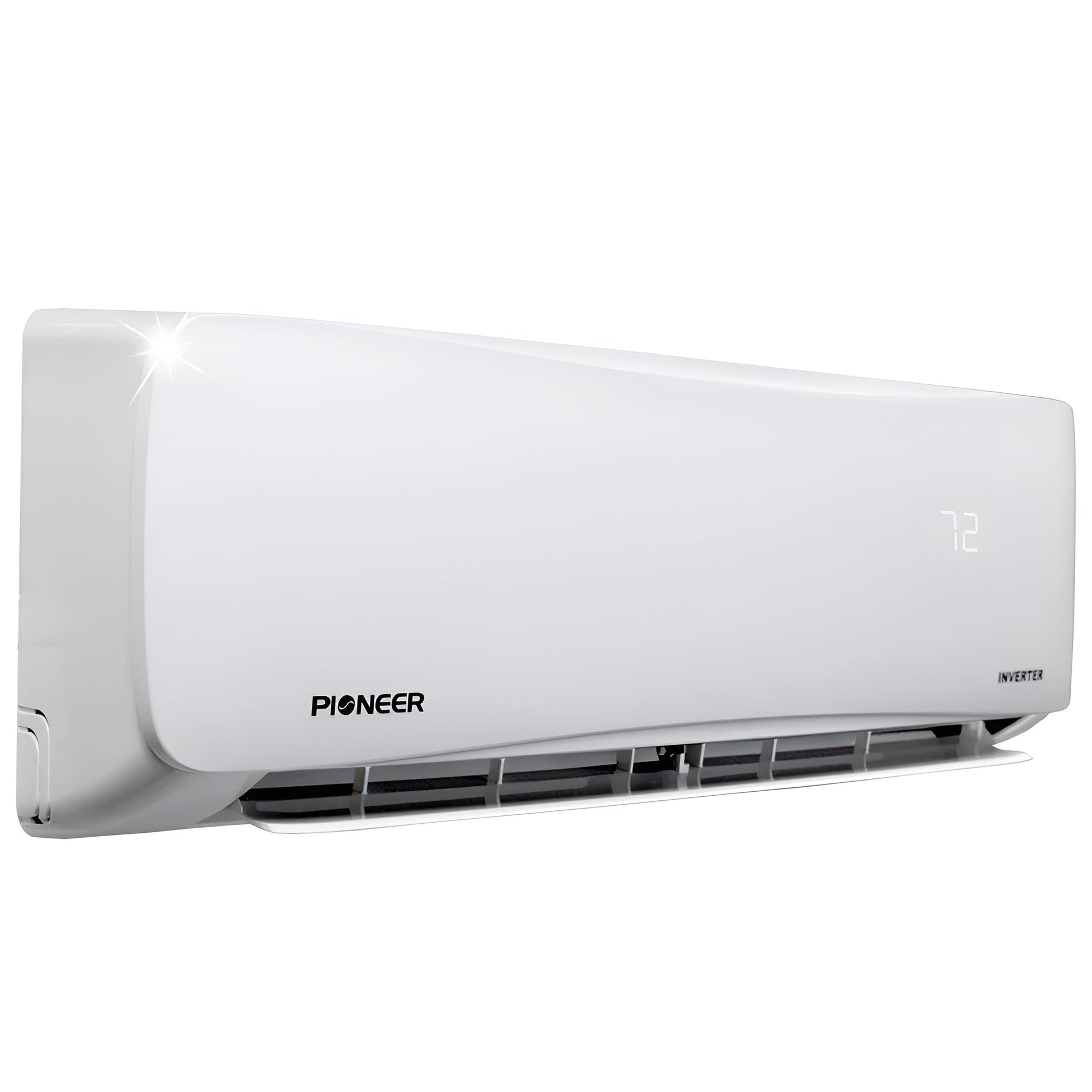

Inverter++ Variable Speed Multi Split Systems we offer are available in a mix and match fashion and fully user selectable and customizable. Multi Zone Wall Mount Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 9,000 BTU/Hr. (3/4 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 24 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.

IMPORTANT

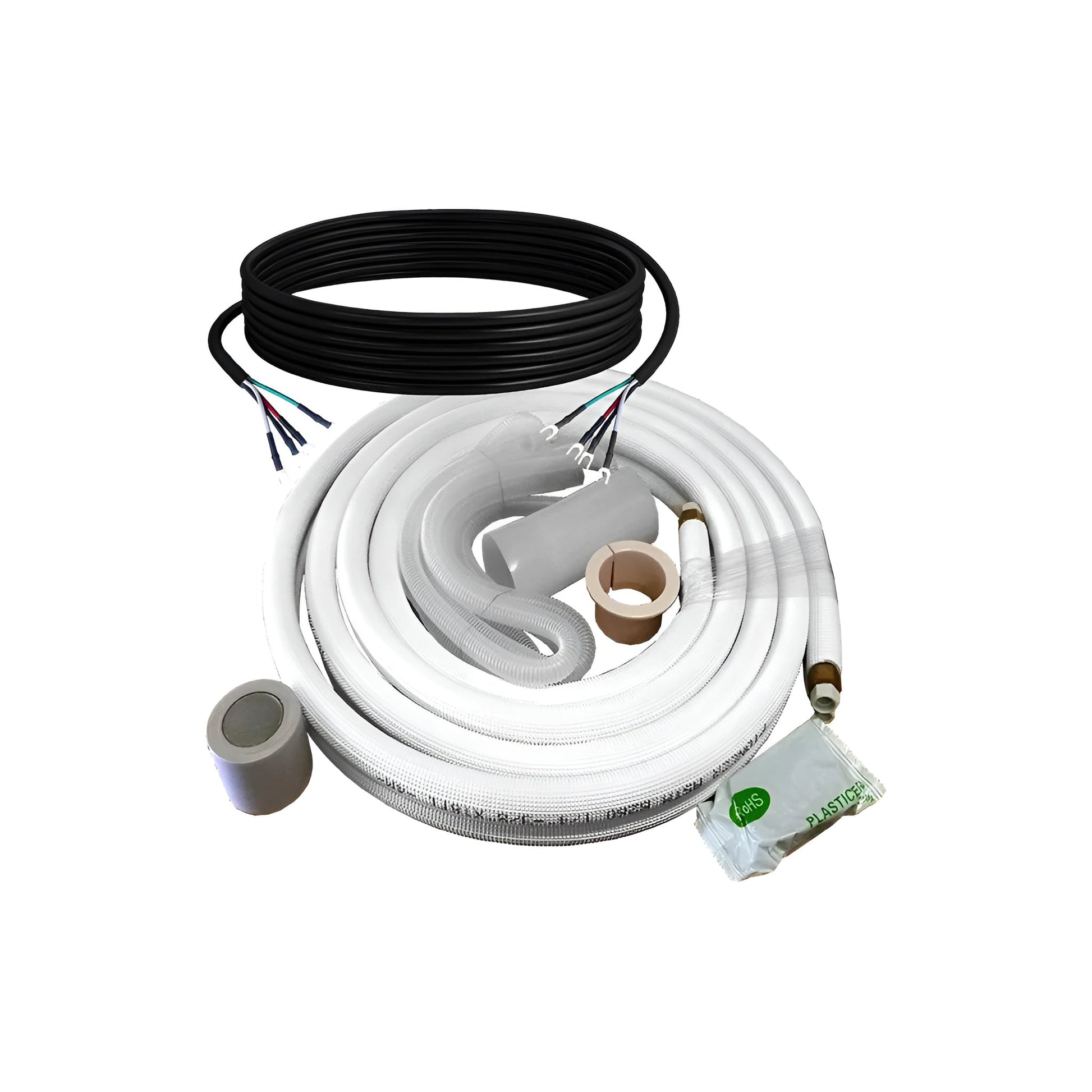

The installation kit is: 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the 4 kinds of outdoor units we offer as follows:

• Dual Zone: YN020GMFI22M2E
• Triple Zone: YN030GMFI22M3E
• Quad Zone: YN040GMFI22M4E
• Quint Zone: YN050GMFI22M5E

Notes

• Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
• Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.

• Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.

• Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

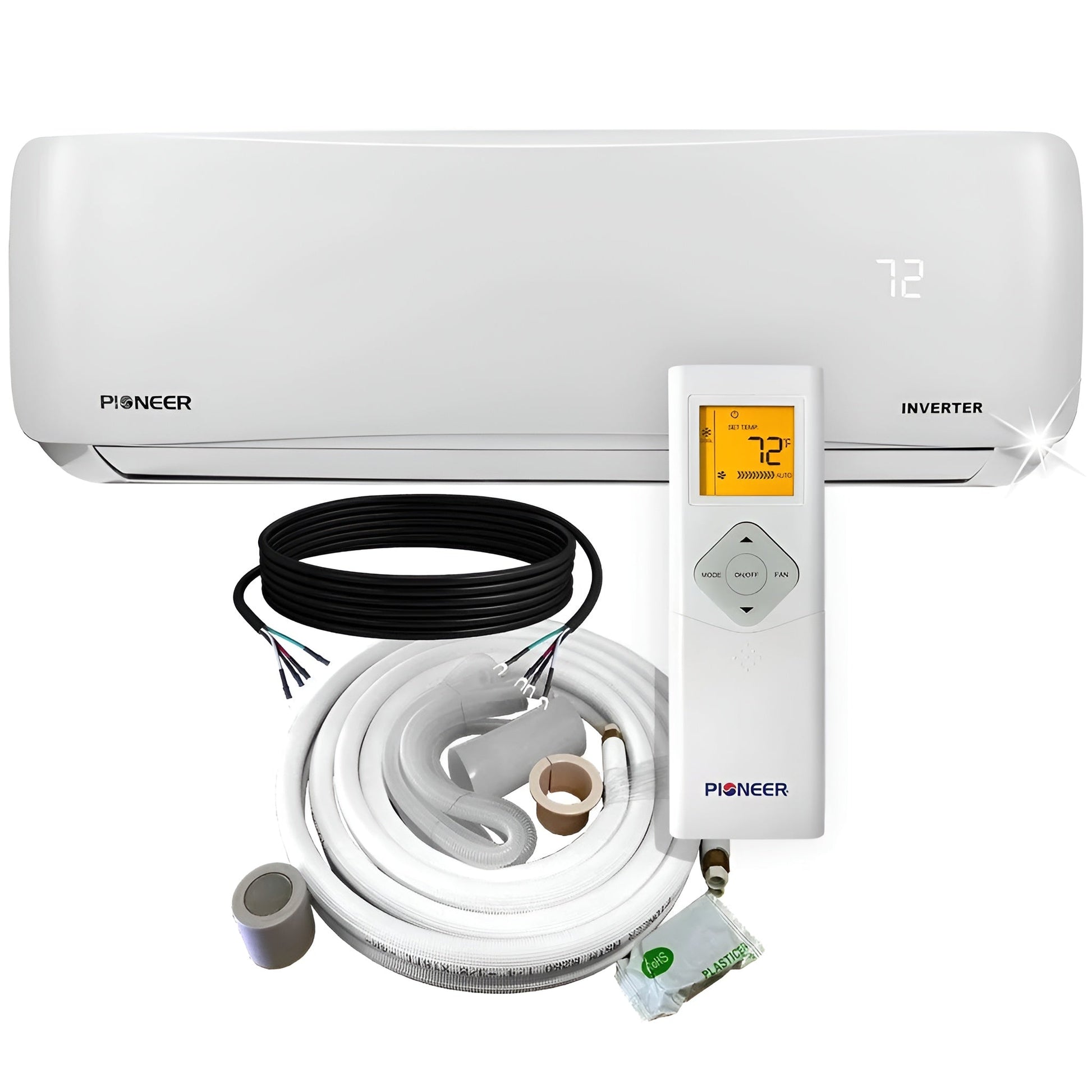

What's Includes

• Indoor Unit

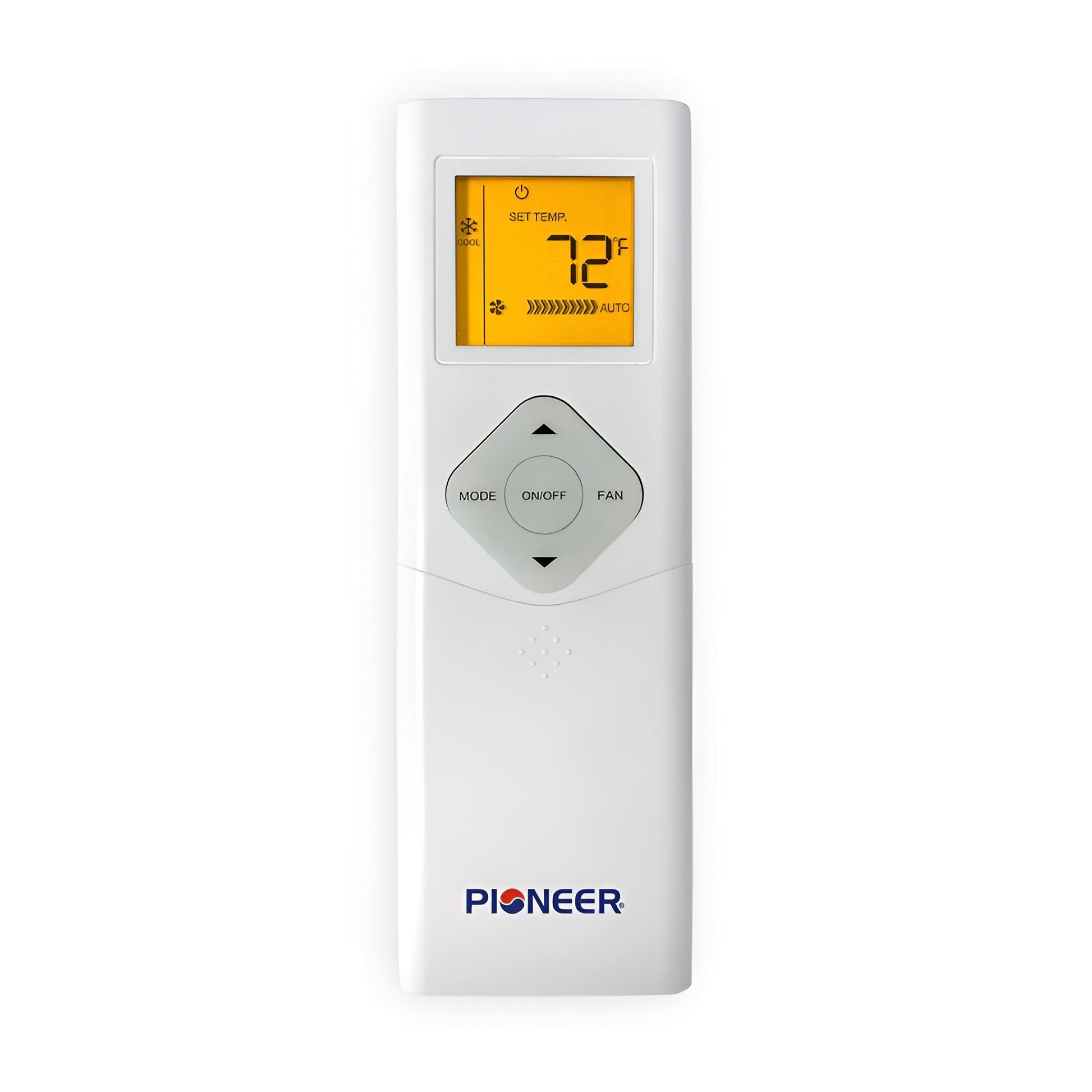

• Wireless Remote Control
• 25 Ft. Installation Kit
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Specifications

INSTALLATION & GUIDES

• Matching Table
• Specification Table

What Our Experts Think

• 9,000 BTU Capacity: Perfect for smaller rooms or individual zones, delivering efficient and reliable cooling and heating performance.
• 24 SEER Energy Efficiency: Extremely energy-efficient, helping you save on electricity bills while maintaining consistent comfort.
• Multi-Zone Capability: Allows for independent temperature control in different rooms or zones, offering personalized comfort for each space.
• Wall-Mount Design: Compact and space-saving, perfect for installations in tight spaces or where floor space is limited.
• Inverter Technology: Provides precise temperature control, quieter operation, and enhanced energy efficiency, ensuring optimal comfort with minimal energy use.
• Quiet Performance: Engineered for low noise levels, making it ideal for bedrooms, living rooms, or offices where a peaceful environment is important.
• Easy Installation: Comes with a 25 ft. pre-charged refrigerant line set, simplifying the installation process and saving time.

Q&A

Q: What is the cooling capacity of the Pioneer Multi Zone 9,000 BTU Wall Mount Air Handler?
A: This air handler provides 9,000 BTU of cooling power, ideal for smaller rooms or zones in a multi-zone system.

Q: What is the SEER rating of the Pioneer Multi Zone 9,000 BTU Wall Mount Air Handler?
A: It features a high 24 SEER rating, ensuring excellent energy efficiency and reducing overall energy costs.

Q: What are the key features of the Pioneer Multi Zone 9,000 BTU Wall Mount Air Handler?
A: This air handler includes quiet operation, advanced filtration, WiFi compatibility for remote monitoring, and inverter technology for enhanced energy savings.

Q: Does the Pioneer Multi Zone Wall Mount Air Handler provide both cooling and heating?
A: Yes, it is compatible with heat pump systems, providing both cooling and heating for year-round comfort.

Q: Is the Pioneer Multi Zone 9,000 BTU Wall Mount Air Handler easy to install?
A: Yes, it comes with a 25 ft. lineset for simple installation and flexible placement options for wall mounting in any space.

Maintenance Tips

• Clean or Replace Filters: Inspect and clean the air filters every 2-4 weeks to ensure optimal airflow. Replace the filters annually or when they become worn or damaged.
• Clean the Coils: Clean the evaporator coils once a year to remove dust, dirt, and debris. This helps maintain efficient heat exchange and ensures proper system operation.
• Inspect the Drain Line: Regularly check the condensate drain line for blockages and clear any clogs to prevent water leaks, damage, and mold growth.
• Monitor Refrigerant Levels: Ensure refrigerant levels are adequate for efficient cooling and heating. If the system is underperforming, consult a professional technician to check and recharge refrigerant if needed.
• Clear Airflow Paths: Ensure that the indoor unit is free from debris and obstructions that could affect airflow. Proper airflow is essential for efficient operation.
• Schedule Annual Professional Maintenance: Have a technician perform a yearly inspection to clean coils, check refrigerant levels, and ensure overall system efficiency.
