Pioneer Multi Zone 9,000 BTU Quantum Series One-Way Ceiling Cassette Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - CK009GMFILCFHD-10
Multi Zone One-Way Recessed Ceiling Cassette Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 9,000 BTU/Hr. (3/4 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22 SEER2. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.
Compatible Outdoor Units
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:
Notes
- Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
- Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
- Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.
- Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

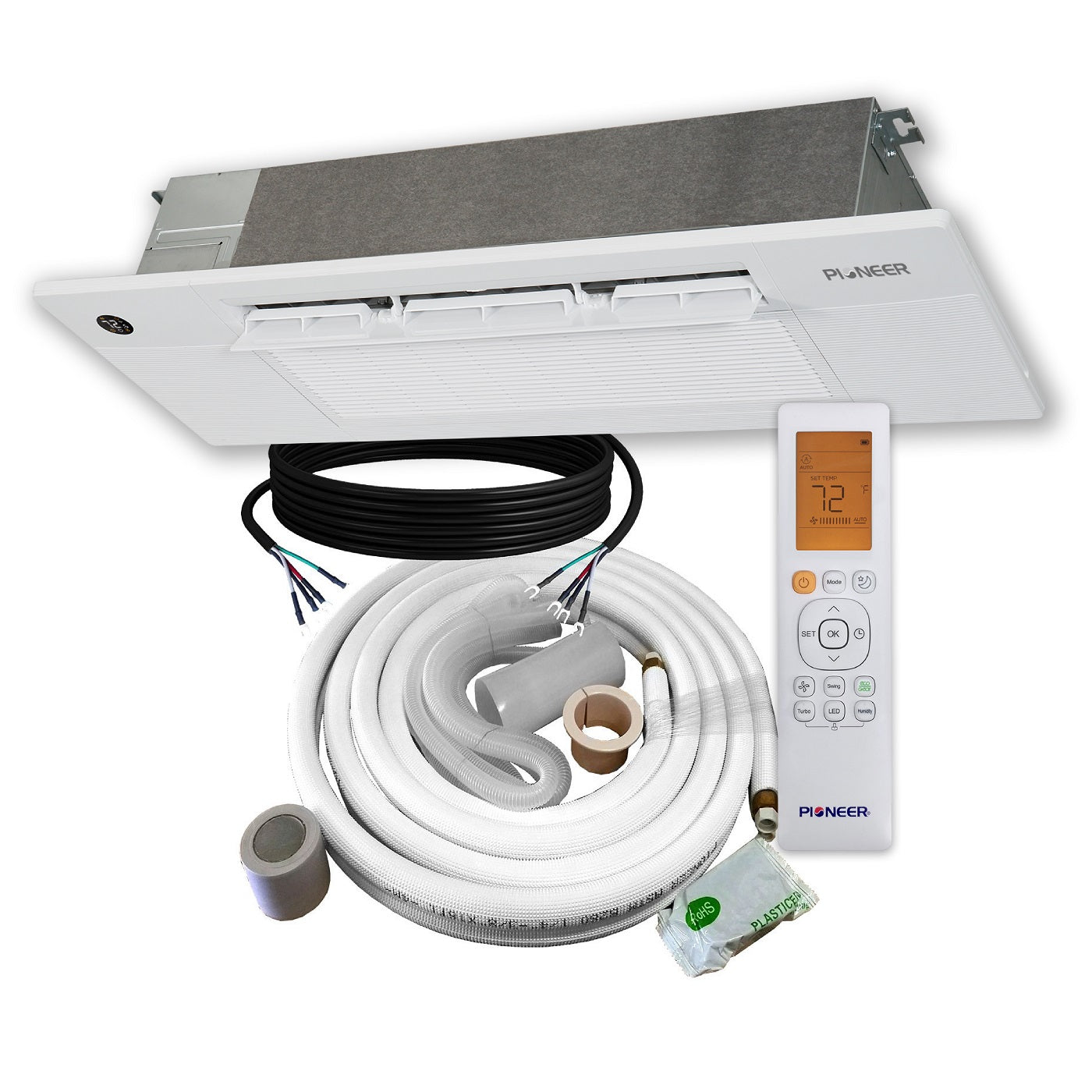

What's Included
- Indoor Unit

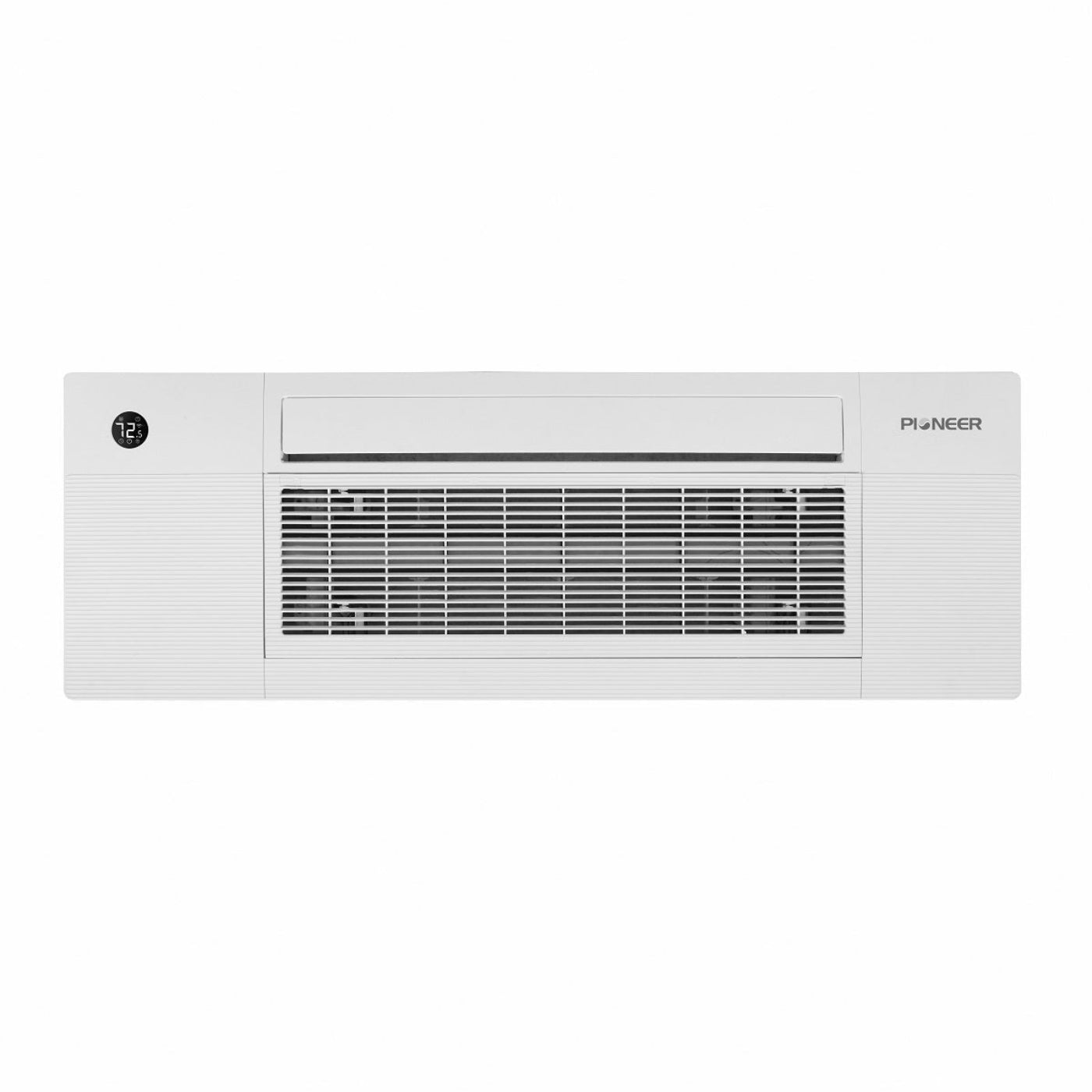

- Decorative Panel

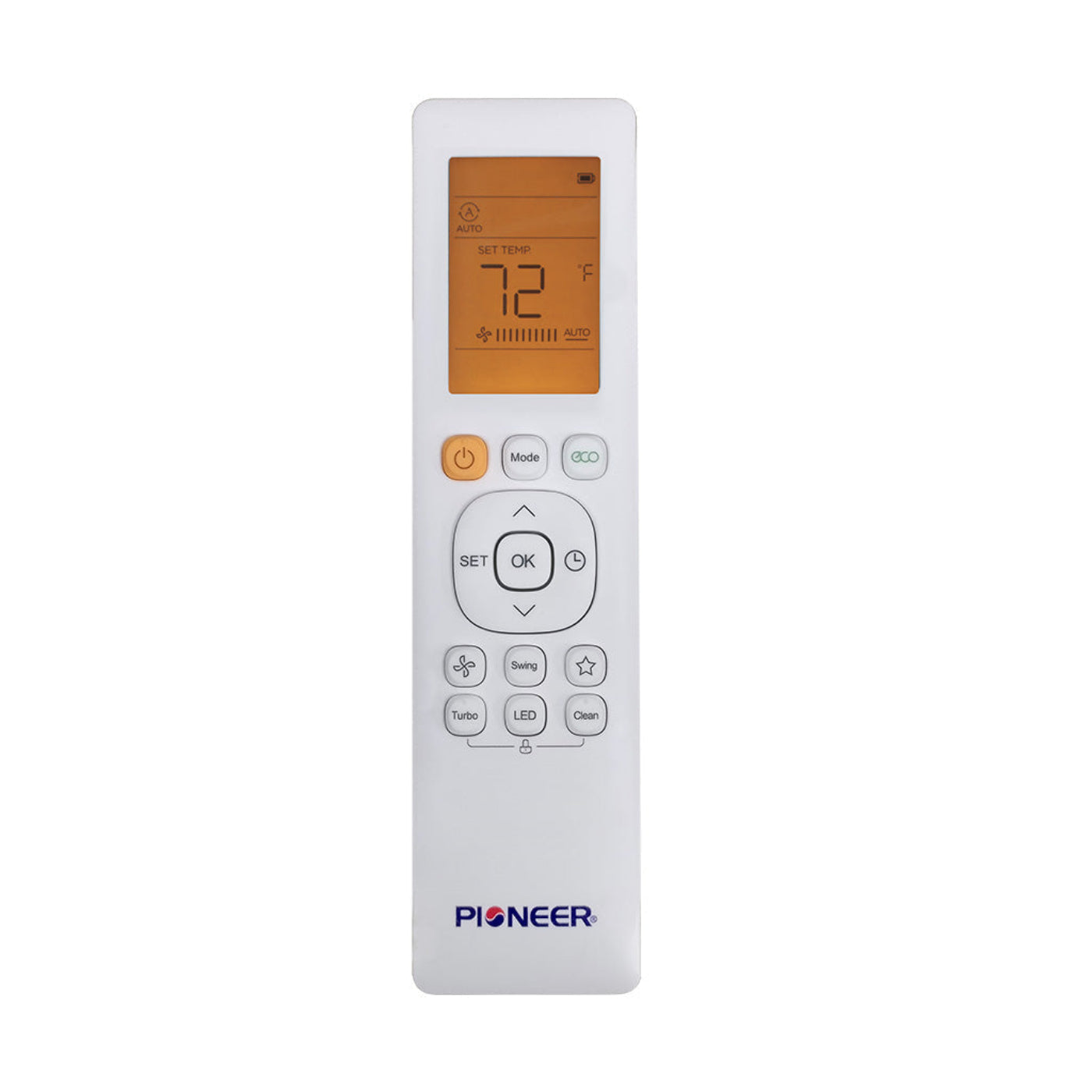

- Wireless Remote Control

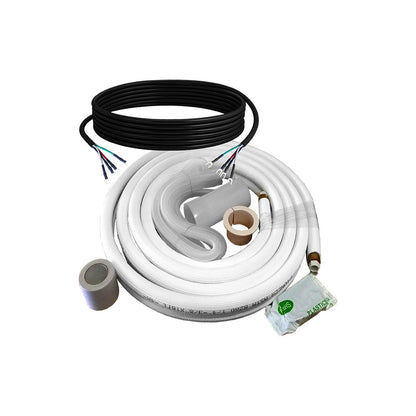

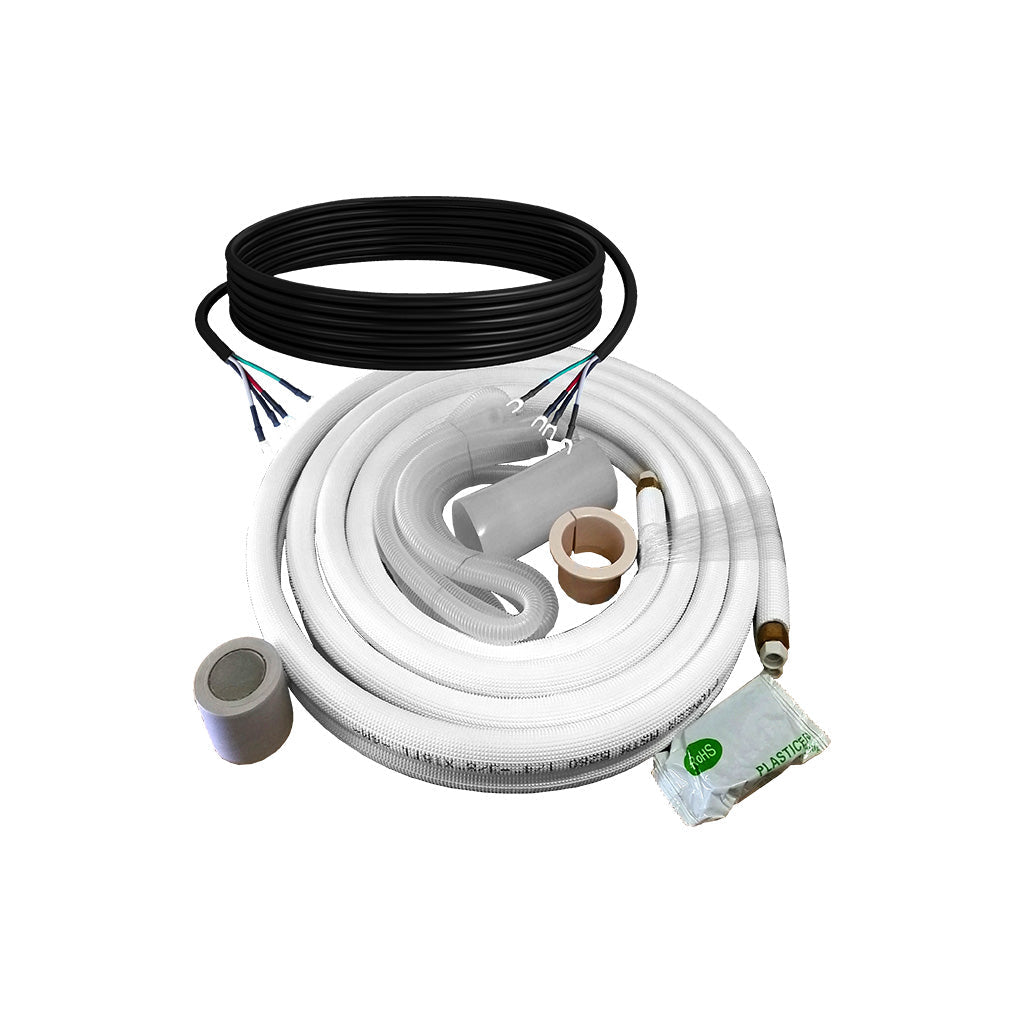

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Performance Data
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 9,000 BTU/h
-
Cooling SEER: 22.5
-
Heating Capacity: 11,000 BTU/h
-
Heating HSPF: 11.5
-
Suitable Area: 150~350 Sq.F
- Air Flow (Turbo/Hi/Med/Lo): 580 / 500 / 440 / 400 CFM
- Sound Level (Hi/Med/Lo): 38 / 36 / 33 dB(A)
- Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
- Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
- Net / Carton Weight: 44 / 81 Lbs
- Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
-
Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
- Panel Net / Gross Weight: 24 / 29 Lbs
Manuals
What Our Experts Think
-
9,000 BTU one-way ceiling cassette designed for Pioneer Quantum Series multi-zone systems.
-

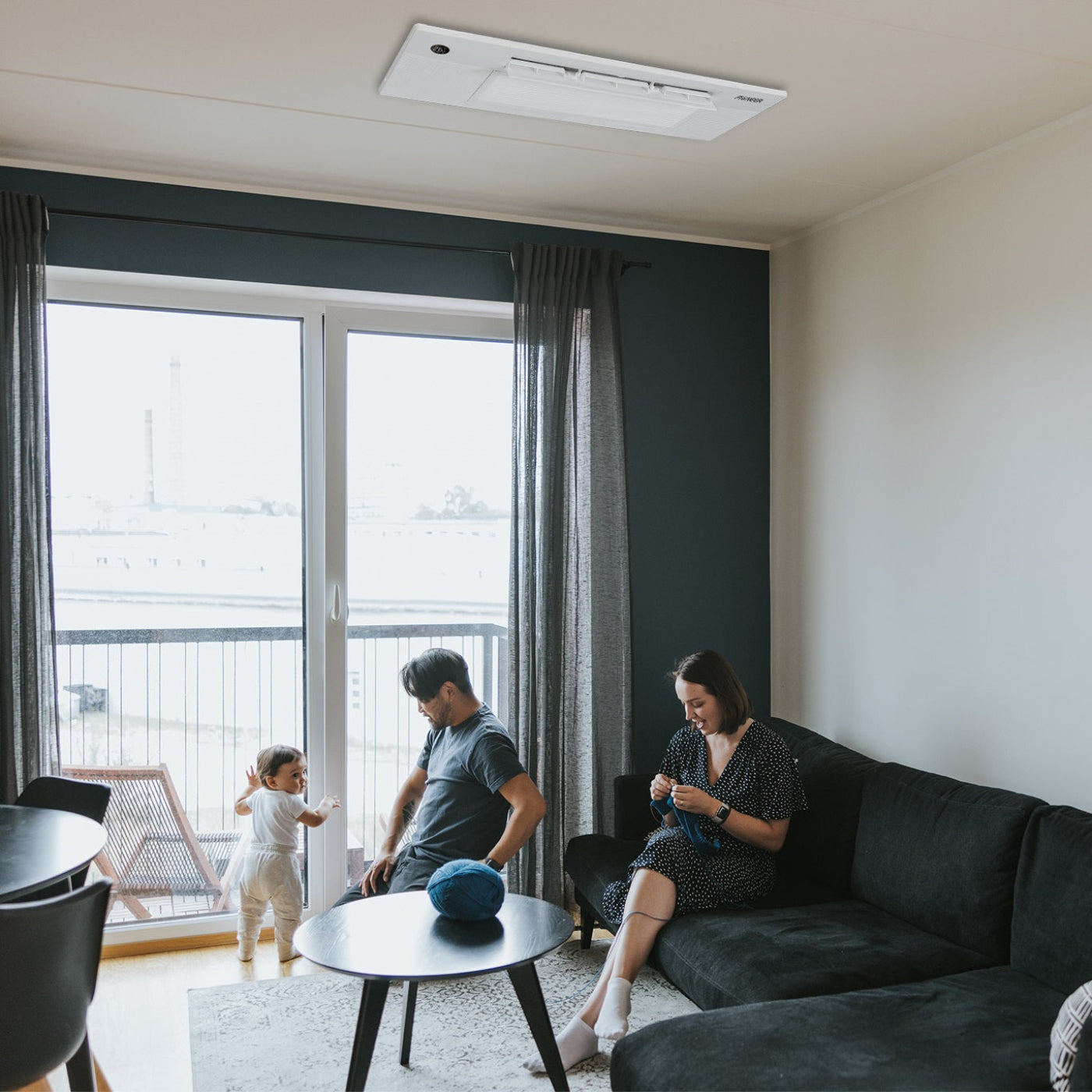

Slim cassette design blends seamlessly into ceilings for a discreet look.
-
Inverter++ technology delivers quiet, energy-efficient heating and cooling.
-
Ideal solution for rooms where wall space is limited.
-
230V operation ensures stable performance in residential or light commercial spaces.
Q&A
Q: Can this unit operate independently?
A: No, it must be connected to a compatible Pioneer Quantum Series outdoor condenser.
Q: What size room is this unit suitable for?
A: Best for small to medium rooms up to ~400 sq. ft.
Q: Why choose a ceiling cassette over a wall mount?
A: It saves wall space, offers wider airflow distribution, and blends into the ceiling for a clean finish.
Maintenance Tips
-
Clean air filters every 4–6 weeks to maintain airflow.
-
Inspect ceiling intake and discharge areas for dust buildup.
-
Ensure the condensate drain line stays clear to prevent leaks.
-
Schedule annual professional servicing for system checks and refrigerant levels.
