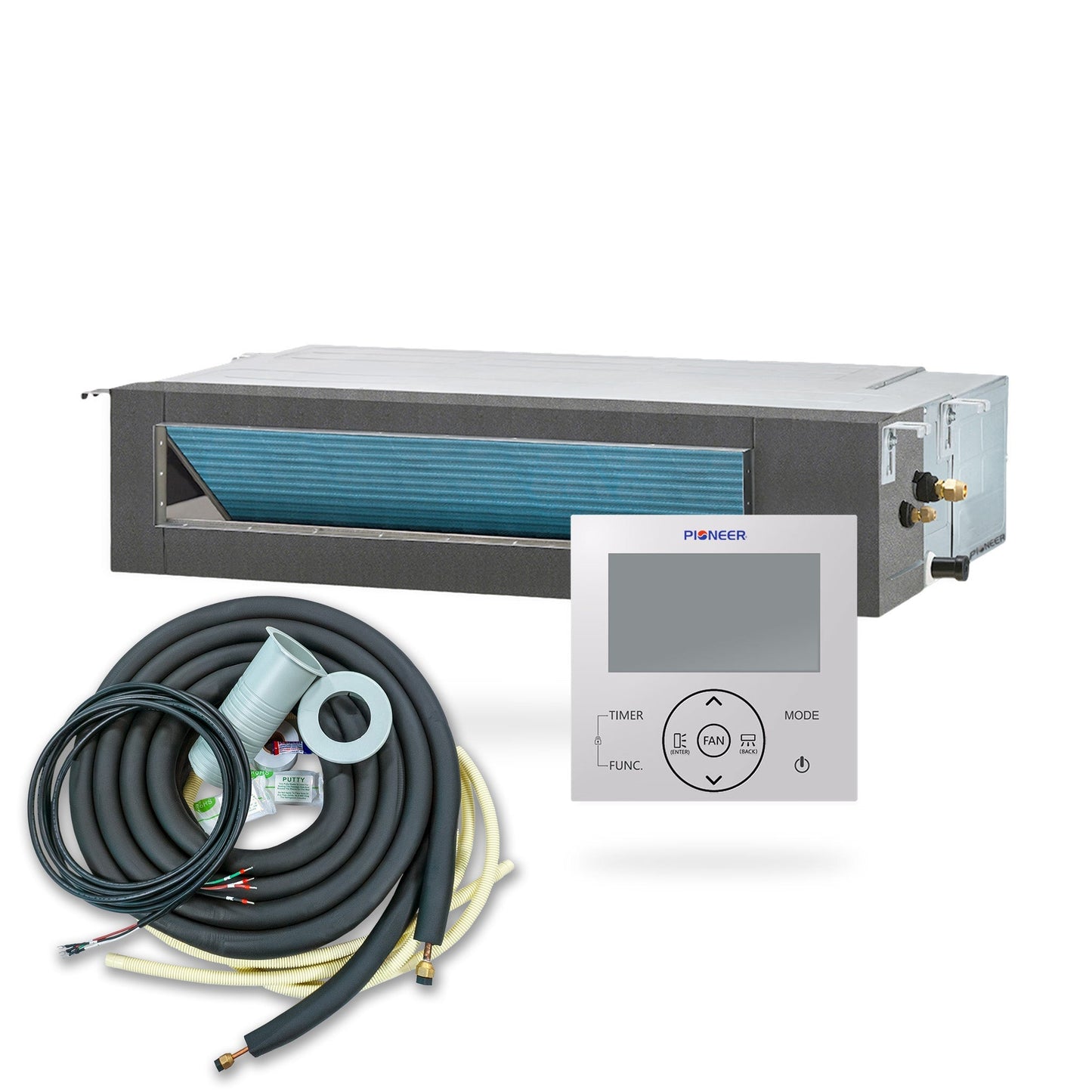

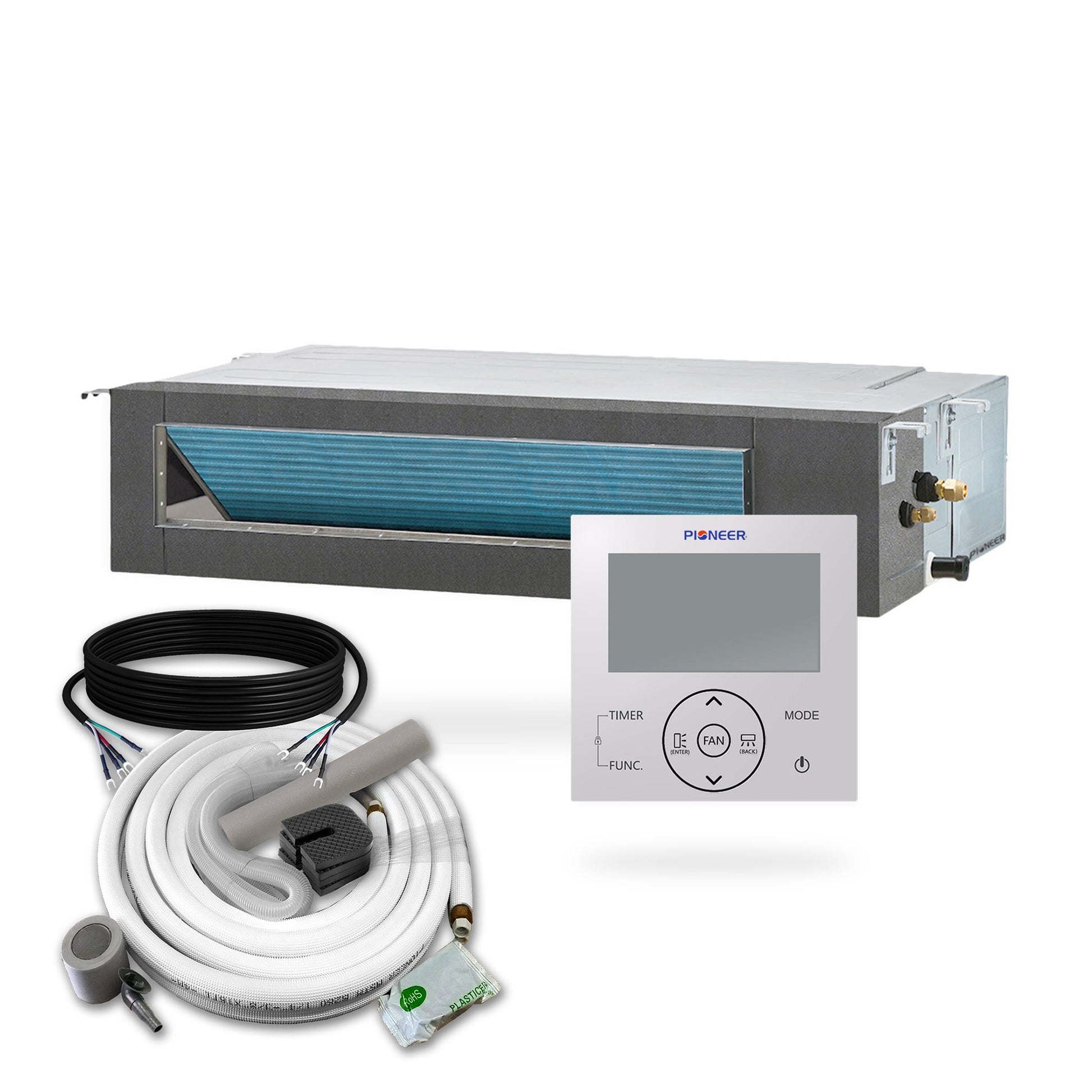

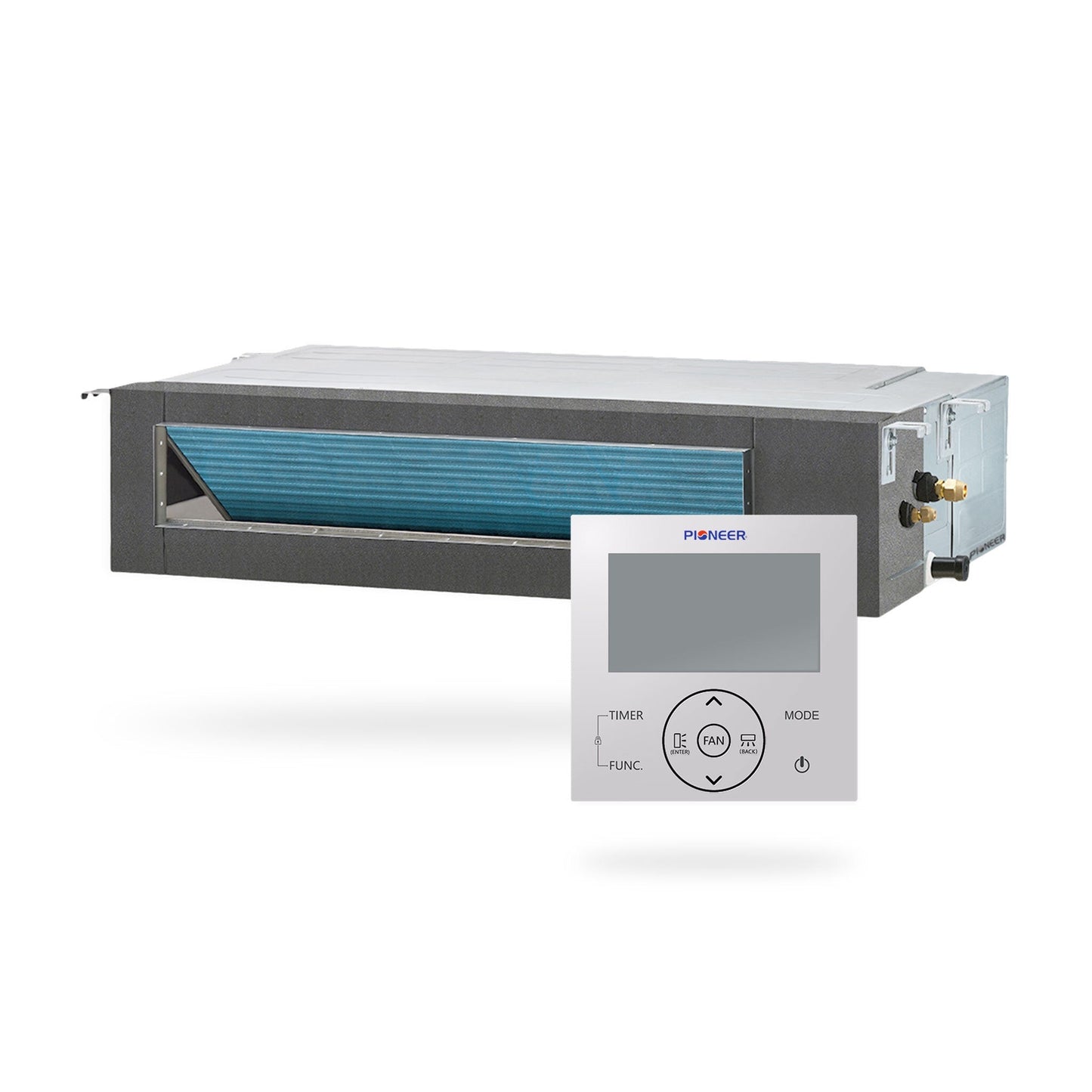

Pioneer Multi Zone 9,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 9,000 BTU/h
-
Heating Capacity: 9,000 BTU/h
-
Suitable Area: 150~350 Sq.F
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 335/305/276/182/160 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 42/39/34/28/27 dB(A)
-
Product Dimensions (WDH): 27"-1/2 x 19-1/4" x 7-7/8" Inches
-
Carton Dimensions (WDH): 35-1/2" x 21-7/8" x 9-7/8" Inches
-
Net / Gross Weight: 33.1 / 40.8 lbs
Compatibility
What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
9,000 BTU concealed ceiling indoor unit designed for Pioneer multi-zone systems.
-
Inverter++ technology delivers efficient, quiet heating and cooling.
-
Fully ductable design allows hidden installation with flexible airflow.
-
Built-in Wi-Fi control for easy smartphone and smart-home integration.
-
Ideal for maintaining clean, modern room aesthetics without visible units.
Q&A
Q: Is this a full system or just the indoor unit?
A: This is the indoor concealed ductable section for Pioneer multi-zone setups.
Q: Does it handle both heating and cooling?
A: Yes, when connected to a compatible outdoor condenser.
Q: Can it be controlled remotely?
A: Yes, built-in Wi-Fi enables full app-based operation.
Maintenance Tips
-
Inspect and clean filters every 4–6 weeks to maintain airflow.
-
Check ducts regularly to ensure no blockages or leaks.
-
Keep condensate drain lines clear to avoid water issues.
-
Schedule annual professional servicing for reliable performance.
