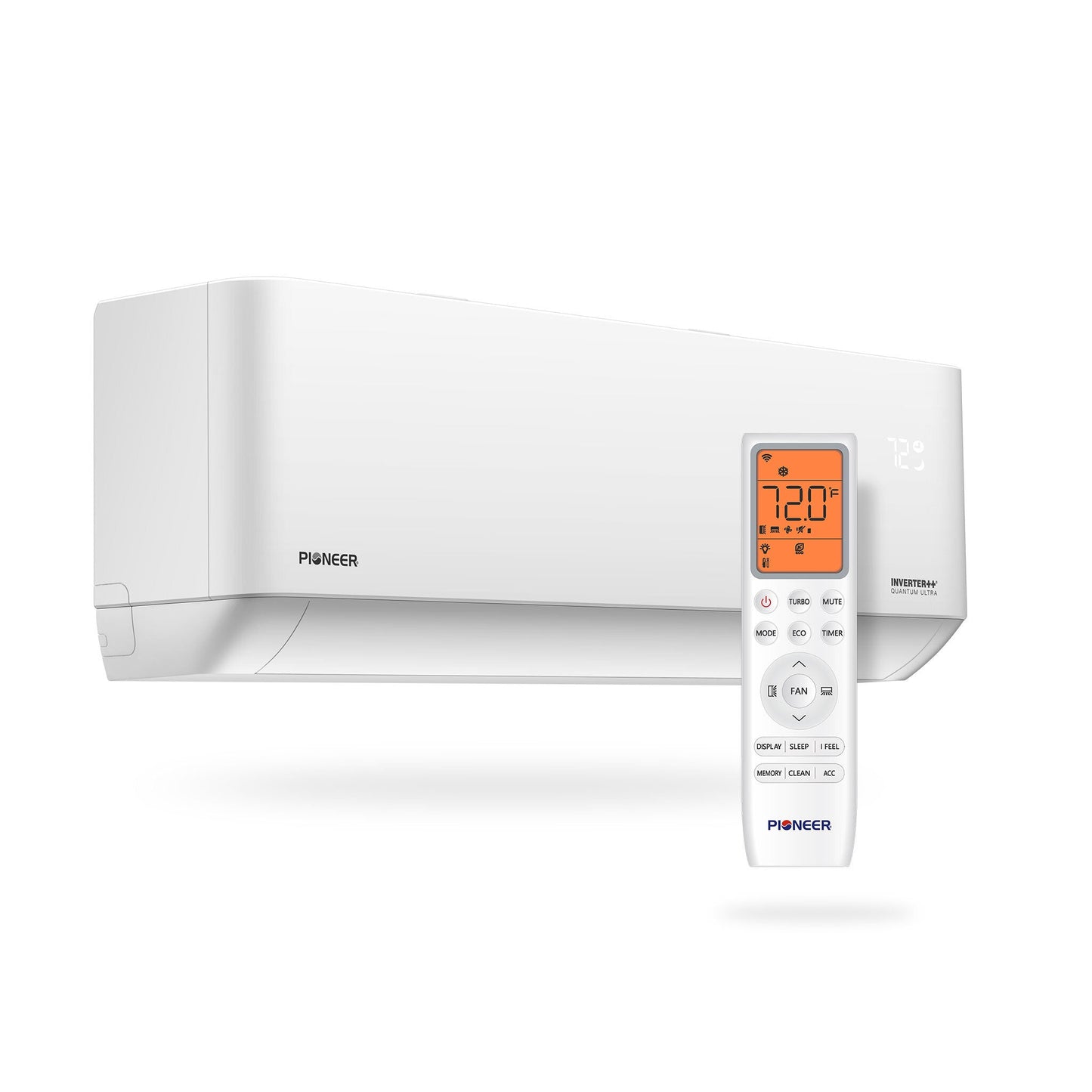

Pioneer Multi Zone 9,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 9,000 BTU/h
-
Heating Capacity: 10,000 BTU/h
-
Suitable Area: 200~350 Sq.F
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
-
Product Dimensions (WDH): 32"-1/4 x 7-5/8" x 12" Inches
-
Carton Dimensions (WDH): 35" x 10-1/2" x 15" Inches
-
Net / Gross Weight: 20.7 / 25.1 lbs
- Piping Diameter: 1/4-3/8"
Compatibility

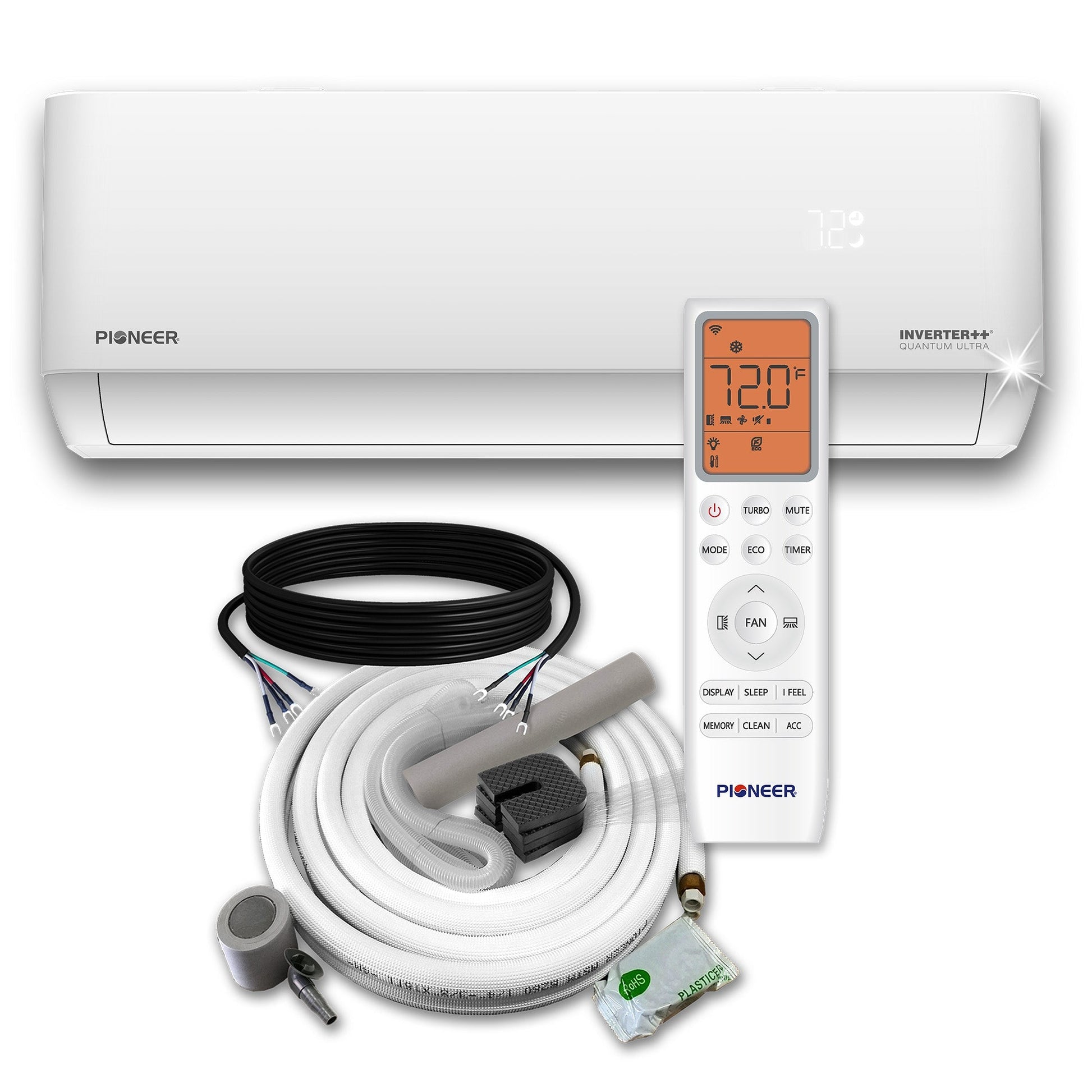

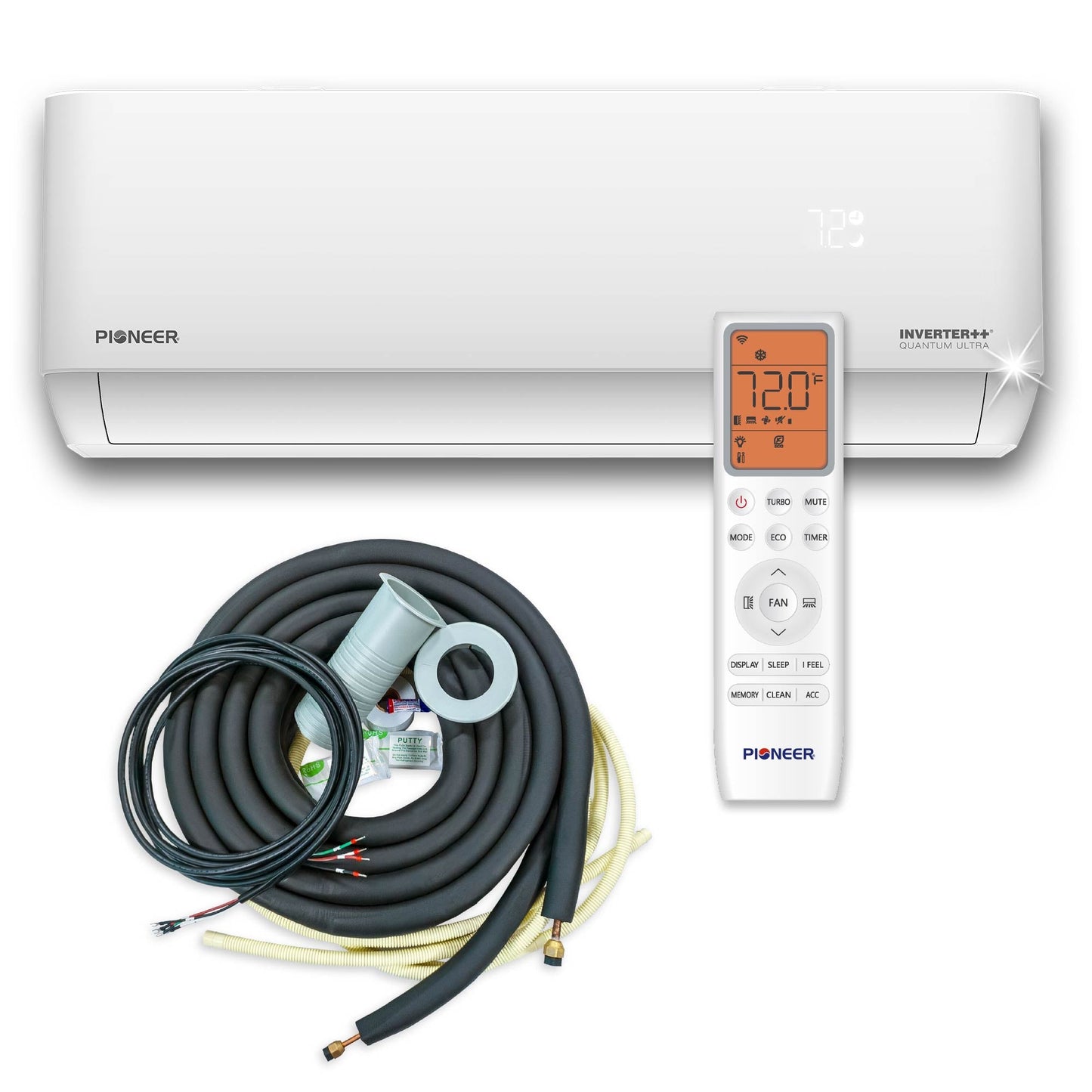

What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-
9,000 BTU wall-mounted indoor unit for Pioneer multi-zone systems.
-
Inverter++ technology ensures energy-efficient heating and cooling.
-
Sleek, modern high-wall design saves space and complements interiors.
-
Wi-Fi enabled for smartphone control and smart-home integration.
-
Reliable performance for year-round comfort when paired with an outdoor unit.
Q&A
Q: Is this the full system or just the indoor section?
A: This is the indoor wall-mounted unit for use with Pioneer multi-zone condensers.
Q: Does it provide both heating and cooling?
A: Yes, when connected to a compatible outdoor heat pump unit.
Q: Can it be controlled remotely?
A: Yes, built-in Wi-Fi allows app-based remote operation.
Maintenance Tips
-
Clean filters every 4–6 weeks to maintain airflow and efficiency.
-
Wipe down unit panels regularly to prevent dust buildup.
-
Keep airflow paths clear of obstructions.
-
Schedule annual professional servicing for best performance.
