Pioneer Multi Zone 9,000 BTU Diamante Ultra Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - WT009GLFI22HLD-10
Performance
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 9,000 BTU/h
-
Cooling SEER: 23
-
Heating Capacity: 9,500 BTU/h
-
Heating HSPF: 10
-
Suitable Area: 250~350 Sq.F
-
Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
-
Sound Level (Hi/Med/Lo/Mute): 39 / 34 / 29 / 27 dB(A)
-
Net Dimensions (WDH): 32-1/4 × 7-5/8 × 12 Inches
-
Carton Dimensions (WDH): 35 × 10-3/8 × 15 Inches
-
Net / Gross Weight: 19.8 / 24.3 Lbs
Manuals

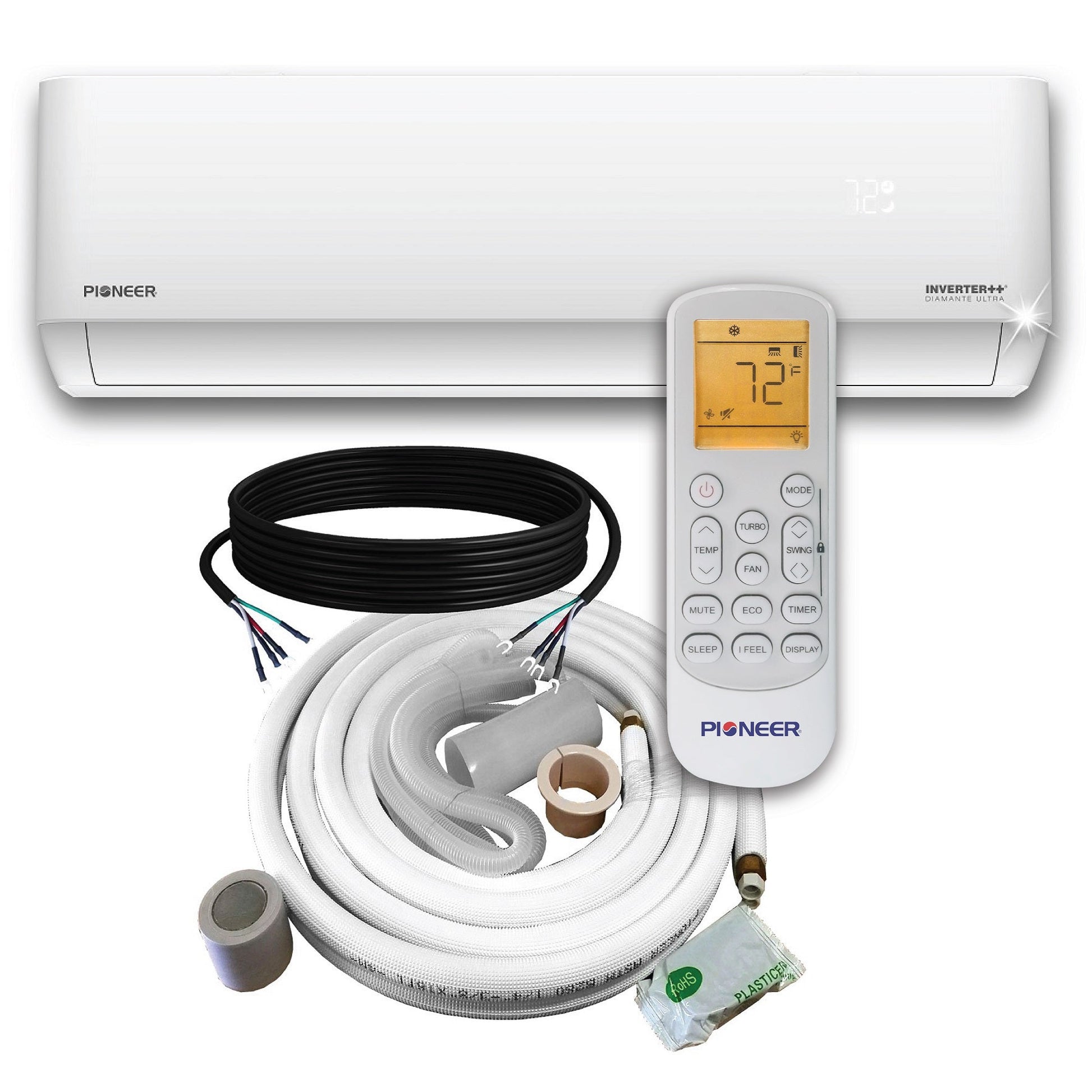

What's Included
- Indoor Unit

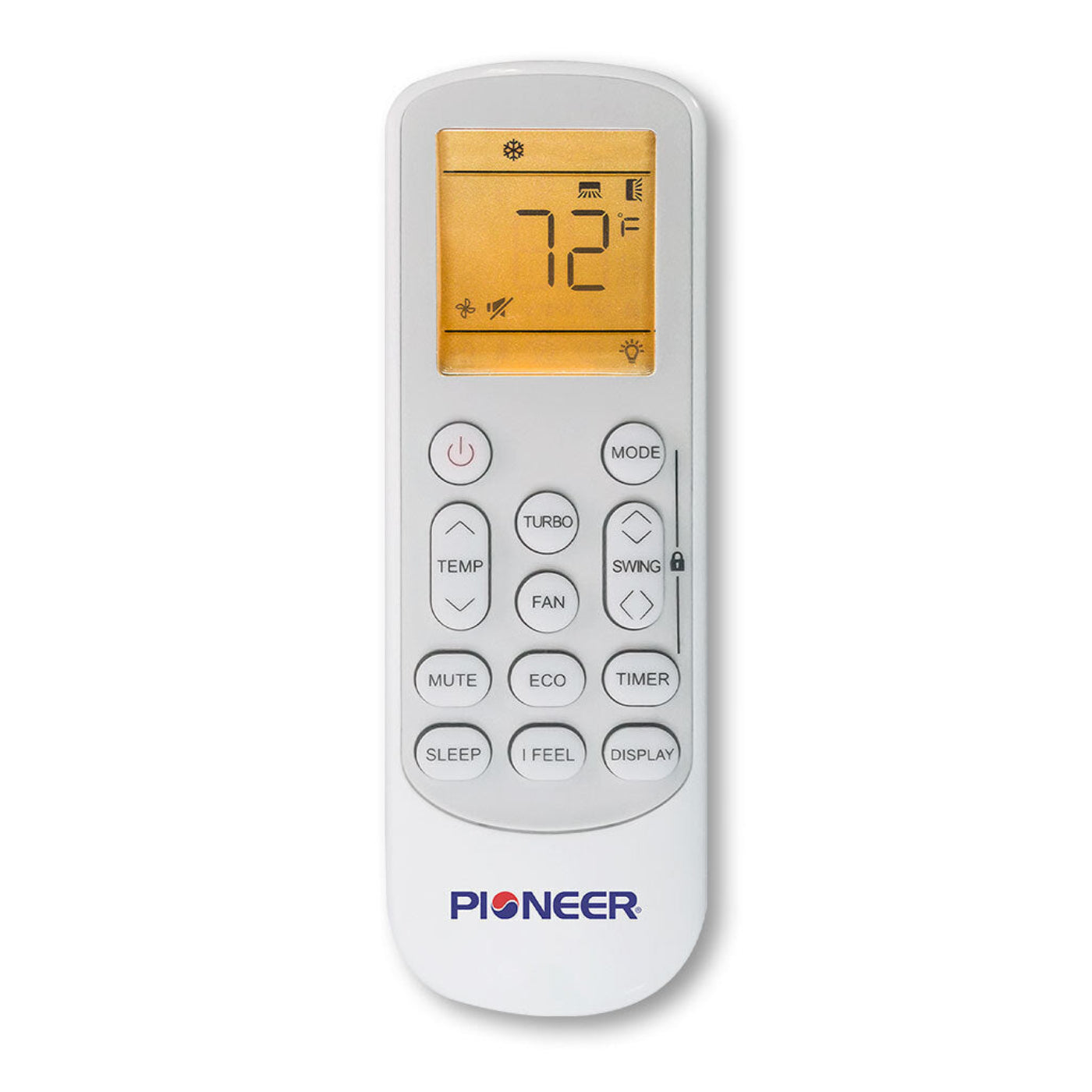

- Wireless Remote Control
- Wi-Fi Module w/ Free App

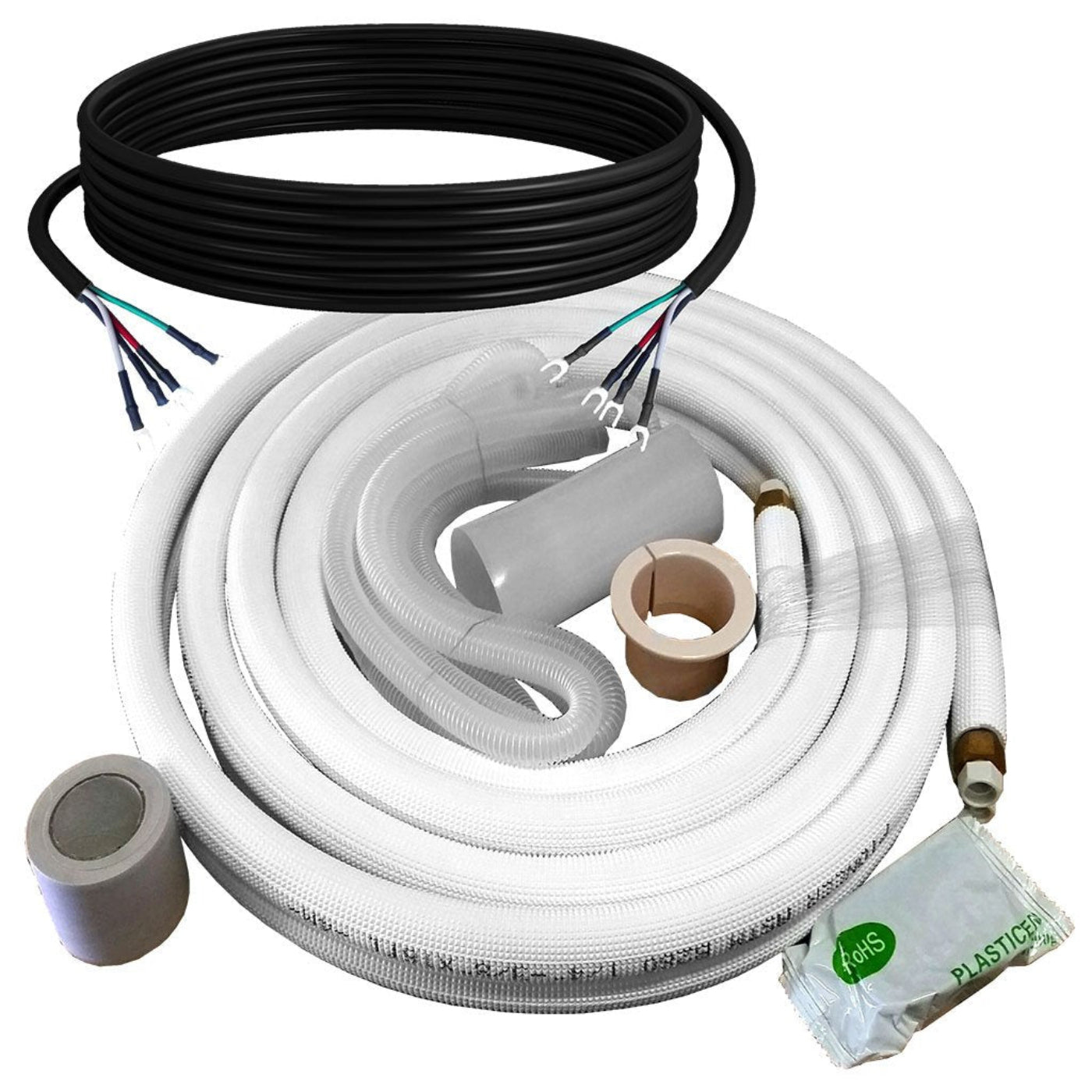

- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
What Our Experts Think
-

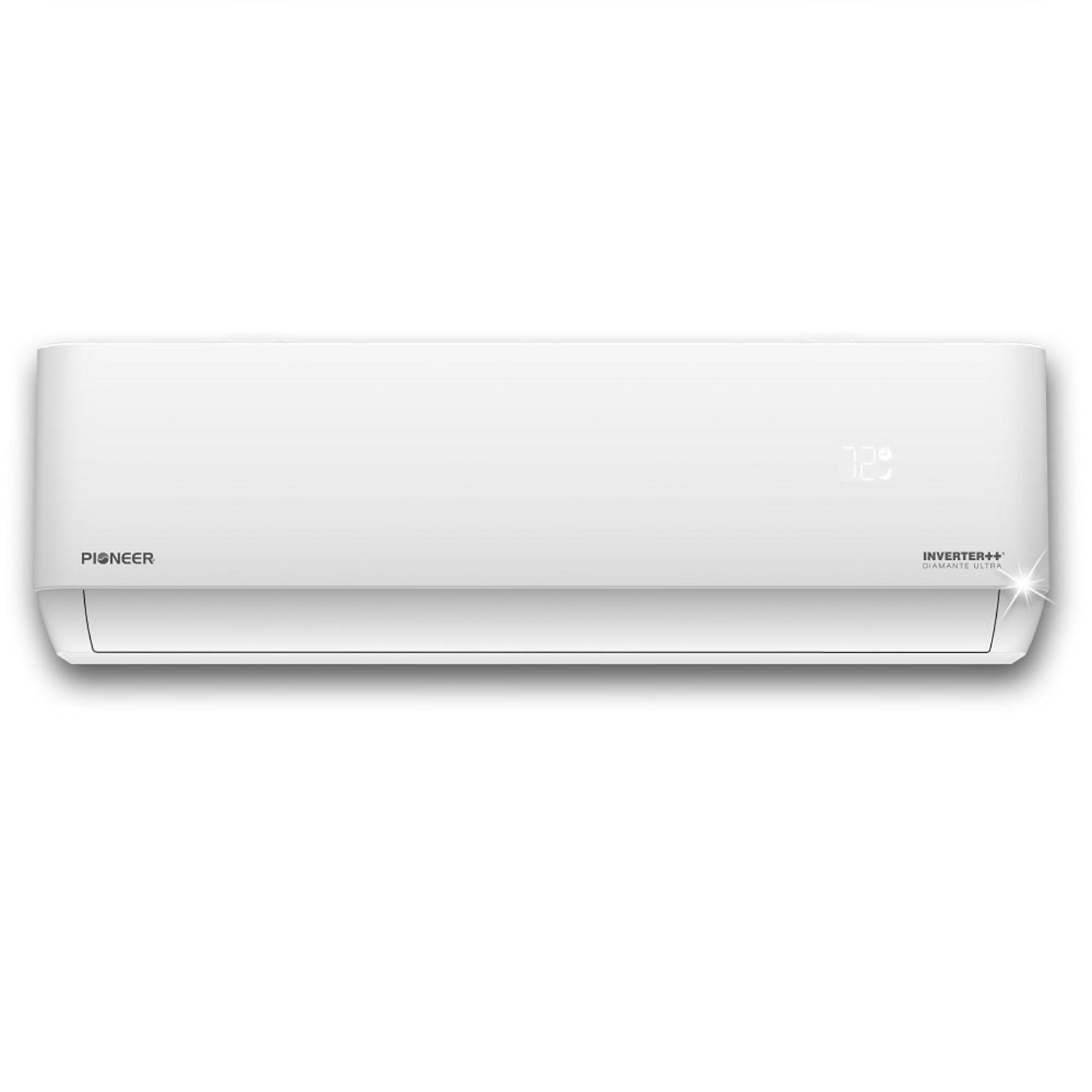

9,000 BTU wall-mounted indoor unit designed for Pioneer multi-zone systems.
-
Diamante Ultra series ensures high efficiency and ultra-quiet performance.
-
Inverter++ technology delivers precise temperature control and energy savings.
-
Wi-Fi enabled for remote access and smart device integration.
-
Ideal for bedrooms, offices, or small living spaces in multi-zone setups.
Q&A
Q: Can this indoor unit operate on its own?
A: No, it must be paired with a compatible Pioneer multi-zone outdoor system.
Q: Does it provide both heating and cooling?
A: Yes, when connected to the outdoor system, it functions as both AC and heat pump.
Q: Is Wi-Fi built in?
A: Yes, the unit includes Wi-Fi capability for remote operation through the Pioneer app.
Maintenance Tips
-
Clean or wash filters every 4–6 weeks for best airflow and performance.
-
Wipe the unit’s surface regularly to reduce dust buildup.
-
Ensure vents are unobstructed for consistent airflow.
-
Schedule professional service annually to check refrigerant levels and connections.
