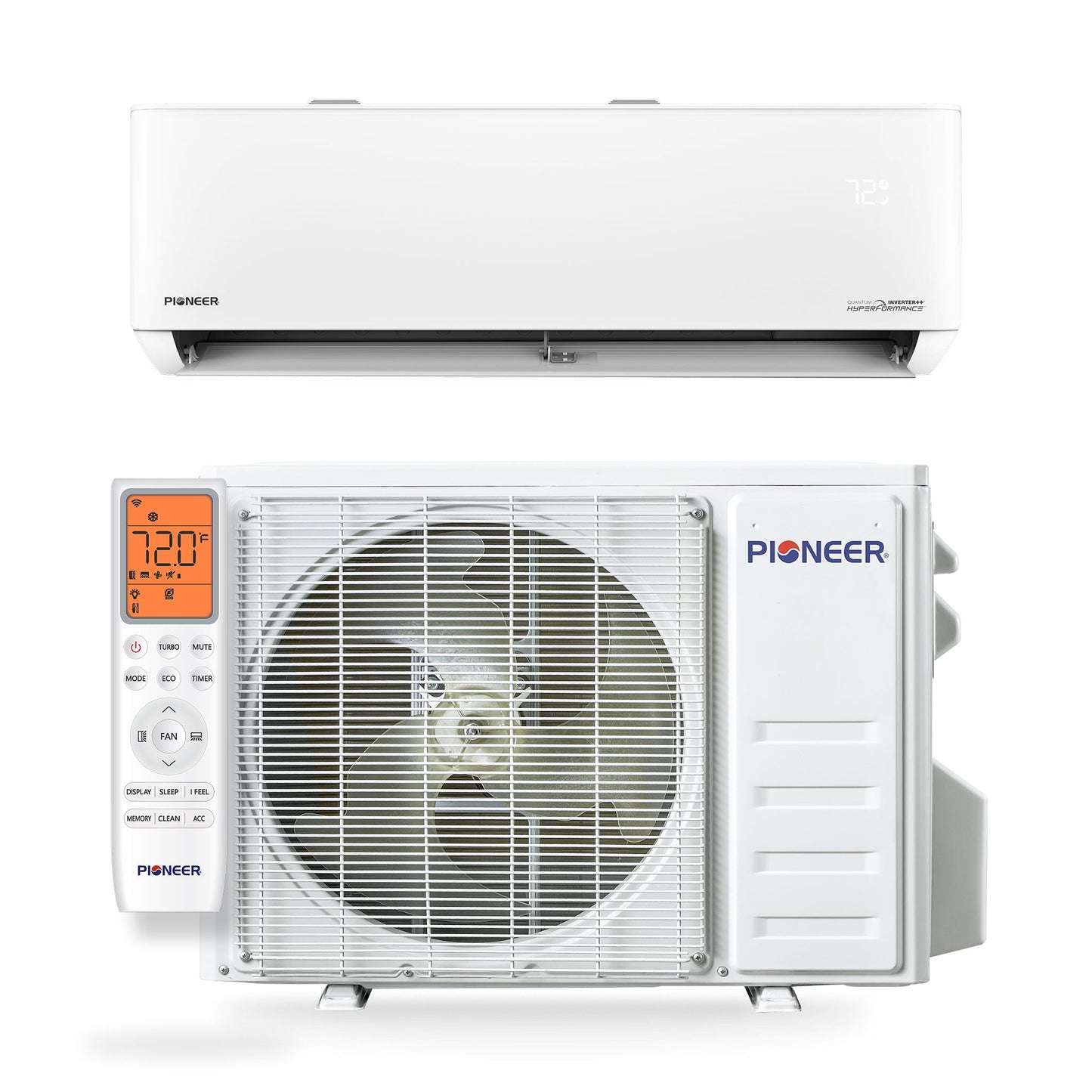

Pioneer Quantum Hyperformance 12,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set - WYT012GLSI25RH-10S

Pioneer Quantum Hyperformance 12,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set - WYT012GLSI25RH-10S

• Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 25.0 SEER2 / 14.0 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 10.5 HSPF2 / 4.0 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System

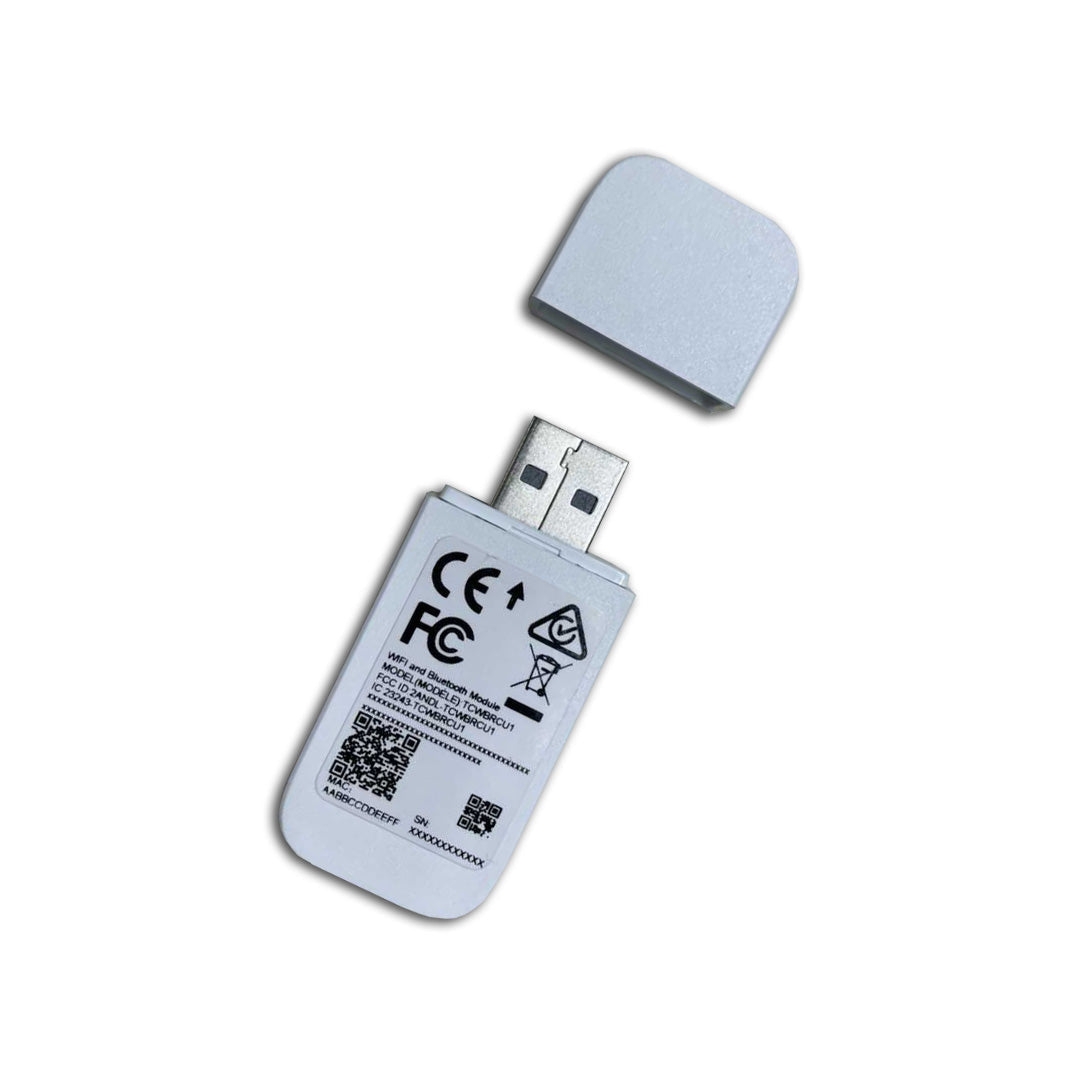

• Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

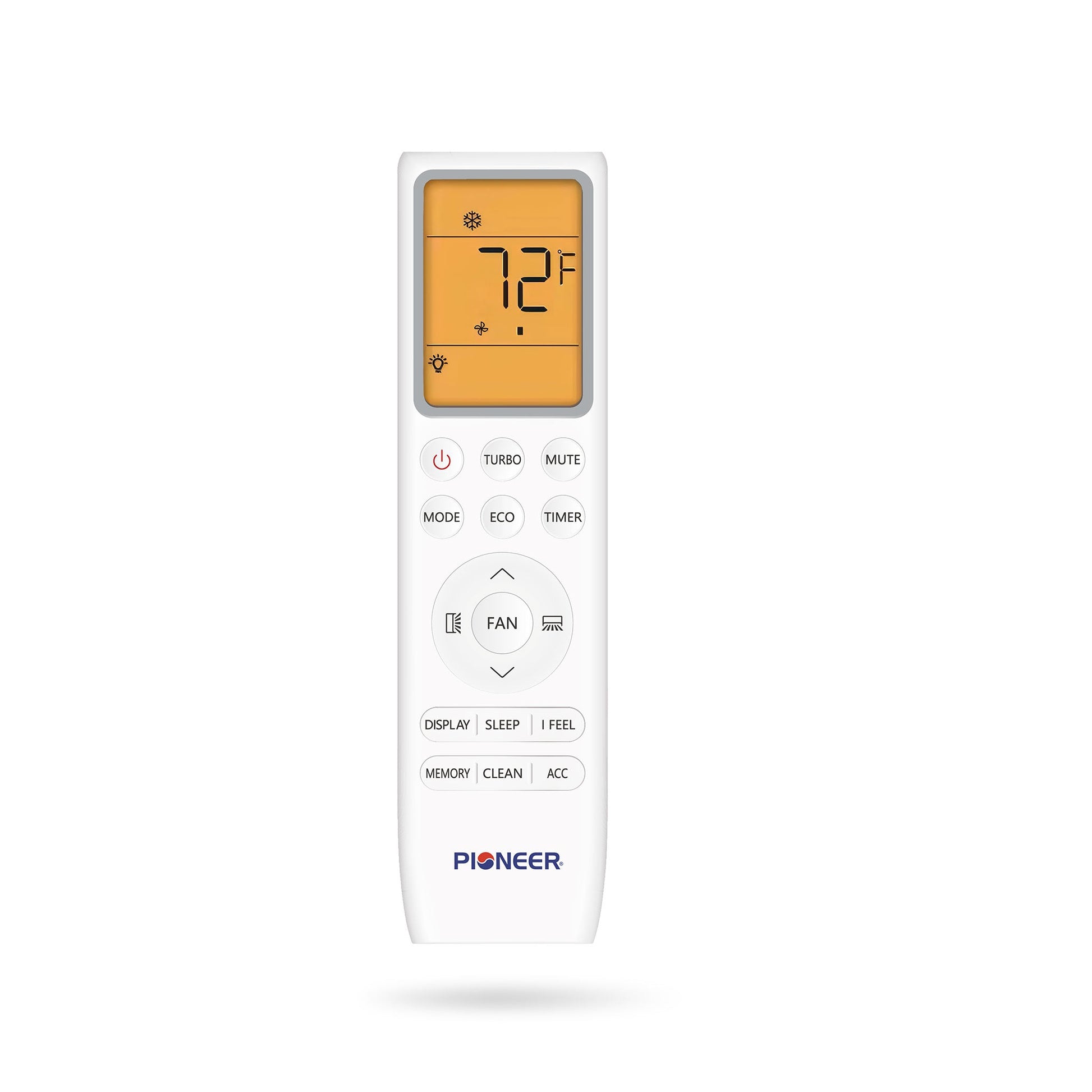

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Performance

• Energy Guide

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,500~15,600 BTU/h
  • Cooling SEER2: 25.0 BTU/W.h
  • Cooling EER2: 14.0 BTU/W.h
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 2,500~19,700 BTU/h
  • Heating HSPF2 (Region IV): 10.5 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 4.0 / 1.8 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 250~500 Sq.F
  • Minimum Room Size: 40 sq ft
  • Minimum Installation Height: 6 ft
  • Piping Diameter: 1/4 x 3/8"
  • AHRI Reference: 217048755

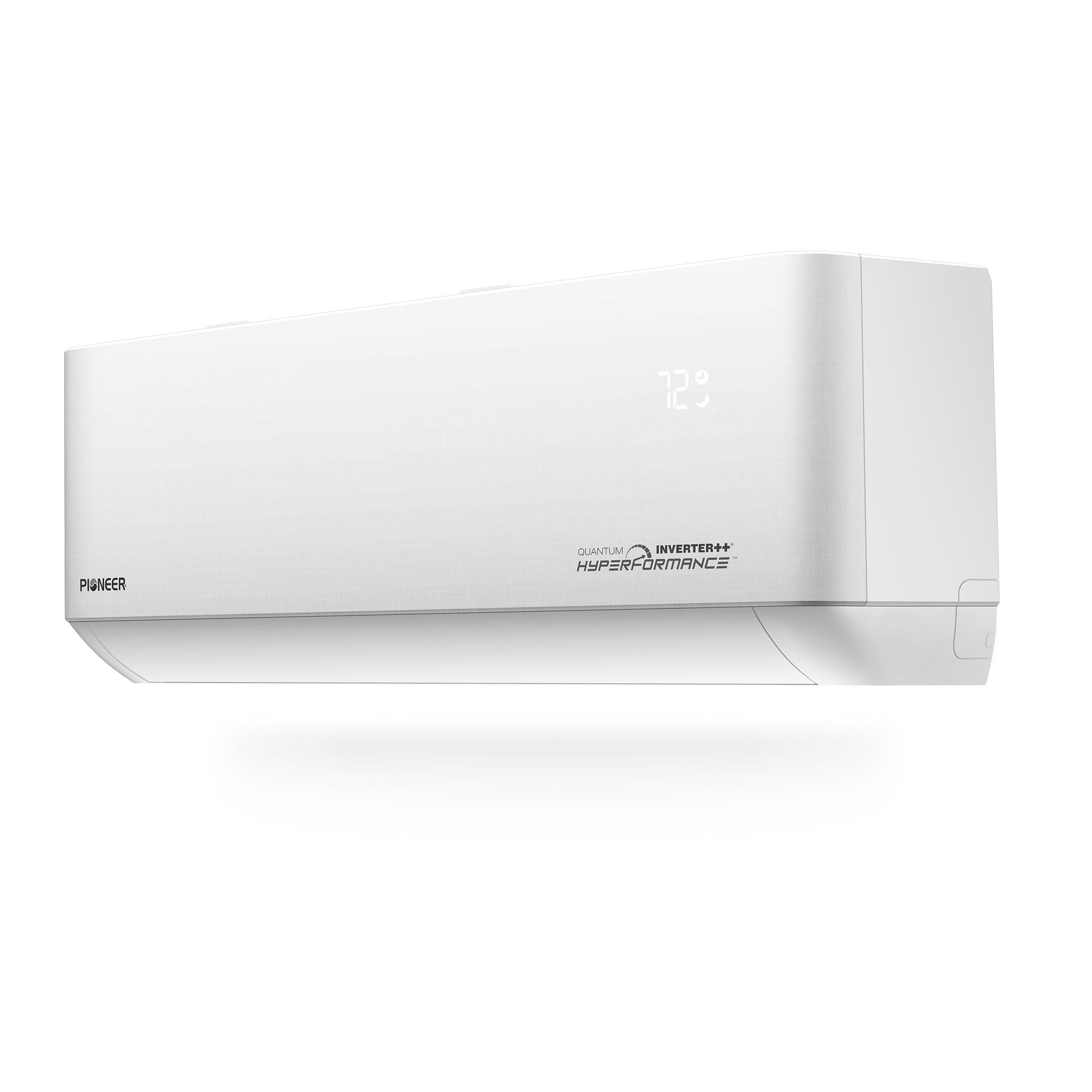

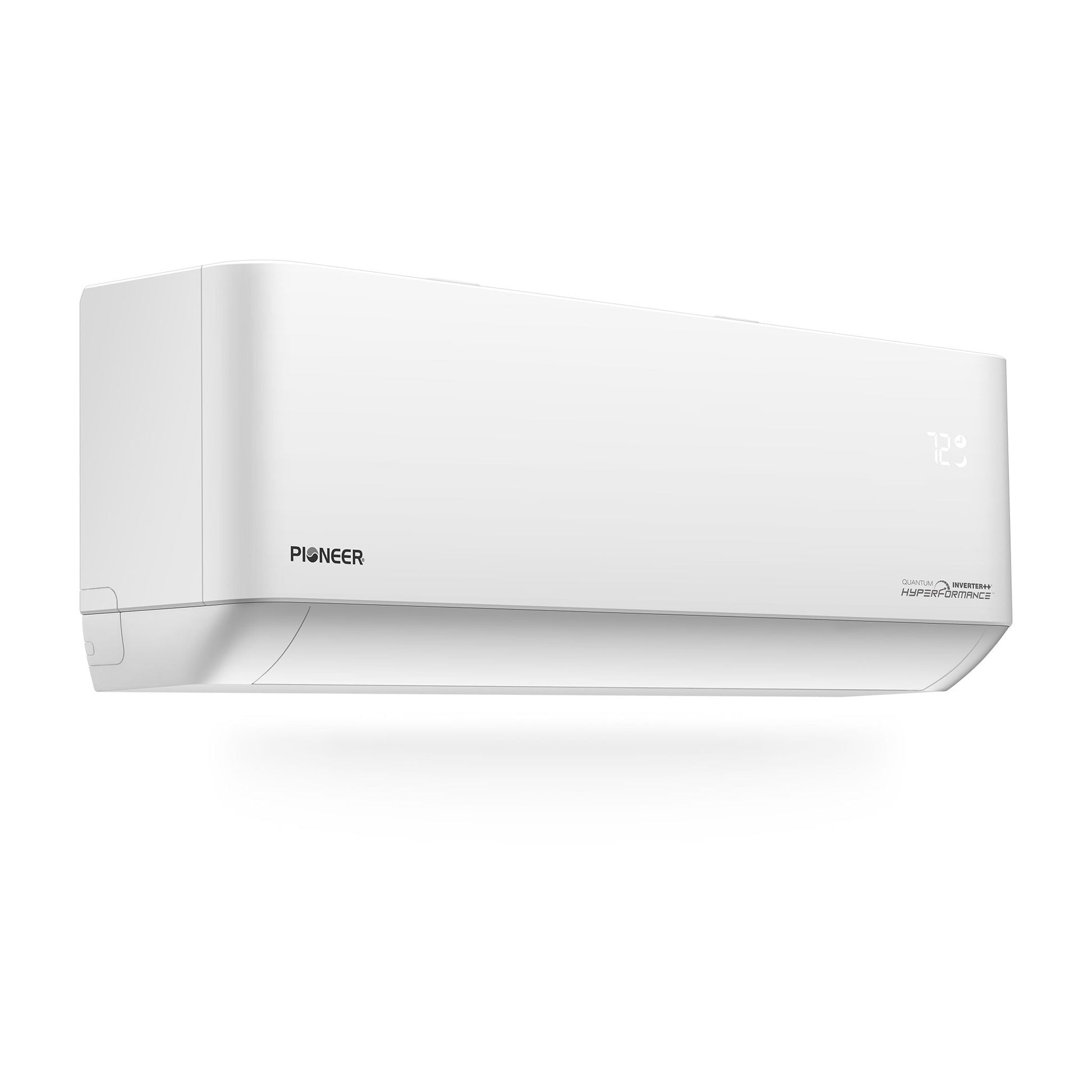

• Indoor Unit
  • Part Number: WT012GLSI25HLH
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
  • Product Dimensions (WDH): 36"-1/4 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 23.1 / 30.9 lbs.

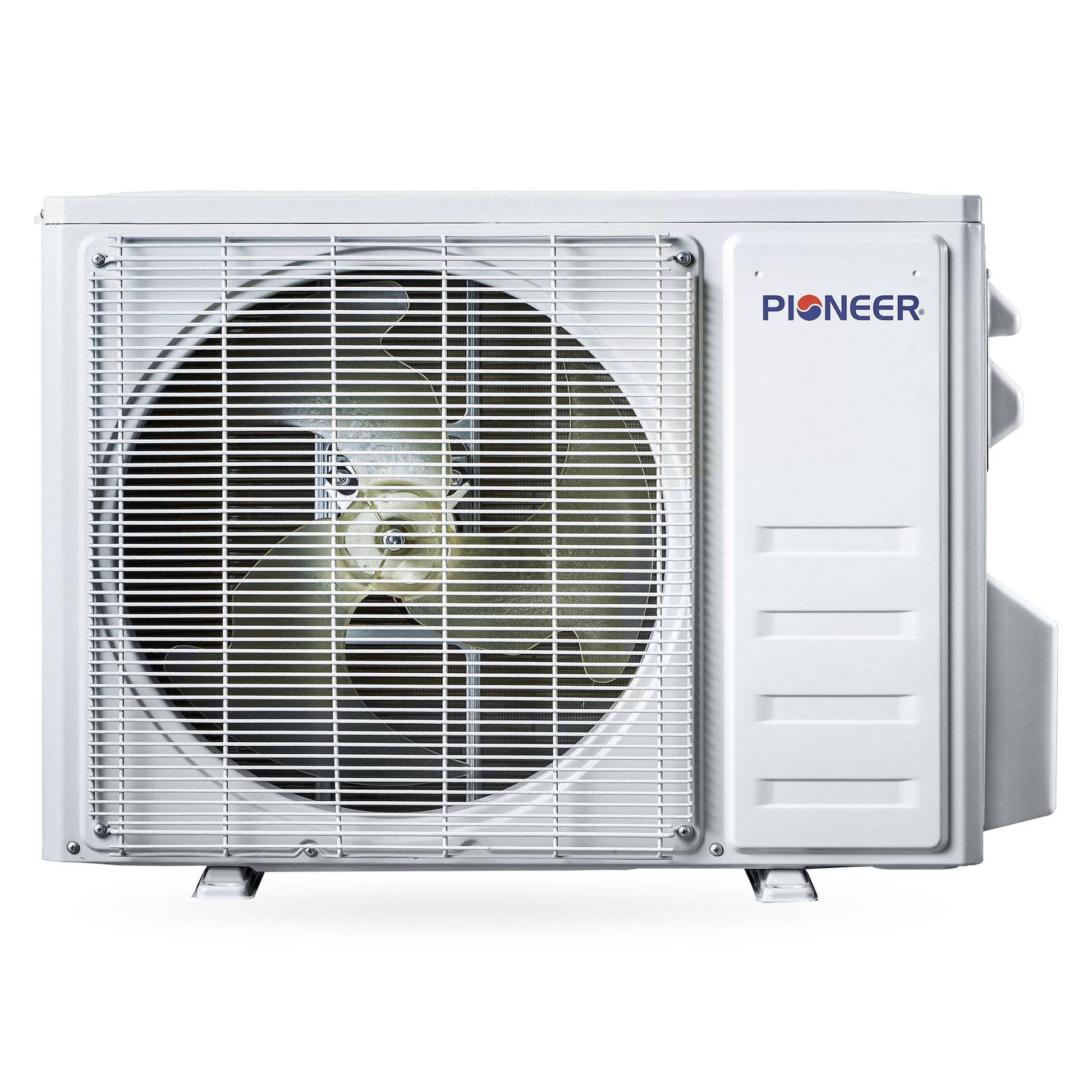

• Outdoor Unit
  • Part Number: YN012GLSI25RPH
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 57 dB(A)
  • Net Dimensions (WDH): 34" x 13"-3/4 x 23"-3/4 Inches
  • Carton Dimensions (WDH): 35" x 15"-1/8 x 24"-3/4 Inches
  • Net / Gross Weight: 69.4 / 73.9 lbs.

Dimension Chart

What Our Experts Think

• 12,000 BTU capacity (1 ton) perfect for bedrooms, offices, or small living areas.

• Ultra-efficient 25 SEER2 rating with Energy-Star certification for maximum savings.

• Inverter Hyper Heat technology ensures reliable performance even in extreme cold.

• High-wall ductless design provides quiet, space-saving comfort.

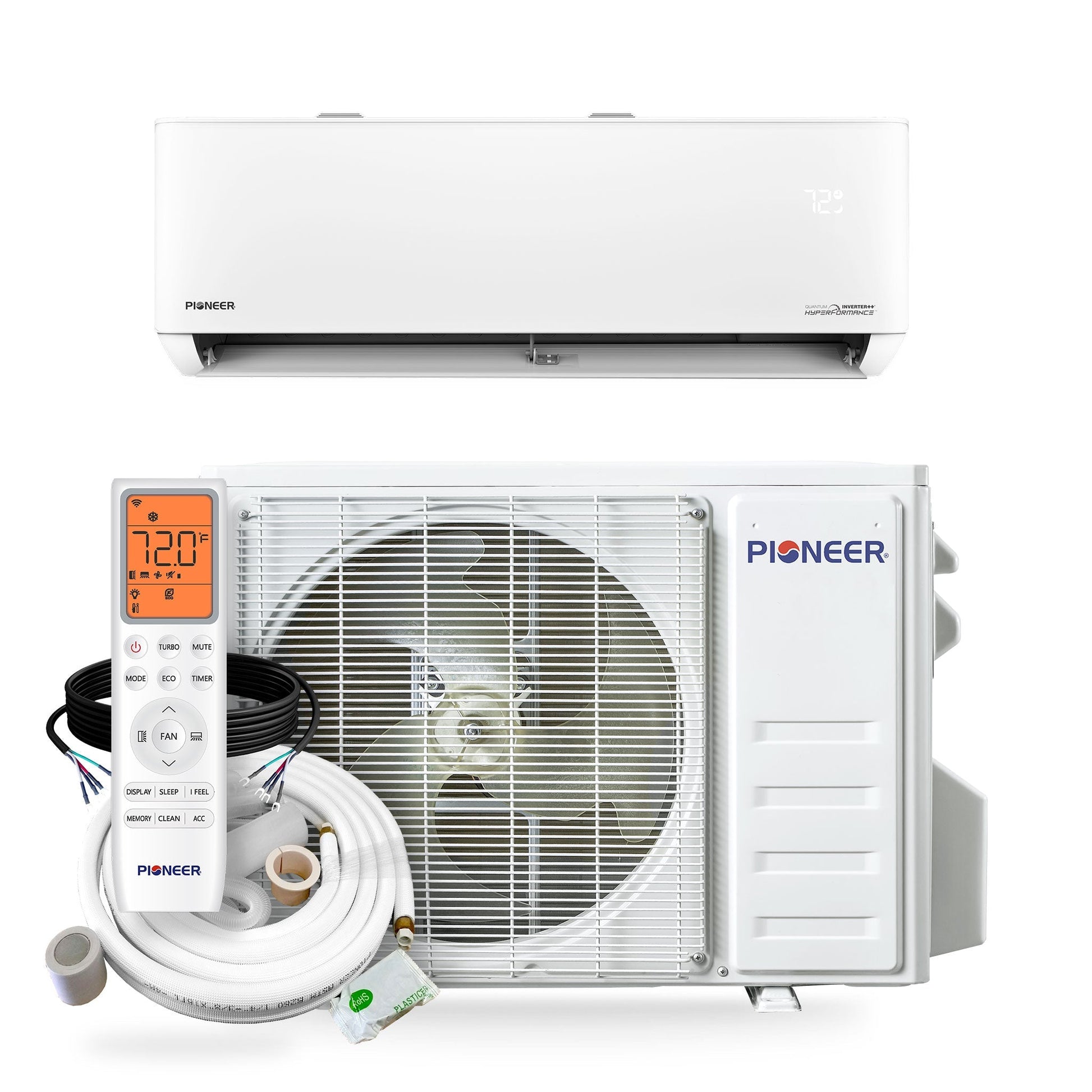

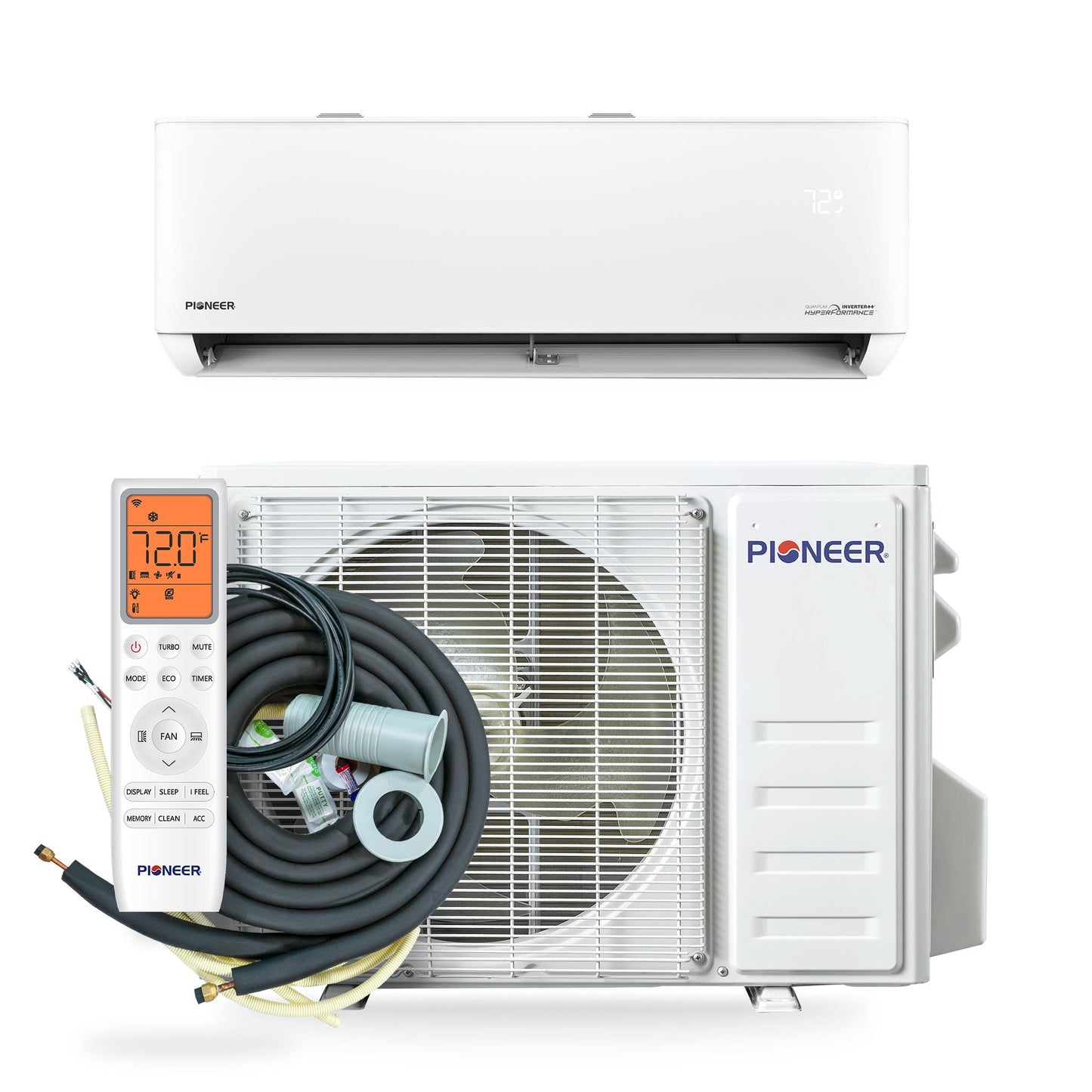

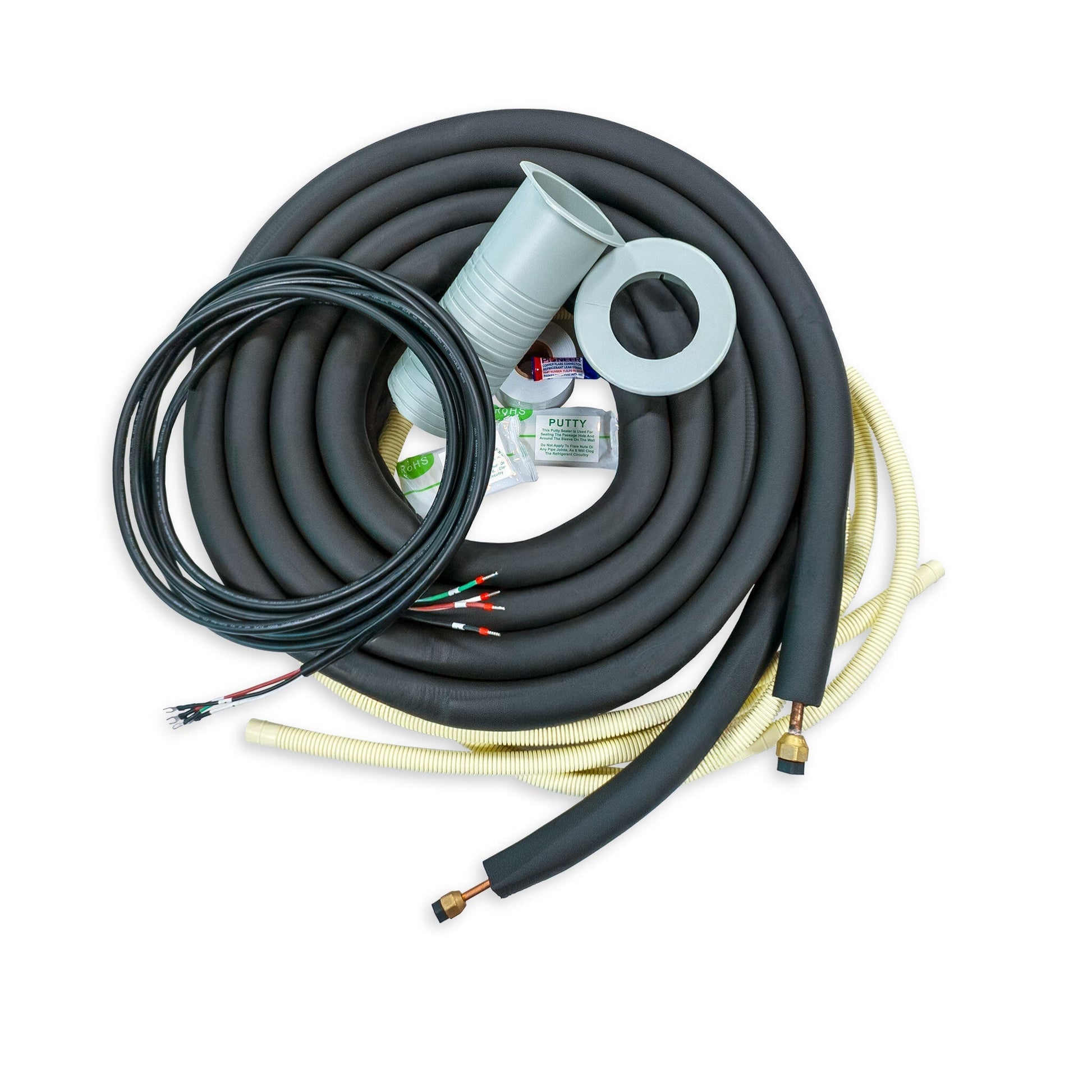

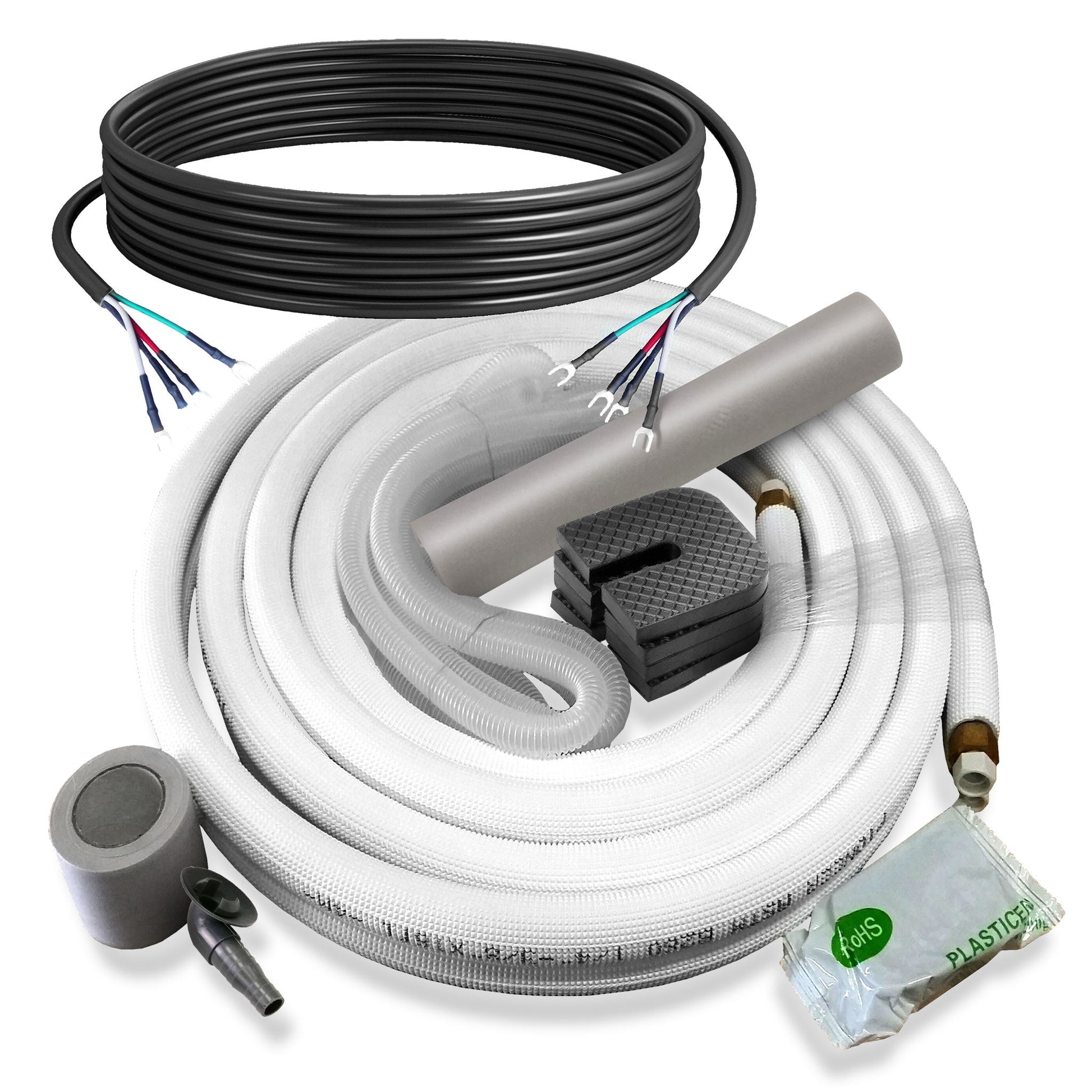

• Complete set includes indoor unit, outdoor unit, and 16 ft. installation kit.

Q&A

Q: What room size does this unit cover?
A: Ideal for spaces up to ~500 sq. ft. such as bedrooms, offices, or small apartments.

Q: Does it heat efficiently in cold climates?
A: Yes, the Hyper Heat pump is designed for strong heating performance even in freezing temperatures.

Q: Is it energy efficient?
A: Absolutely — with a 25 SEER2 rating and Energy-Star certification, it’s one of the most efficient in its class.

Maintenance Tips

• Wash or replace air filters every 2–4 weeks for consistent airflow.

• Keep outdoor condenser clear of snow, dirt, and debris.

• Inspect refrigerant lines and electrical connections annually.

• Schedule professional servicing once per year to maintain peak efficiency.
