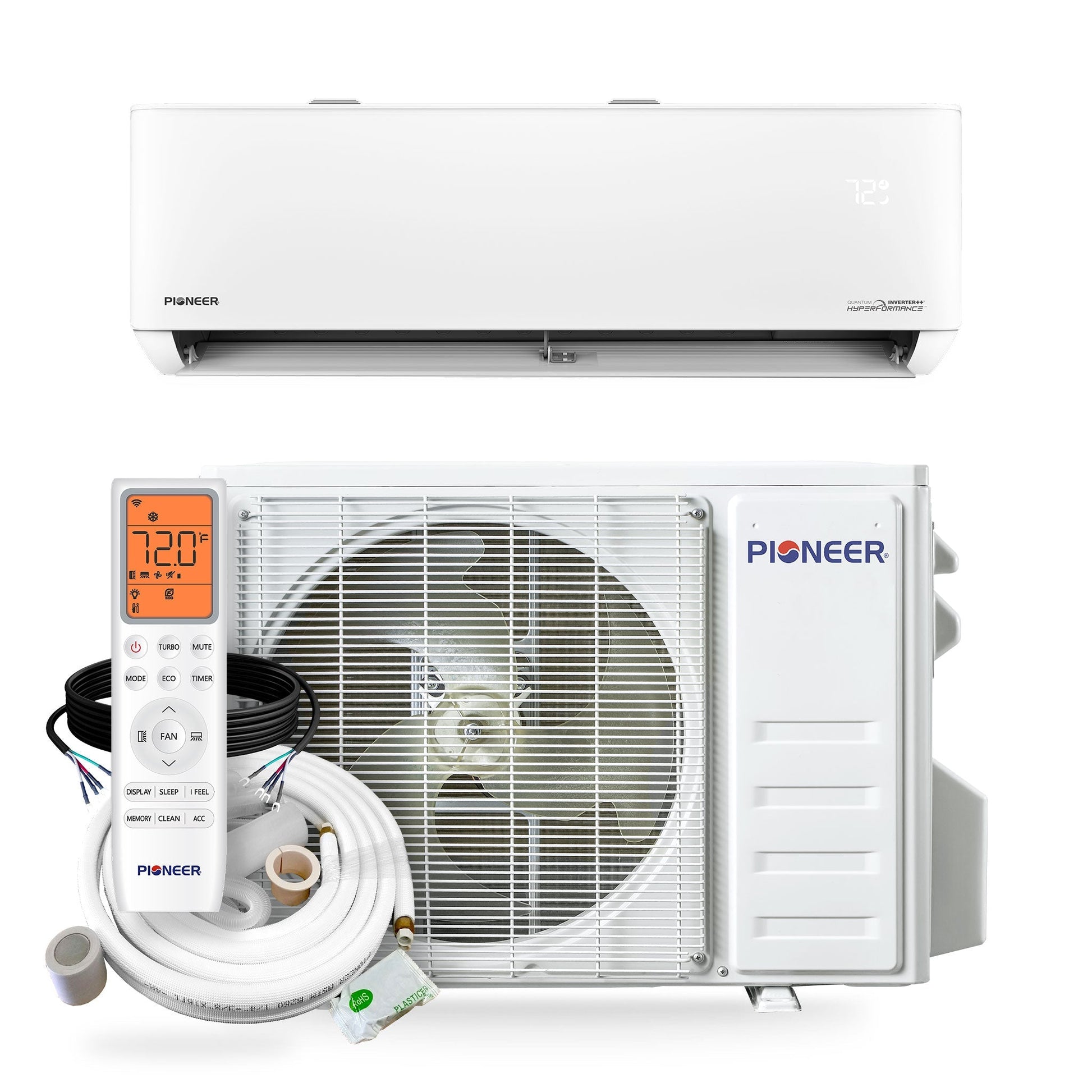

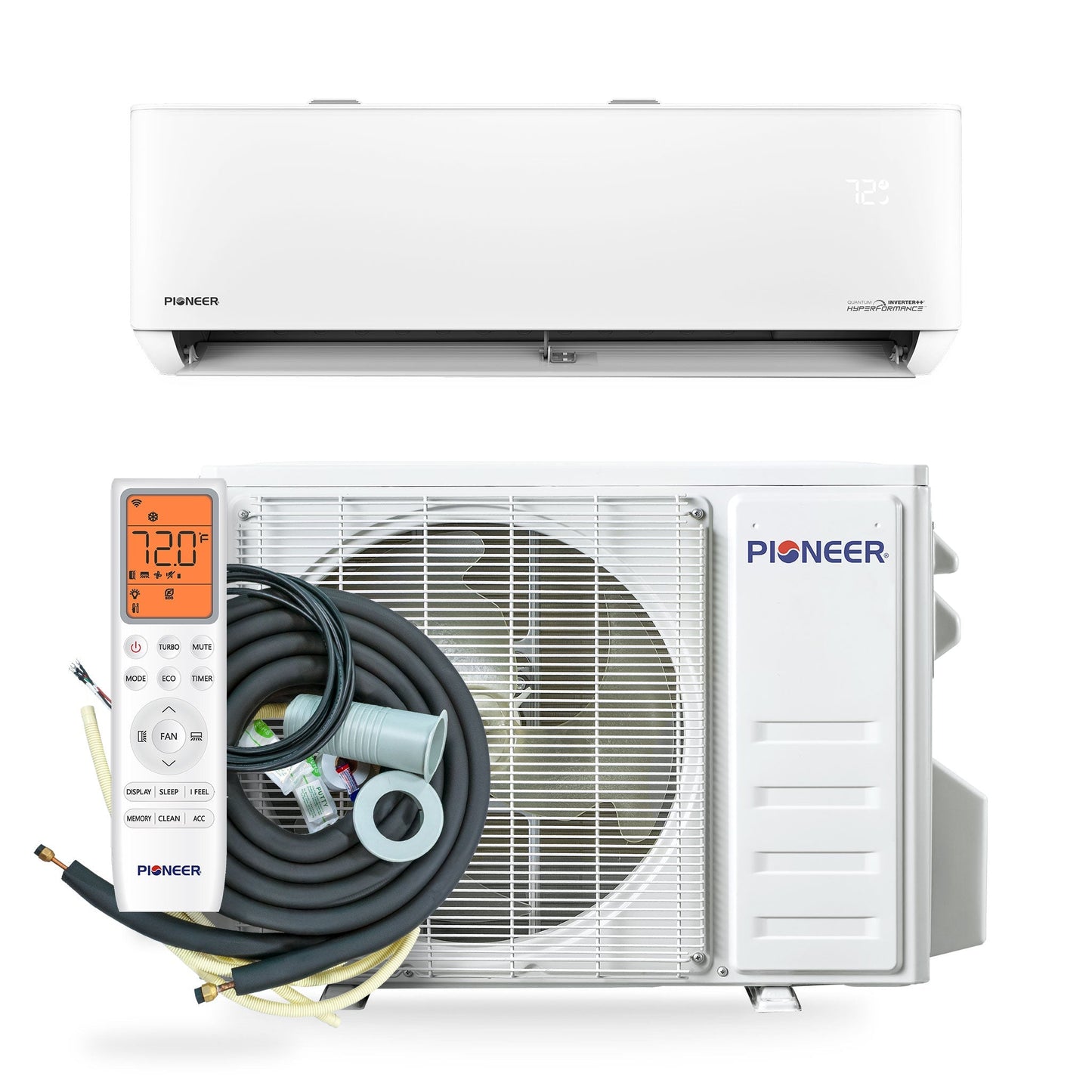

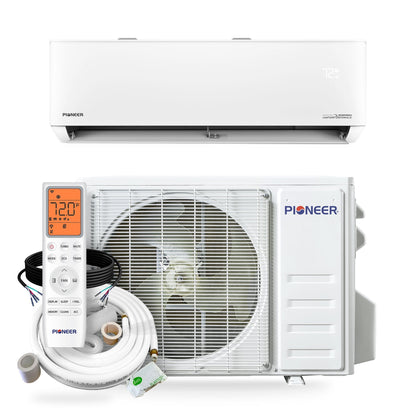

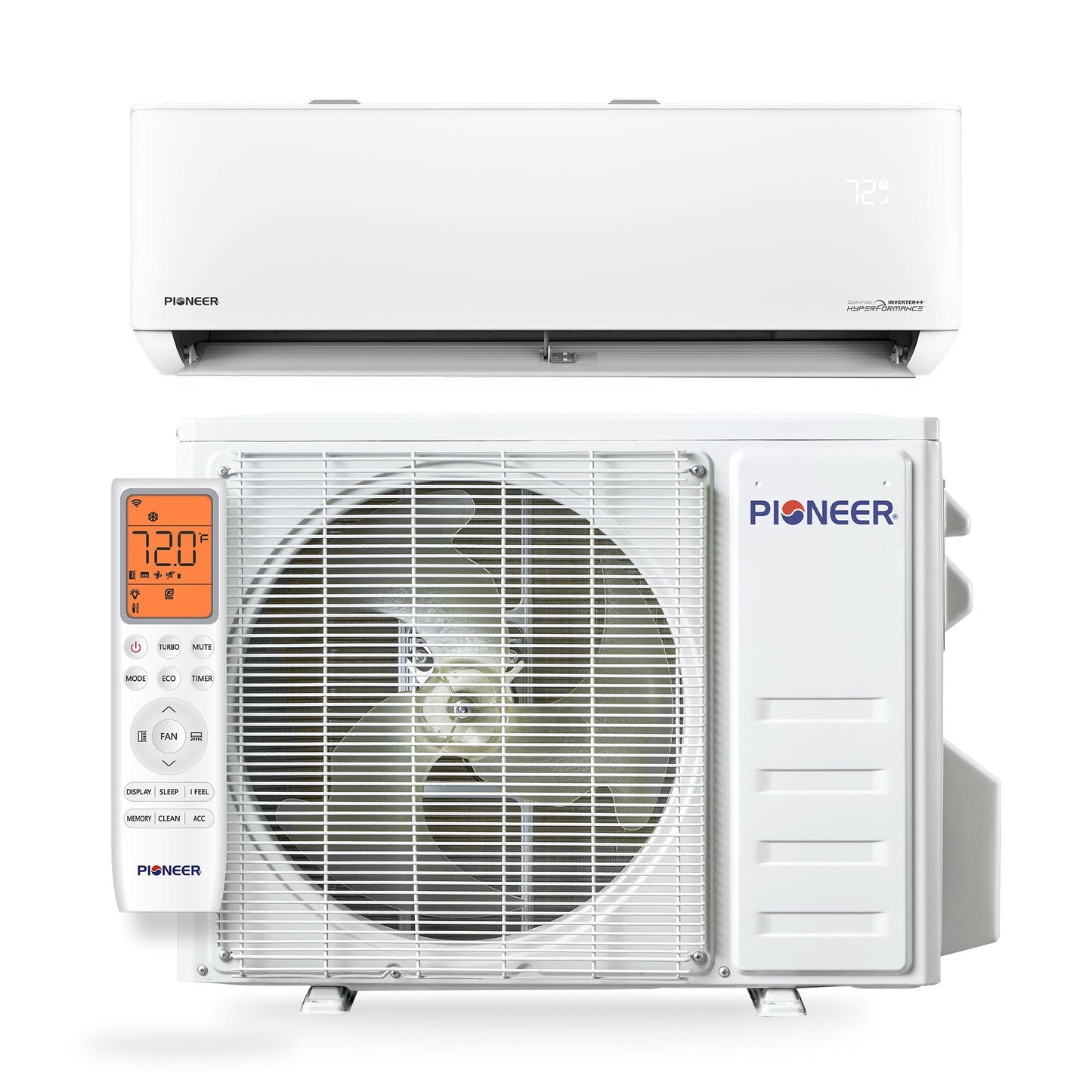

Pioneer Quantum Hyperformance 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set - WYT024GLSI25RH

Pioneer Quantum Hyperformance 24,000 BTU 23 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set - WYT024GLSI25RH

• Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
• Cooling capacity: 24,000 BTU/H with 23 SEER2 / 12 EER2 efficiency
• Heating capacity: 24,000 BTU/H with 10.0 HSPF2 / 3.5 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System

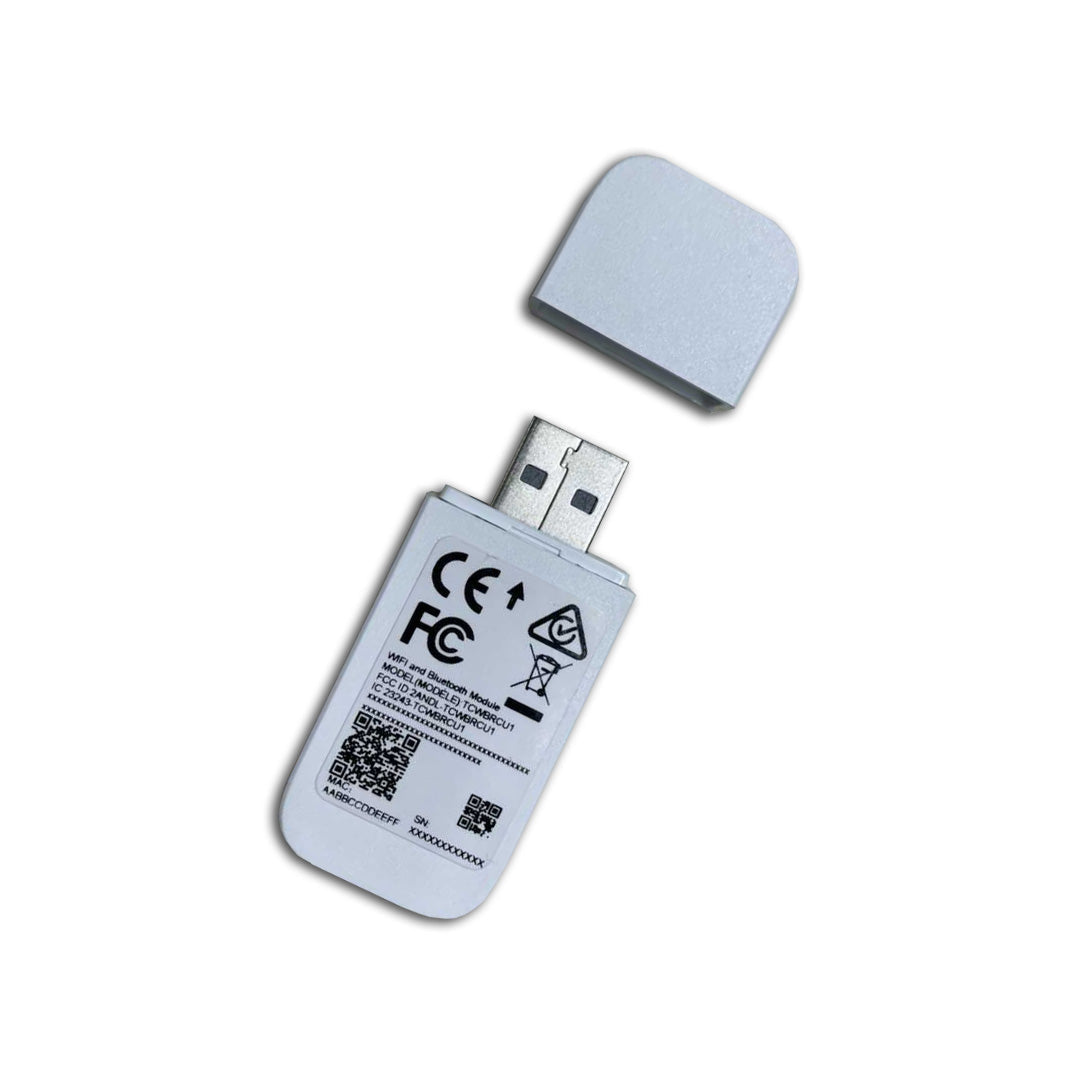

• Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

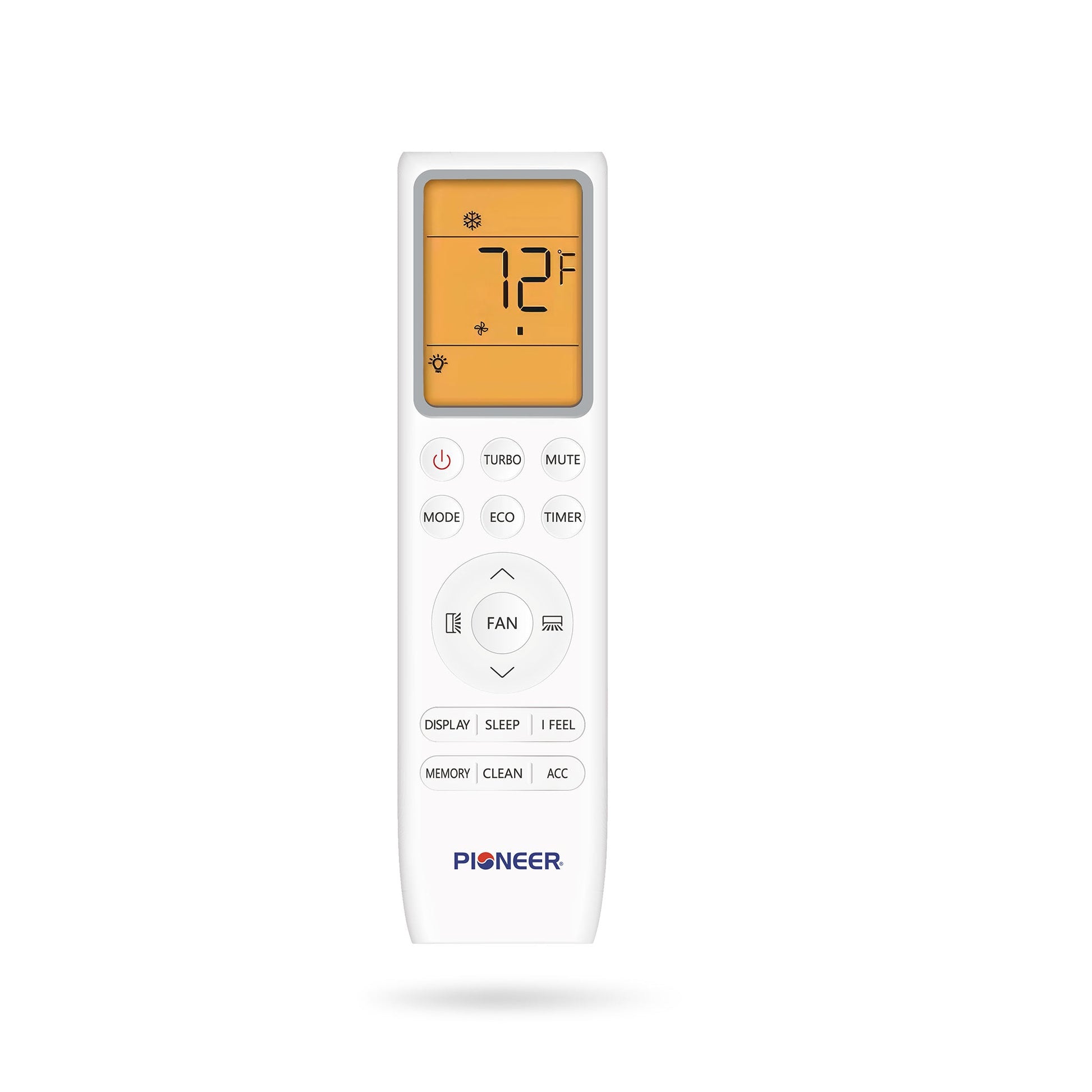

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Performance

• Energy Guide

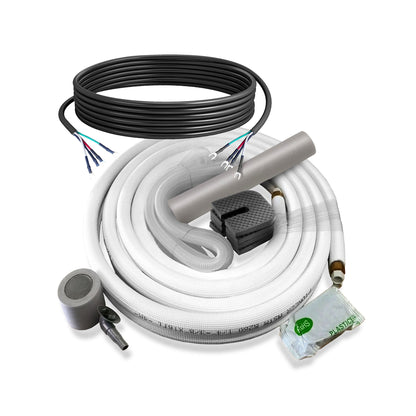

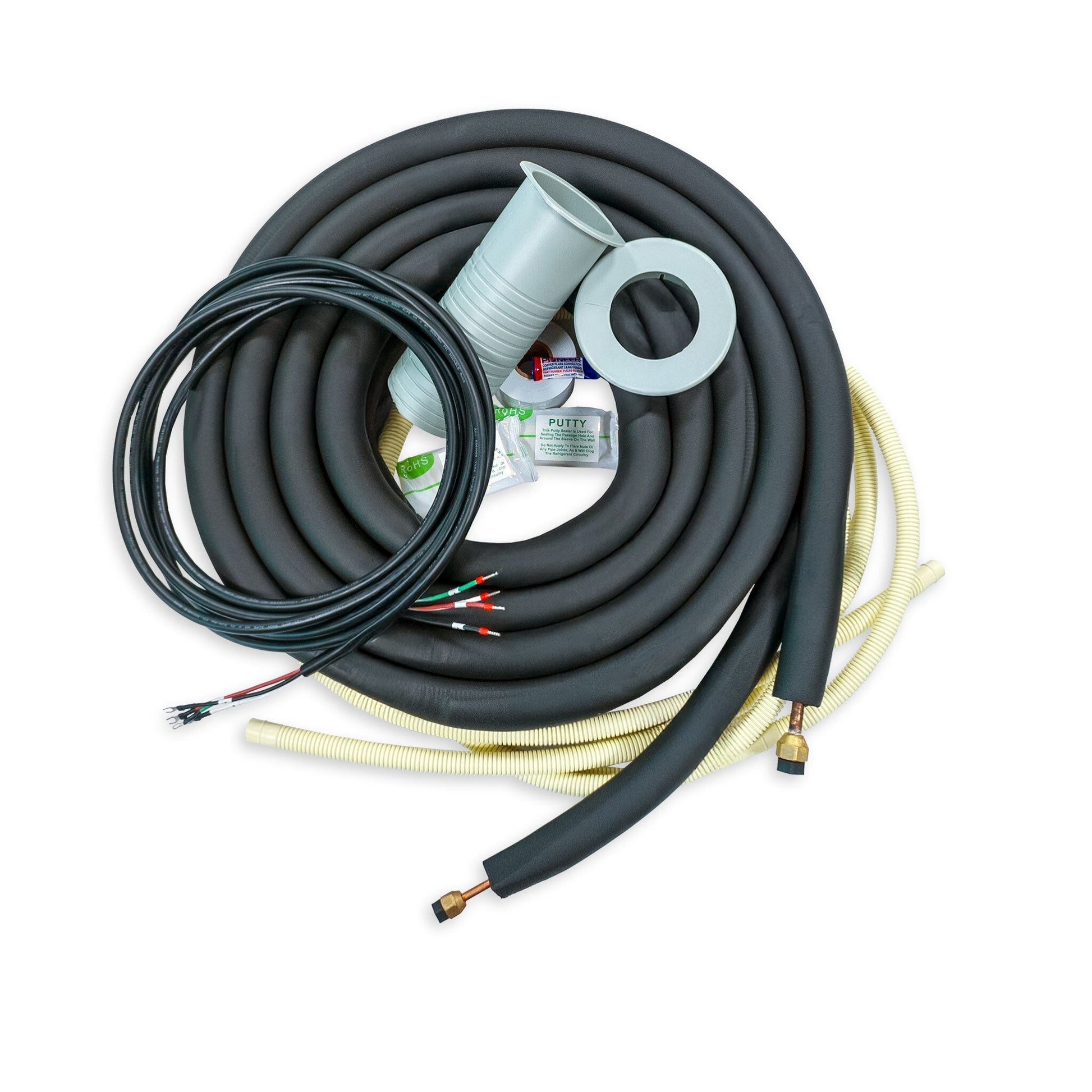

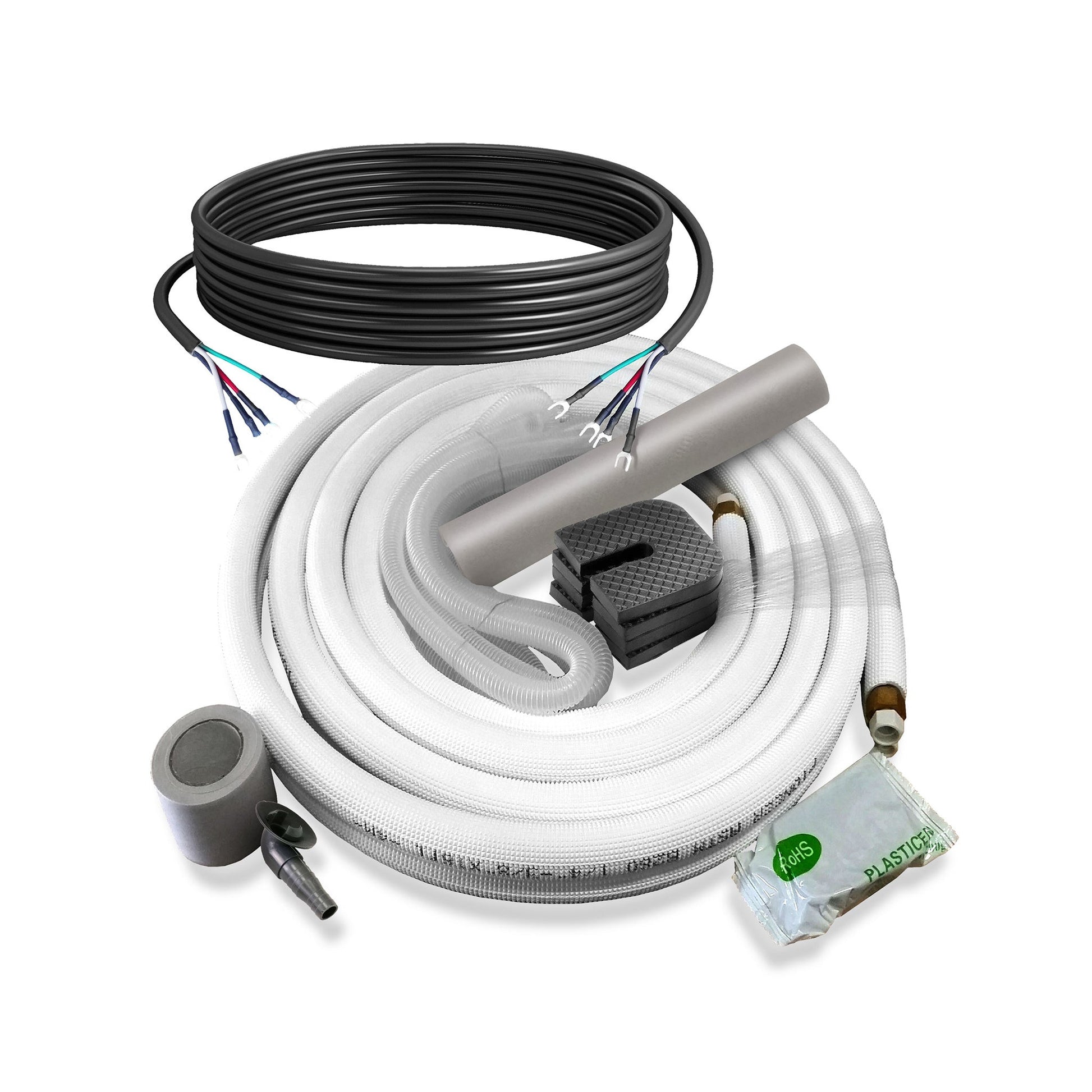

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 4,800~25,200 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.0 BTU/W.h
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating Capacity Range: 4,800~26,900 BTU/h
  • Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.5 / 1.8 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 750~1,000 Sq.F
  • Minimum Room Size: 63 sq ft
  • Minimum Installation Height: 6 ft
  • Piping Diameter: 1/4 x 5/8"
  • AHRI Reference: 217048757

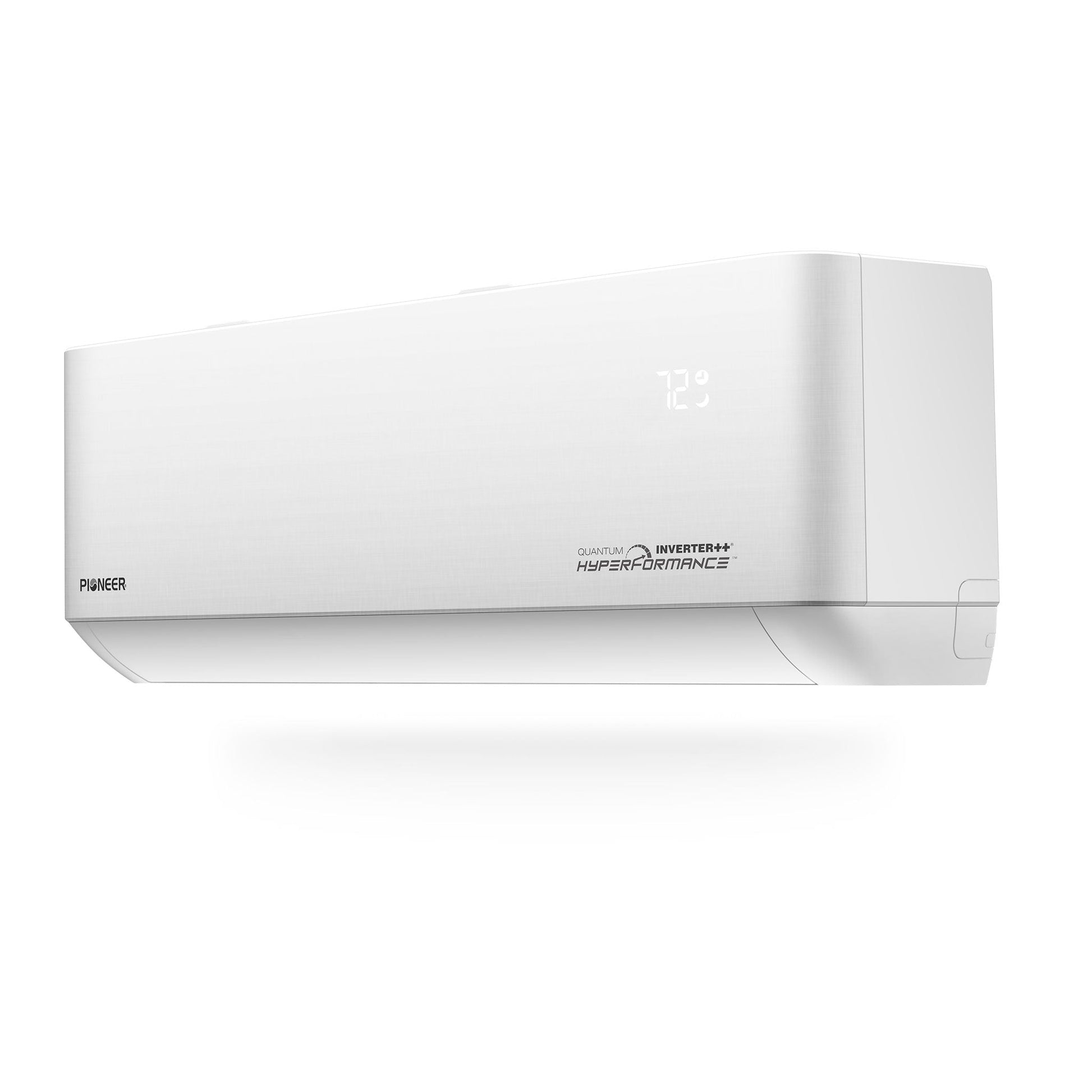

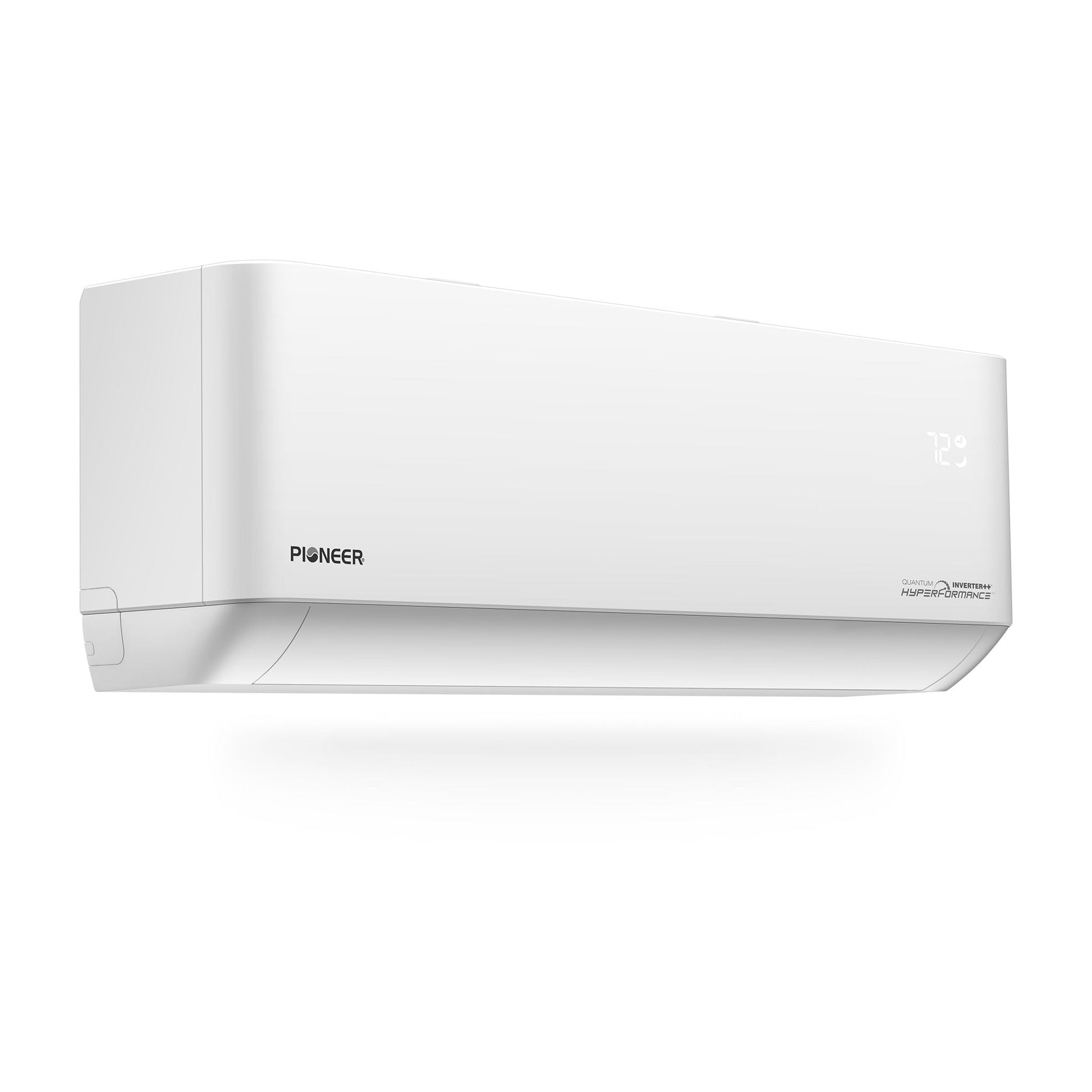

• Indoor Unit
  • Part Number: WT024GLSI25HLH
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 49/47/42/37/32 dB(A)
  • Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13"-1/8 Inches
  • Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
  • Net / Gross Weight: 30.9 / 35.3 lbs.

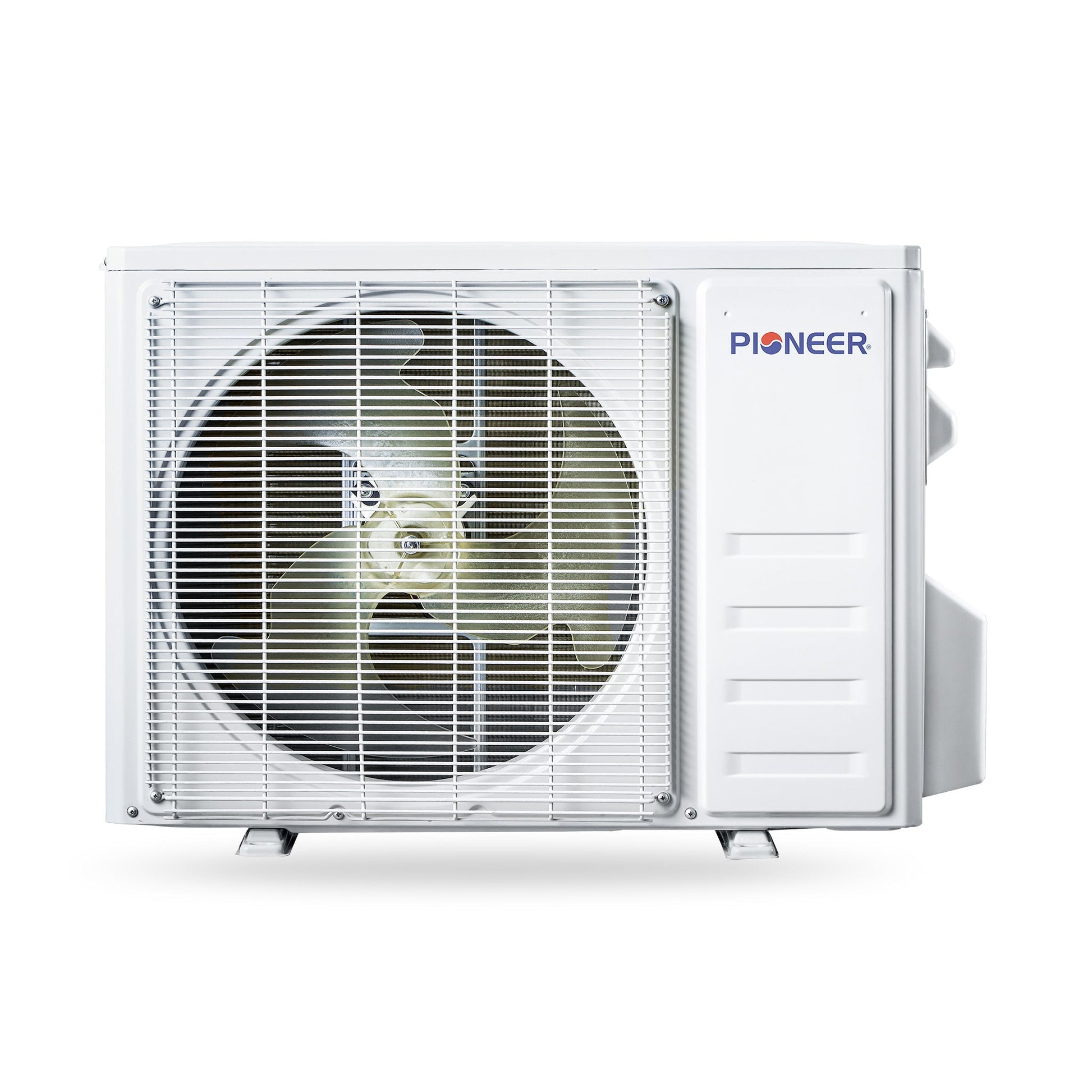

• Outdoor Unit
  • Part Number: YN024GLSI25RPH
  • Breaker Needed: 30A (double-pole)
  • Sound Level: 61 dB(A)
  • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
  • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
  • Net / Gross Weight: 108.0 / 116.8 lbs.

Dimension Chart

What Our Experts Think

• 24,000 BTU capacity ideal for large rooms, open-concept spaces, or small commercial areas.

• High-efficiency 23 SEER2 rating saves energy and reduces utility costs.

• Energy Star certified for environmentally friendly performance.

• High-wall ductless design provides quiet, space-saving installation.

• Inverter Hyper Heat pump delivers year-round heating and cooling, even in extreme temperatures.

Q&A

Q: Is this a full mini-split system?
A: Yes, it includes both indoor and outdoor units for a complete setup.

Q: Does it support heating as well as cooling?
A: Yes, the Hyper Heat pump provides efficient heating in cold climates.

Q: Is it energy efficient?
A: Absolutely—23 SEER2 rating and Energy Star certification ensure optimal efficiency.

Maintenance Tips

• Clean air filters every 4–6 weeks to maintain airflow and efficiency.

• Wipe indoor unit surfaces regularly to prevent dust buildup.

• Keep outdoor condenser clear of debris for optimal performance.

• Schedule annual professional maintenance to ensure long-term reliability
