Pioneer Quantum Hyperformance 9,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set - WYT009GLSI25RH

Pioneer Quantum Hyperformance 9,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set - WYT009GLSI25RH

• Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 25 SEER2 / 14.5 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 10.5 HSPF2 / 4.0 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System

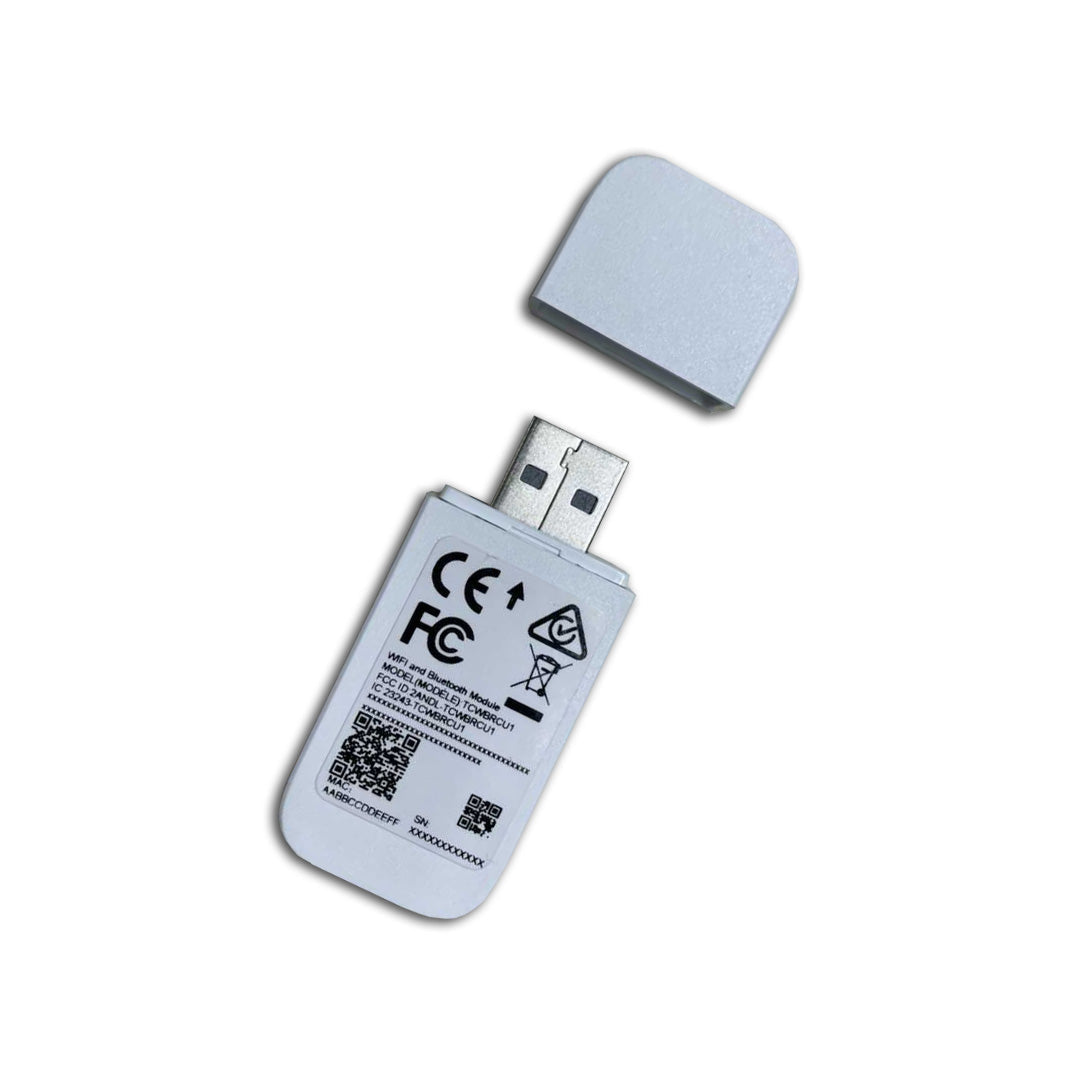

• Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

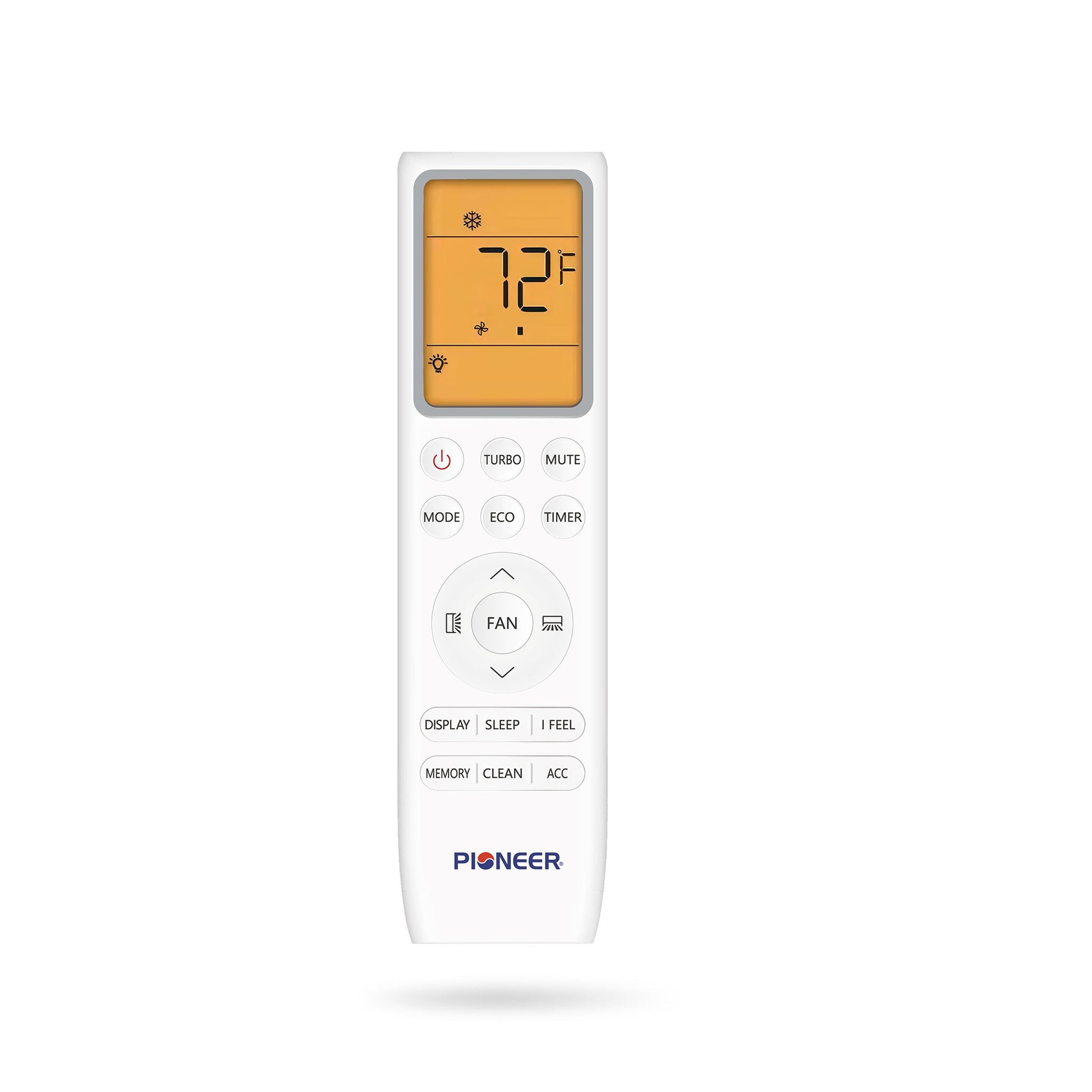

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Performance

• Energy Guide

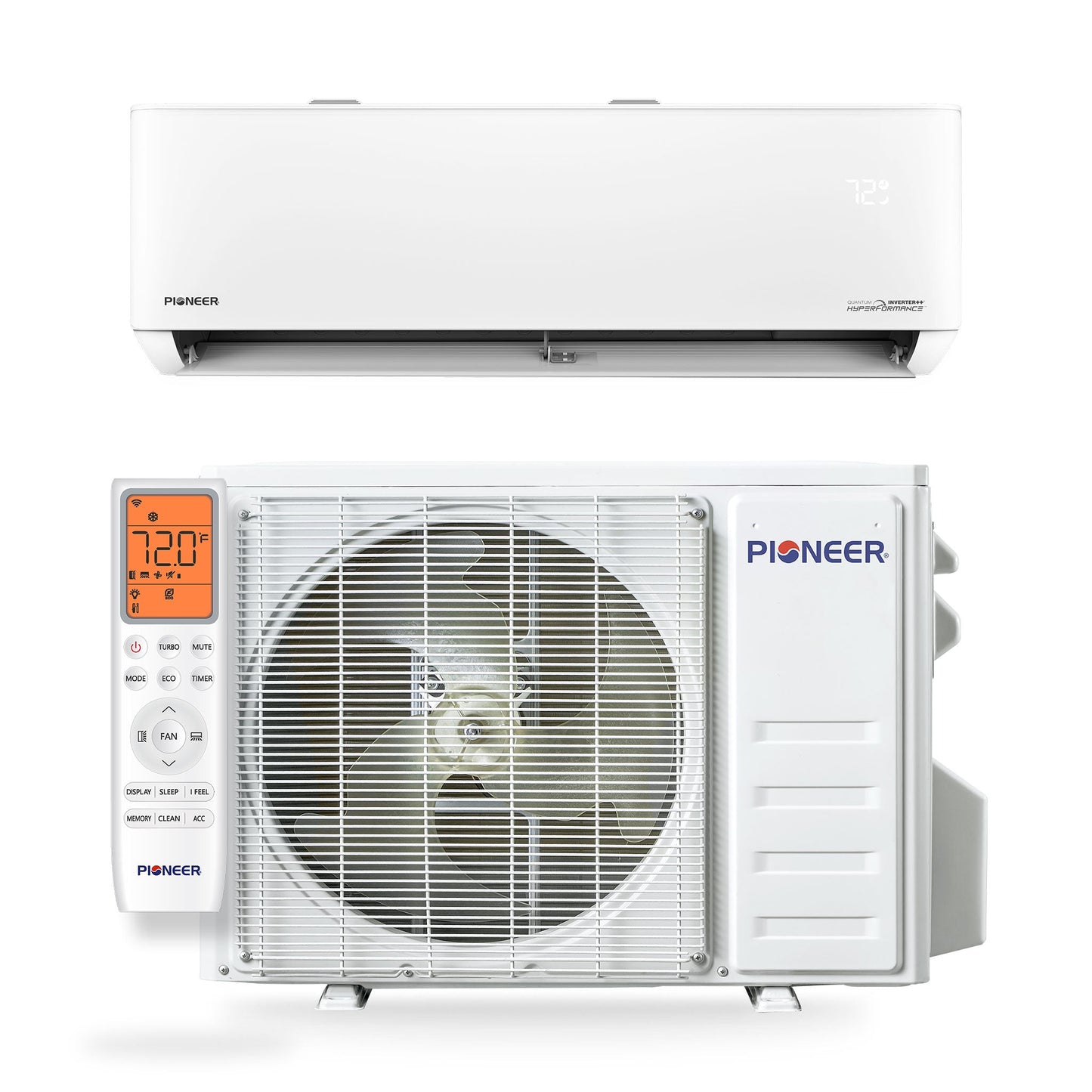

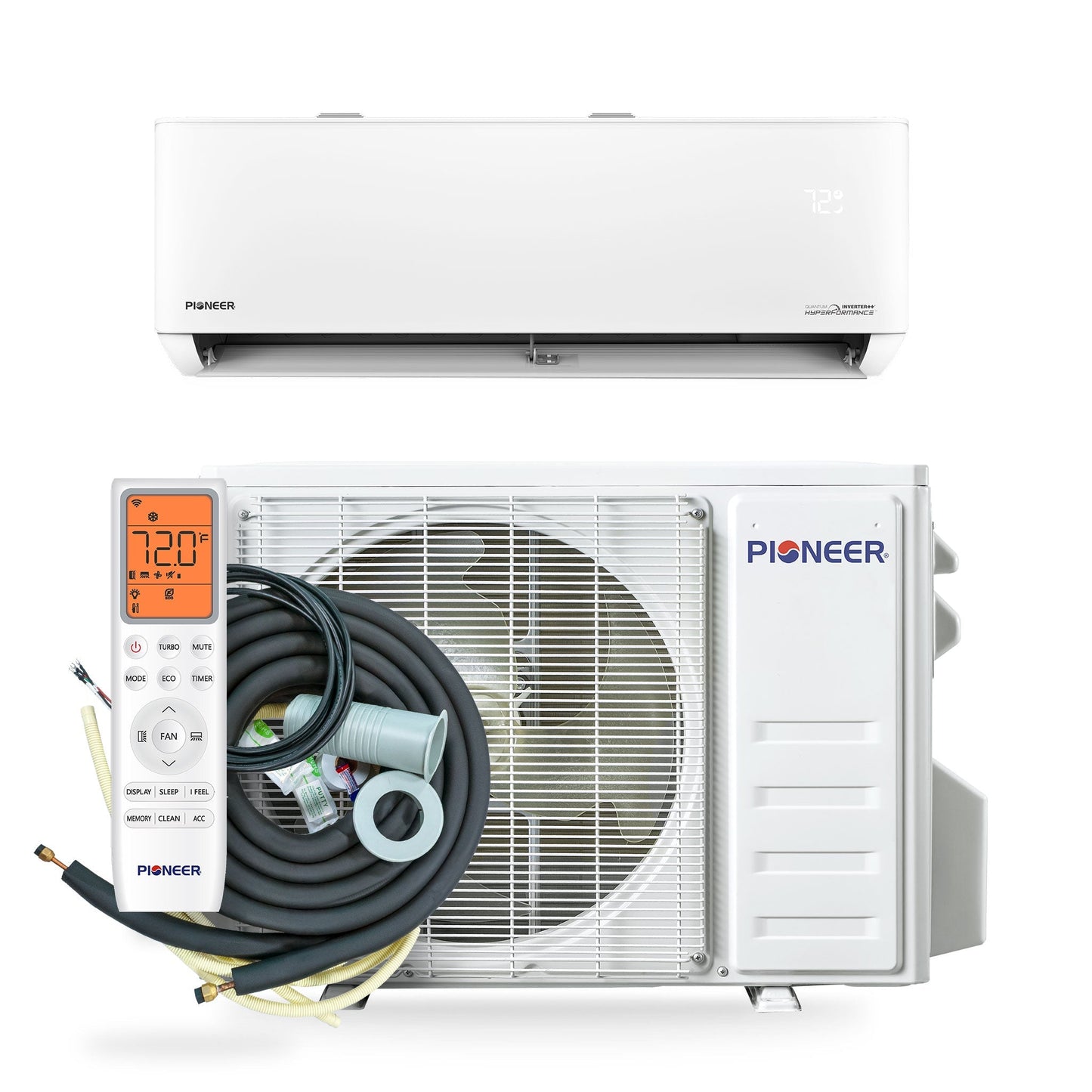

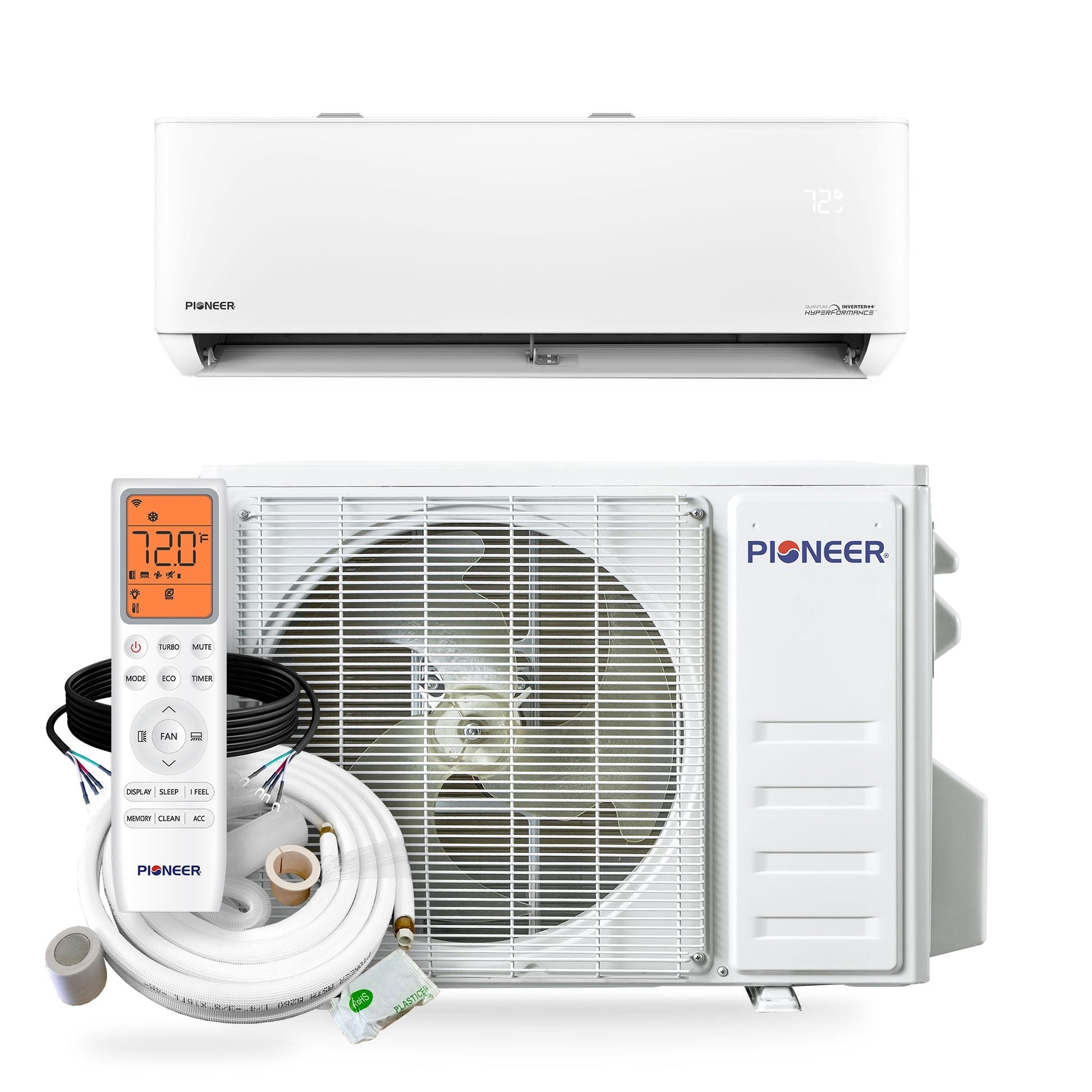

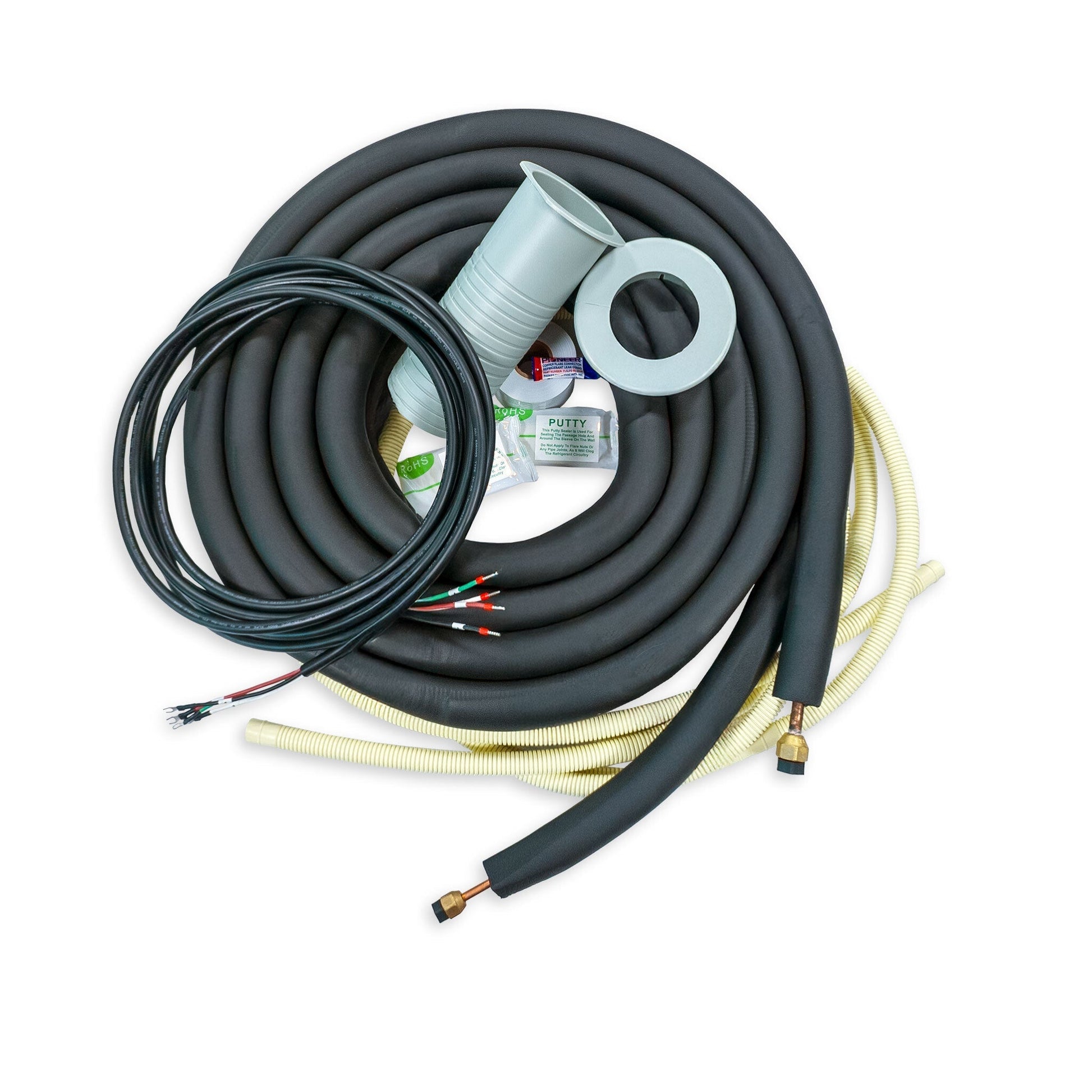

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 3,200~12,400 BTU/h
  • Cooling SEER2: 25.0 BTU/W.h
  • Cooling EER2: 14.5 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,100~15,100 BTU/h
  • Heating HSPF2 (Region IV): 10.5 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 4.0 / 1.8 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 150~350 Sq. F
  • Minimum Room Size: 38 sq ft
  • Minimum Installation Height: 6 ft

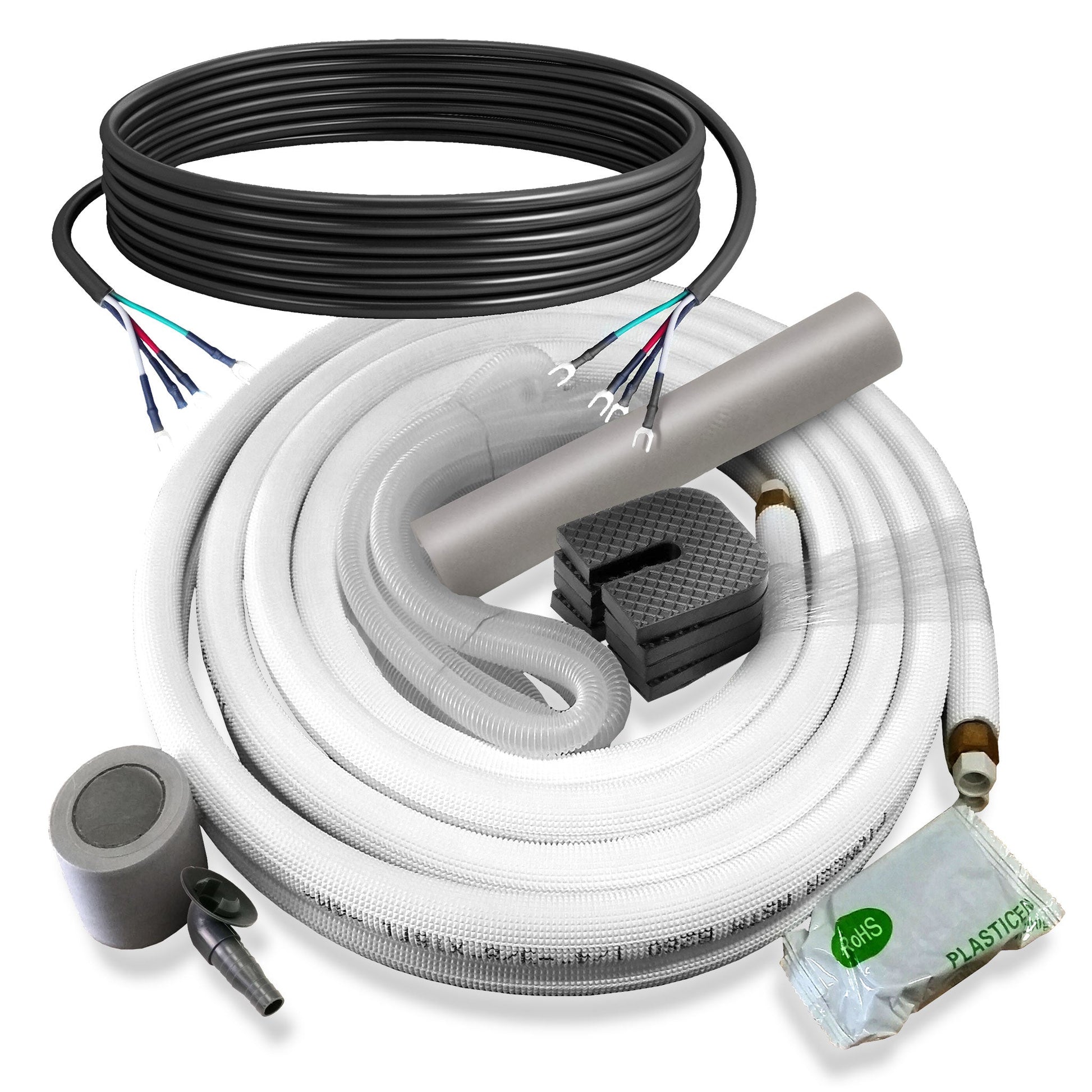

  • Piping Diameter: 1/4 x 3/8"
  • AHRI Reference: 217048754

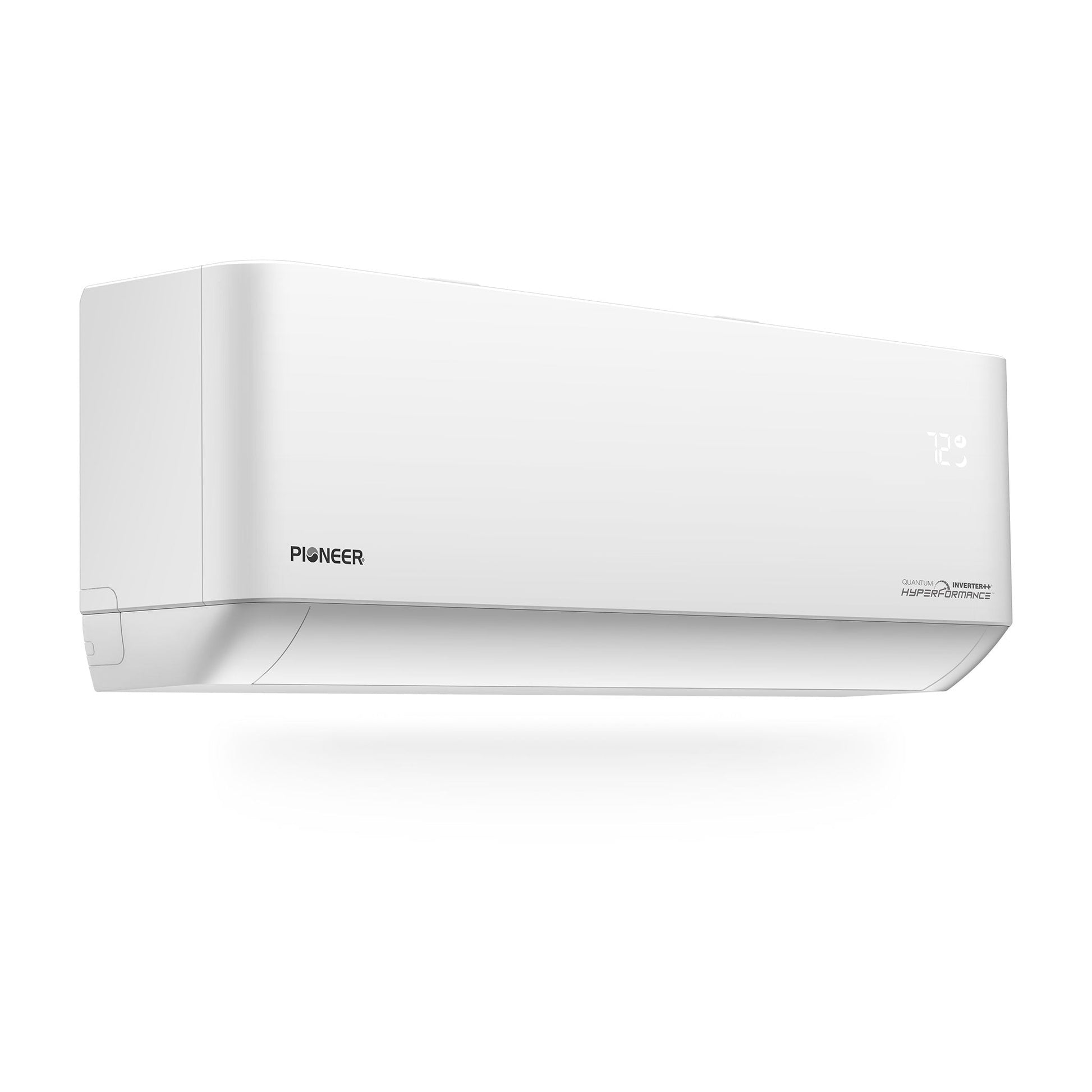

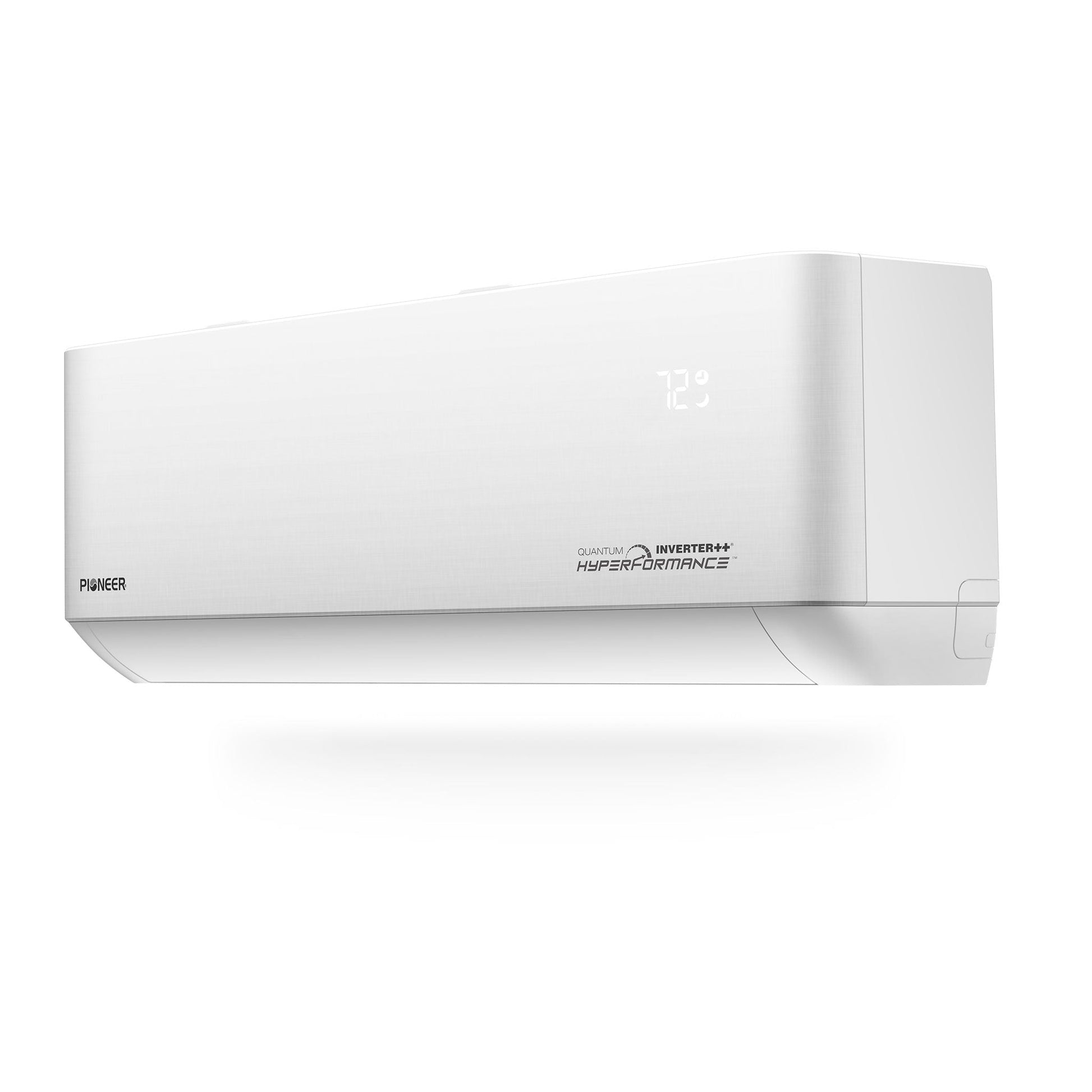

• Indoor Unit
  • Part Number: WT009GLSI25HLH
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282/235/188/153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 42/39/33/29/26 dB(A)
  • Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 20.7 / 25.1 lbs.

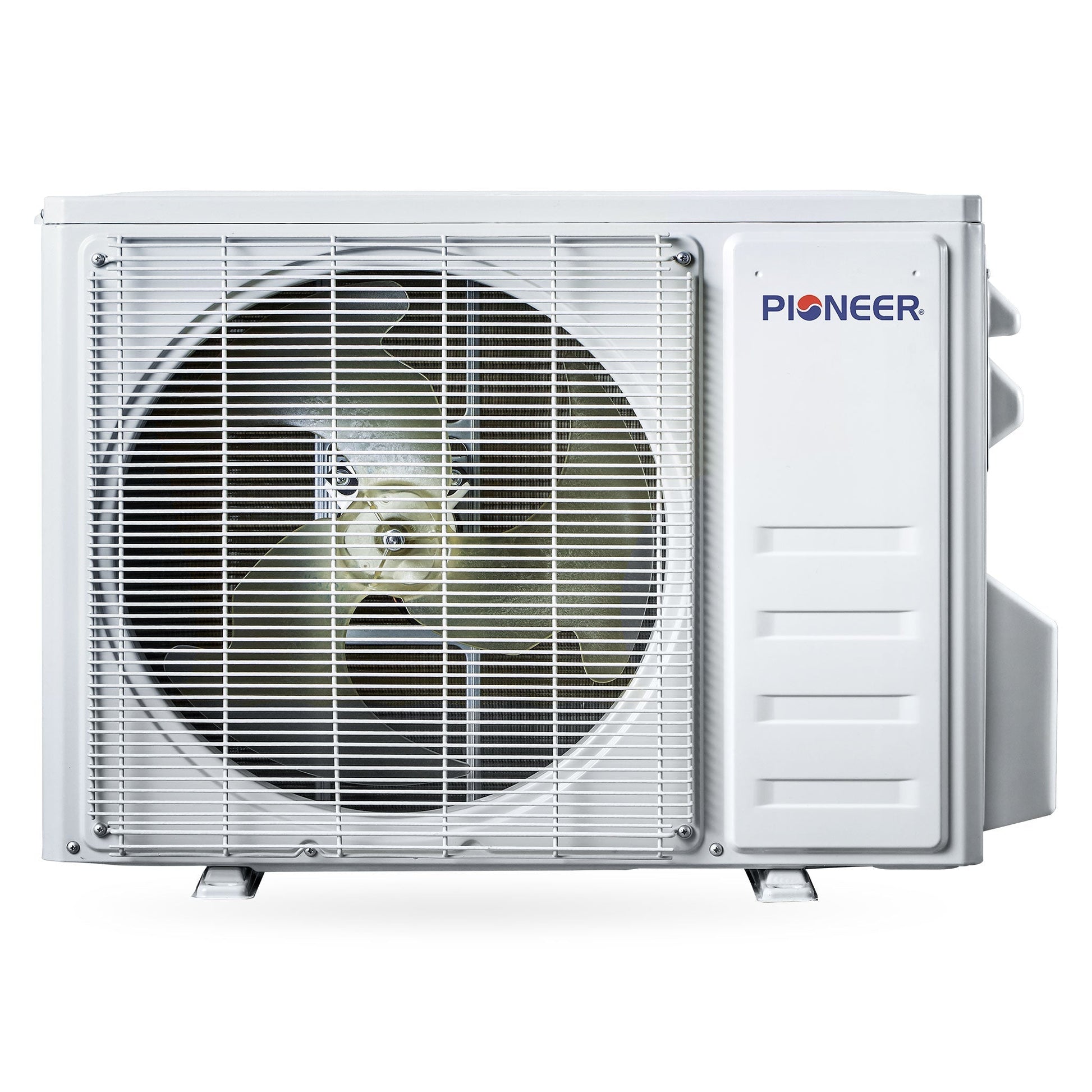

• Outdoor Unit
  • Part Number: YN009GLSI25RPH
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 55 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 54.0 / 60.6 lbs.

Dimension Chart

What Our Experts Think

• 9,000 BTU capacity ideal for small rooms and offices.

• 25 SEER2 Energy-Star rating ensures maximum energy efficiency.

• High-wall ductless design saves space while blending with interiors.

• Inverter Hyper Heat Pump delivers efficient heating and cooling year-round.

• Full set includes indoor and outdoor units for easy installation.

Q&A

Q: What room size is this system suitable for?
A: Perfect for spaces up to ~400 sq. ft., depending on insulation.

Q: Does it provide both heating and cooling?
A: Yes, with the Hyper Heat Pump, it offers year-round comfort.

Q: Is it energy-efficient?
A: Yes, the 25 SEER2 Energy-Star certification maximizes efficiency.

Maintenance Tips

• Clean air filters every 4–6 weeks to maintain airflow and efficiency.

• Keep outdoor condenser clear of debris to ensure optimal performance.

• Wipe indoor unit panels regularly to prevent dust buildup.

• Schedule annual professional servicing for long-term reliability.
