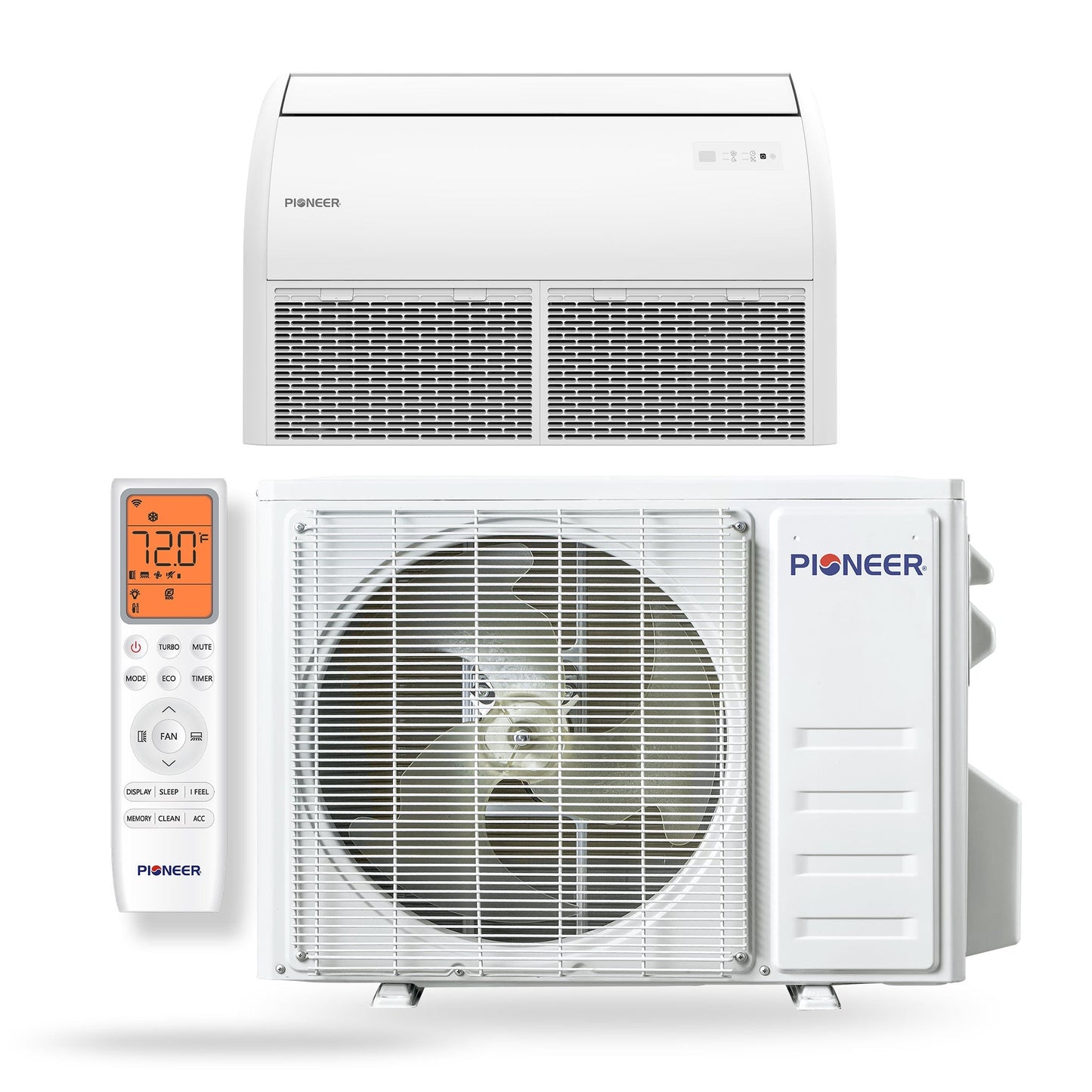

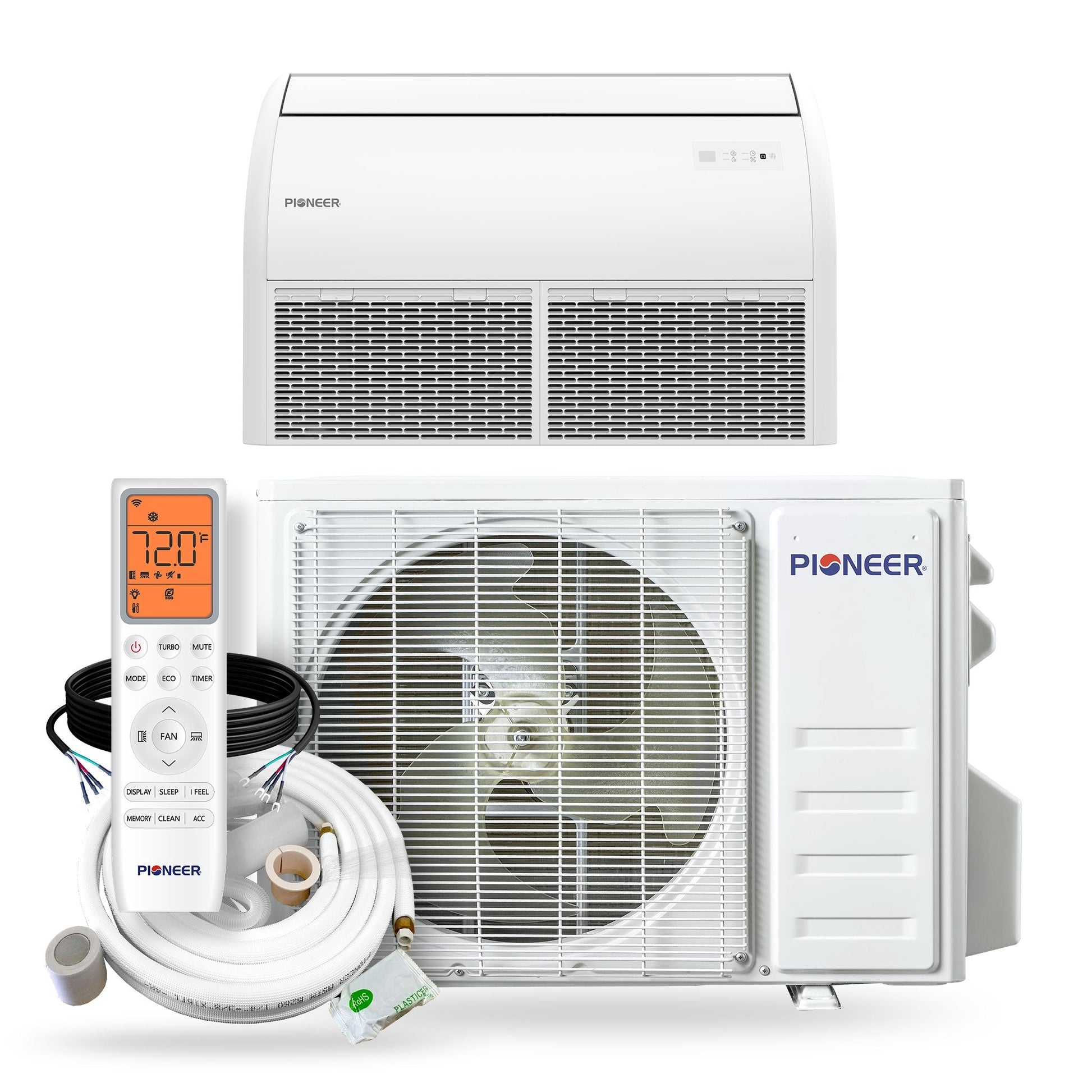

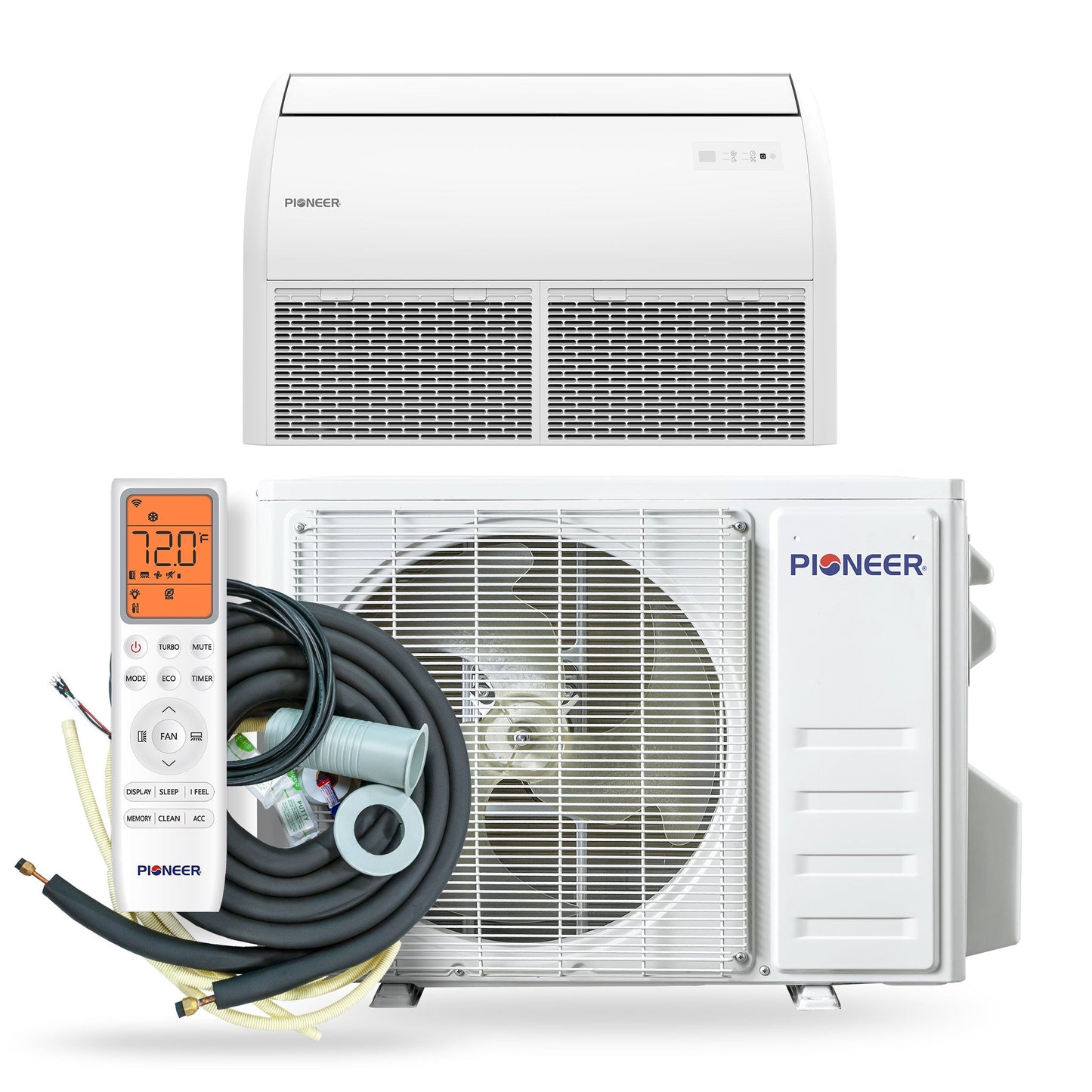

Pioneer Quantum Ultra 18,000 BTU 20.5 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - UYT018GLSI24RL
- High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 20.5 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 19,000 BTU/H with 9.0 HSPF2 / 3.10 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

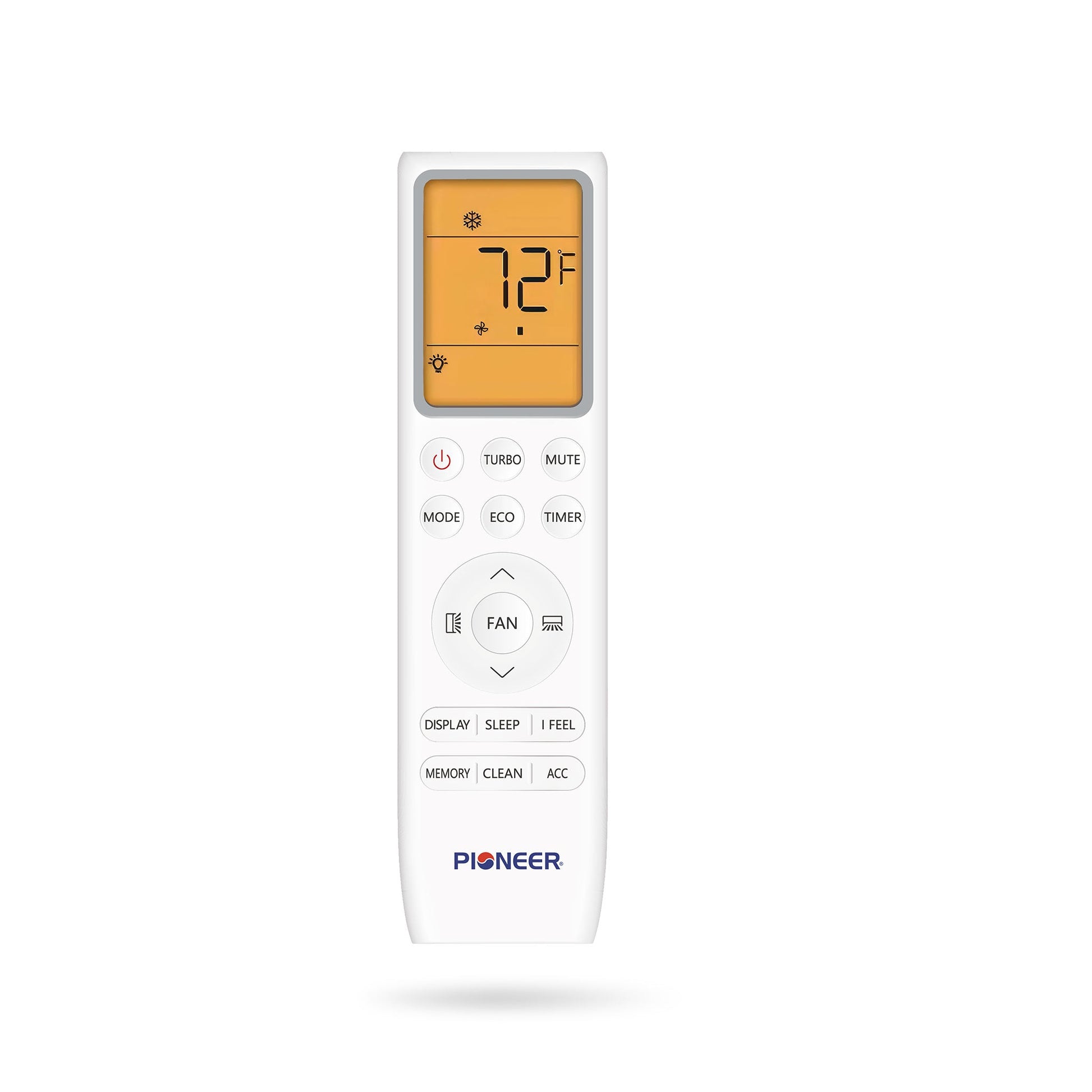

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 18,000 BTU/h
-
Cooling Capacity Range: 4,550~20,200 BTU/h
-
Cooling SEER2: 20.5 BTU/W.h
-
Cooling EER2: 11.7 BTU/W.h
-
Heating Rated Capacity: 19,000 BTU/h
-
Heating Capacity Range: 2,910~22,840 BTU/h
-
Heating HSPF2 (Region IV): 9.0 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.1 / 1.9 W/W
-
Refrigerant Type: R454b
-
Suitable Area: 500~750 Sq.F
-
AHRI Reference: 217048766
-

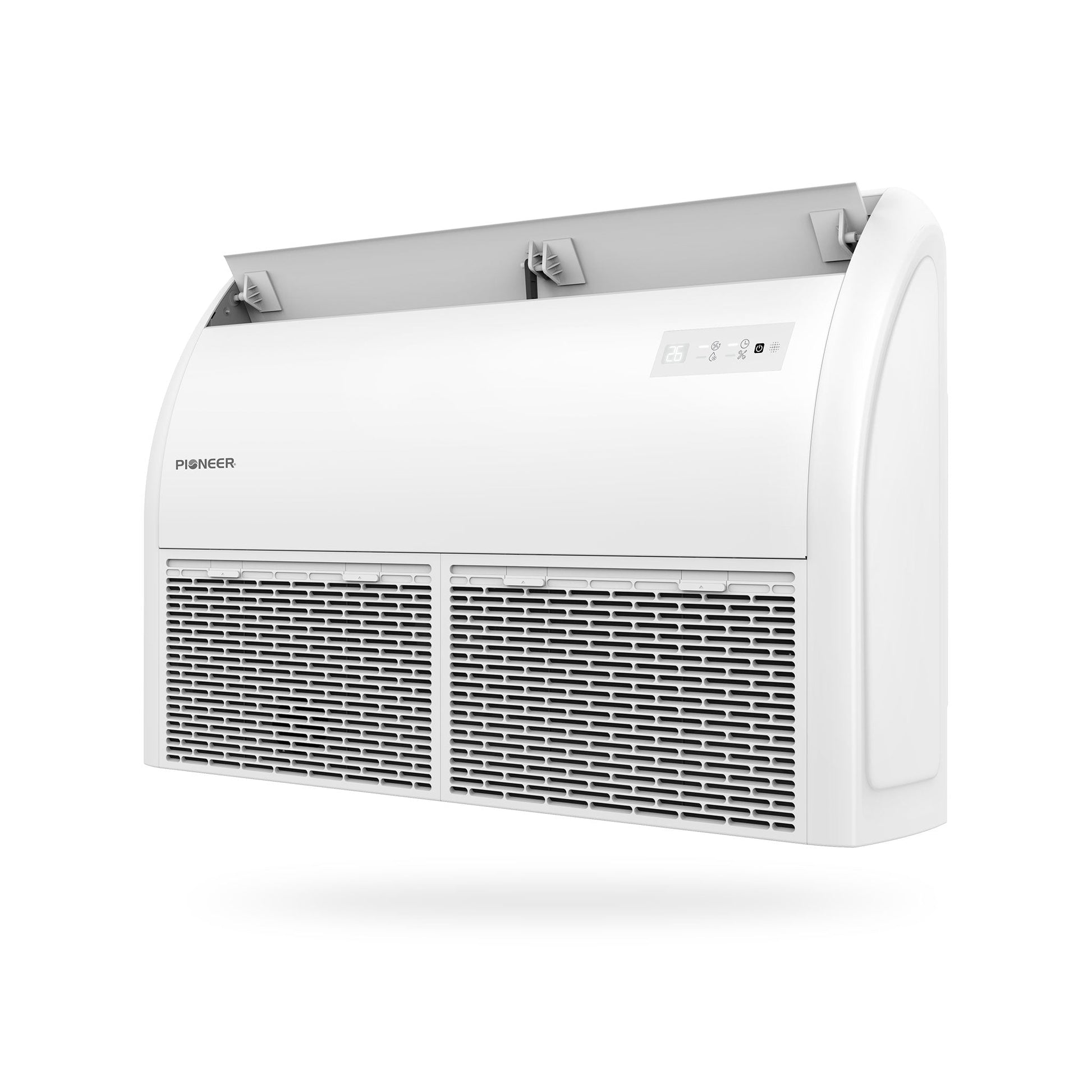

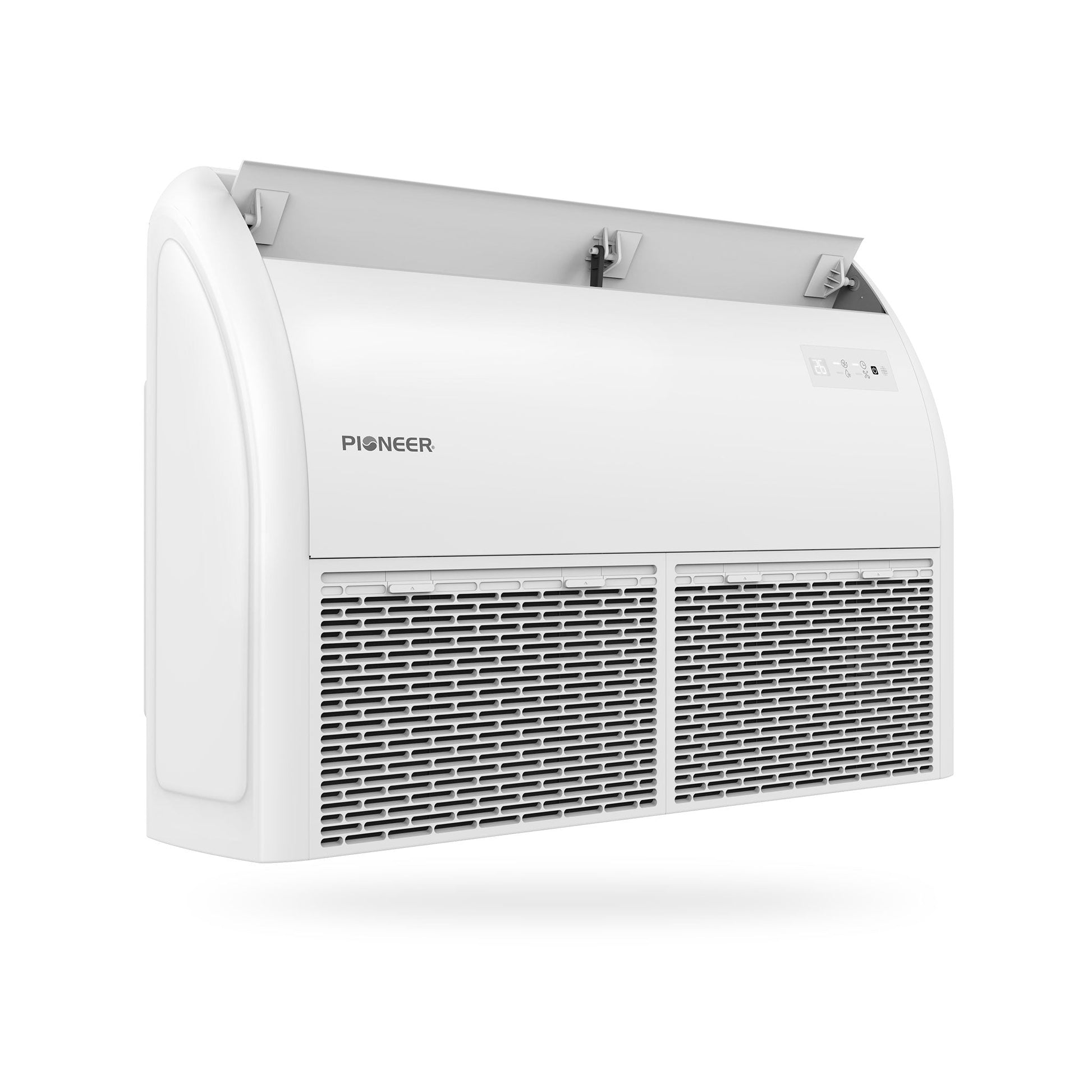

Indoor Unit
-
Part Number: UT018GLSILCFHG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 588/512/453/353/265 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 50/46/44/40/36 dB(A)
-
Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
-
Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
-
Net / Gross Weight: 52.9 / 63.9 lbs.
-

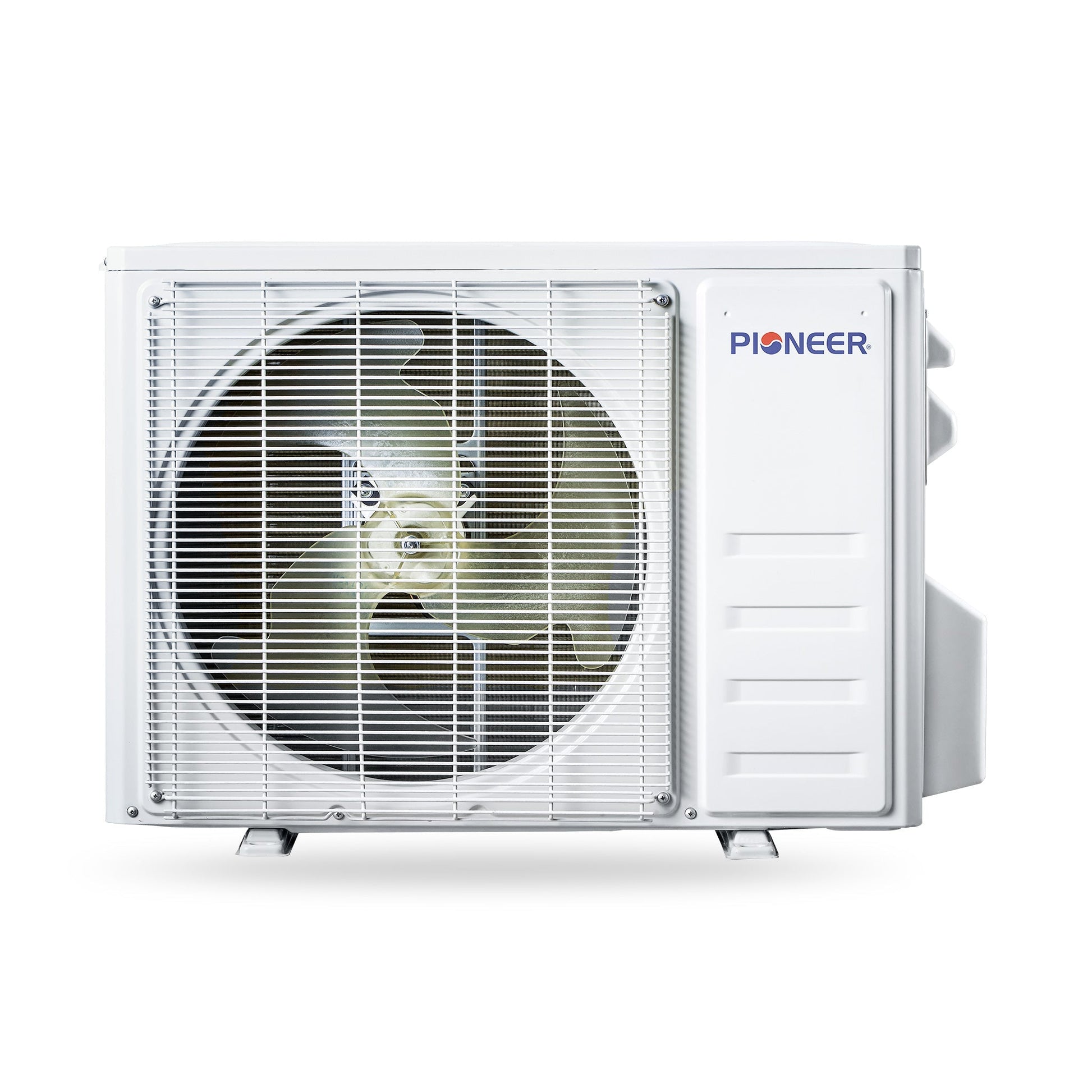

Outdoor Unit
-
Part Number: YN018GLSI24RPG
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 53 dB(A)
-
Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
-
Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
-
Net / Gross Weight: 90.4 / 97.0 lbs.
Dimension Chart
What Our Experts Think
-
18,000 BTU capacity ideal for medium to large rooms.
-
20.5 SEER2 efficiency ensures energy savings year-round.
-
Flexible installation: floor, ceiling, or low-wall mounting.
-
Inverter heat pump provides reliable heating and cooling.
-
Full set includes indoor and outdoor units for easy setup.
Q&A
Q: What room size is suitable for this system?
A: Recommended for spaces up to 750–1,000 sq. ft., depending on insulation.
Q: Can it provide both heating and cooling?
A: Yes, it’s a full inverter heat pump system.
Q: What mounting options are available?
A: Flexible installation: floor-mounted, ceiling-mounted, or low-wall units.
Maintenance Tips
-
Clean air filters monthly to maintain airflow and efficiency.
-
Keep outdoor condenser free from debris for optimal performance.
-
Wipe indoor unit panels regularly to prevent dust buildup.
-
Schedule annual professional servicing to ensure long-term reliability.
