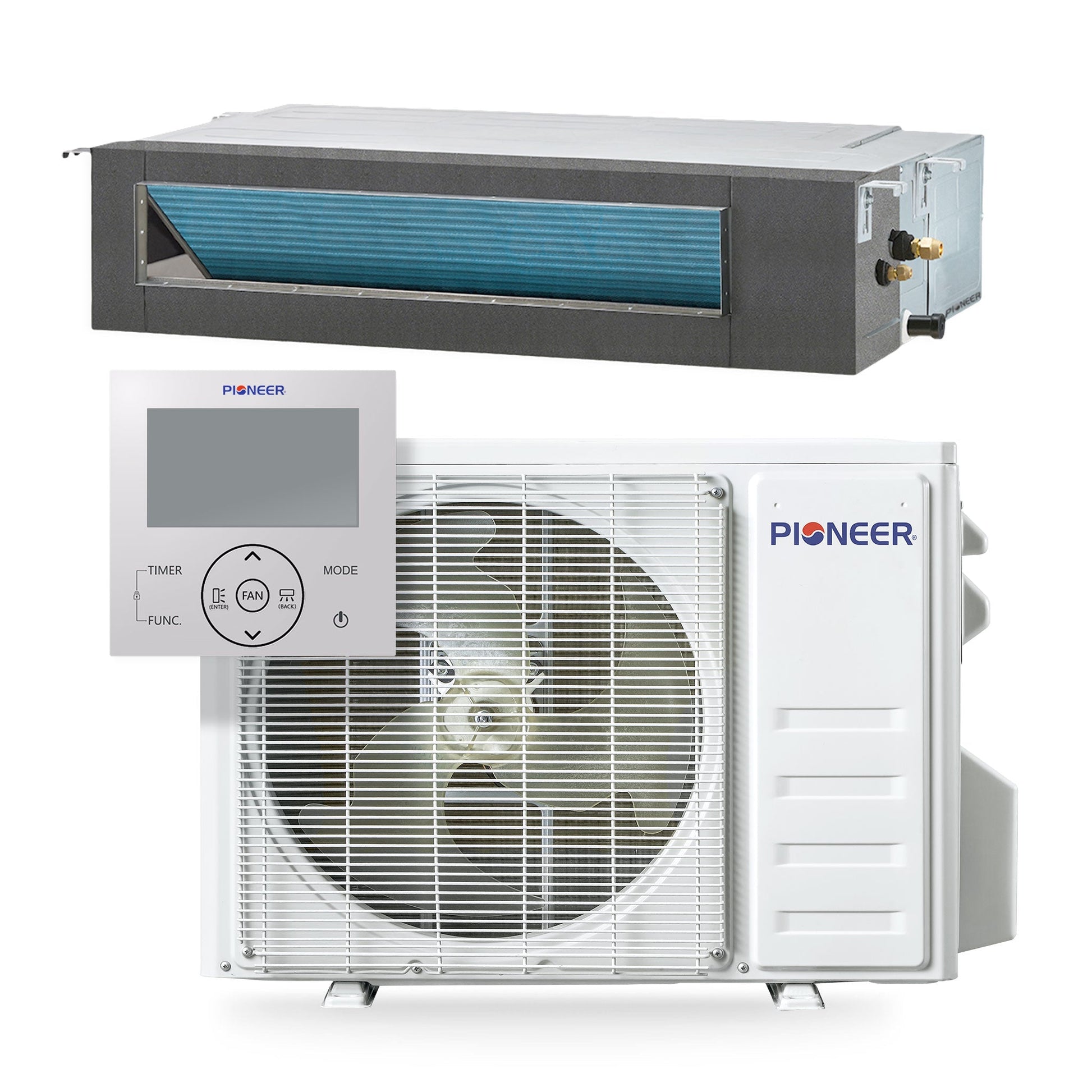

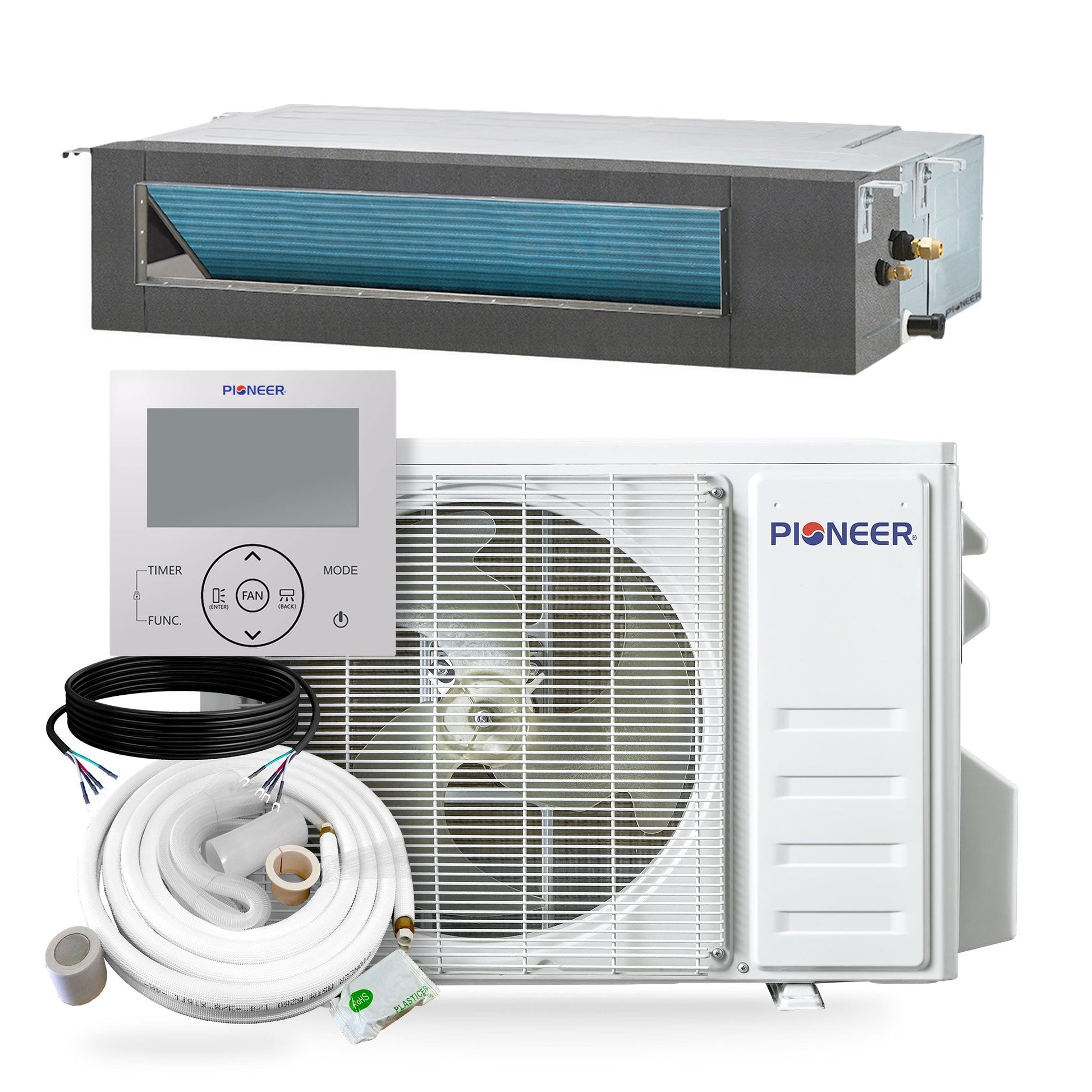

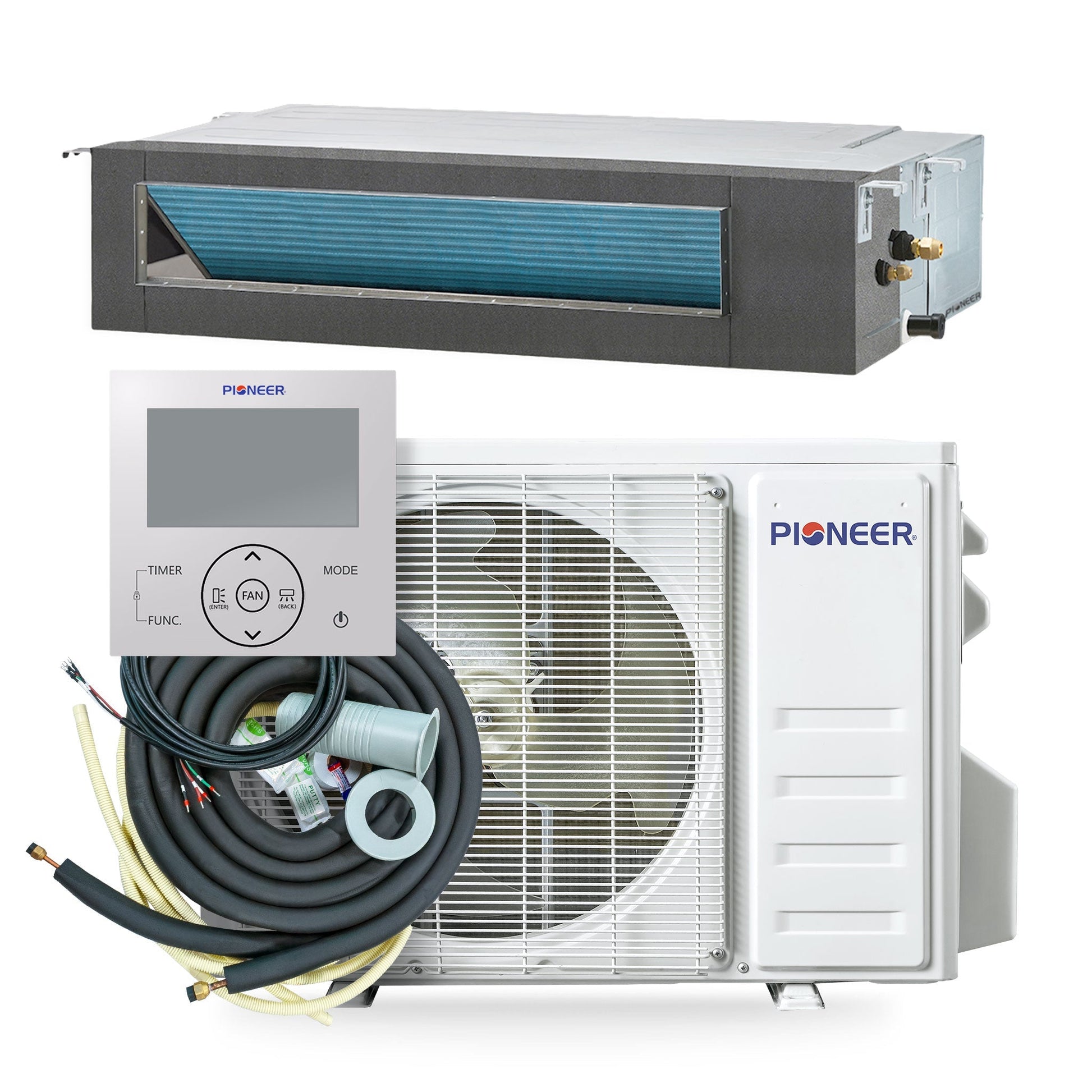

Pioneer Quantum Ultra 18,000 BTU 21 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set - RYT018GLSI24RL-10S
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 17,000 BTU/H with 21 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 8.1 HSPF2 / 2.9 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

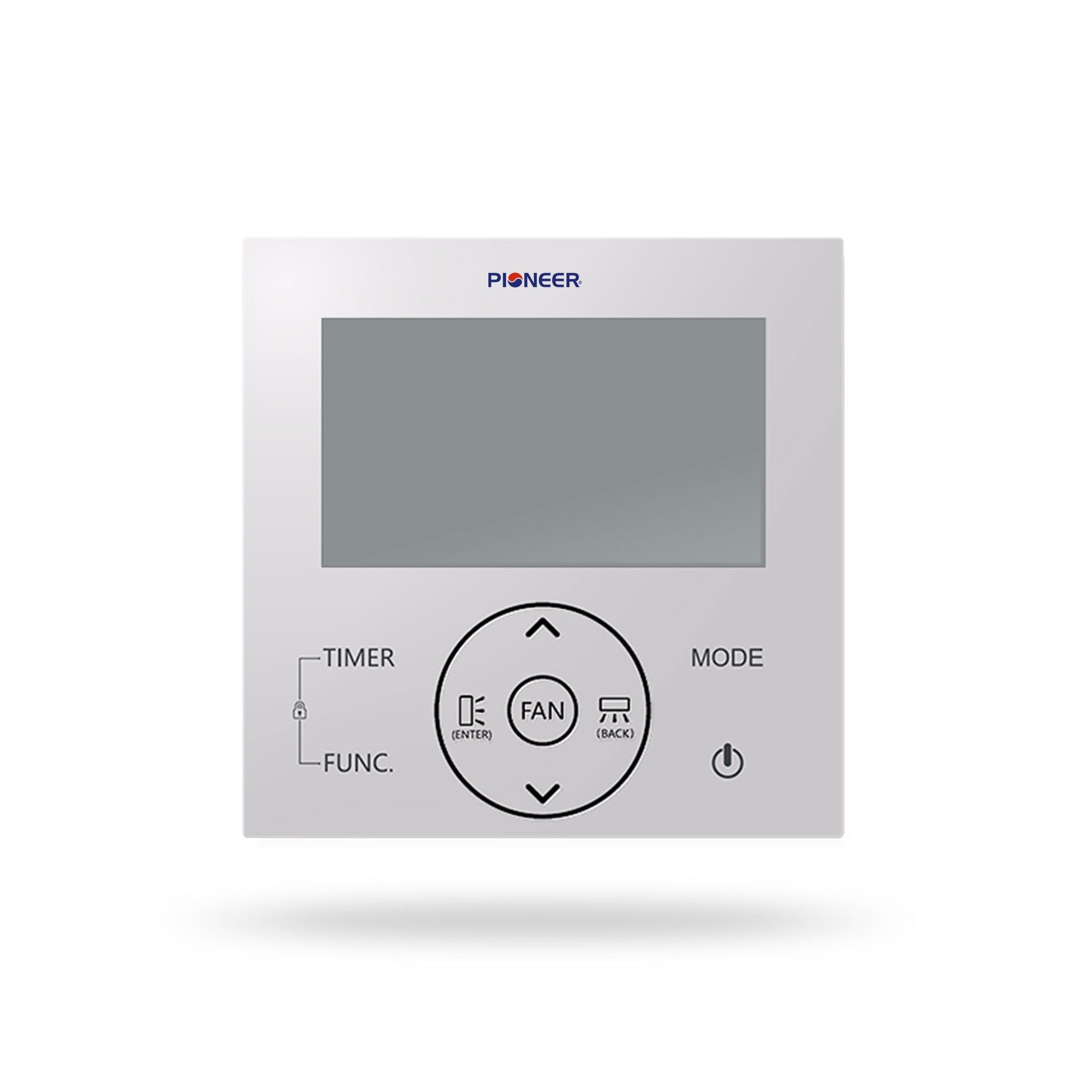

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 17,000 BTU/h
-
Cooling Capacity Range: 6,000~19,400 BTU/h
-
Cooling SEER2: 21.0 BTU/W.h
-
Cooling EER2: 11.7 BTU/W.h
-
Heating Rated Capacity: 18,000 BTU/h
-
Heating Capacity Range: 4,000~21,400 BTU/h
-
Heating HSPF2 (Region IV): 8.1 / 7.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.9 / 1.8 W/W
-
Refrigerant Type: R454b
-
Suitable Area: 500~750 Sq.F
-
AHRI Reference: 217048764
-
Indoor Unit
-
Part Number: RT018GLSILCFHG
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 500/426/370/300/283 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 41/38/36 dB(A)
-
Product Dimensions (WDH): 35"-1/2 x 19"-1/4 x 7"-7/8 Inches
-
Carton Dimensions (WDH): 44"-1/8 x 21"-7/8 x 9"-7/8 Inches
-
Net / Gross Weight: 39.7 / 46.3 lbs.
-

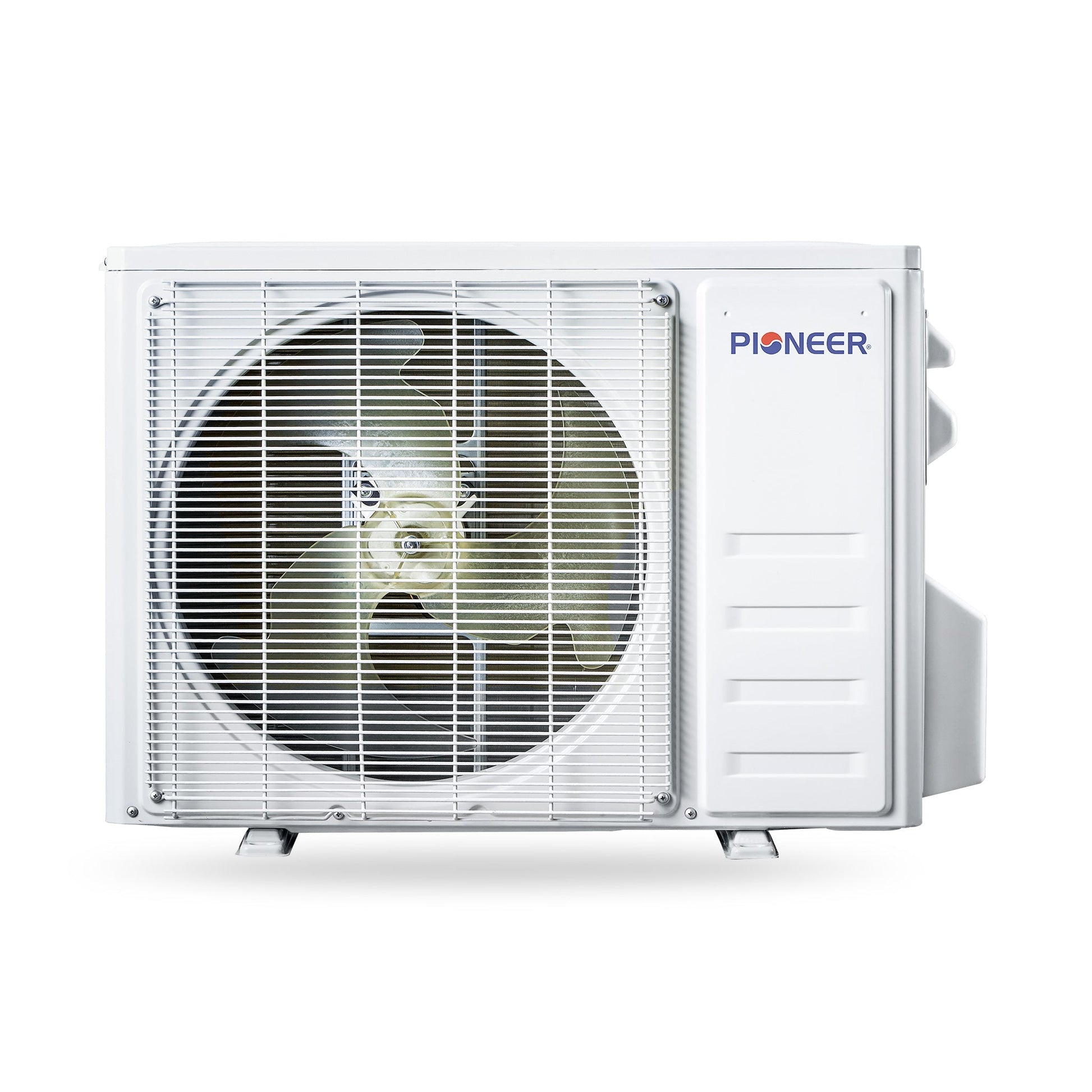

Outdoor Unit
-
Part Number: YN018GLSI24RPG
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 53 dB(A)
-
Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
-
Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
-
Net / Gross Weight: 90.4 / 97.0 lbs.
Dimension Chart
What Our Experts Think
-
18,000 BTU capacity perfect for medium to large spaces.
-
High-efficiency 21 SEER2 rating reduces energy consumption.
-
Ceiling concealed ducted design provides discreet installation and flexible airflow.
-
Inverter heat pump delivers both heating and cooling year-round.
-
Ideal for offices, commercial spaces, or modern home interiors.
Q&A
Q: Is this a full system or just an indoor unit?
A: This is a full ducted mini-split set, including indoor and outdoor units.
Q: Does it provide heating and cooling?
A: Yes, the inverter heat pump ensures efficient year-round climate control.
Q: Can it be installed in a concealed ceiling setup?
A: Yes, the ducted design allows hidden installation with adjustable airflow.
Maintenance Tips
-
Clean or replace filters every 4–6 weeks to maintain airflow.
-
Inspect ductwork and vents periodically to prevent blockages.
-
Keep outdoor condenser free from debris for optimal efficiency.
-
Schedule annual professional servicing for long-term reliability.
