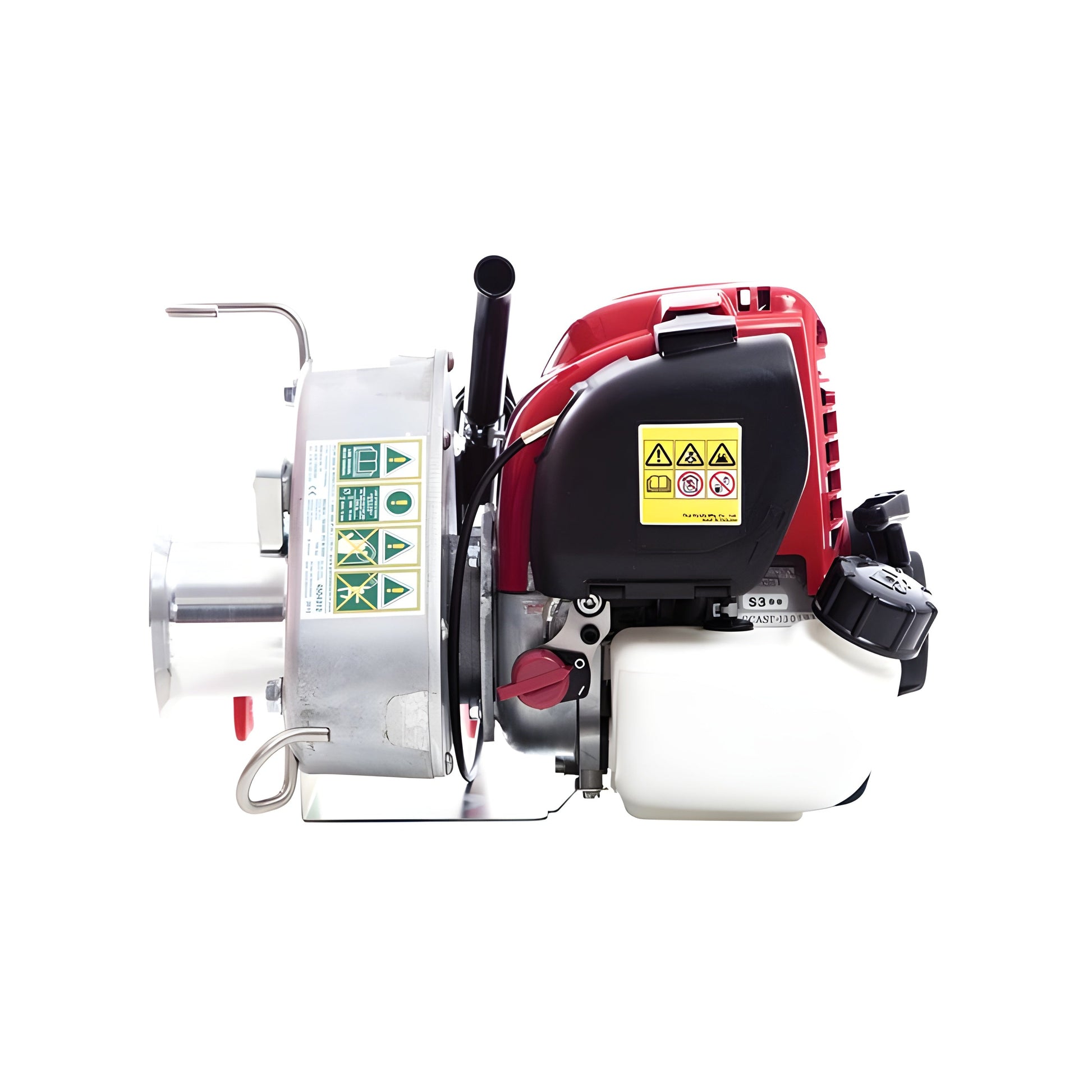

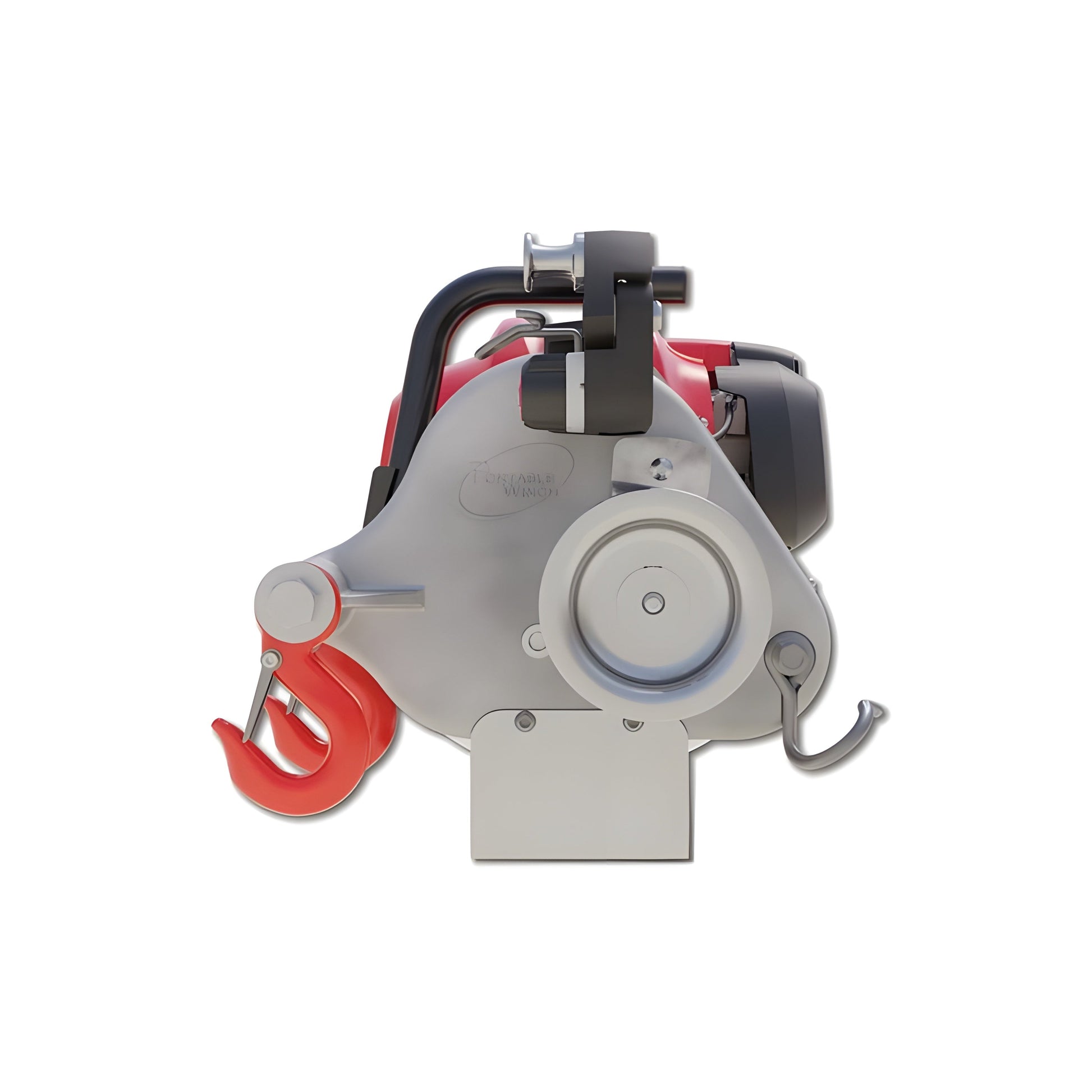

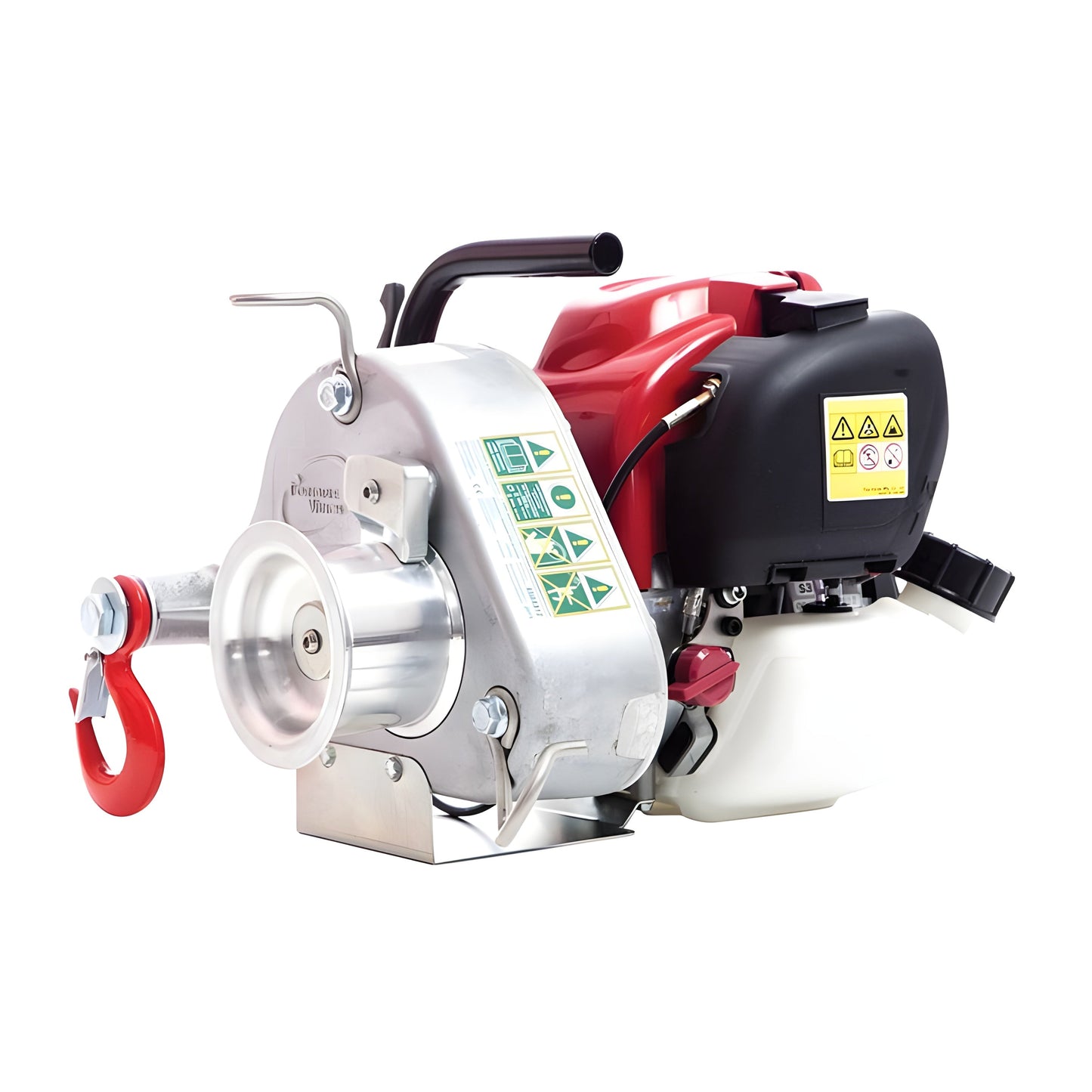

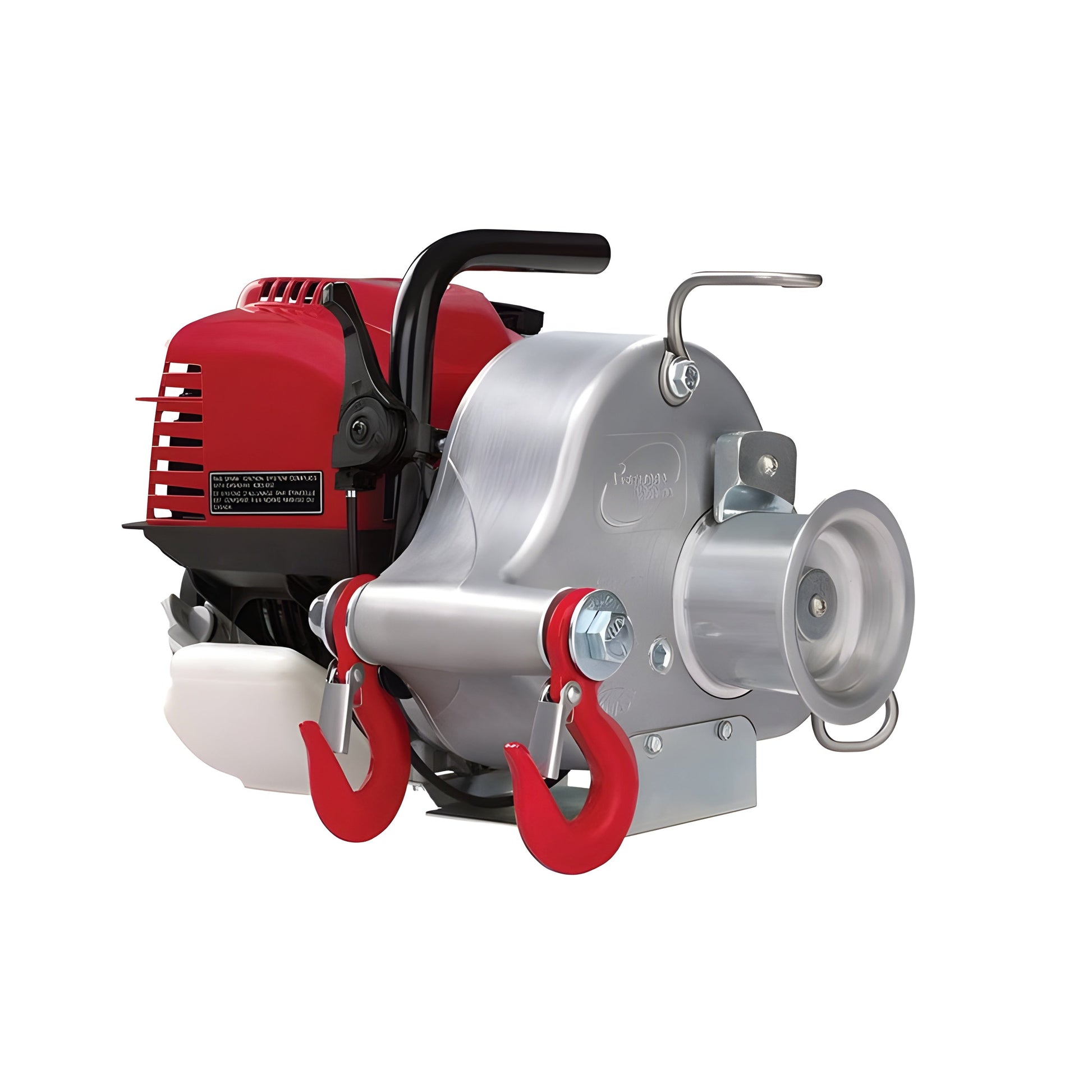

Portable Winch PCW3000-A Gas-Powered Pulling Winch, Honda GX35 - PW, PCW3000-A

Name: Portable Winch PCW3000-A Gas-Powered Pulling Winch, Honda GX35 - PW, PCW3000-A
Brand: Portable Winch
SKU: PW, PCW3000-A
Price: 1125.99 USD
Availability: InStock

1 Review

5% Sale

Only 9999 left!

$1,125.99

~~$1,184.99~~ $1,125.99

Sale Sold out

Shipping calculated at checkout.

Quantity

Quantity

View full details

SALE ENDS IN

07 HRS

23 MINS

28 SECS

DON'T MISS IT!

Popular Add on

Offer Price

$300.00

$100.00

Portable Winch PCW3000-A Gas-Powered Pulling Winch, Honda GX35 - PW, PCW3000-A

Born to meet the demand for an even more portable model than the original PCW5000 winch, the PCW3000 capstan drum winch is nothing less than a technical gem; delivering incredible pulling power, in the smallest format Portable Winch has ever made.
Powered by Honda GX35 4-stroke engine, 360-degree inclinable and air-cooled. The PCW3000 can pull up to 700 kg (1,600 lbs.) without mechanical advantage. Add a pulley system, you can go up to five times (5x) the pulling power. That means, with two double pulleys, you could move up to 3,500 kg (8,000 lb)!

Features

Dimensions: 13-3/4" x 11-3/8" x 10-1/4"

Motor/Engine: Honda GX35, 4-Stroke, 360-degree inclinable, air cooled, 1.0 kW - 1.3 HP 7,000 tr/min

Pulling Capacity for Standard Drum (Single Line/Double Line): 3" Dia. (76 mm) : 1,600 lb / 3,200 lb - 700 kg / 1,400 kg

Lifting Capacity for Standard Drum (Single Line/Double Line): Not designed for lifting

Speed for Standard Drum: 3" Dia. (76 mm) : 33'/min - 10m/min

Weight: 20lb

Powered By Gas

Power 1.0 kW - 1.3 HP 7,000 tr/min

Specifications

SKU	PW, PCW3000-A
Brand	Portable Winch
Part Number	PCW3000-A
Type	Gas-powered winch
Motor	4-stroke engine
Engine Power	6.5 HP (horsepower)
Pulling Capacity	3,000 lbs (1360 kg)
Line Capacity	164 ft (50 m) of 3/8" synthetic rope
Winch Speed	16 ft/min (5 m/min)
Weight	29.8 lbs (13.5 kg)
Dimensions	18.5" x 12" x 12" (47 cm x 30 cm x 30 cm)
Fuel Type	Gasoline
Fuel Tank Capacity	0.4 gallons (1.5 L)
Additional Features	Includes a remote control, durable frame, and protective cover for safety and easy handling

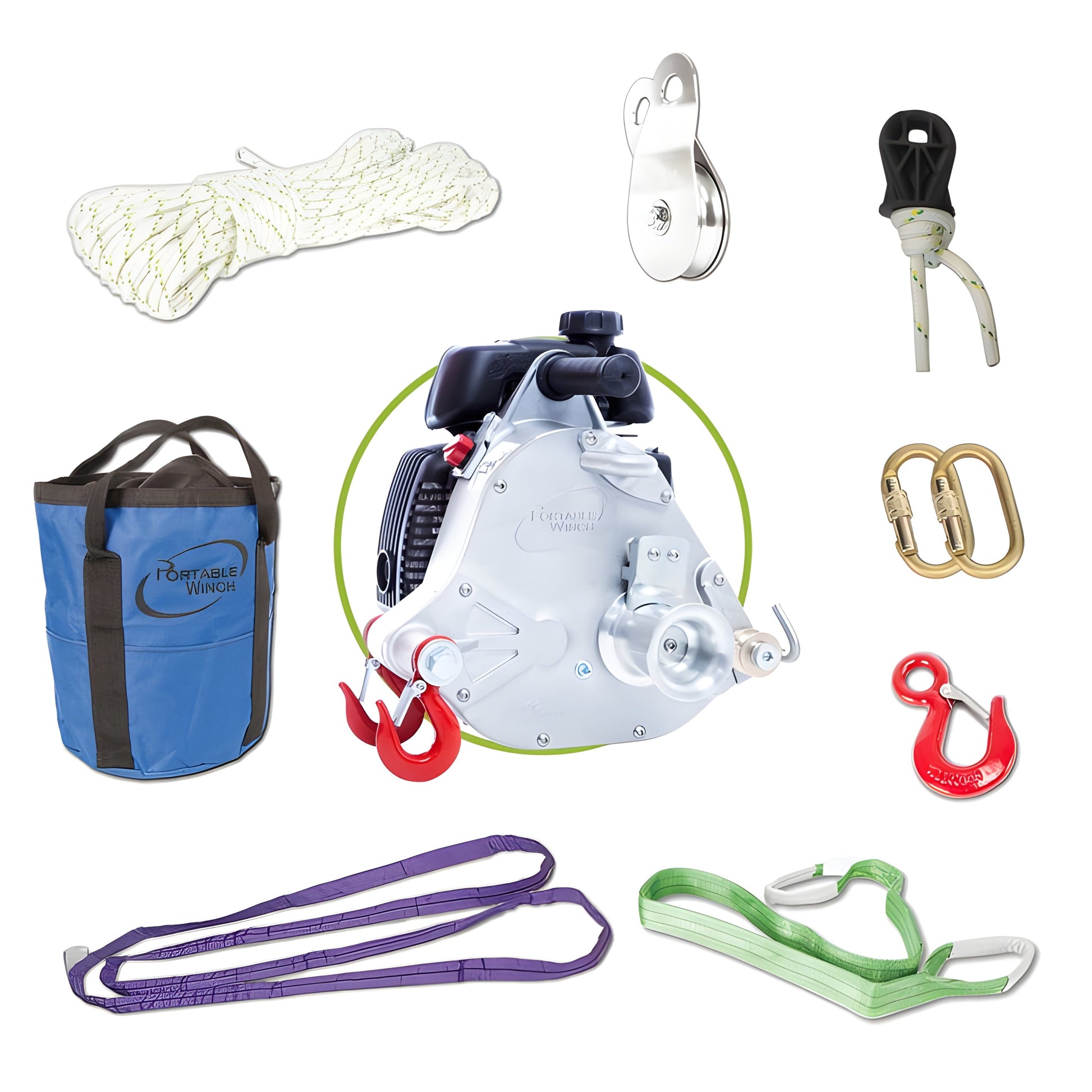

Includes

(1) PCA-1255 Rope Bag, (1) PCA-1205M Rope - 164', (1) PCA-1360 RopeWizer - The Easy Splice, (1) PCA-1275 Single Pulley, (2) PCA-1276 Steel Locking Carabiners, (1) PCA-1281 Safety Hook w/ Latch, (1) PCA-1260 6.5' Polyester Sling, (1) PCA-1259 8.5' Polyester Sling

What Our Experts Think

Powerful Performance – Driven by a Honda GX35 engine, offering 1,200 lbs of pulling force for efficient handling of lighter lifting and pulling tasks.
Compact & Lightweight – Weighs just 28 lbs, making it highly portable and ideal for remote or off-site jobs.
Reliable Operation – Features an automatic anti-roll-back system, ensuring safe and smooth pulling under load.
Durable & Tough – Designed with high-quality materials for longevity and reliable performance in rugged conditions.
Versatile Use – Perfect for forestry, agriculture, marine, and light construction projects.

Q&A

Q: What is the pulling capacity of the PCW3000-A?
A: It offers 1,500 lbs (680 kg) of pulling force, suitable for medium-duty tasks.

Q: What engine powers the PCW3000-A?
A: The winch is powered by a Honda GX35 4-stroke engine, known for its reliability and performance.

Q: What type of rope is compatible with the PCW3000-A?
A: It works with double-braid polyester rope, with a recommended diameter of 10-12mm.

Q: Is the PCW3000-A easy to transport?
A: Yes, its compact and lightweight design makes it portable for various applications.

Q: What industries is the PCW3000-A best suited for?
A: Ideal for forestry, off-road recovery, light construction, and general utility tasks.

Q: Does it come with accessories?
A: The PCW3000-A is sold as a standalone unit, with compatible accessories available separately.

Maintenance Tips

Engine Oil Maintenance: Regularly check and change the engine oil with high-quality 4-stroke engine oil, following Honda GX35 guidelines, to keep the engine running smoothly.
Clean the Air Filter: Inspect and clean the air filter frequently to prevent dirt from entering the engine, ensuring optimal performance and engine longevity.
Use Fresh Fuel: Always use fresh gasoline, and check for any leaks or blockages in the fuel lines. It is recommended to use fuel stabilizer if the winch will be stored for an extended period.
Inspect the Rope & Drum: Periodically check the rope for signs of fraying, wear, or damage, and ensure the drum is free from debris for efficient operation.
Lubricate Moving Parts: Apply grease to gears and bearings to reduce friction and wear. Regular lubrication extends the life of these critical components.
Check for Loose Bolts & Fasteners: Inspect all bolts and fasteners for tightness, as vibrations from operation may cause them to loosen over time.
Brake System Inspection: Ensure that the anti-roll-back brake system is working properly to prevent any accidental slippage during operation.
Proper Storage: Store the winch in a dry, clean location and cover it to protect it from dirt, moisture, and harsh conditions when not in use.
Service Intervals: Adhere to the manufacturer’s recommended maintenance intervals and replace any worn or damaged parts promptly to maintain reliable performance.
