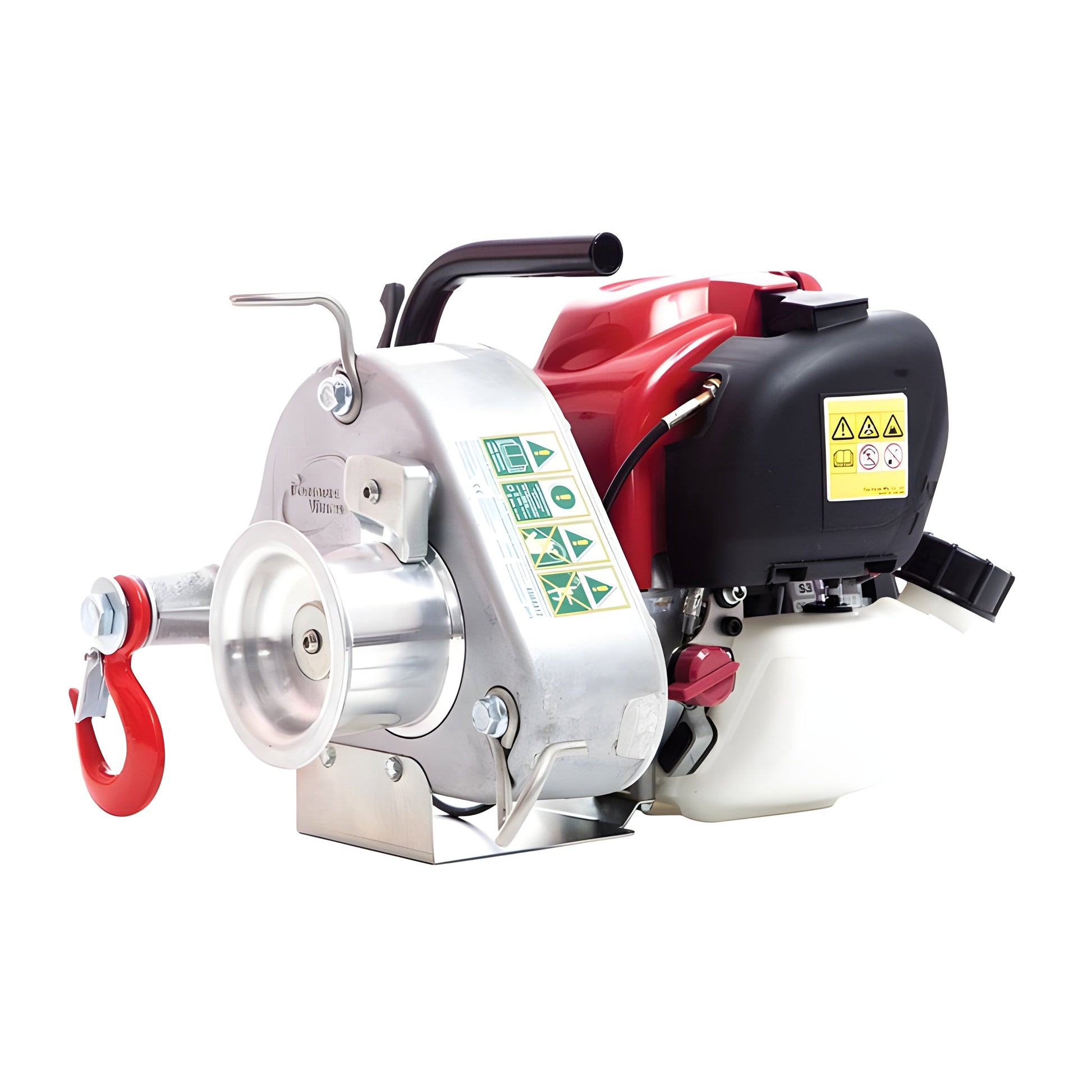

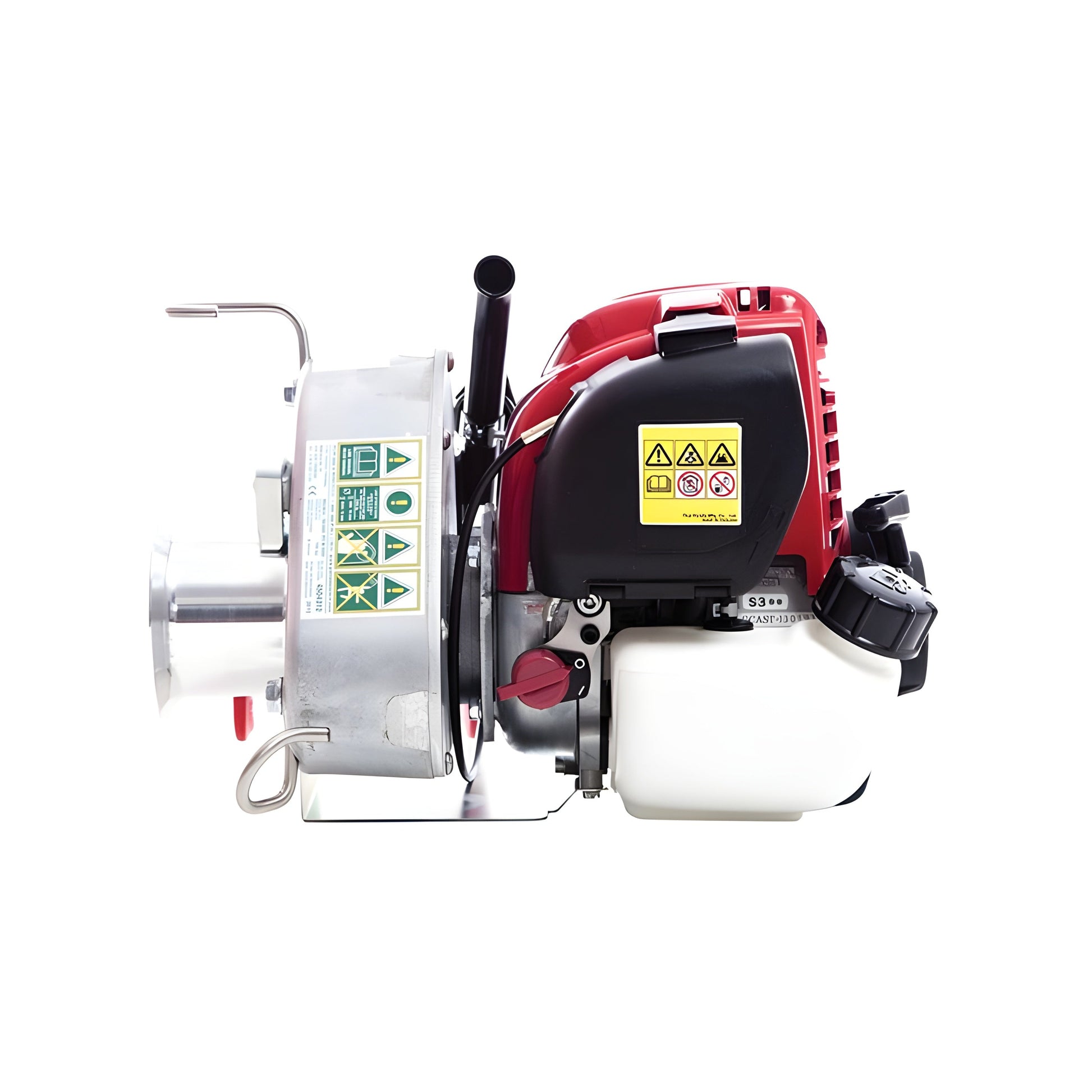

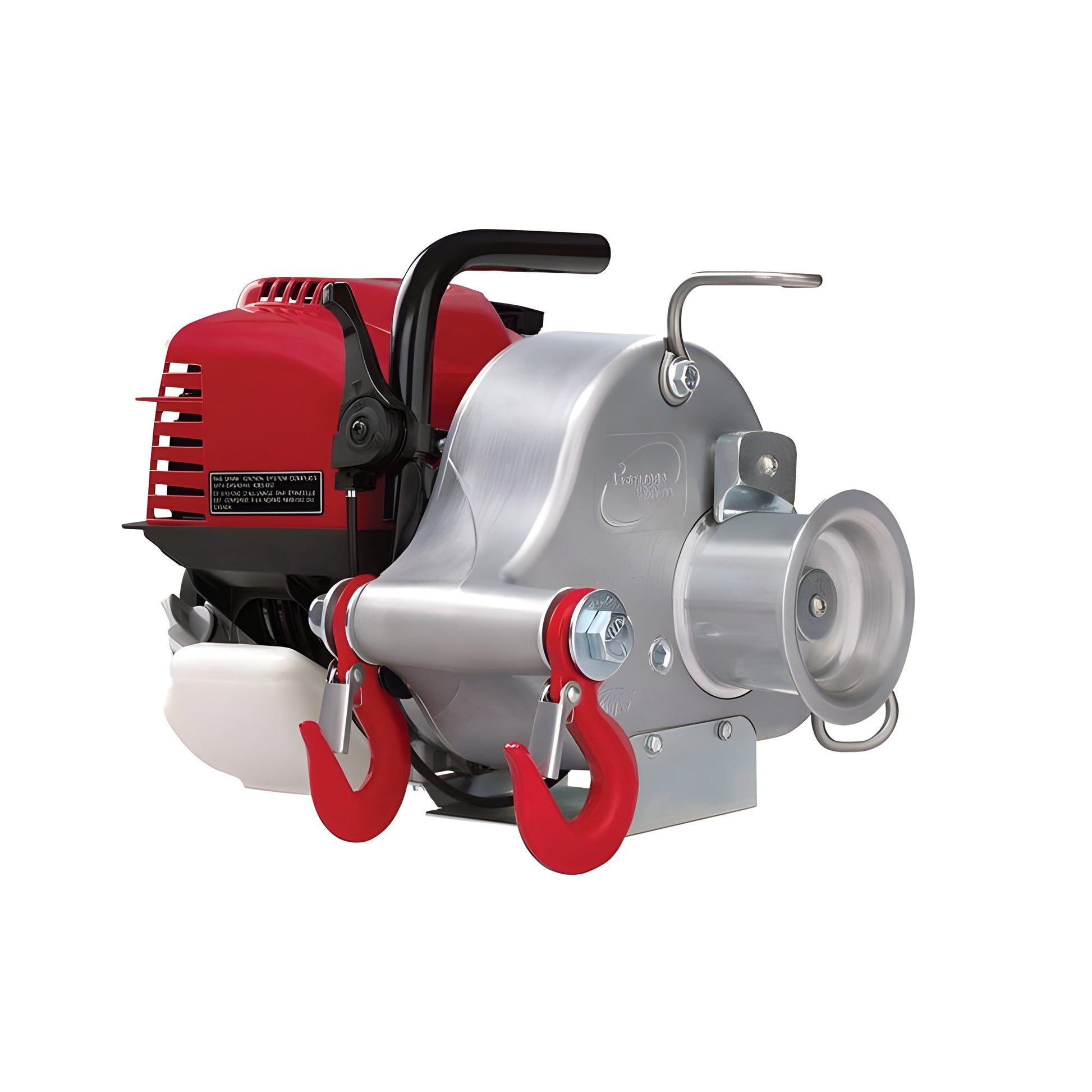

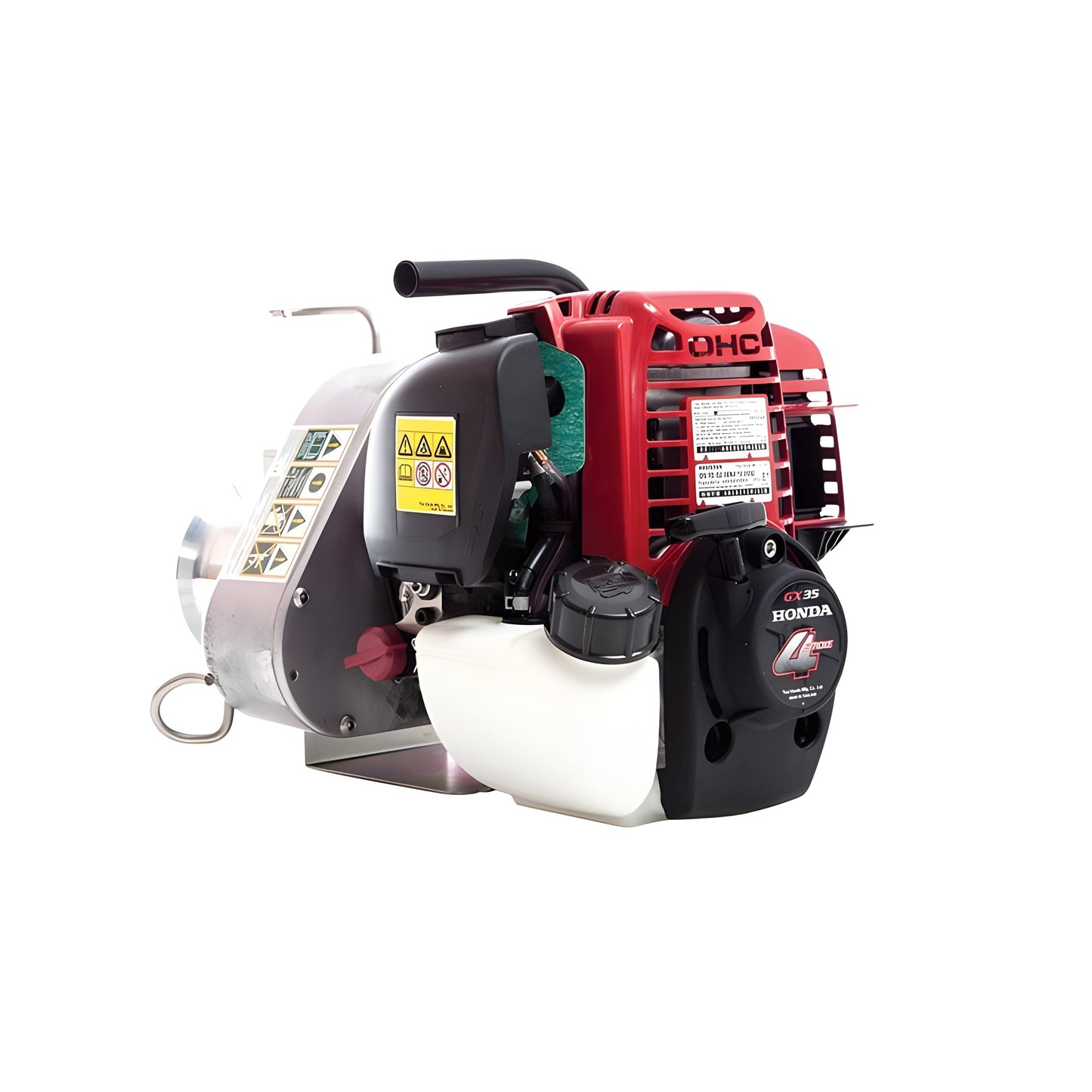

Portable Winch PCW3000 PRO Series Gas-Powered Pulling Winch, Honda GX35 - PW, PCW3000

Compact Power: The PCW3000 capstan winch is nothing short of a tour de force to deliver incredible pulling power, in the smallest format designed by Portable Winch Co. Coupled with the 360-degree inclinable GX35 Honda engine, it will be your best companion no matter where your next mission is.

Design: The PCW3000 was designed to meet the demand for an even more portable model than the original winch PCW5000. Its capstan drum concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective, and safe way. In addition, a wide range of accessories has been designed specifically to carry it over long distances such as the Molded Pack Frame and Transport Case!

Performance: The proven reliability of Honda engines, combined with Portable Winch ingenuity, makes the PCW3000 a formidable competitor on the market. The winch can pull up to 700 kg without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could move up to 3,500 kg!

Features

Dimensions: 11-3/8'' x 11-3/4'' x 10-1/4''

Motor/Engine: Honda GX35 4-stroke - 360-degree inclinable, Air-cooled , 1.0 kW - 1.3 HP 7000 tr/min

Pulling Capacity for Standard drum (single line / double line): Diamter 3'' (76 mm): 1,600 lb / 3,200 lb

Lifting Capacity for Standard drum (single line / double line): NOT DESIGNED FOR LIFTING

Speed for Standard Drum: Diamter 3'' (76 mm): 33'/min

Weight: 20 lb

Power 1.0 kW / 1.3 HP

Powered By Gas

Specifications

SKU	PW, PCW3000
Brand	Portable Winch
Part Number	PCW3000
Type	Gas-powered winch
Motor	4-stroke engine
Engine Power	6.5 HP (horsepower)
Pulling Capacity	3,000 lbs (1360 kg)
Line Capacity	164 ft (50 m) of 3/8" synthetic rope
Winch Speed	16 ft/min (5 m/min)
Weight	29.8 lbs (13.5 kg)
Dimensions	18.5" x 12" x 12" (47 cm x 30 cm x 30 cm)
Fuel Type	Gasoline
Fuel Tank Capacity	0.4 gallons (1.5 L)
Additional Features	Includes remote control, protective cover, and sturdy frame for safety and durability

What Our Experts Think

Pro-Grade Power – Features the Honda GX35 engine, delivering 1,200 lbs of pulling force, ideal for medium-duty tasks in tough environments.
Compact & Portable – Weighs just 28 lbs, making it easy to transport and use in remote job sites or confined spaces.
Durable & Reliable – Built with high-quality materials for long-lasting performance in forestry, agriculture, and construction applications.
Efficient & Safe Operation – Equipped with an automatic anti-roll-back system, ensuring smooth and controlled pulling.
Versatile & Robust – Ideal for a range of uses, including forestry, agriculture, and light industrial jobs.

Q&A

Q: What is the pulling capacity of the PCW3000 PRO Series?
A: It provides 1,500 lbs (680 kg) of pulling force, ideal for medium-duty tasks.

Q: What engine powers the PCW3000 PRO?
A: It features a Honda GX35 4-stroke engine, known for durability and performance.

Q: What type of rope is compatible with the PCW3000 PRO?
A: It is designed for use with double-braid polyester rope, with a diameter of 10-12mm.

Q: Is the PCW3000 PRO portable?
A: Yes, its lightweight and compact design makes it easy to transport to job sites.

Q: What applications is the PCW3000 PRO suitable for?
A: Ideal for forestry, off-road recovery, light construction, and utility work.

Q: Does it come with accessories?
A: The PCW3000 PRO is sold as a standalone unit, with compatible accessories available separately.

Maintenance Tips

Engine Oil Maintenance: Regularly check and change the engine oil with high-quality 4-stroke engine oil, following Honda GX35 guidelines, to ensure the engine stays in peak condition.
Air Filter Cleaning: Inspect and clean the air filter to prevent dust and debris from entering the engine, promoting optimal airflow and performance.
Fuel System Check: Always use fresh gasoline and inspect the fuel lines for leaks or clogs. Consider adding fuel stabilizer if storing for an extended period.
Inspect Rope & Drum: Check the rope for fraying, wear, or damage. Clean the drum to prevent debris buildup, which can affect winching performance.
Lubricate Moving Parts: Apply lubrication to key moving parts, such as gears and bearings, to reduce friction and prevent unnecessary wear and tear.
Tighten Loose Bolts: Check and tighten any loose bolts or fasteners that may have loosened due to vibrations during operation.
Test Brake Mechanism: Ensure the brake system and anti-roll-back mechanism are functioning correctly to avoid any safety issues.
Proper Storage: Store the winch in a clean, dry location when not in use, and cover it to protect it from dust, moisture, and environmental damage.
Adhere to Service Intervals: Follow the manufacturer’s recommended maintenance schedule and replace any worn or damaged parts promptly to maintain reliable operation.
