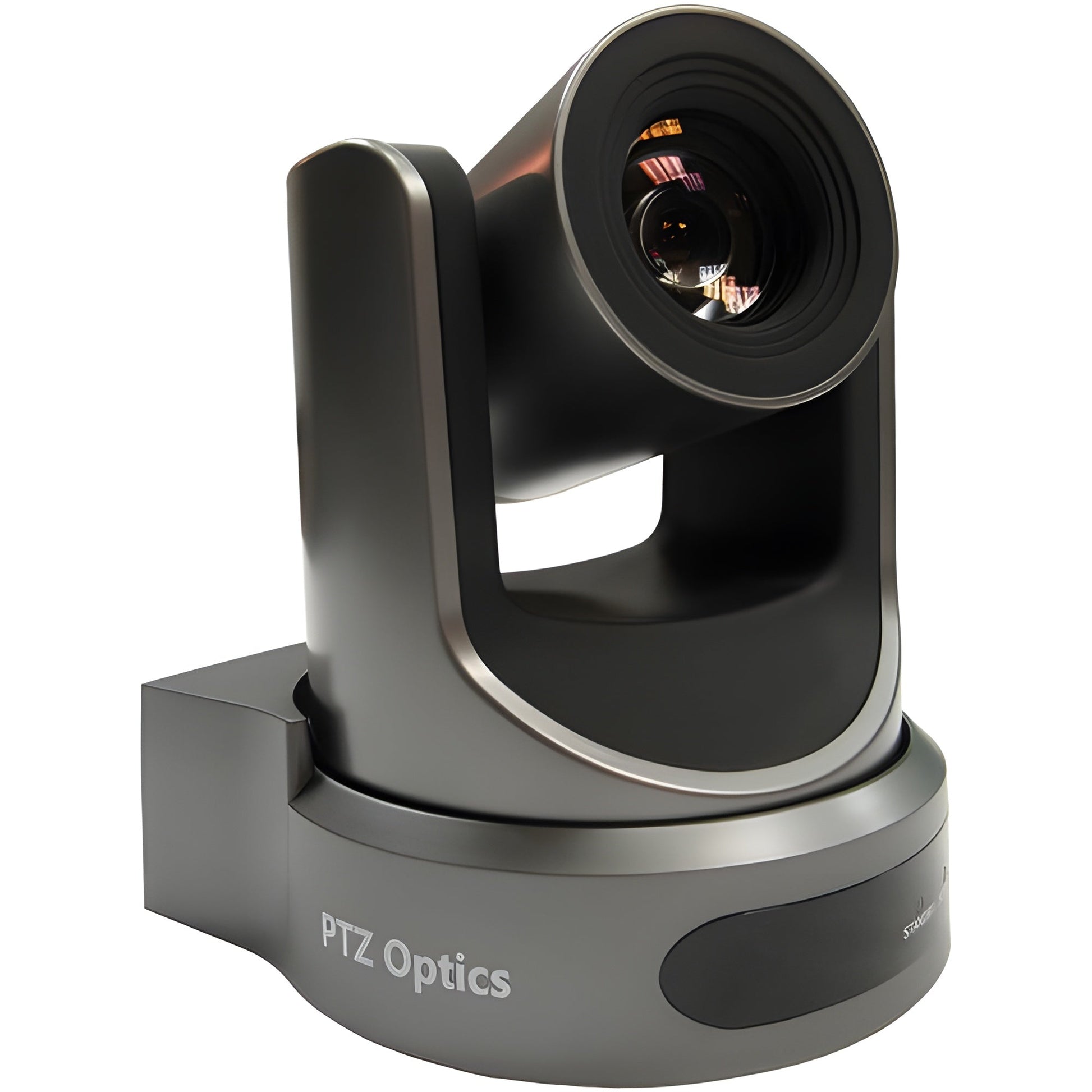

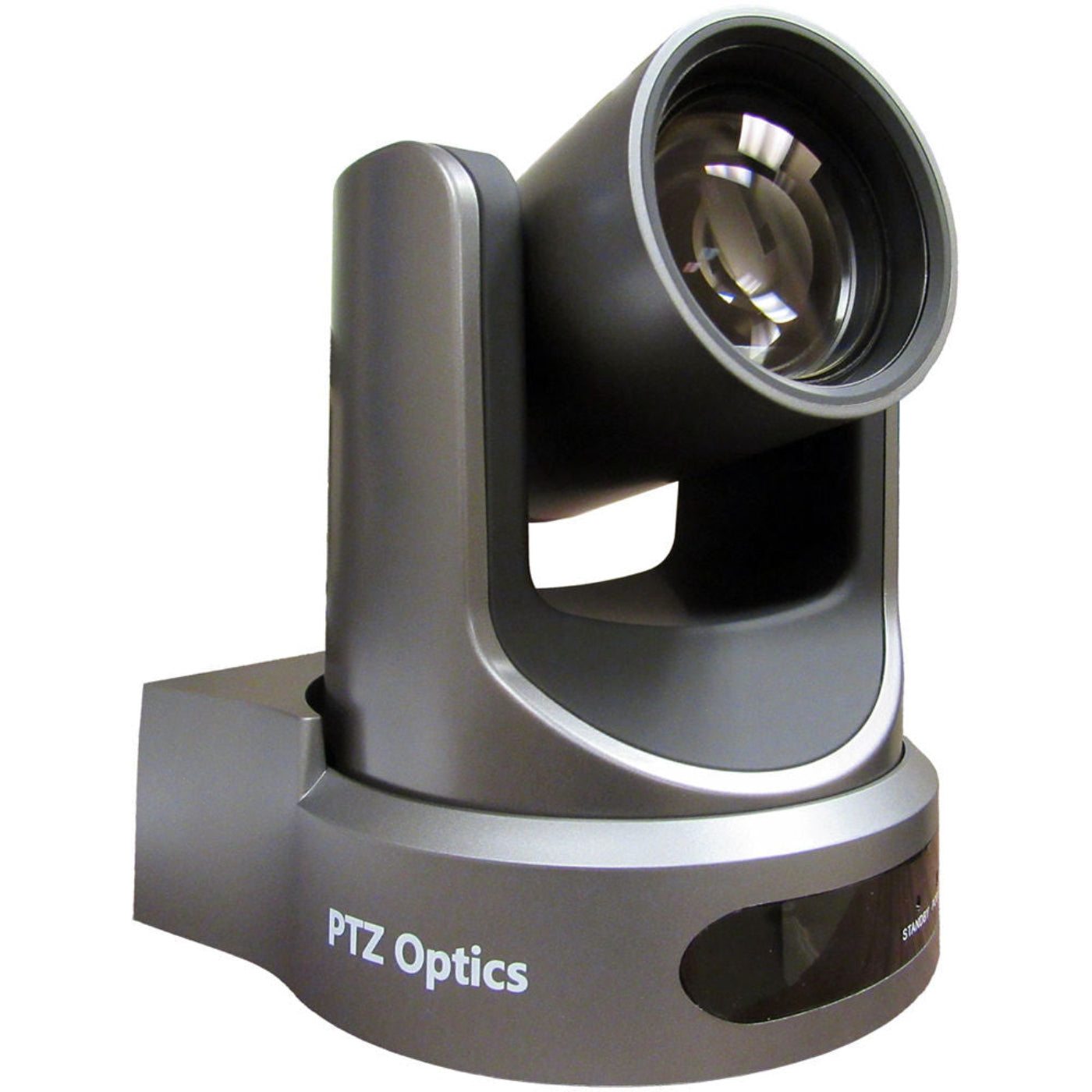

PTZOptics PT12X-SDI-GY-G2 Videoconferencing PTZ Camera - PT12XSDIGYG2
This is the 12x-SDI Gen2 model of the PTZOptics lineup of advanced live streaming cameras, in gray, featuring a 3G-SDI output for connecting to switching equipment for broadcast conferencing. The Gen2 model is capable of 1080p60/50 recording (instead of a max of 30 fps), and streaming in H.265 and MJPEG in addition to H.264.
- 1/2.7" CMOS Sensor, 0.5 Lux Minimum
- Integrated 3.5 - 42.3mm, f/1.8 - f/2.8
Features
- 3G-SDI output for connecting to professional switching equipment for broadcast conferencing
- 1080p HD video at up to 60/50 fps

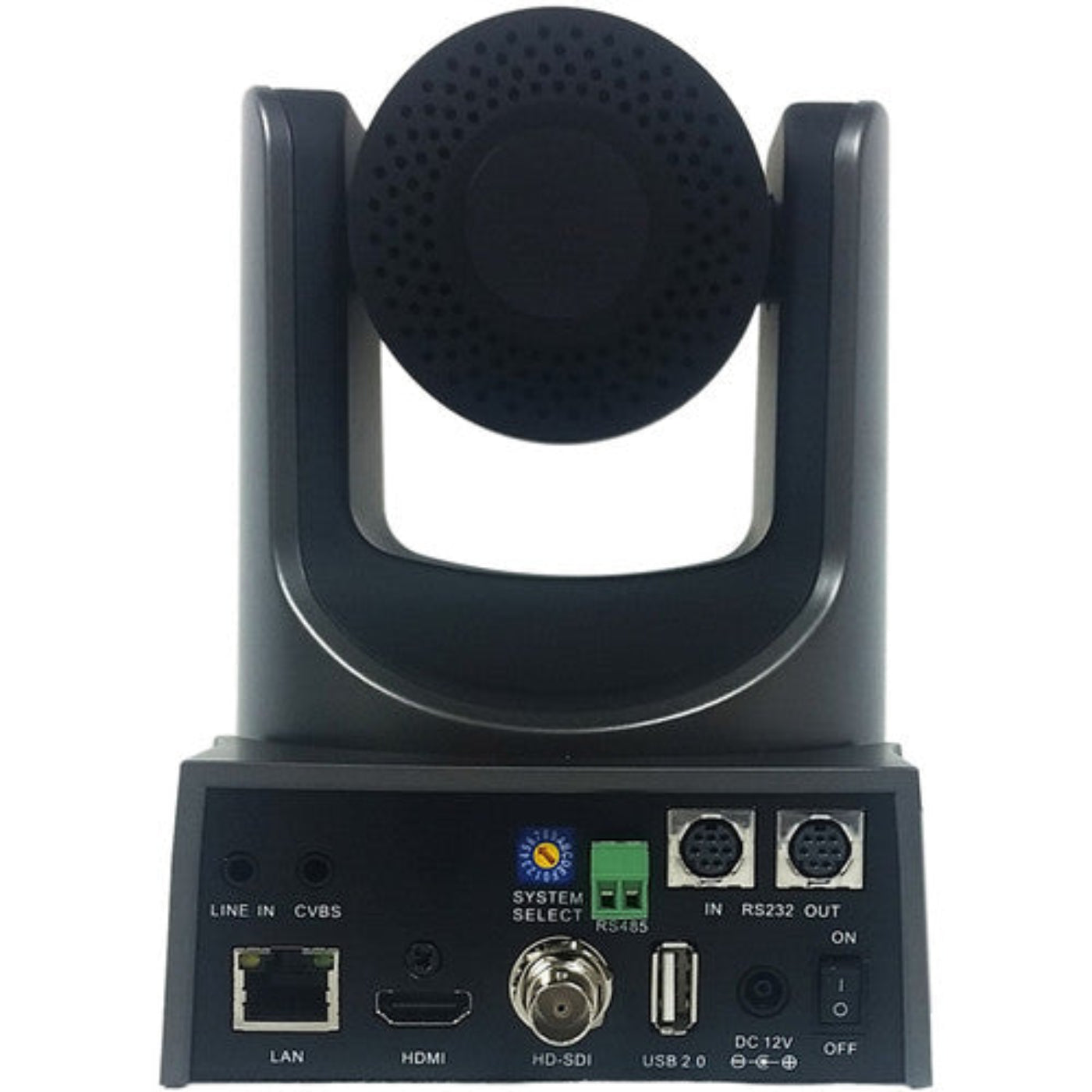

- LAN, HDMI, and composite outputs, RS-232 input/output, RS-485 port
- 3.5mm audio input for embedding audio into an HDMI signal or IP stream
- H.264 and H.265 HD/SD dual-stream, or MJPEG single stream via LAN port
- SDI, LAN, and HDMI ports are simultaneously live
- Open source customizable via HTML commands
- 3.5 - 42.3mm lens with 12x zoom range
- f/1.8 - f/2.8 lens aperture
- 0.5 lux minimum illumination at f/1.8
- 2D and 3D noise cancellation
- Control via LAN over a network, ONVIF over a network, and RS-232 via VISCA commands
- Control multiple cameras from any NewTek TriCaster, directly from the TriCaster software
- Set up to 64 presets (or up to 255 via RS-232), with a preset accuracy of 0.1°
- Use desktop-mounted or ceiling-mounted using an optional bracket
Specifications
| Sensor |
1/2.7" CMOS progressive, 2.12 MP |
| Resolution |
4K |
| Signal System |
NTSC, PAL |
| Signal To Noise Ratio |
- |
| Gain |
- |
| Shutter Speed Range |
1/30 - 1/10000 sec |
| Exposure Control |
- |
| White Balance |
- |
| Image Stabilization |
- |
| Image Flip |
- |
| ICR |
- |
| Sync |
- |
| Output |
1 x USB 3.0 (type B, female), 1 x HDMI (1.3), 1 x RJ45 (10 m/100 m adaptive Ethernet port), 1 x 3.5 mm Component |
| Audio Input |
1 x 3.5 mm line in (for embedding into IP stream only) |
| Audio |
- |
| Camera Control |
1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance), 1 x RS-232 output |
| Focal Length |
Integrated 4.4 - 88.5mm, f/1.8 - f/2.8 |
| Minimum Object Distance |
- |
| Pan Angle |
±170° |
| Tilt Angle |
Up: 90° |
| Pan Speed |
- |
| Tilt Speed |
- |
| Presets |
Up to 64 presets (255 presets via RS-232) |
| Operating Temperature |
23 to 104°F (-5 to 40°C) |
| Power Input |
12 VDC (10.8 - 13.0 VDC) |
| Minimum Illumination |
0.5 lux at f/1.8, AGC on |
| Optical Zoom |
3x |
What Our Experts Think
-
12x Optical Zoom: Capture clear, detailed footage from a distance with exceptional zoom capabilities for any videoconferencing setting.
-
HD 1080p Resolution: Delivers high-definition video quality for sharp and vibrant images during meetings or presentations.
-
SDI & IP Connectivity: Offers flexible connectivity options including SDI and IP for seamless integration into professional video setups.
-
Pan, Tilt, and Zoom Control: Smooth and precise camera movements, ideal for dynamic conference environments.
-
Multiple Presets: Easily store and recall up to 10 preset positions for efficient, one-touch operation.
-
Quiet Operation: Designed for silent performance, ensuring minimal noise during videoconferencing.
Q&A
Q: What is the PTZOptics PT12X-SDI-GY-G2 Videoconferencing PTZ Camera?
A: The PTZOptics PT12X-SDI-GY-G2 is a professional PTZ camera designed for videoconferencing, offering 12x optical zoom and high-definition video quality, perfect for meetings and live streaming.
Q: What features does the PTZOptics PT12X-SDI-GY-G2 offer?
A: It features 12x optical zoom, SDI output, and smooth pan/tilt/zoom capabilities, providing clear video and flexible camera control for professional settings.
Q: Is the PTZOptics PT12X-SDI-GY-G2 suitable for large venues?
A: Yes, the 12x zoom and SDI output make it ideal for large conference rooms, auditoriums, and other professional environments where high-quality video is needed.
Q: How do I control the PTZOptics PT12X-SDI-GY-G2 camera?
A: The PTZOptics PT12X-SDI-GY-G2 can be controlled remotely via a joystick, IP interface, or third-party software, giving you full control over the camera’s movements and settings.
Maintenance Tips
-
Regular Lens Cleaning – Use a microfiber cloth to clean the lens, removing dust and fingerprints to maintain clear video quality.
-
Avoid Exposure to Dust & Humidity – Store the camera in a dry, dust-free area to prevent internal damage or fogging of the lens.
-
Secure the Camera – Ensure the camera is securely mounted to avoid mechanical damage during movement or operation.
-
Check SDI Connections – Inspect all SDI cables and connections regularly to ensure proper signal transmission and prevent malfunctions.
-
Update Firmware – Keep the camera's firmware up-to-date to benefit from performance improvements and bug fixes.
-
Power Off During Maintenance – Turn off the camera when cleaning or adjusting its setup to avoid electrical issues or damage.
-
Protect from Overheating – Ensure proper ventilation around the camera to prevent overheating during long use sessions.
