| Sensor |
1/2.7" CMOS progressive, 2.12 MP |
| Resolution |
HD 1080 |
| Signal System |
NTSC, PAL |
| Shutter Speed Range |
1/30 - 1/10000 sec |
| Output |

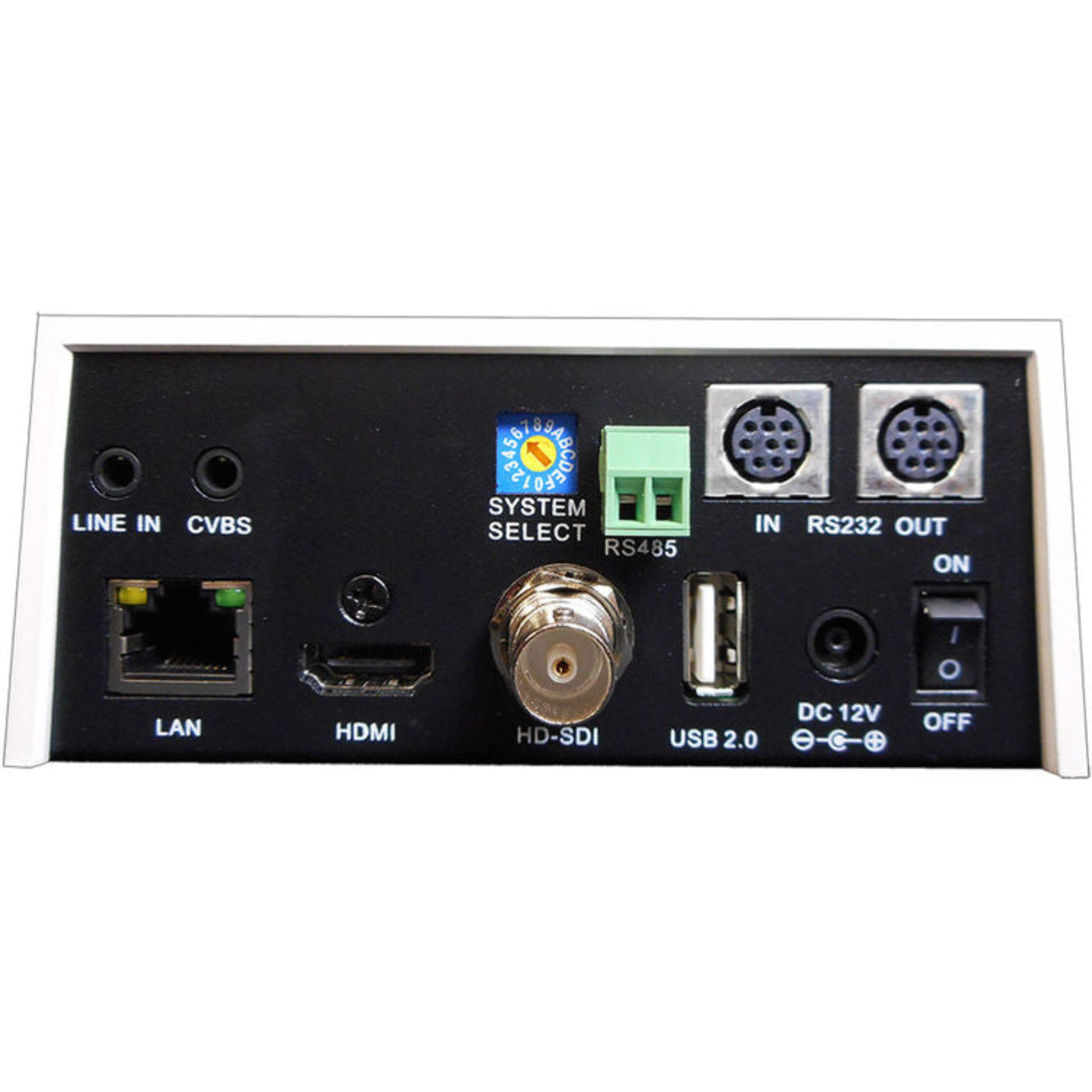

1 x 3G-SDI, 1 x HDMI (1.3), 1 x RJ45 (10m/100m Adaptive Ethernet Port) (IP Network Interface), 1 x 3.5mm Composite |
| Audio Input |
1 x 3.5mm Line In (for embedding into IP stream only) |
| Camera Control |
1 x RS-232 Input (8-pin Mini-DIN, 98 ft / 30 m Distance), 1 x RS-232 Output |
| Focal Length |
Integrated 4.4 - 88.5mm, f/1.8 - f/2.8 |
| Pan Angle |
Ā±170Ā° |
| Tilt Angle |
Up: 90Ā°, Down: 30Ā° |
| Presets |
Up to 64 Presets (255 via RS-232) |
| Operating Temperature |
23 to 104Ā°F (-5 to 40Ā°C) |
| Power Input |
12 VDC (10.8 - 13.0 VDC) |
| Minimum Illumination |
0.5 lux at f/1.8, AGC on |
| Optical Zoom |
20x |
What Our Experts Think
-
Sharp Full HD Video ā 1080p resolution at 60fps ensures professional-quality video for conferencing, streaming, and broadcasting.
-
12x Optical Zoom ā Captures clear details, making it ideal for small to medium-sized conference rooms and live events.
-
Multiple Connectivity Options ā Features SDI, HDMI, and IP streaming for seamless integration into various setups.
-
Smooth PTZ Control ā Precise pan, tilt, and zoom movements with support for remote and joystick control.
-
Low-Light Optimization ā Delivers crisp, well-lit video even in challenging lighting conditions.
Q&A

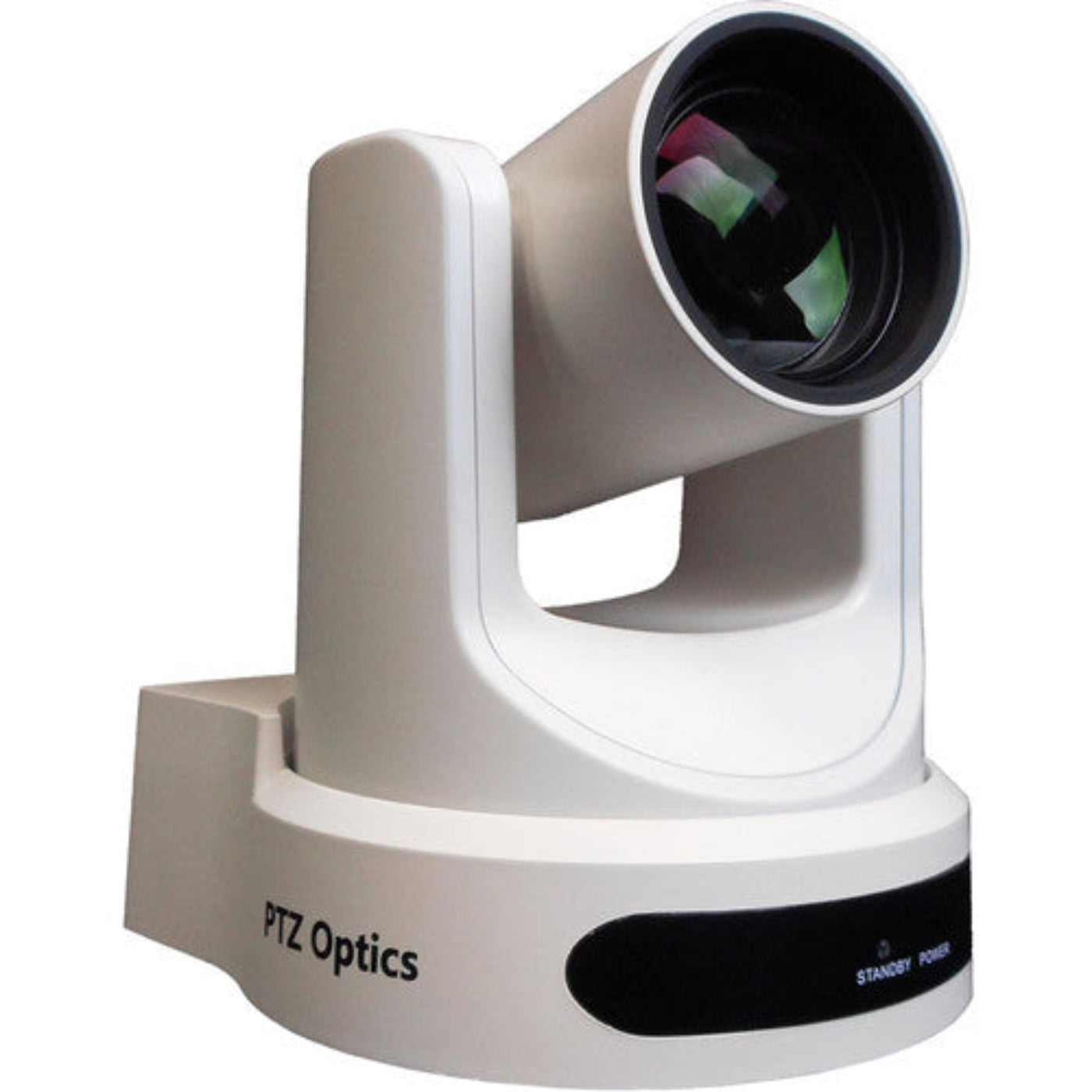

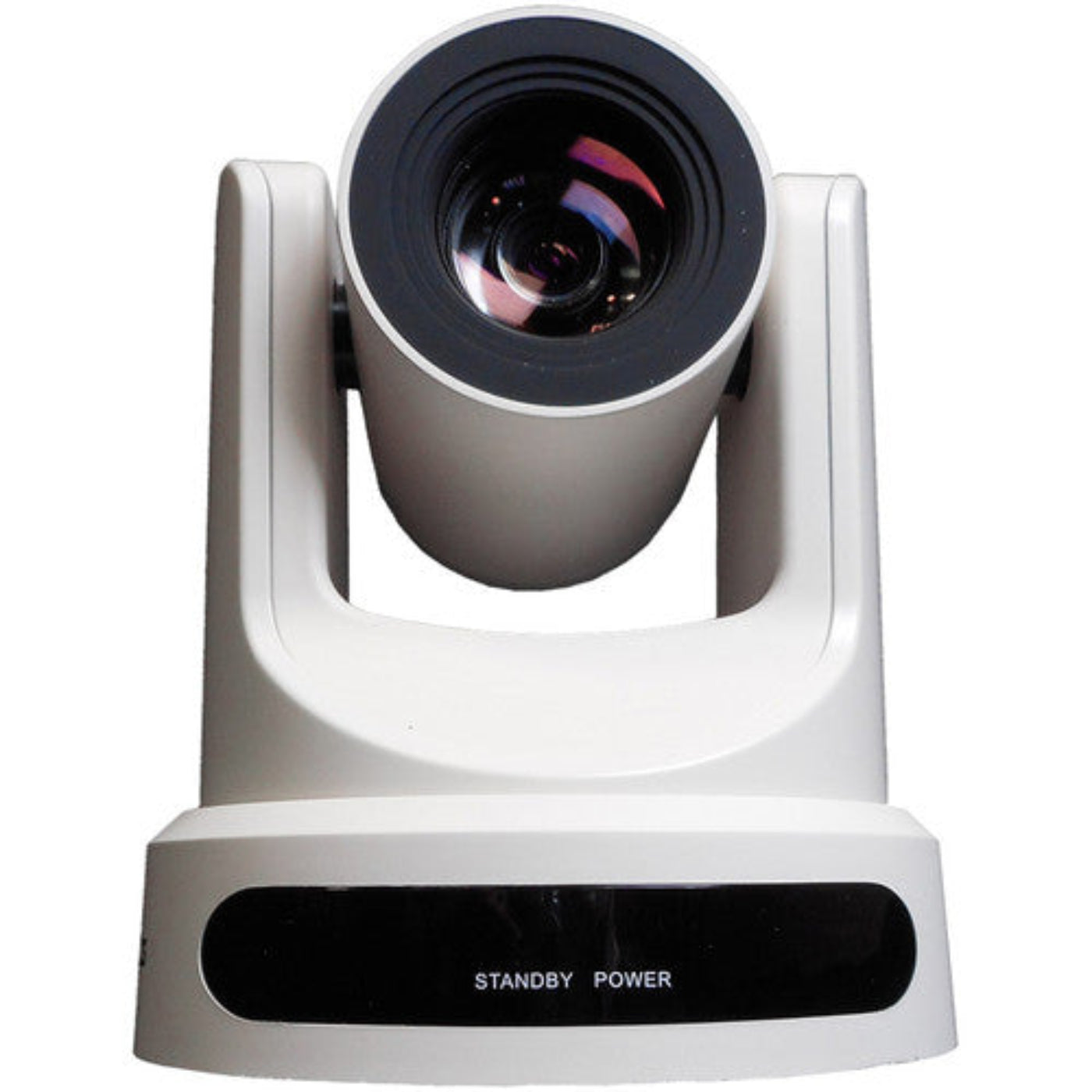

Q: What is the PTZOptics PT12X-SDI-WH-G2 Camera?
A: The PTZOptics PT12X-SDI-WH-G2 is a professional PTZ (pan-tilt-zoom) camera designed for video conferencing, live streaming, and broadcast applications.
Q: What are the key features of this camera?
A: It offers 12x optical zoom, full HD 1080p60 resolution, SDI, HDMI, and IP streaming outputs, along with smooth PTZ control and excellent low-light performance.
Q: Is this camera compatible with conferencing and streaming platforms?
A: Yes, it integrates seamlessly with Zoom, Microsoft Teams, Skype, OBS, vMix, and other professional video systems, making it ideal for remote meetings, live events, and productions.
Q: Why choose the PTZOptics PT12X-SDI-WH-G2?
A: If you need a versatile, high-quality PTZ camera for conference rooms, houses of worship, or live broadcasts, this model provides crisp video, multiple connectivity options, and professional-grade performance.
Maintenance Tips
-
Keep Lens Clean ā Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
-
Avoid Direct Sunlight ā Prevent prolonged exposure to direct sunlight to protect the sensor.
-
Update Firmware ā Regularly check for firmware updates to ensure optimal performance.
-
Secure Connections ā Ensure SDI, power, and network cables are properly connected and undamaged.
-
Prevent Overheating ā Place in a well-ventilated area and avoid covering air vents.
-
Use Smooth PTZ Movements ā Avoid excessive force to prolong motor lifespan.
-
Store Properly ā Cover or keep in a dust-free, dry environment when not in use.
