PTZOptics PT20X-NDI-ZCAM-BK 20x ZCAM Broadcast & Conference Camera (Gray) - PT20XNDIZCAMBK

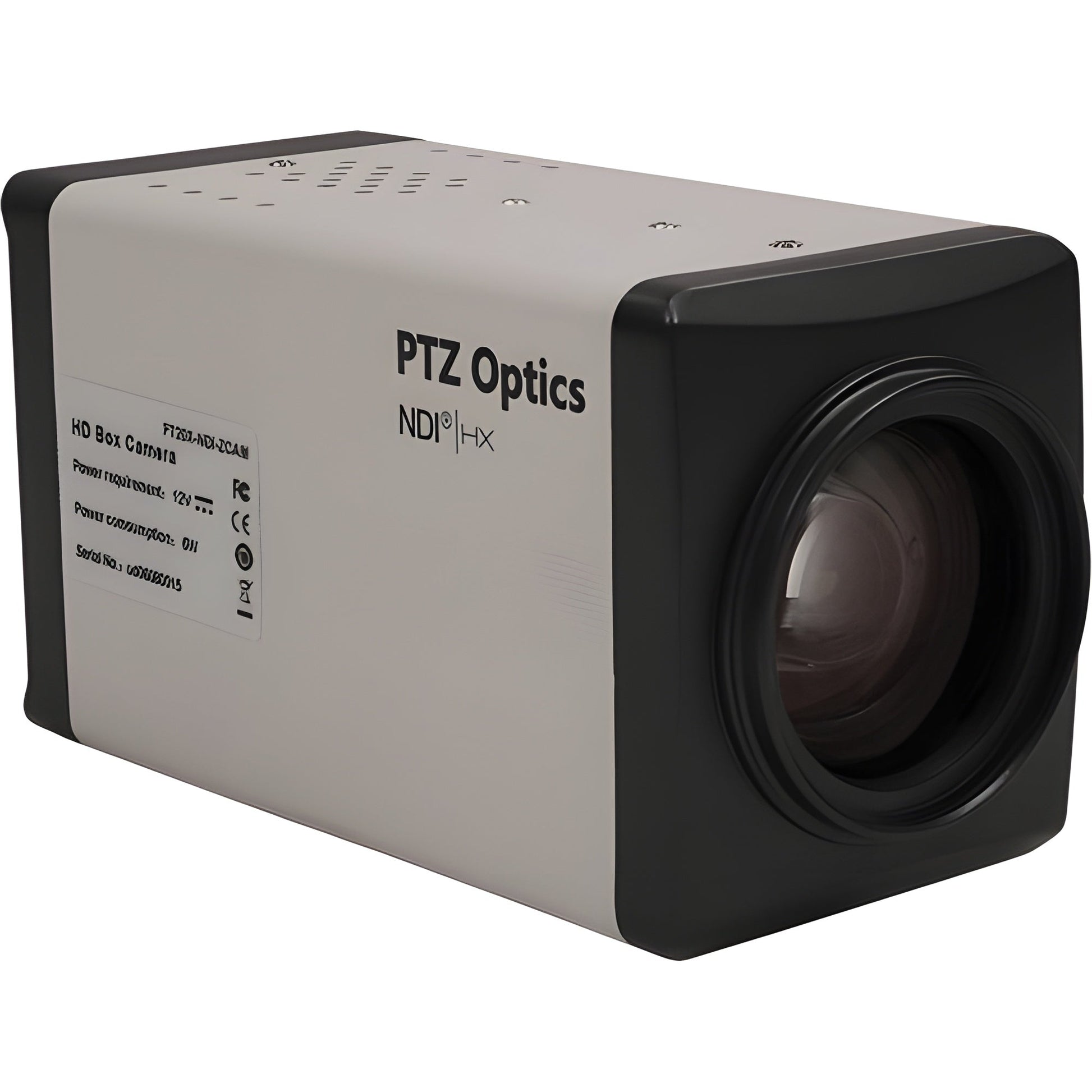

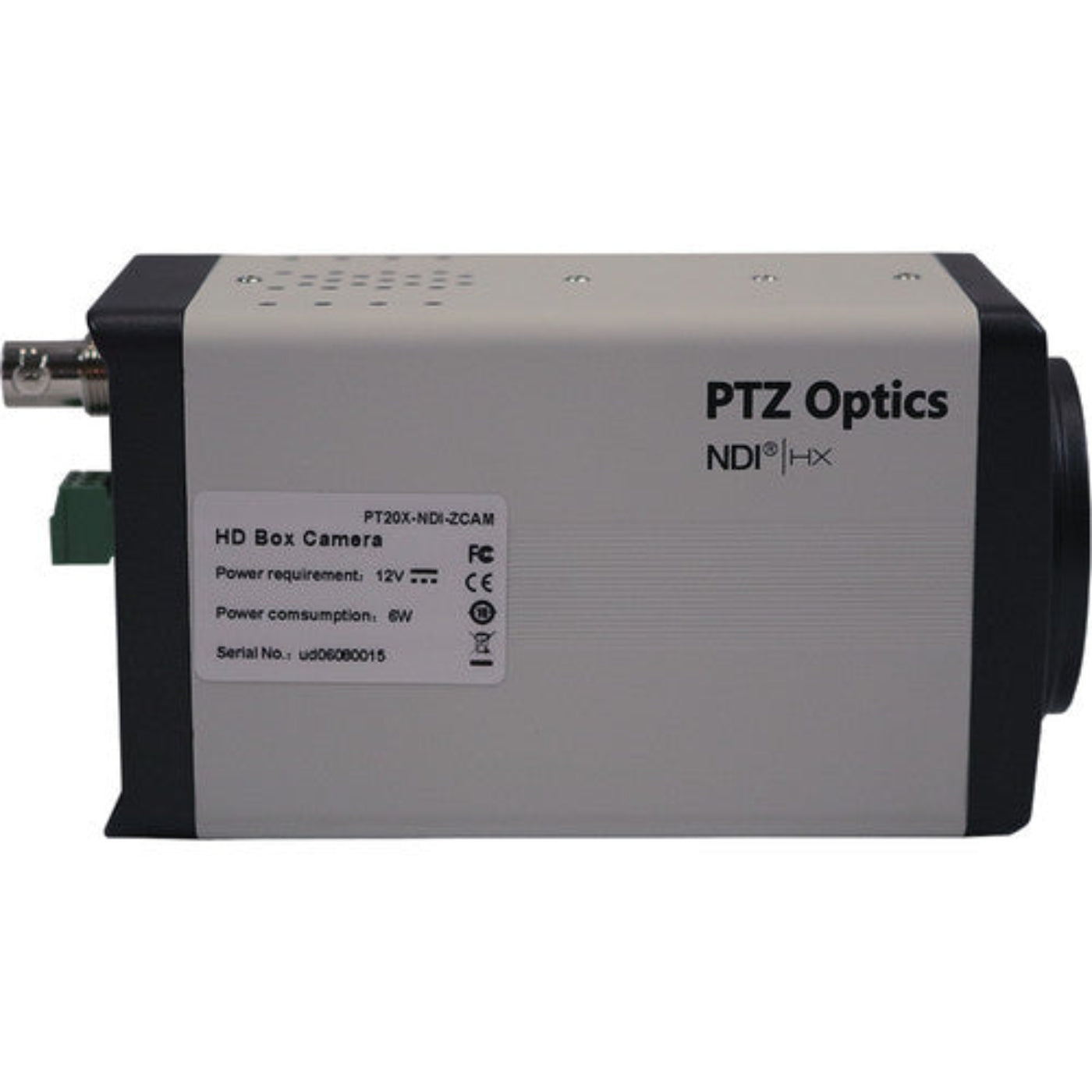

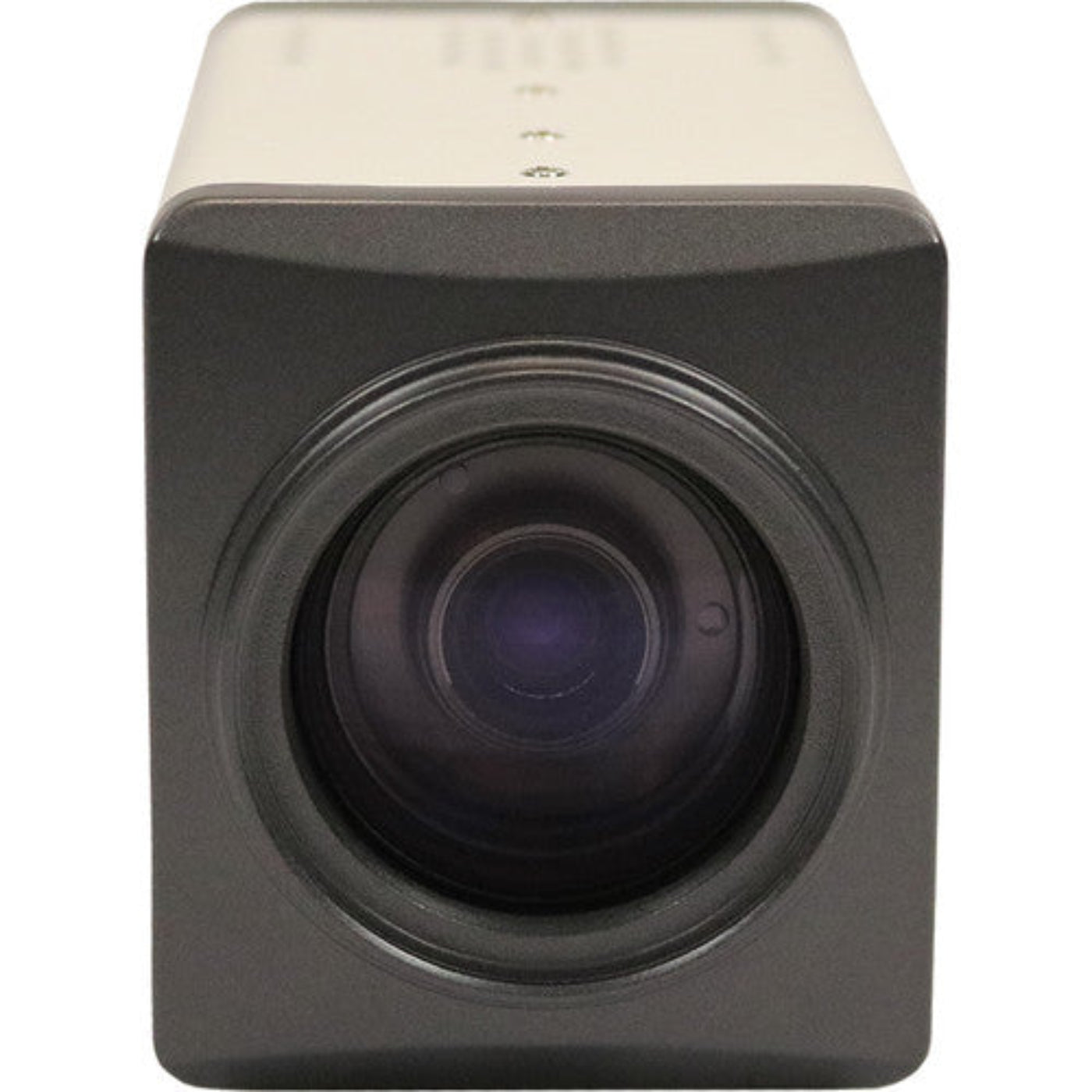

The PTZOptics PT20X-NDI-ZCAM-BK ZCAM is a 1080p camera with 20X optical zoom for capturing HD images at long distances. With support for NDI|HX, 3G-SDI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.
- 4.42 to 88.5mm Focal Length
- Built-In 20x Optical Zoom Lens
- 3.36 to 60.7° Angle of View
Features
• Panasonic 1/2.7” HD CMOS Sensor
• 3G-SDI & NDI|HXTM High Definition Video Output
• H.264, H.265, & MJPEG IP streaming output (dual stream)
• AAC Audio encoding over IP
• High performance in low light scenarios
• Full 1920x1080p HD Resolutions up to 60 FPS via SDI (30 FPS over NDI)
• 3G-SDI, & NDI or IP streaming (Both simultaneously)
• Std 1/4-20 female thread for camera mounting (bottom)
• PoE (Power over Ethernet) or 12VDC
• RTMP, RTSP, and NDI|HX
• Hold left on Menu Navigation button for 5+ seconds to toggle Dynamic or Static IP addressing
• Photobooth capable
Specifications
| Sensor |
Panasonic 1/2.7” HD CMOS Sensor |
| Resolution |
HD 1080 |
| Shutter Speed Range |
1/30s - 1/10000s |
| White Balance |
Auto, Indoor, Outdoor, One Push, Manual |
| Image Flip |
Vertical Flip & Mirror Supported |

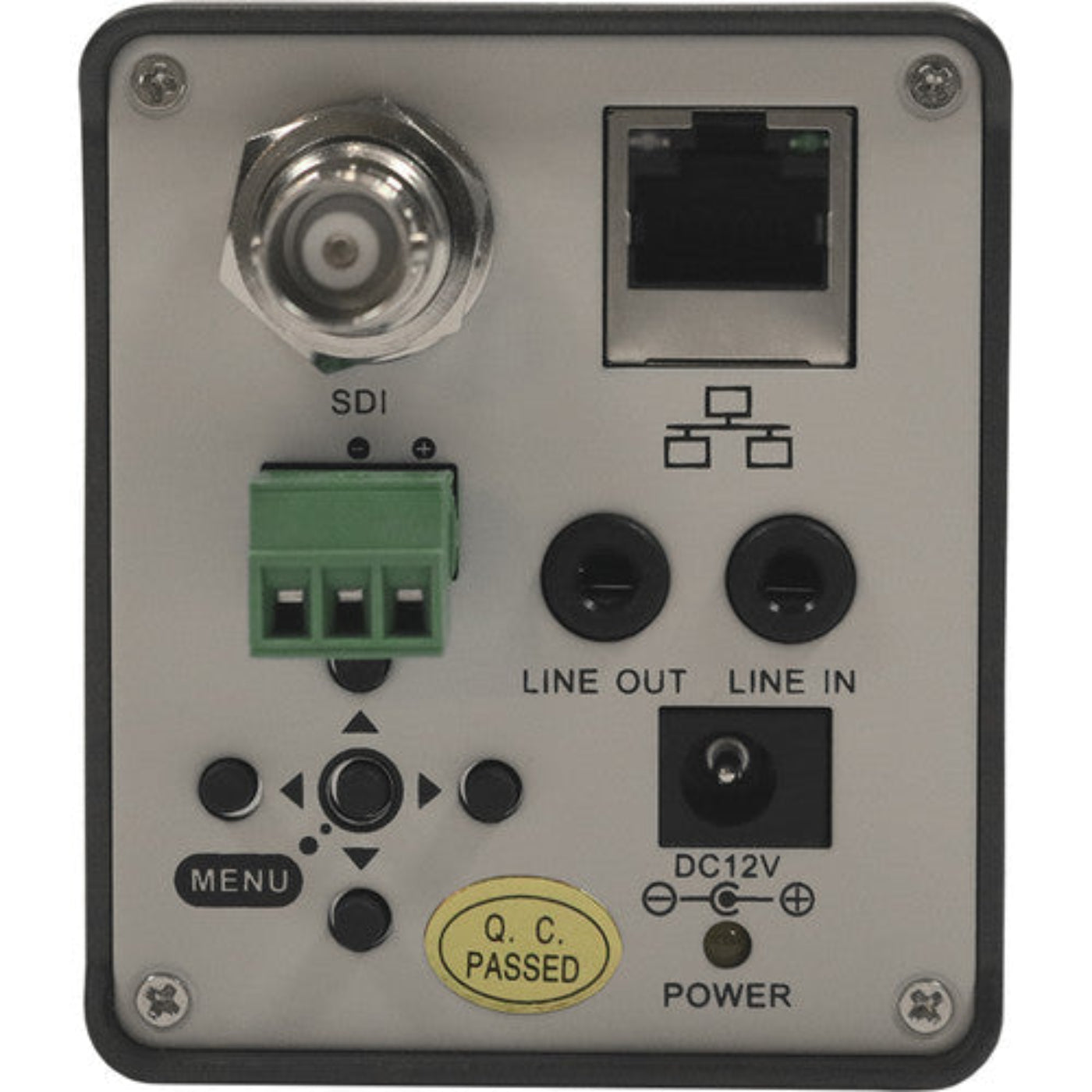

| Output |
1 x 3D-SDI on BNC |
| Audio Input |
1 x 3.5 mm Audio Line In |
| Audio |
Streaming Audio Standard AAC, Streaming Audio Rate 96/128/256 Kb/s |
| Camera Control |
PoE (Power over Ethernet) or 12VDC |
| Focal Length |
3.5 to 42.3mm |
| Operating Temperature |
14 to 104°F / -10 to 40°C |
| Power |
PoE (Power over Ethernet) or 12VDC |
| Minimum Illumination |
0.5 Lux at F1.8, AGC ON |
| Optical Zoom |
12x |
What Our Experts Think
-
Full HD 1080p Video – Captures sharp, professional-quality video at 60fps, ideal for live streaming and broadcasting.
-
20x Optical Zoom – Provides detailed close-ups, perfect for conference rooms, houses of worship, and event spaces.
-
NDI HX Integration – Enables low-latency, high-quality video transmission over IP networks for seamless production.
-
3G-SDI & IP Streaming – Offers versatile connectivity for easy integration into various video setups.
-
Compact & Durable Design – Perfect for fixed installations in professional broadcast and conferencing environments.
Q&A
Q: What is the PTZOptics PT20X-NDI-ZCAM-BK?
A: The PTZOptics PT20X-NDI-ZCAM-BK is a 20x zoom, Full HD ZCam camera designed for broadcasting, live streaming, and video conferencing, featuring NDI |HX, SDI, and IP streaming for seamless integration.
Q: What are the key features of this camera?
A: This camera provides 1080p60 resolution, 20x optical zoom for crystal-clear close-ups, low-latency NDI |HX streaming, 3G-SDI output, and remote IP control, making it ideal for professional video setups.
Q: Where is this camera best used?
A: Perfect for live events, corporate meetings, houses of worship, esports, and studio productions, where a high-quality fixed-angle camera with zoom capabilities is essential.
Q: Why choose the PTZOptics PT20X-NDI-ZCAM-BK?
A: It offers powerful optical zoom, professional-grade video quality, and seamless NDI integration, making it a versatile and cost-effective solution for high-end video production.
Maintenance Tips
-
Keep Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
-
Avoid Direct Sunlight – Prevent prolonged exposure to direct sunlight to protect the image sensor.
-
Update Firmware – Regularly check for and install firmware updates for optimal performance.
-
Secure Connections – Ensure NDI, power, and network cables are properly connected and undamaged.
-
Prevent Overheating – Place in a well-ventilated area to maintain stable operation.
-
Protect from Dust & Moisture – Keep in a clean, dry environment to prevent internal damage.
-
Store Safely – Cover or store in a dust-free space when not in use.
