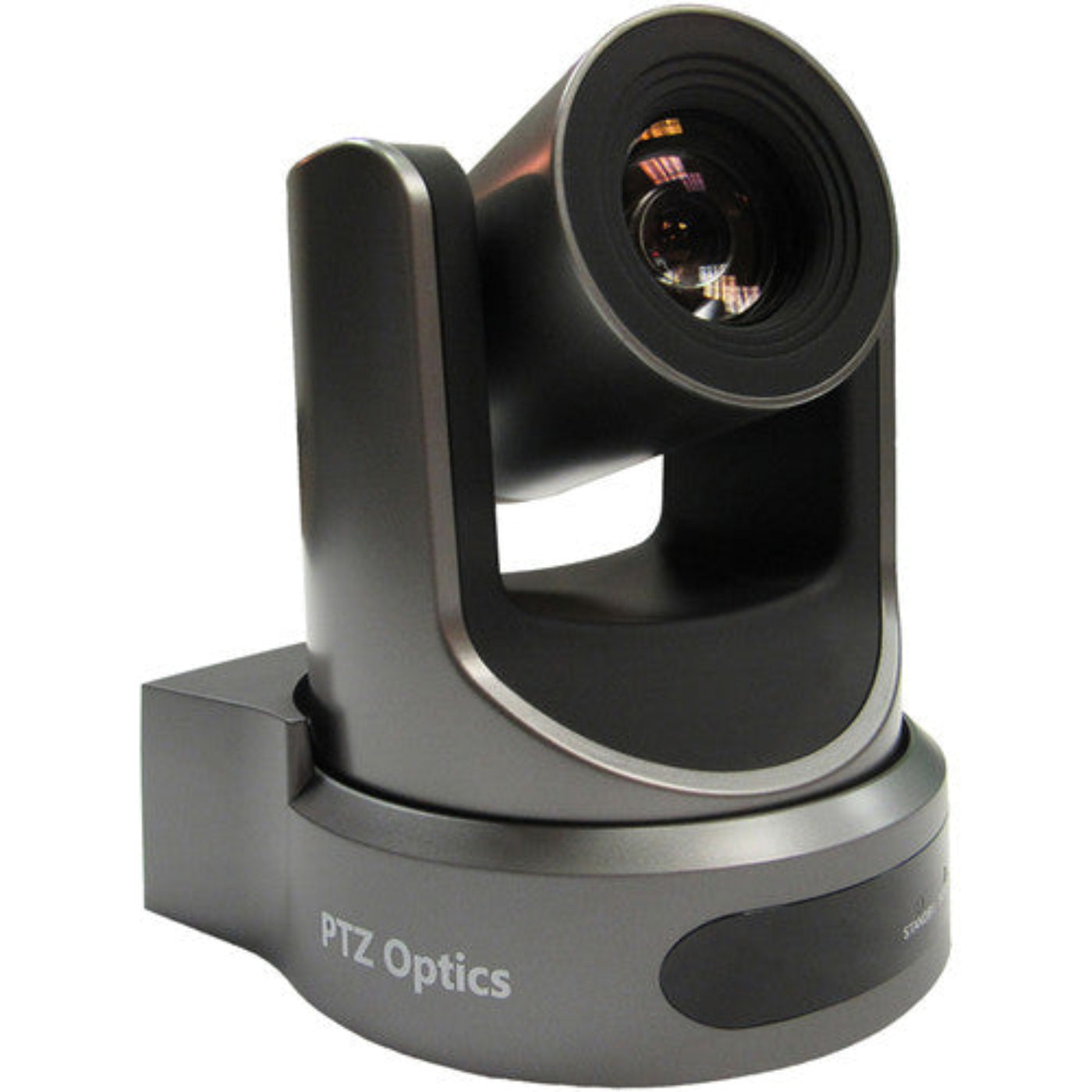

PTZOptics PT20X-SDI-GY-G2 Videoconferencing Camera - PT20XSDIGYG2
This is the 20x-SDI Gen2 model of the PTZOptics lineup of advanced live streaming cameras, in gray, featuring a 3G-SDI output for connecting to switching equipment for broadcast conferencing. The Gen2 model is capable of 1080p60/50 recording (instead of a max of 30 fps), and streaming in H.265 and MJPEG in addition to H.264.
Features
- 4.4 - 88.5mm Lens, 20x Zoom, f/1.8 - 2.8
- 1/2.7" CMOS Sensor, 0.5 Lux Minimum
Specifications
| Sensor |
1/2.7" CMOS progressive, 2.12 MP |
| Resolution |
4K |
| Signal System |
NTSC, PAL |
| Shutter Speed Range |
1/30 - 1/10000 sec |
| Output |
1 x USB 3.0 (Type B, Female), 1 x HDMI (1.3), 1 x RJ45 (10m/100m Adaptive Ethernet Port), 1 x 3.5mm Component |
| Audio Input |
1 x 3.5mm Line In (for embedding into IP stream only) |
| Camera Control |
1 x RS-232 Input (8-pin Mini-DIN, 98 ft / 30 m Distance), 1 x RS-232 Output |
| Focal Length |
Integrated 4.4 - 88.5mm, f/1.8 - f/2.8 |
| Pan Angle |
±170° |
| Tilt Angle |
Up: 90°, Down: 30° |
| Presets |
Up to 64 Presets (255 via RS-232) |
| Operating Temperature |
23 to 104°F (-5 to 40°C) |
| Power Input |
12 VDC (10.8 - 13.0 VDC) |
| Minimum Illumination |
0.5 lux at f/1.8, AGC on |
| Optical Zoom |
3x |
What Our Experts Think
-
Professional HD Video: Captures 1080p Full HD video at 60fps, delivering smooth, high-quality visuals for conferences, webinars, and live streaming.
-
20x Optical Zoom: Provides crystal-clear close-ups, making it ideal for medium to large conference rooms, lecture halls, and event spaces.
-
3G-SDI, HDMI & IP Streaming: Multiple output options ensure seamless integration with professional AV setups and online platforms.
-
Smooth PTZ Control: Pan, tilt, and zoom functions offer precise framing with remote control capabilities via RS-232, RS-485, or IP control.
-
Low-Light Performance: Advanced sensor technology ensures excellent image quality even in dimly lit environments.
-
Wide Compatibility: Works with major conferencing platforms like Zoom, Microsoft Teams, and OBS for effortless connectivity.
-
PoE Support: Simplifies installation by allowing power and data transmission over a single Ethernet cable.
Q&A
Q: What is the PTZOptics PT20X-SDI-GY-G2 Videoconferencing Camera?
A: The PTZOptics PT20X-SDI-GY-G2 is a professional PTZ (pan-tilt-zoom) camera designed for high-quality videoconferencing, live streaming, and broadcast applications.
Q: What are the key features of the PTZOptics PT20X-SDI-GY-G2?
A: This camera features 20x optical zoom, full HD 1080p resolution, 3G-SDI, HDMI, and IP streaming capabilities, making it perfect for professional AV setups.
Q: Is the PTZOptics PT20X-SDI-GY-G2 easy to install?
A: Yes, it supports multiple mounting options and offers plug-and-play connectivity, making integration into conference rooms, live streams, and studios simple.
Q: What is the PTZOptics PT20X-SDI-GY-G2 ideal for?
A: Ideal for business meetings, worship services, webinars, remote learning, and live event streaming, offering smooth pan-tilt-zoom control and high-quality video.
Maintenance Tips
-
Clean the Lens Regularly – Use a microfiber cloth to remove dust and smudges for clear video quality.
-
Ensure Proper Ventilation – Avoid overheating by placing the camera in a well-ventilated area.
-
Keep Firmware Updated – Regular updates improve performance, security, and compatibility.
-
Use Secure Connections – Ensure 3G-SDI, HDMI, and power cables are properly connected to prevent signal loss.
-
Protect from Dust & Moisture – Keep the camera covered when not in use to prevent buildup.
-
Power Down When Not in Use – Extends the camera’s lifespan and prevents unnecessary wear.
-
Check PTZ Functionality – Regularly test pan, tilt, and zoom to ensure smooth operation.
