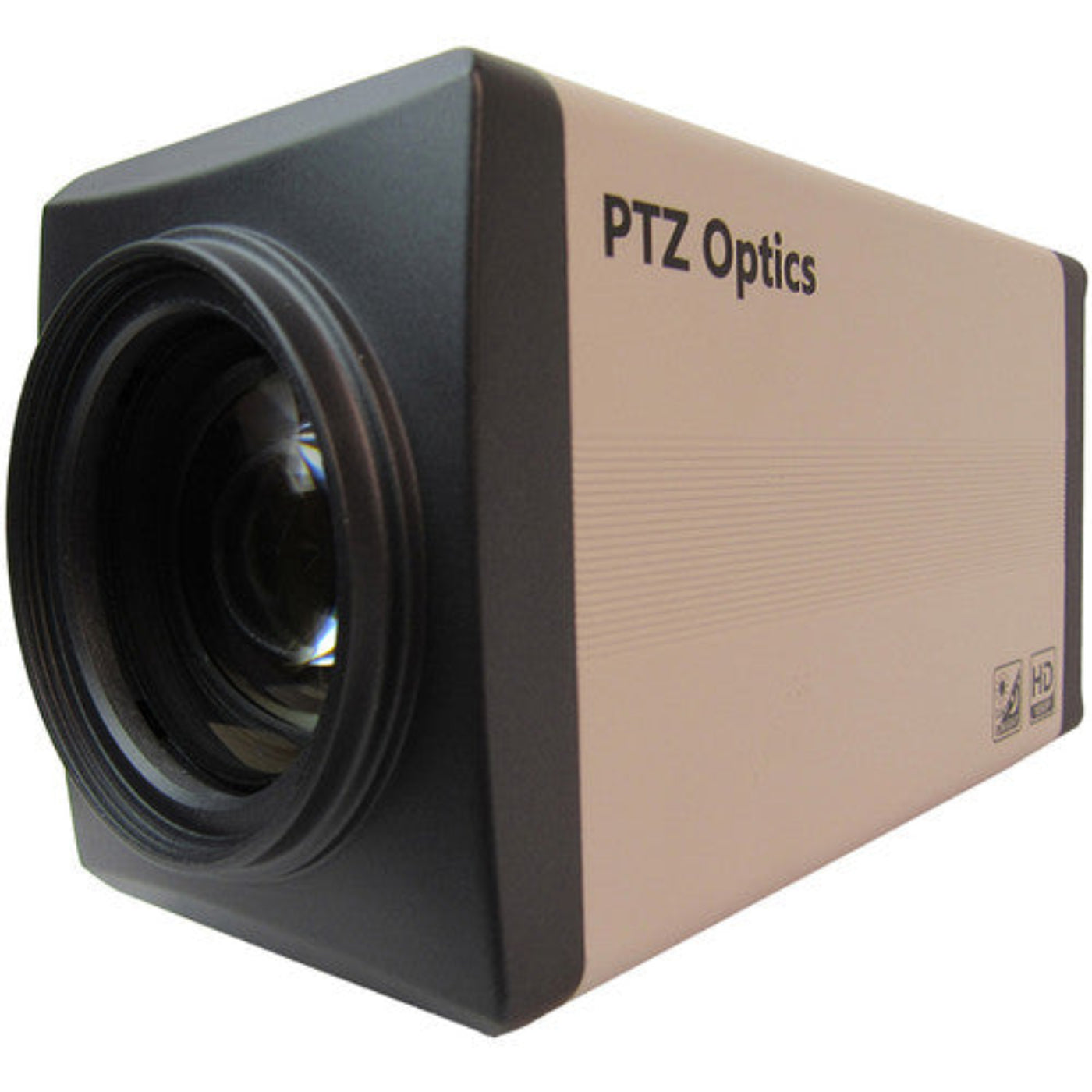

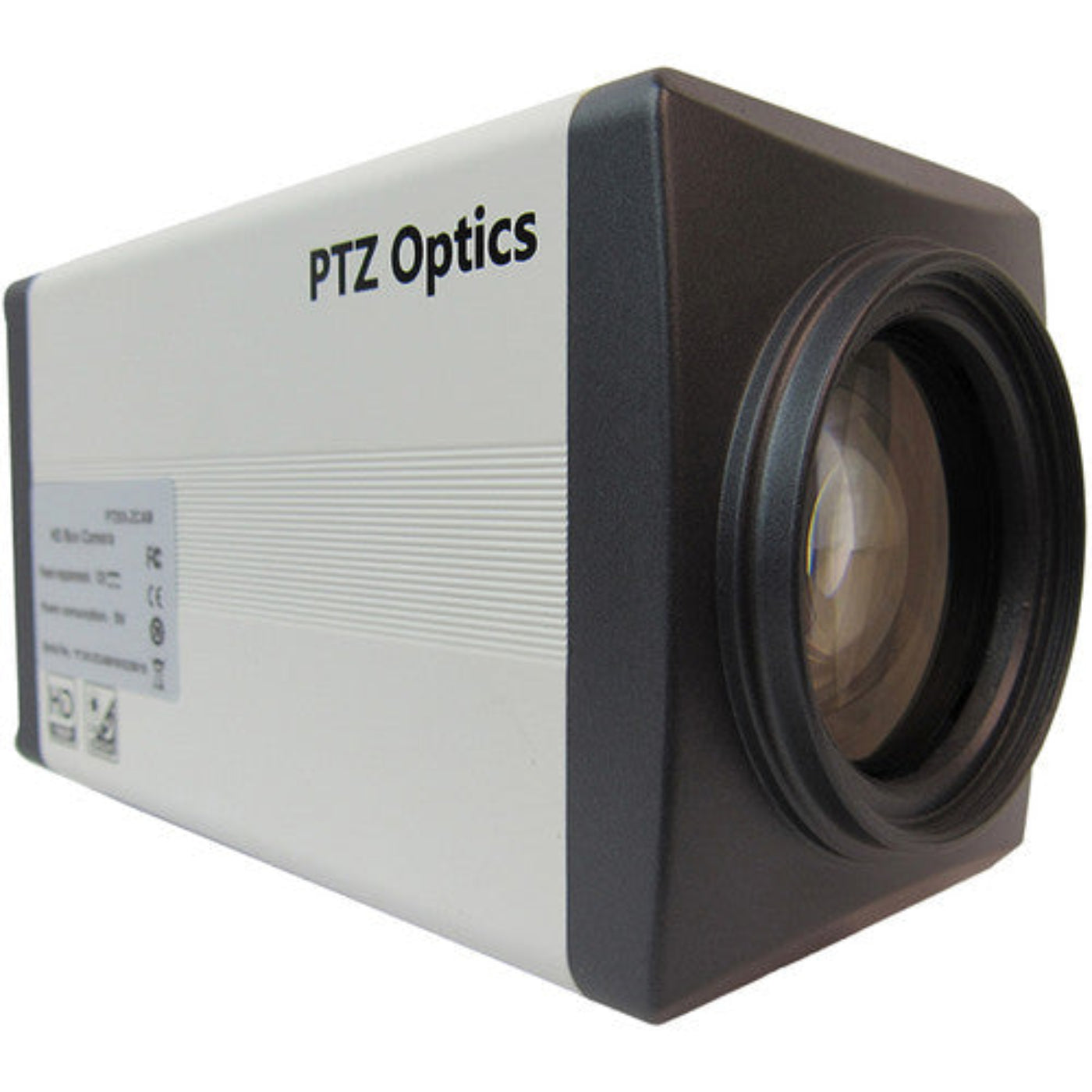

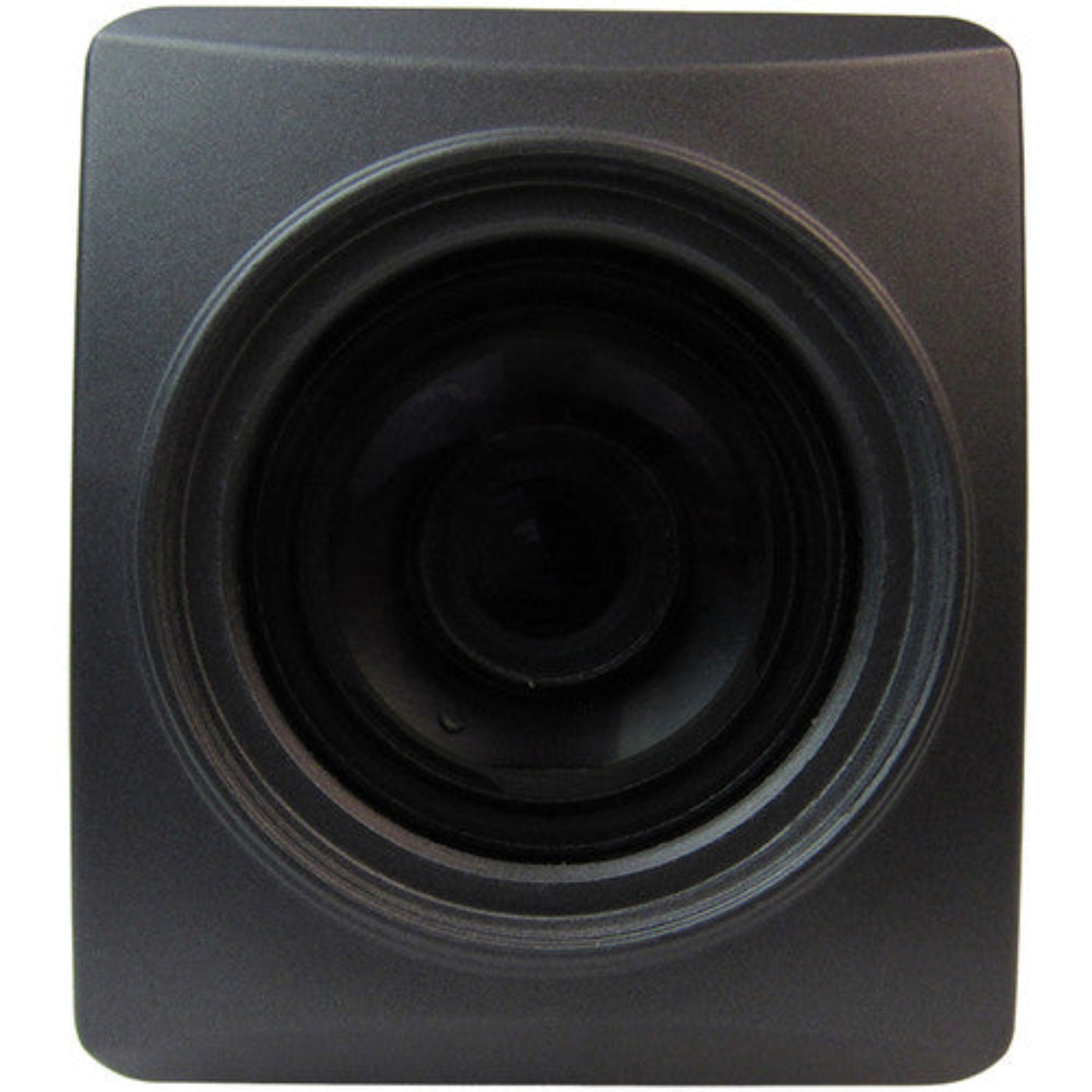

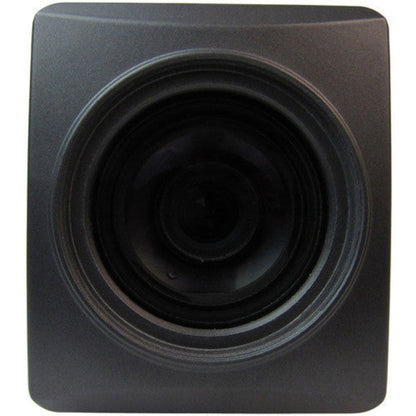

PTZOptics PT20X-ZCAM Full HD 3G-SDI Box Camera - PT20XZCAM
The PTZOptics PT20X-ZCAM is a 1080p box camera with 20X optical zoom for capturing HD video even at a distance. With support for 3G-SDI & IP streaming, this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications up to 1080p/60 resolution.
- Panasonic 1/2.7” HD CMOS Sensor
- RS485 and IP remote camera control
- 3G-SDI High Definition Video Output
- PoE (Power over Ethernet)
Features
• Panasonic 1/2.7” HD CMOS Sensor
• 3G-SDI High Definition Video Output
• H.264, H.265 & MJPEG IP streaming output (dual stream)
• AAC stereo unbalanced Audio Encoding over IP
• High performance in low light scenarios
• Full 1920x1080p HD Resolutions up to 60 frames per second via SDI
• 2D & 3D noise reduction with our latest “low noise CMOS sensor”
• Wide Dynamic Range • Menu controls on back of camera
• RS485 and IP remote camera control • 60.7° Field of View
• Std 1/4-20 female thread for camera mounting (bottom)
• PoE (Power over Ethernet)
• Hold left on Menu Navigation button for 5+ seconds to toggle Dynamic or Static IP addressing
• 3-year warranty
• Photobooth capable
Specifications
| Sensor |
1/2.7" CMOS progressive, 2.12 MP |
| Resolution |
HD 1080 |
| Signal System |
NTSC, PAL |
| Shutter Speed Range |
1/30 - 1/10000 sec |

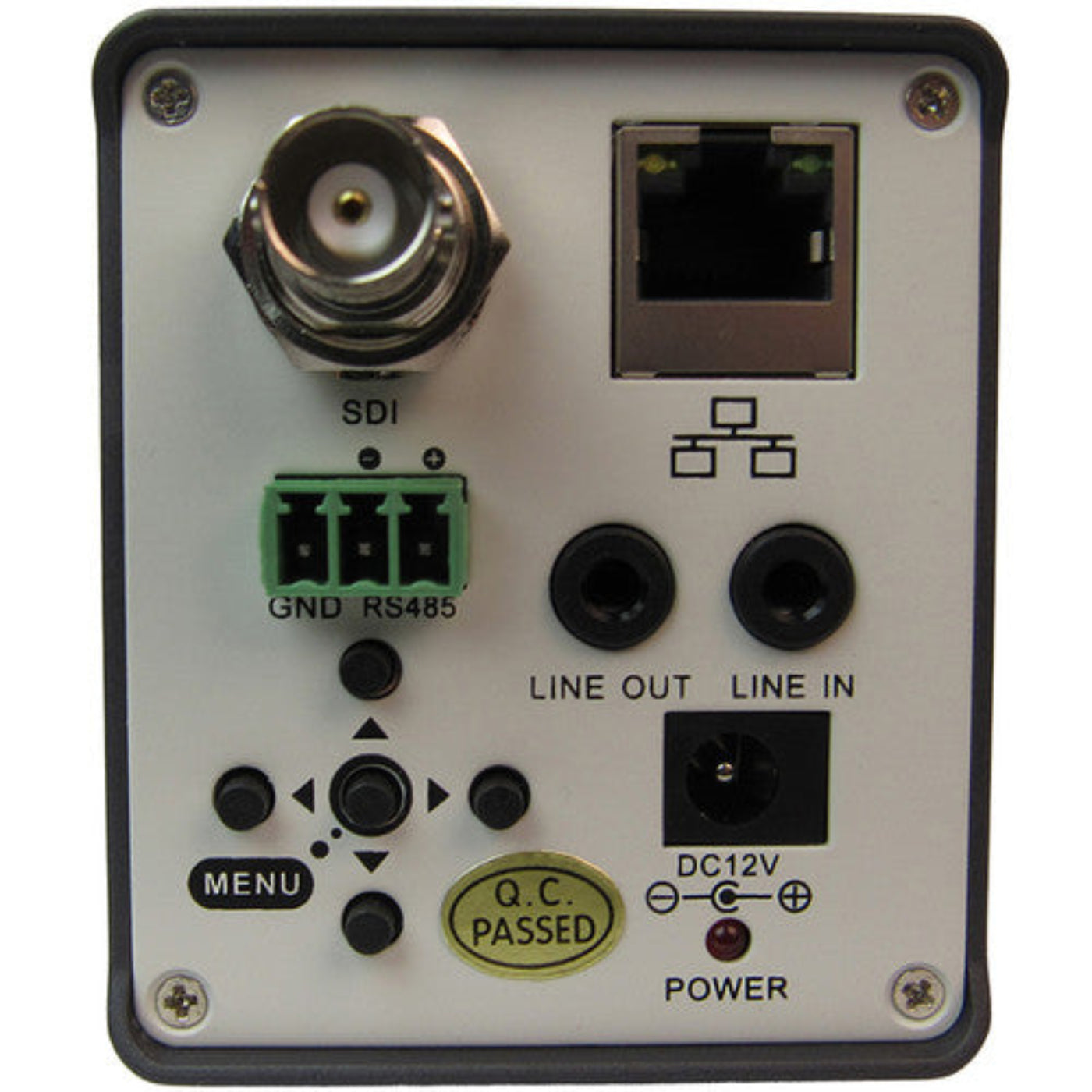

| Output |
1 x 3G-SDI, 1 x HDMI (1.3), 1 x RJ45 (10m/100m Adaptive Ethernet Port) (IP Network Interface), 1 x 3.5mm Composite |
| Audio Input |
1 x 3.5mm Line In (for embedding into IP stream only) |
| Camera Control |
1 x RS-232 Input (8-pin Mini-DIN, 98 ft / 30 m Distance), 1 x RS-232 Output |
| Focal Length |
Integrated 4.4 - 88.5mm, f/1.8 - f/2.8 |
| Pan Angle |
±170° |
| Tilt Angle |
Up: 90°, Down: 30° |
| Presets |
Up to 64 Presets (255 via RS-232) |
| Operating Temperature |
23 to 104°F (-5 to 40°C) |
| Power Input |
12 VDC (10.8 - 13.0 VDC) |
| Minimum Illumination |
0.5 lux at f/1.8, AGC on |
| Optical Zoom |
20x |
What Our Experts Think
-
High-Quality Full HD Video – Provides crisp 1080p resolution at 60fps for professional-quality video production and streaming.
-
20x Optical Zoom – Captures detailed video from a distance, perfect for large venues or events.
-
3G-SDI Output – Reliable and high-quality signal transmission, ideal for live broadcast and professional setups.
-
Compact & Versatile Design – Box-style camera that can be mounted in a variety of configurations, perfect for customized setups.
-
Smooth PTZ Control – Provides precise pan, tilt, and zoom functionality for flexible and dynamic camera shots.
Q&A
Q: What is the PTZOptics PT20X-ZCAM?
A: The PTZOptics PT20X-ZCAM is a Full HD box camera with a 20x optical zoom lens, designed for broadcast, live streaming, and video production applications.
Q: What are the key features of this camera?
A: It offers 1080p60 HD resolution, 3G-SDI and IP streaming outputs, 20x optical zoom, and low-light performance, making it ideal for fixed-position shots in multi-camera setups.
Q: Is this camera suitable for live production?
A: Yes, with 3G-SDI for professional video workflows and IP streaming for remote access, it's perfect for churches, sports, conferences, and studio setups.
Q: Why choose the PTZOptics PT20X-ZCAM?
A: If you need a high-quality, zoom-capable box camera for fixed installations in professional live video environments, this model provides sharp video, flexible connectivity, and seamless integration.
Maintenance Tips
-
Keep Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
-
Avoid Direct Sunlight – Prevent prolonged exposure to protect the image sensor.
-
Update Firmware – Regularly check for firmware updates for optimal performance.
-
Secure Connections – Ensure SDI, power, and network cables are properly connected and undamaged.
-
Prevent Overheating – Place in a well-ventilated area to maintain stable operation.
-
Protect from Dust & Moisture – Keep in a controlled environment to prevent internal damage.
-
Store Safely – Cover or store in a dry, dust-free space when not in use.
