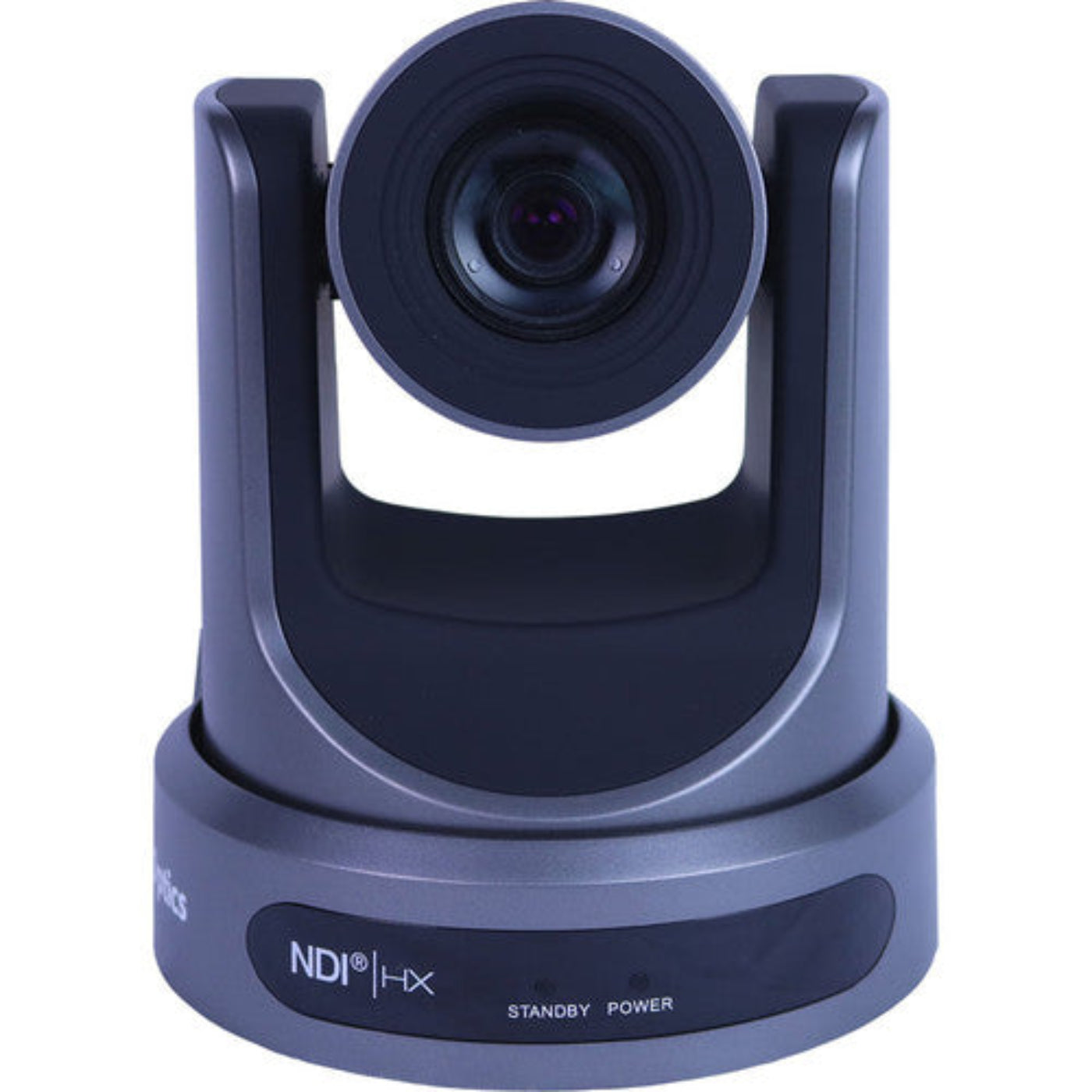

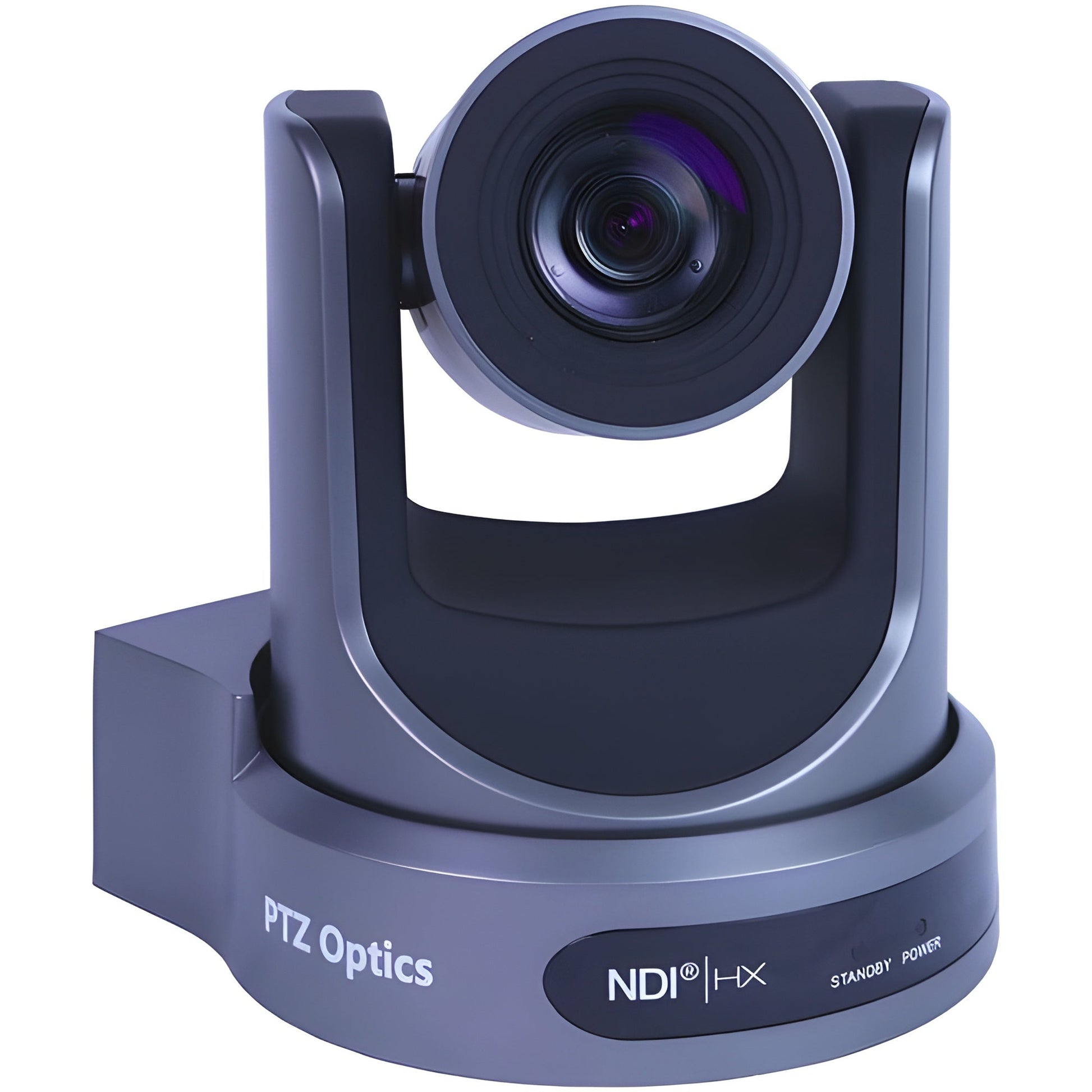

PTZOptics PT30X-NDI-GY Live Broadcast and Conference Camera (Gray) - PT30XNDIGY
The PTZOptics PT30X-NDI-GY is a 1080p camera with 30X optical zoom for capturing HD images at long distances. With support for NDI®|HX, 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.
- 1080p via HDMI, SDI, NDI/IP
- Composite Output (576i/480i)
- 0.5 Lux Minimum Illumination
Features
• 60.7 degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
• RS232 & RS485 (Serial), IP (LAN/WAN) & NDI|HX Control
• H.264, H.265, & MJPEG streaming over RJ-45 LAN port
• HDMI, 3G-SDI, & NDI or IP streaming (3 simultaneously)
• PoE (Power over Ethernet) or 12VDC
• Photobooth capable
Specifications
| Sensor |
1/2.7" CMOS progressive, 2.12 MP |
| Resolution |
4K |
| Signal System |
NTSC, PAL |
| Signal To Noise Ratio |
- |
| Gain |
- |
| Shutter Speed Range |
1/30 - 1/10000 sec |
| Exposure Control |
- |
| White Balance |
- |
| Image Stabilization |
- |
| Image Flip |
- |
| ICR |
- |
| Sync |
- |

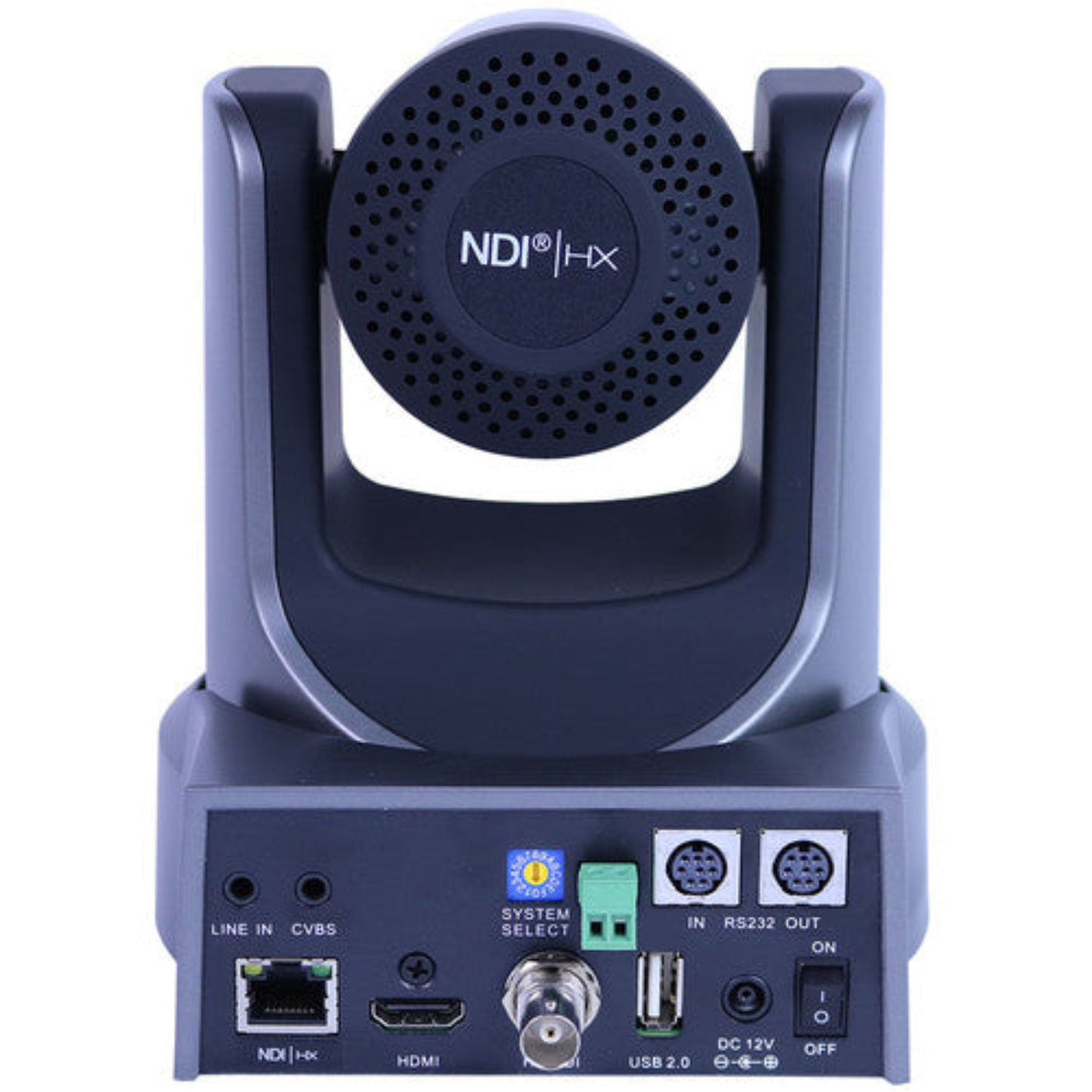

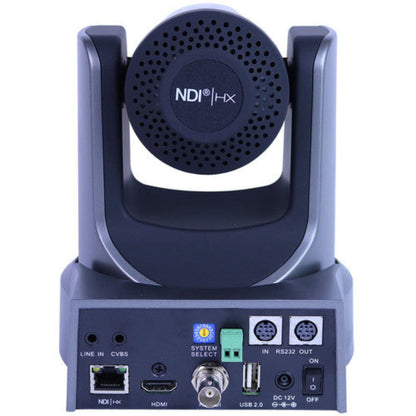

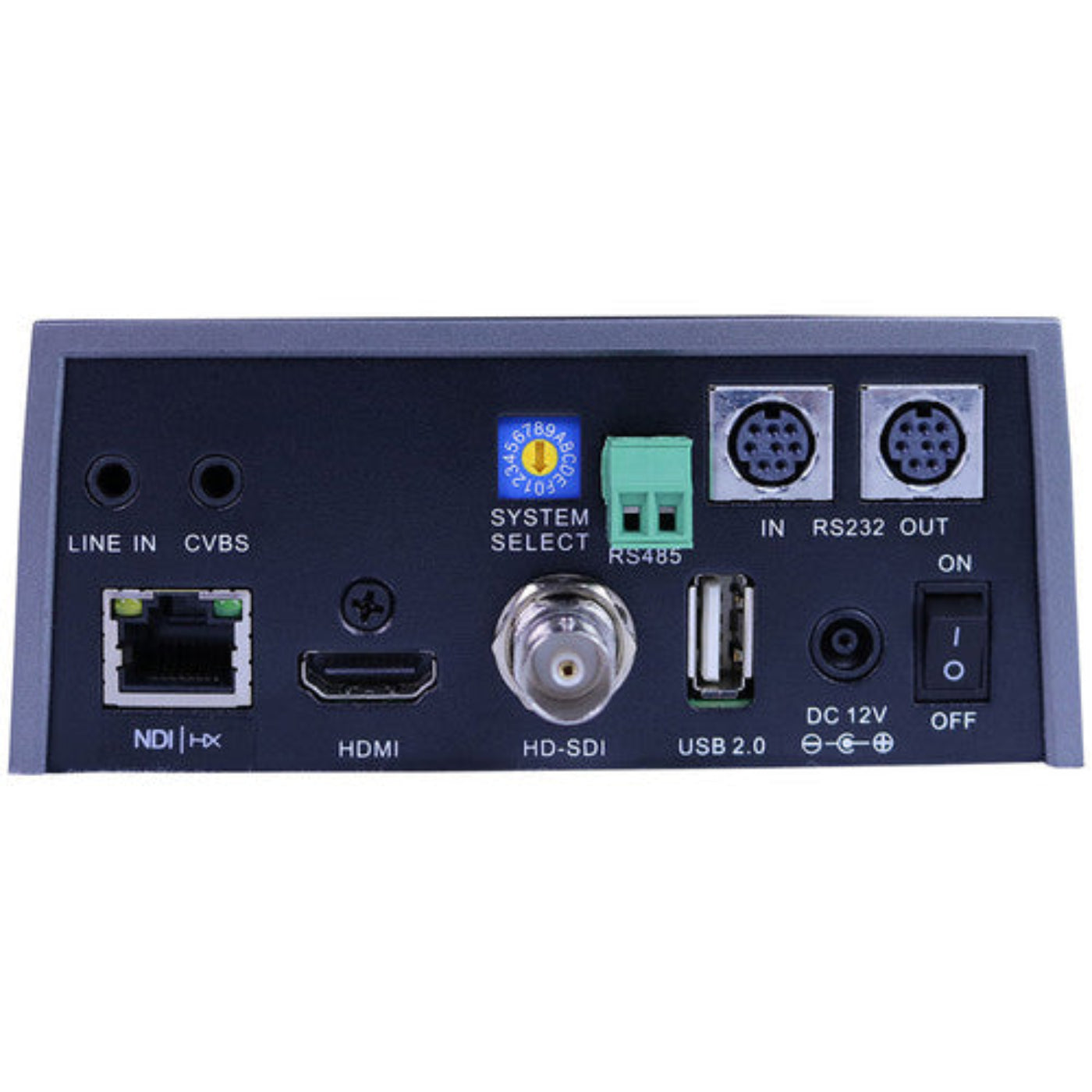

| Output |
1 x USB 3.0 (type B, female), 1 x HDMI (1.3), 1 x RJ45 (10 m/100 m adaptive Ethernet port), 1 x 3.5 mm Component |
| Audio Input |
1 x 3.5 mm line in (for embedding into IP stream only) |
| Audio |
- |
| Camera Control |
1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance), 1 x RS-232 output |
| Focal Length |
Integrated 4.4 - 88.5mm, f/1.8 - f/2.8 |
| Minimum Object Distance |
- |
| Pan Angle |
±170° |
| Tilt Angle |
Up: 90° |
| Pan Speed |
- |
| Tilt Speed |
- |
| Presets |
Up to 64 presets (255 presets via RS-232) |
| Operating Temperature |
23 to 104°F (-5 to 40°C) |
| Power Input |
12 VDC (10.8 - 13.0 VDC) |
| Minimum Illumination |
0.5 lux at f/1.8, AGC on |
| Optical Zoom |
3x |
What Our Experts Think
-
30x Optical Zoom: Capture sharp, detailed video from further distances, ideal for large venues and professional broadcasts.
-
NDI® Support: Native NDI® (Network Device Interface) for easy IP-based video streaming and remote control, simplifying production setups.
-
HD 1080p Resolution: Provides clear, high-definition video output for optimal image quality in live broadcasts and videoconferencing.
-
Smooth PTZ Control: Precise pan, tilt, and zoom movements for dynamic camera coverage in diverse environments.
-
Flexible Connectivity: Includes NDI®, SDI, HDMI, and IP support for seamless integration into any professional workflow.
-
Sleek Design: Compact gray finish blends into any production space, offering both performance and aesthetics.
Q&A
Q: What is the PTZOptics PT30X-NDI-GY Live Broadcast and Conference Camera?
A: The PTZOptics PT30X-NDI-GY is a high-performance PTZ camera designed for professional live broadcasts, video production, and conference environments. It features NDI technology for efficient IP-based video transmission.
Q: What makes the PTZOptics PT30X-NDI-GY camera ideal for live broadcasts?
A: This camera provides 4K UHD video resolution, NDI support for seamless IP streaming, and precise pan, tilt, and zoom capabilities, making it perfect for live broadcasts and streaming applications.
Q: Does the PTZOptics PT30X-NDI-GY camera support NDI?
A: Yes, the PTZOptics PT30X-NDI-GY includes built-in NDI technology, which allows for easy and efficient integration into IP-based video production setups without the need for extra hardware.
Q: Is this camera suitable for video conferencing?
A: Absolutely! The PTZOptics PT30X-NDI-GY is perfect for high-quality video conferencing, offering smooth video, reliable performance, and remote control for virtual meetings and corporate environments.
Q: What is the color of the PTZOptics PT30X-NDI-GY camera?
A: The PTZOptics PT30X-NDI-GY is available in a sleek gray finish, designed to blend seamlessly into both professional broadcast and business environments.
Maintenance Tips
-
Regular Lens Cleaning – Clean the lens with a microfiber cloth to remove dust, fingerprints, or other obstructions to ensure clear video output.
-
Proper Ventilation – Keep the camera in a well-ventilated space to prevent overheating during extended use.
-
Inspect Connections – Periodically check all cable connections (NDI, SDI, power) for tightness and signs of wear to maintain stable operation.
-
Keep Dust Away – Store the camera in a dust-free environment or use a cover when not in use to protect sensitive components.
-
Firmware & Software Updates – Regularly check for firmware updates to enhance performance, fix bugs, and keep the camera running smoothly.
-
Turn Off After Use – Power off the camera when not in use to extend the life of its internal components.
-
Transport Carefully – When moving or traveling with the camera, place it in a padded case to avoid physical damage during transport.
