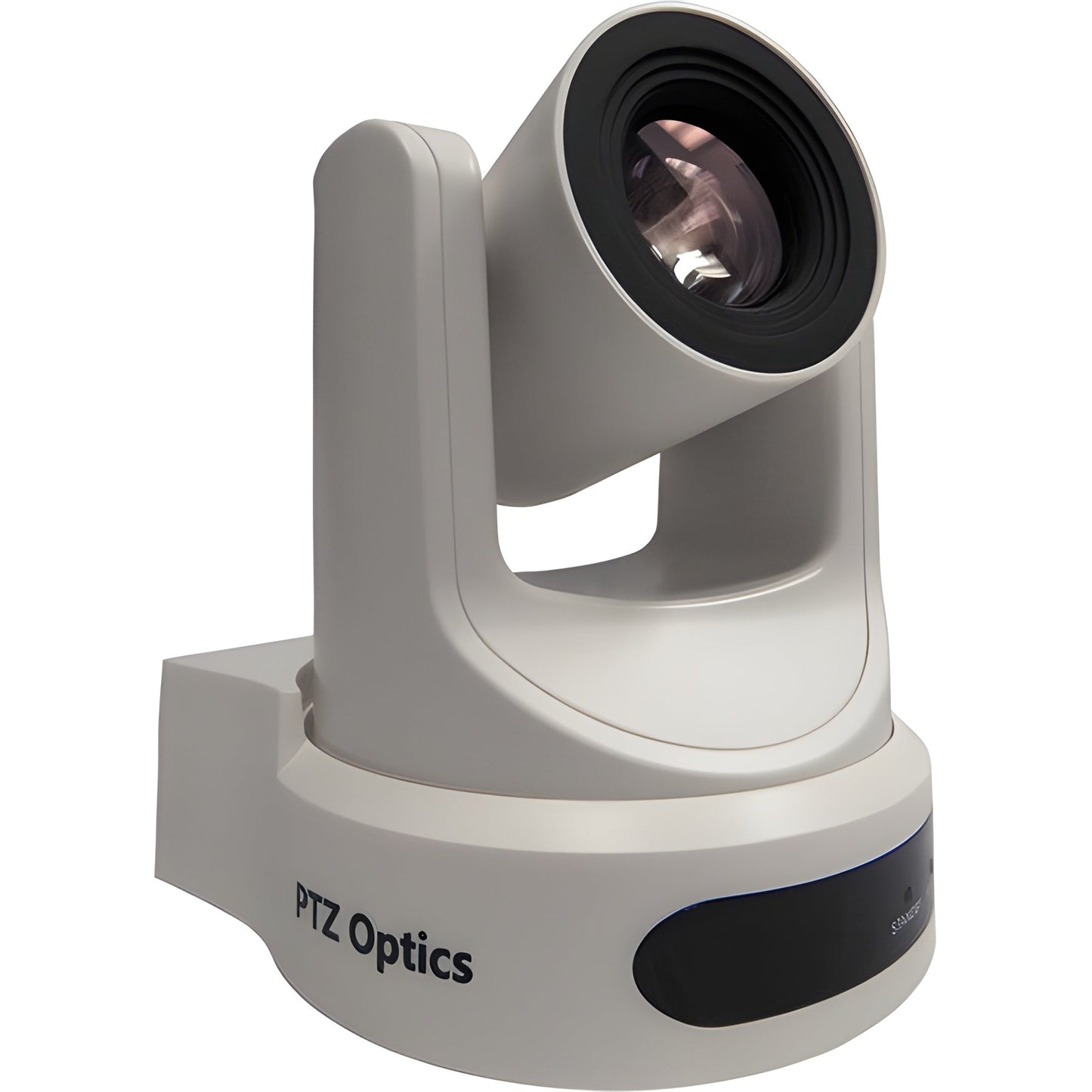

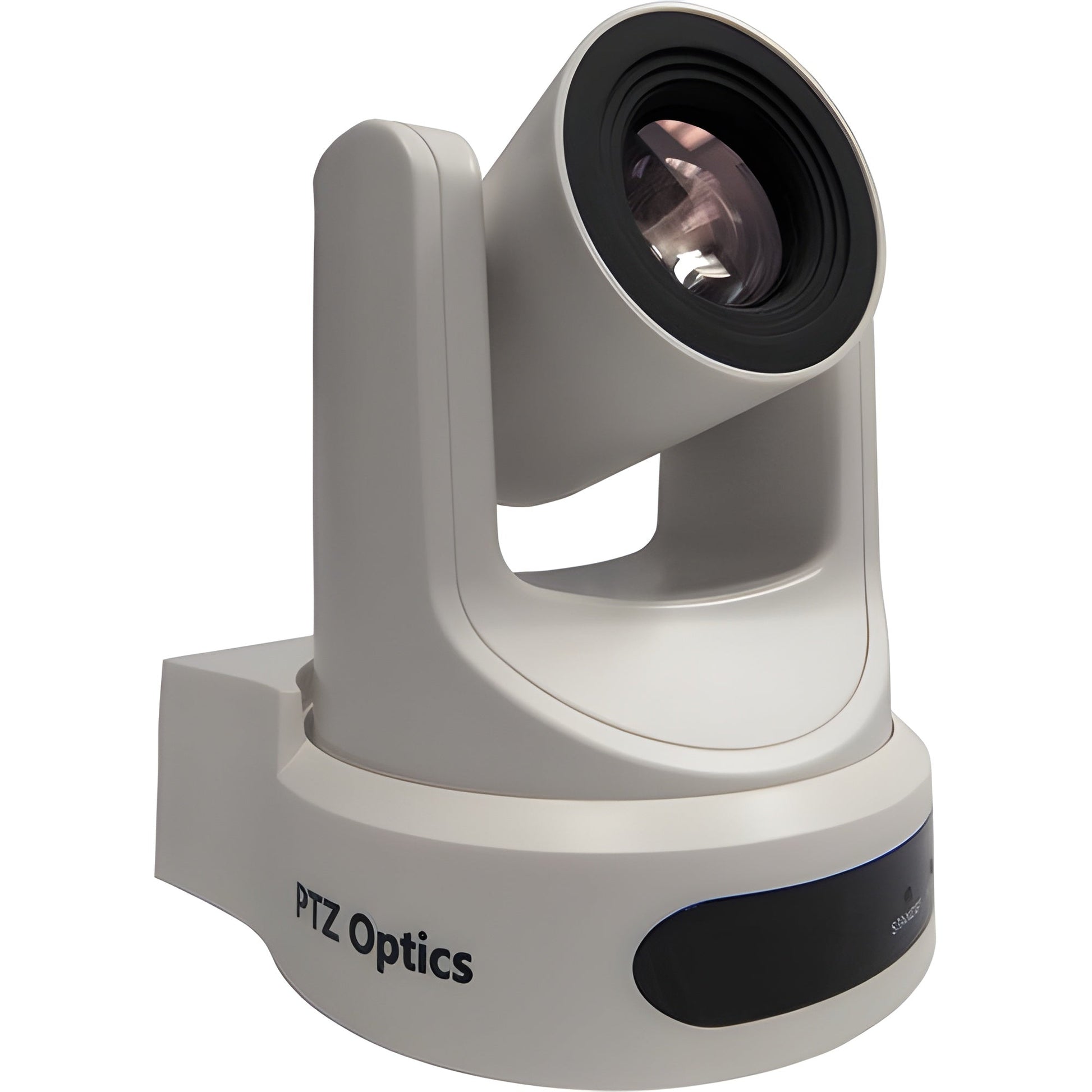

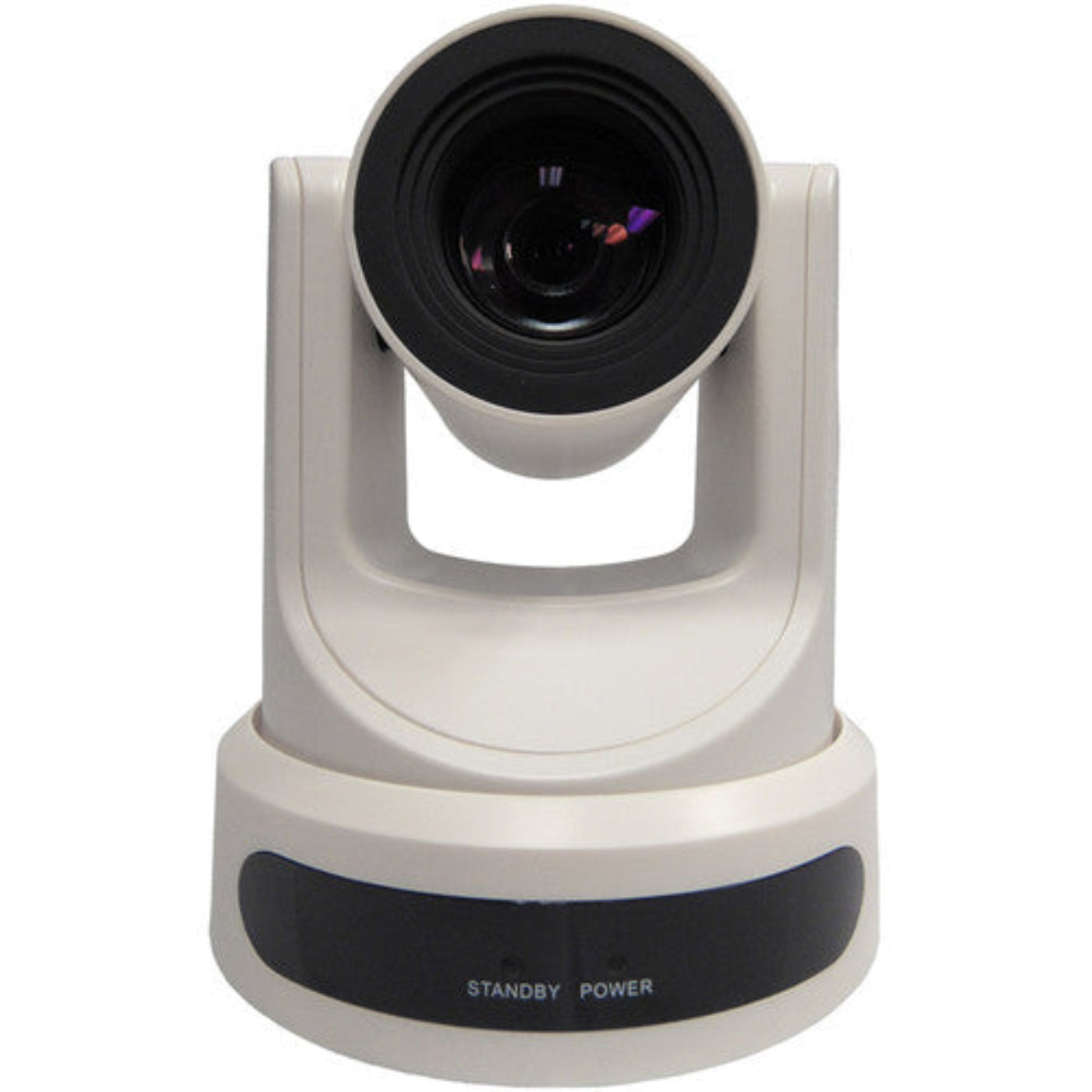

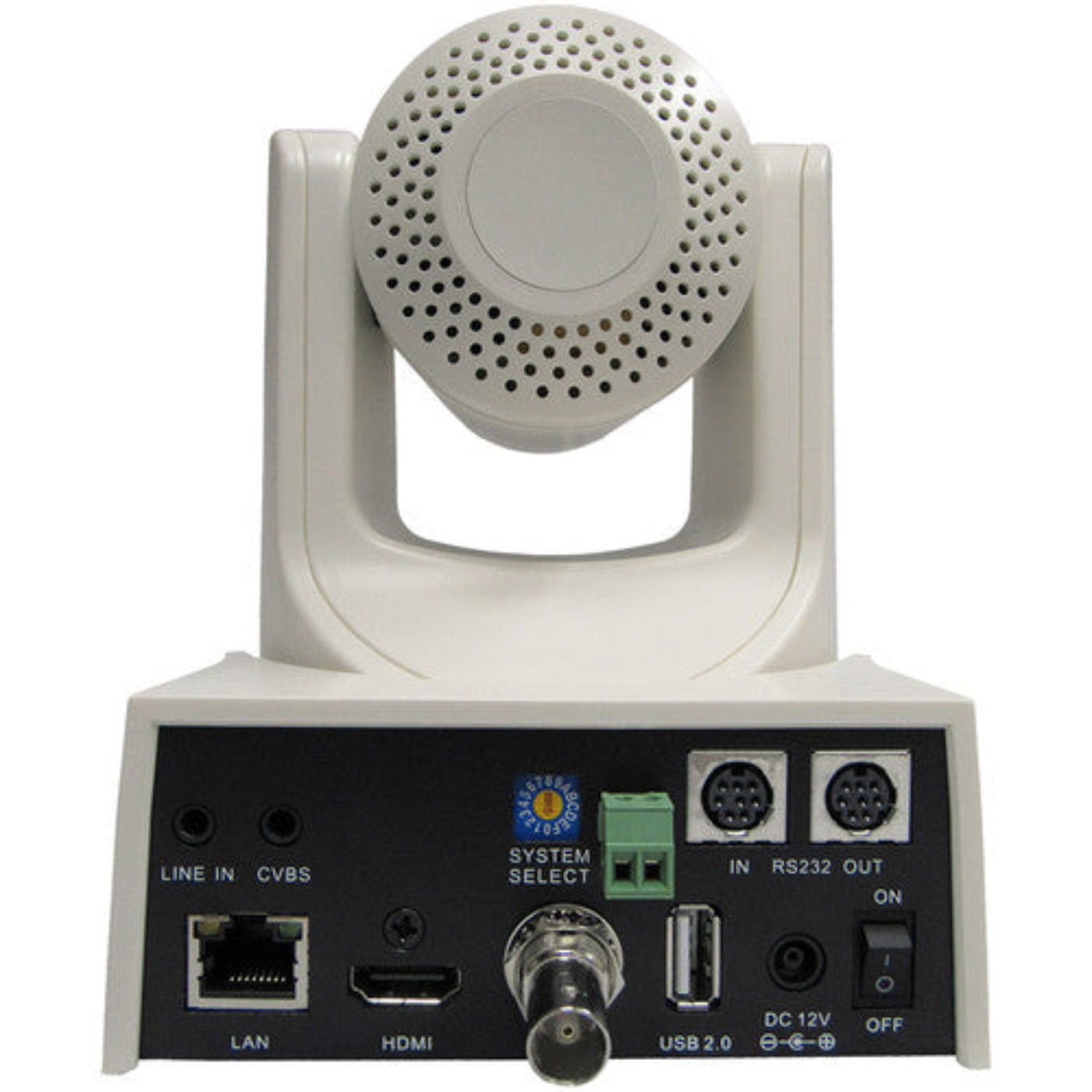

TZOptics PT30X-SDI-WH-G2 Broadcast & Conference Camera (White) - PT30XSDIWHG2
The PTZOptics PT30X-SDI-WH-G2 (white) is great for live streaming any events especially live streaming your House of Worship service. Ever since COVID-19 has changed the way we do things, House of Worships across the country have been incorporating these cameras into their technology arsenal.
- Long-Distance 30x Optical Zoom
- 3G-SDI, HDMI, IP Streaming
Features
• 60.7-degree wide-angle lens.
• High performance in low light scenarios with Wide Dynamic Range.
• Full 1920x1080p HD Resolutions up to 60 frames per second.
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
• RS232 & RS485 (Serial), and IP control
• H.264, H.265, & MJPEG streaming over RJ-45 LAN port
• HDMI, 3G-SDI, & IP streaming (all 3 simultaneously)
• PoE (Power over Ethernet) or 12VDC
• RTMP & RTSP IP streaming
• Photobooth capable
Specifications
| Sensor |
1/2.7" CMOS progressive, 2.12 MP |
| Resolution |
4K |
| Signal System |
NTSC, PAL |
| Signal To Noise Ratio |
- |
| Gain |
- |
| Shutter Speed Range |
1/30 - 1/10000 sec |
| Exposure Control |
- |
| White Balance |
- |
| Image Stabilization |
- |
| Image Flip |
- |
| ICR |
- |
| Sync |
- |

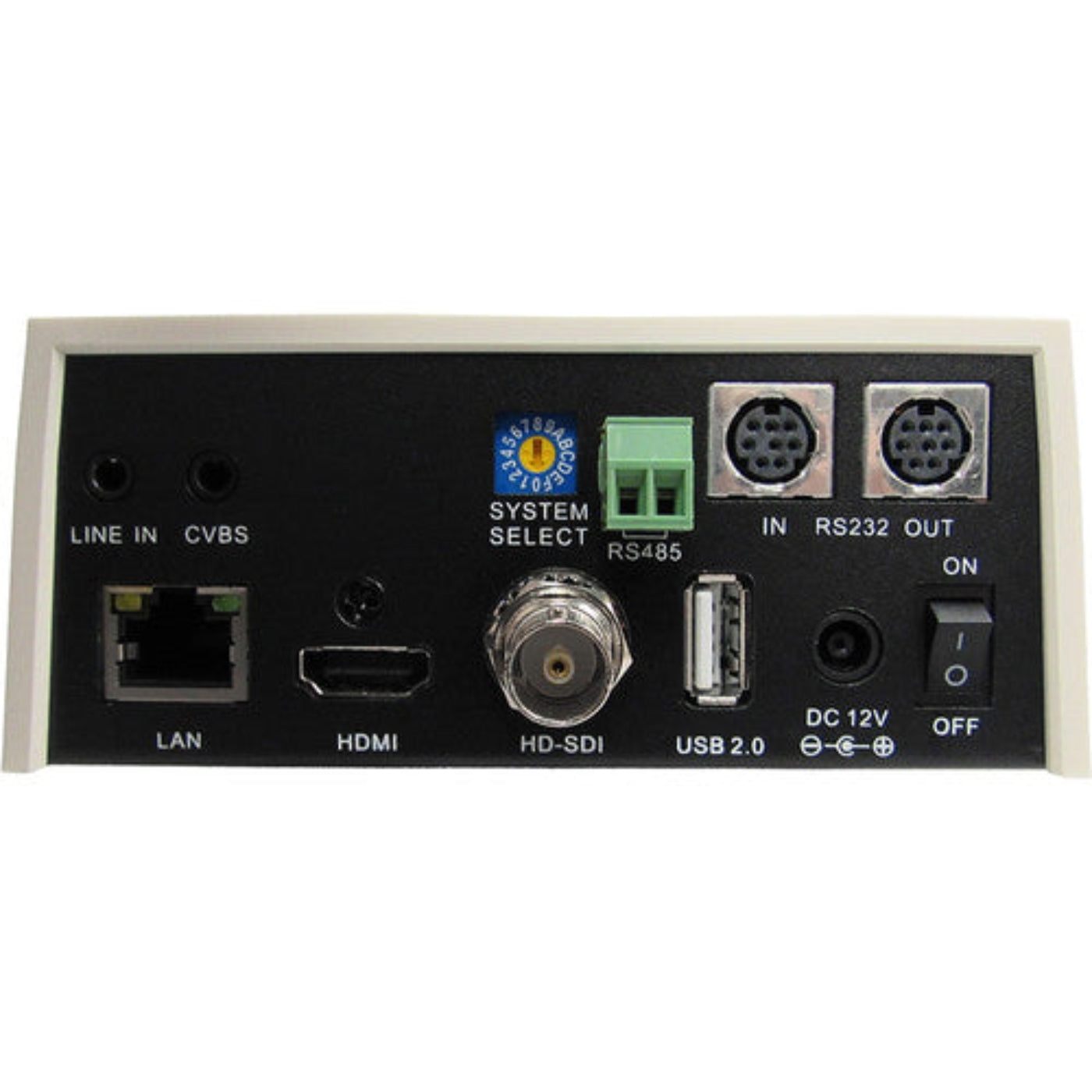

| Output |
1 x USB 3.0 (type B, female), 1 x HDMI (1.3), 1 x RJ45 (10 m/100 m adaptive Ethernet port), 1 x 3.5 mm Component |
| Audio Input |
1 x 3.5 mm line in (for embedding into IP stream only) |
| Audio |
- |
| Camera Control |
1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance), 1 x RS-232 output |
| Focal Length |
Integrated 4.4 - 88.5mm, f/1.8 - f/2.8 |
| Minimum Object Distance |
- |
| Pan Angle |
±170° |
| Tilt Angle |
Up: 90° |
| Pan Speed |
- |
| Tilt Speed |
- |
| Presets |
Up to 64 presets (255 presets via RS-232) |
| Operating Temperature |
23 to 104°F (-5 to 40°C) |
| Power Input |
12 VDC (10.8 - 13.0 VDC) |
| Minimum Illumination |
0.5 lux at f/1.8, AGC on |
| Optical Zoom |
3x |
What Our Experts Think
-
Professional-Grade Video – Captures crisp 1080p Full HD resolution at 60fps, ideal for live streaming and conferencing.
-
Powerful 30x Optical Zoom – Delivers sharp details even from a distance, perfect for large venues and auditoriums.
-
Multiple Output Options – Supports SDI, HDMI, and IP streaming for seamless integration into various broadcast and conferencing setups.
-
Smooth & Precise PTZ Control – Offers fluid pan, tilt, and zoom movements with joystick and remote compatibility.
-
Superior Low-Light Performance – Ensures clear, well-lit video in dim environments, making it reliable in any lighting condition.
Q&A
Q: What is the PTZOptics PT30X-SDI-WH-G2 Camera?
A: The PTZOptics PT30X-SDI-WH-G2 is a broadcast-quality PTZ camera with 30x optical zoom, designed for live streaming, video conferencing, and professional broadcasting.
Q: What are the key features of this camera?
A: It delivers 1080p60 HD resolution, SDI, HDMI, and IP streaming outputs, advanced PTZ control, and exceptional low-light performance.
Q: Is this camera ideal for large venues?
A: Yes, with its 30x zoom capability, it’s perfect for churches, auditoriums, classrooms, and live event production, allowing clear close-ups even from a distance.
Q: Does it support remote control and automation?
A: Yes, it supports VISCA, ONVIF, and IP control protocols, making it compatible with joysticks, software-based controllers, and automated production setups.
Q: Why choose the PTZOptics PT30X-SDI-WH-G2?
A: If you need a high-performance PTZ camera with powerful zoom, multiple output options, and seamless integration into professional AV setups, this model is a top-tier choice.
Maintenance Tips
-
Keep Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
-
Avoid Direct Sunlight – Prevent exposure to direct sunlight to protect the image sensor.
-
Update Firmware – Regularly check for and install firmware updates for optimal performance.
-
Secure Connections – Ensure SDI, power, and network cables are properly connected and undamaged.
-
Prevent Overheating – Place in a well-ventilated area and avoid blocking air vents.
-
Use Smooth PTZ Movements – Avoid excessive force to prolong motor lifespan.
-
Store Properly – Cover or keep in a dust-free, dry environment when not in use.
