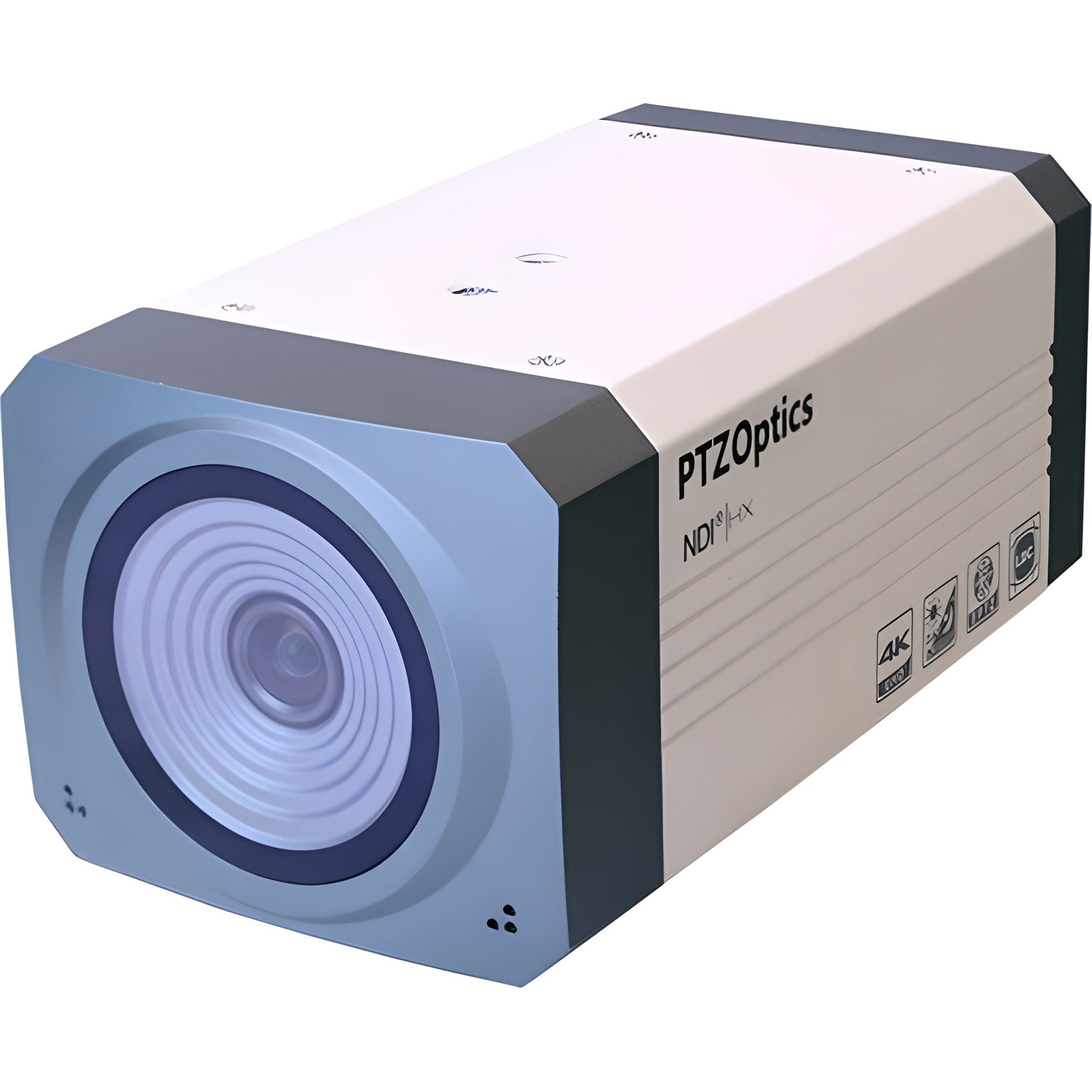

PTZOptics PTEPTZ-ZCAM-G2 3G-SDI Box Camera - PTEPTZZCAMG2
The PTZOptics PTEPTZ-ZCAM-G2 is a 1080p @ 30fps camera with a 4K image sensor for capturing HD images at short distances. With support for 3G-SDI & IP streaming, this camera is ideal for delivering high definition video signals to broadcast or live streaming applications.
- Panasonic 1/2.5” HD CMOS Sensor
- 104° Horizontal Field of View
- Full 1920x1080p HD Resolution
- RS-485 & VISCA over IP available Control
Features
• Panasonic 1/2.5” HD CMOS Sensor
• Full 1920x1080p HD Resolution up to 30 FPS
• 104° Horizontal Field of View
• 2D & 3D noise reduction
• Simultaneous Dual 3G-SDI & High Definition IP Output
• Dual SDI output (Full view / EPTZ view)
• H.264, H.265 & MJPEG IP streaming outputs
• RTMP / RTMPS & RTSP
• AAC Audio encoding over RTSP and RTMP / RTMPS
• Dynamic / Static IP addressing (Hold D-Pad left for 5+ sec to toggle)
• High performance in low light scenarios
• RS-485 & VISCA over IP available for camera control
• Four (4) Std 1/4-20 female threads for camera mounting
• PoE 802.3af (Power over Ethernet) or 12VDC
• 255 Presets
• 3-year warranty
What Our Experts Think
-
Broadcast-Quality Video: Captures Full HD 1080p video at 60fps, delivering sharp and professional-grade visuals for live streaming and production.
-
3G-SDI Connectivity: Ensures reliable, low-latency video transmission, making it ideal for professional AV setups, live events, and studio use.
-
Compact & Durable Design: The small, box-style form factor allows for discreet placement while offering high durability for long-term use.
-
Wide Dynamic Range (WDR): Enhances image quality in challenging lighting conditions, ensuring balanced exposure and clear details.
-
CS-Mount Lens Compatibility: Supports interchangeable lenses for customizable focal lengths and fields of view to suit different production needs.
-
Versatile Mounting Options: Easily integrates into fixed installations, tripods, or robotic pan-tilt systems for flexible camera positioning.
-
PoE (Power over Ethernet) Support: Simplifies installation by reducing the need for additional power cables.
Q&A
Q: What is the PTZOptics PTEPTZ-ZCAM-G2 3G-SDI Box Camera?
A: The PTZOptics PTEPTZ-ZCAM-G2 is a high-definition box camera with 3G-SDI output, designed for professional video production, live streaming, and broadcasting.
Q: What are the key features of the PTZOptics PTEPTZ-ZCAM-G2?
A: This camera offers full HD 1080p resolution, 3G-SDI connectivity, low-light performance, wide dynamic range, and seamless integration with PTZOptics systems.
Q: Is the PTZOptics PTEPTZ-ZCAM-G2 easy to install?
A: Yes, its compact box design allows for flexible mounting options, and it integrates easily into professional AV and streaming setups.
Q: What is the PTZOptics PTEPTZ-ZCAM-G2 ideal for?
A: Ideal for live streaming, video production, worship services, and remote monitoring, this camera delivers high-quality visuals in a compact form.
Maintenance Tips
-
Keep the Lens Clean – Use a microfiber cloth to remove dust and smudges for optimal image quality.
-
Avoid Overheating – Ensure proper ventilation and avoid placing the camera in direct sunlight or near heat sources.
-
Update Firmware – Regularly check for firmware updates to improve performance and security.
-
Secure Cable Connections – Use high-quality 3G-SDI and power cables, ensuring firm and stable connections.
-
Dust Prevention – Keep the camera in a clean environment and use a protective cover when not in use.
-
Check Power Supply – Use a reliable power source to prevent fluctuations that may damage the camera.
-
Store Properly – If not in use, store the camera in a dry, dust-free place to maintain longevity.
