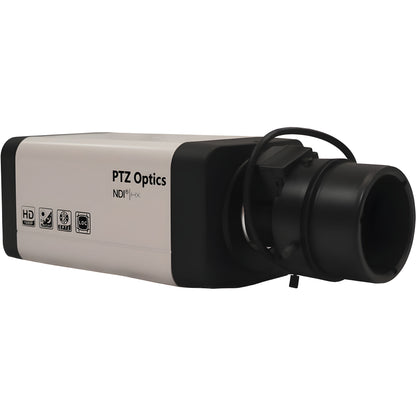

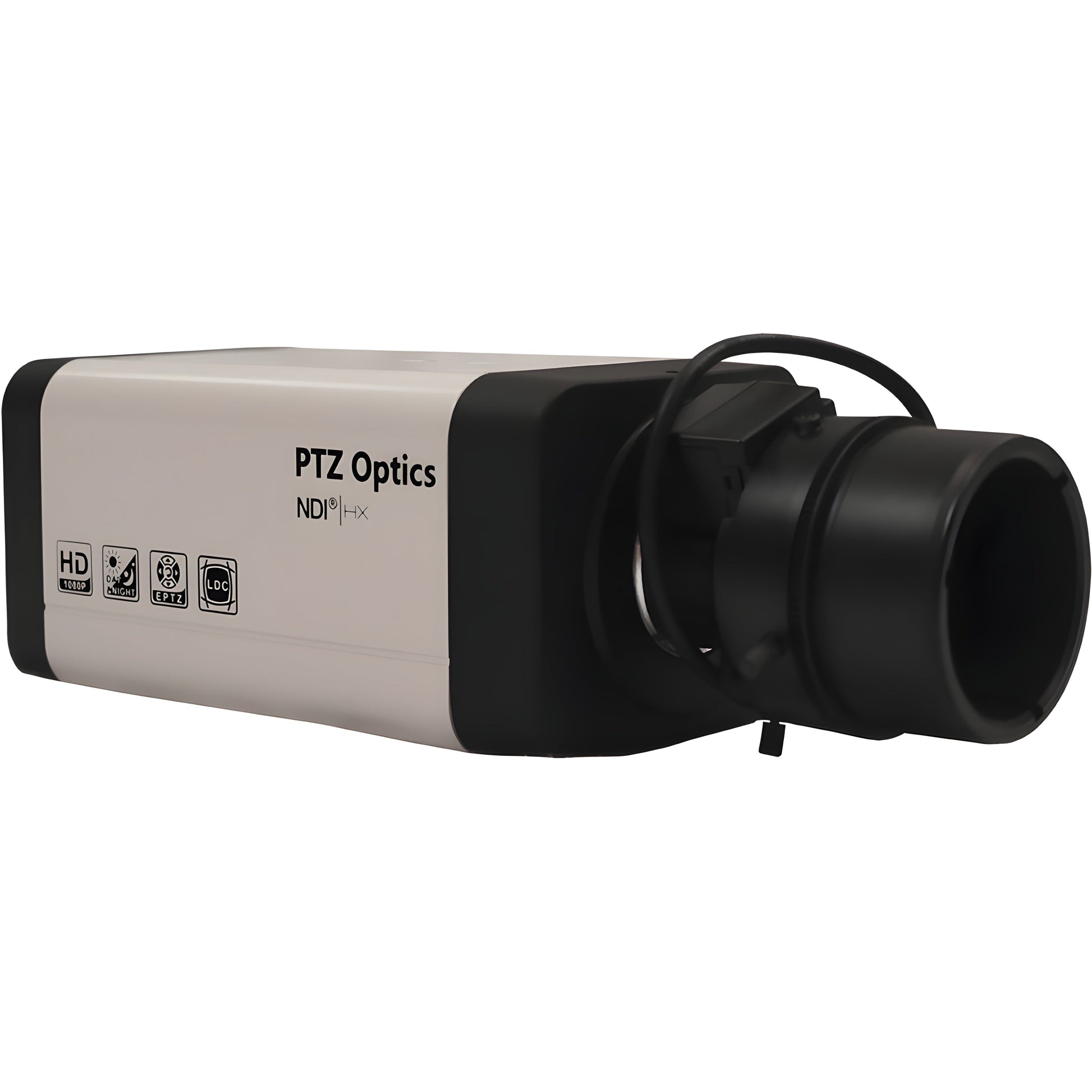

PTZOptics PTVL-NDI-ZCAM-BK ZCam 1080P IPBroadcast & Conference Camera (Gray) - PTVLNDIZCAMBK
The PTZOptics PTVL-NDI-ZCAM-BK is a 1080p camera with wide angle lens for capturing HD images at short distances. With support for NDI|HX, 3G-SDI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.
Features
- 3G-SDI and NDI|HX IP Streaming Camera
- Dual Streams, 1080p60 Max. Resolution
- Stream RTSP/RTMP with H.265/H.264/MJPEG
• Panasonic 1/2.7” HD CMOS Sensor
• 3G-SDI & NDI |HX High Definition Video Output
• H.264, H.265, & MJPEG IP streaming output (dual stream)
• AAC stereo unbalanced audio encoding over IP & NDI
• Full 1920x1080p HD Resolutions up to 60 FPS via SDI (30 FPS over NDI)
• 3G-SDI, & NDI or IP streaming (Both simultaneously)
• Std 1/4-20 female thread for camera mounting (top & bottom)
• PoE (Power over Ethernet) or 12VDC
• RTMP, RTSP, and NDI|HX
• C/CS Type lens mount
• RS485 and IP remote camera control
• Hold left button on Menu Navigation for 5+ seconds to toggle Dynamic or Static IP addressing
• 3-year warranty
• Photobooth capable
Specifications
| Sensor |
Panasonic 1/2.7” HD CMOS Sensor |
| Resolution |
HD 1080 |
| Shutter Speed Range |
1/30s - 1/10000s |
| White Balance |
Auto, Indoor, Outdoor, One Push, Manual |
| Image Flip |
Vertical Flip & Mirror Supported |
| Output |
1 x 3D-SDI on BNC |
| Audio Input |
1 x 3.5 mm Audio Line In |
| Audio |
Streaming Audio Standard AAC, Streaming Audio Rate 96/128/256 Kb/s |
| Camera Control |
PoE (Power over Ethernet) or 12VDC |
| Focal Length |
3.5 to 42.3mm |
| Operating Temperature |
14 to 104°F / -10 to 40°C |
| Power |
PoE (Power over Ethernet) or 12VDC |
| Minimum Illumination |
0.5 Lux at F1.8, AGC ON |
| Optical Zoom |
12x |
What Our Experts Think
-
Full HD 1080p Video – Delivers crisp, high-quality visuals at 60fps for professional broadcasting and conferencing.
-
NDI |HX Integration – Enables low-latency, high-quality video streaming over IP networks for seamless production workflows.
-
Versatile 3G-SDI & IP Output – Supports multiple connectivity options for easy integration into various setups.
-
Compact & Durable Design – Ideal for fixed installations in studios, conference rooms, and live production environments.
-
Low-Light Optimization – Ensures clear, well-lit video even in challenging lighting conditions.
Q&A
Q: What is the PTZOptics PTVL-NDI-ZCAM-BK?
A: The PTZOptics PTVL-NDI-ZCAM-BK is a 1080p Full HD fixed-lens camera designed for broadcasting, live streaming, and video conferencing with NDI®|HX, SDI, and IP streaming capabilities.
Q: Where is this camera best used?
A: Ideal for live events, houses of worship, esports, corporate meetings, and studio setups, where high-quality fixed-angle video is needed with network-based control and streaming.
Q: Why choose the PTZOptics PTVL-NDI-ZCAM-BK?
A: It delivers broadcast-quality video, seamless NDI® integration, and flexible connectivity options, making it a cost-effective choice for professional video production and live streaming environments.
Maintenance Tips
-
Keep Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
-
Avoid Direct Sunlight – Prevent direct exposure to sunlight to protect the image sensor.
-
Update Firmware – Regularly check for and install firmware updates for optimal performance.
-
Secure Connections – Ensure NDI, power, and network cables are properly connected and undamaged.
-
Prevent Overheating – Place in a well-ventilated area to maintain stable operation.
-
Protect from Dust & Moisture – Keep in a clean, dry environment to prevent internal damage.
-
Store Safely – Cover or store in a dust-free space when not in use.
