PTZOptics PTVL-ZCAM 3G-SDI Box Camera - PTVLZCAM

PTZOptics PTVL-ZCAM 3G-SDI Box Camera - PTVLZCAM

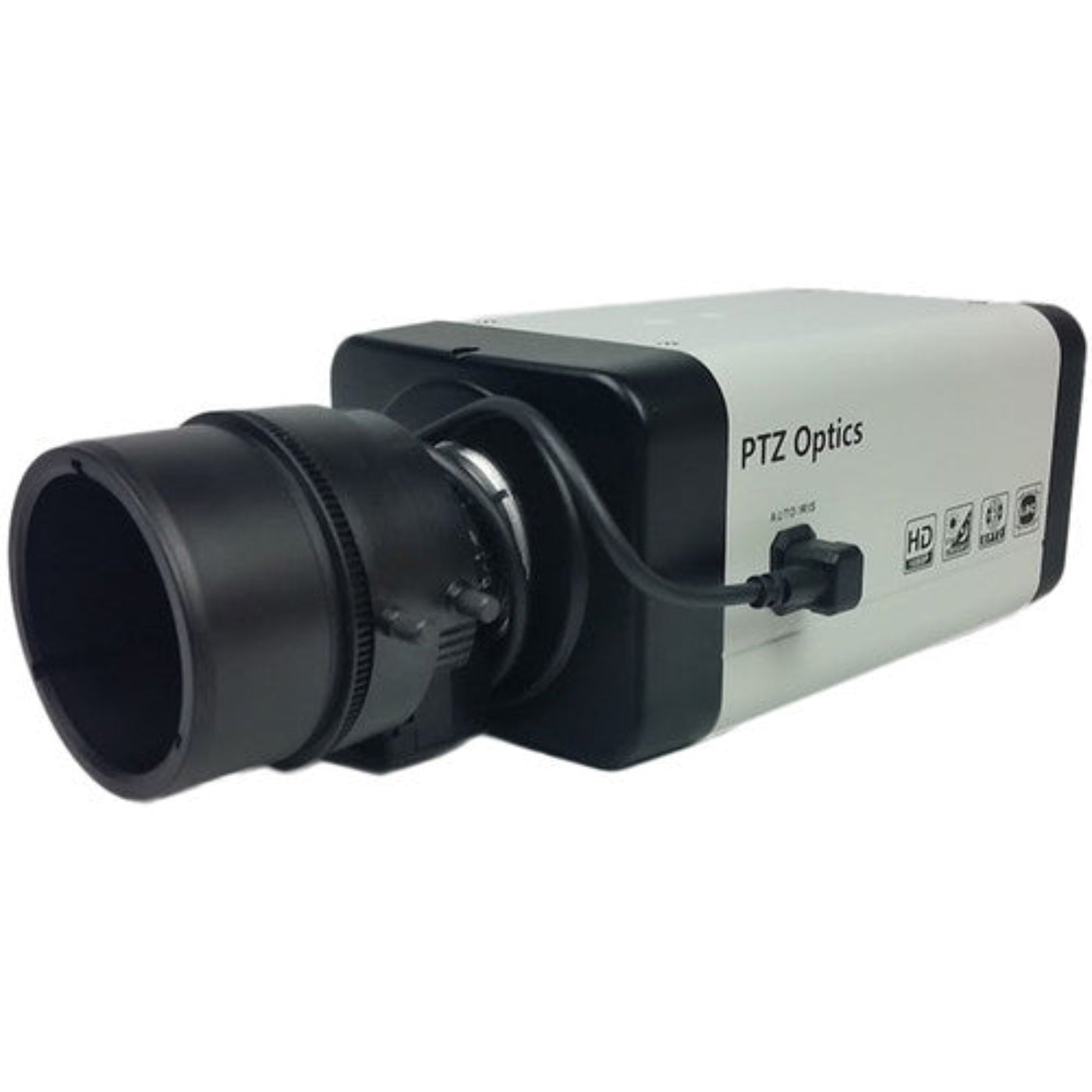

The PTZOptics PTVL-ZCAM is a 1080p box camera for capturing HD video with a variety of lenses. With support for 3G-SDI & IP Streaming this camera is ideal for broadcasting high definition video signals for broadcast, surveillance or video conferencing applications up to 1080p/60 resolution. The PTVL-ZCAM comes complete with your first lens with 4X Zoom and a 122° wide angle field of view.

• For Broadcast/Surveillance/Conferencing

• 3G-SDI and IP Streaming

• 1080p60 Capture and Streaming

• C/CS Mount; 122° FOV Lens Included

Features

• Panasonic 1/2.7” inch HD CMOS Sensor

• 3G-SDI High Definition Video Output

• H.264, H.265 & MJPEG IP Streaming Output (dual stream)

• High performance in low illumination situations

• Full 1920x1080p HD Resolutions up to 60 frames per second via SDI

• 2D and 3D noise reduction with our latest “low noise CMOS sensor”

• Wide Dynamic Range • Menu controls on back of camera

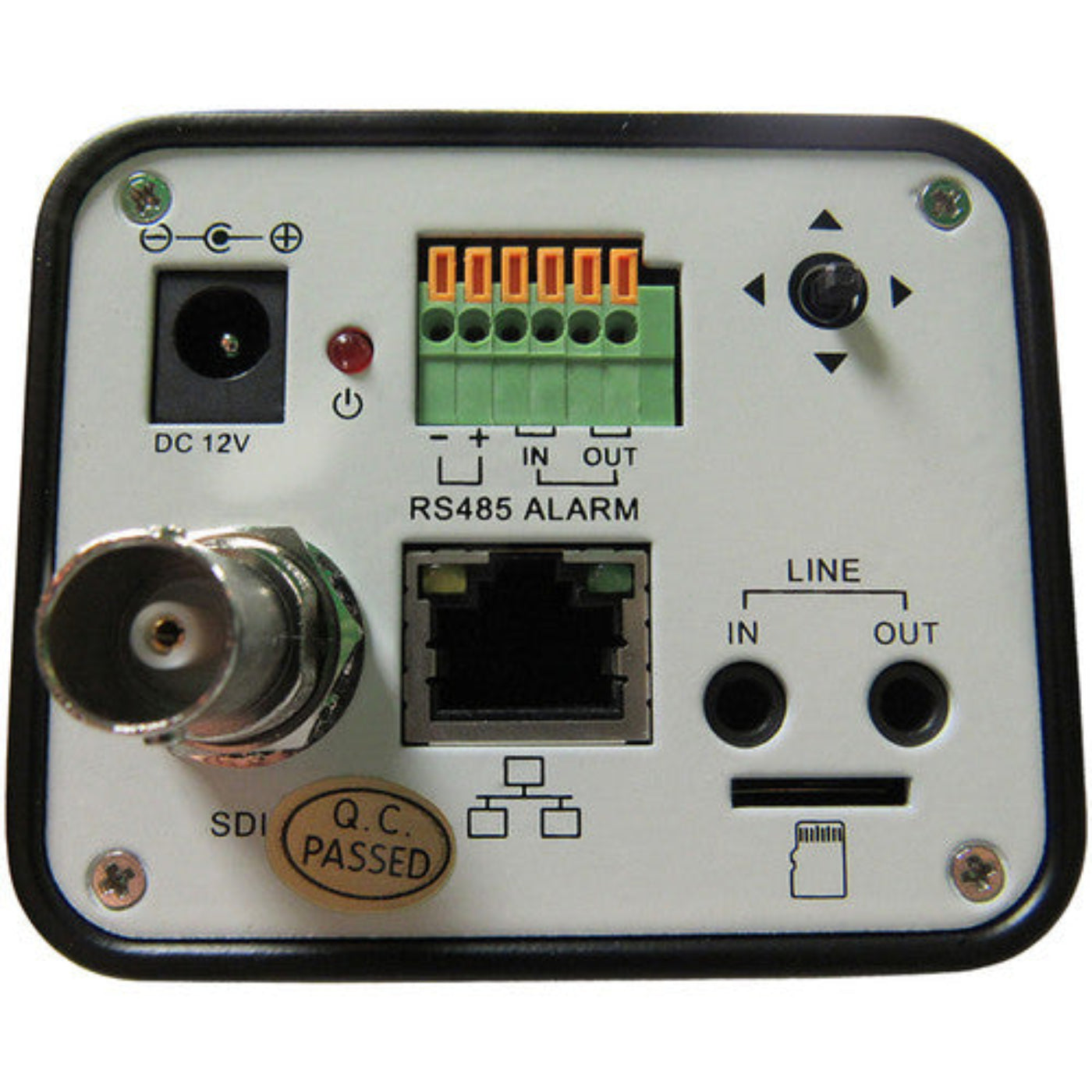

• RS485 and IP remote camera control

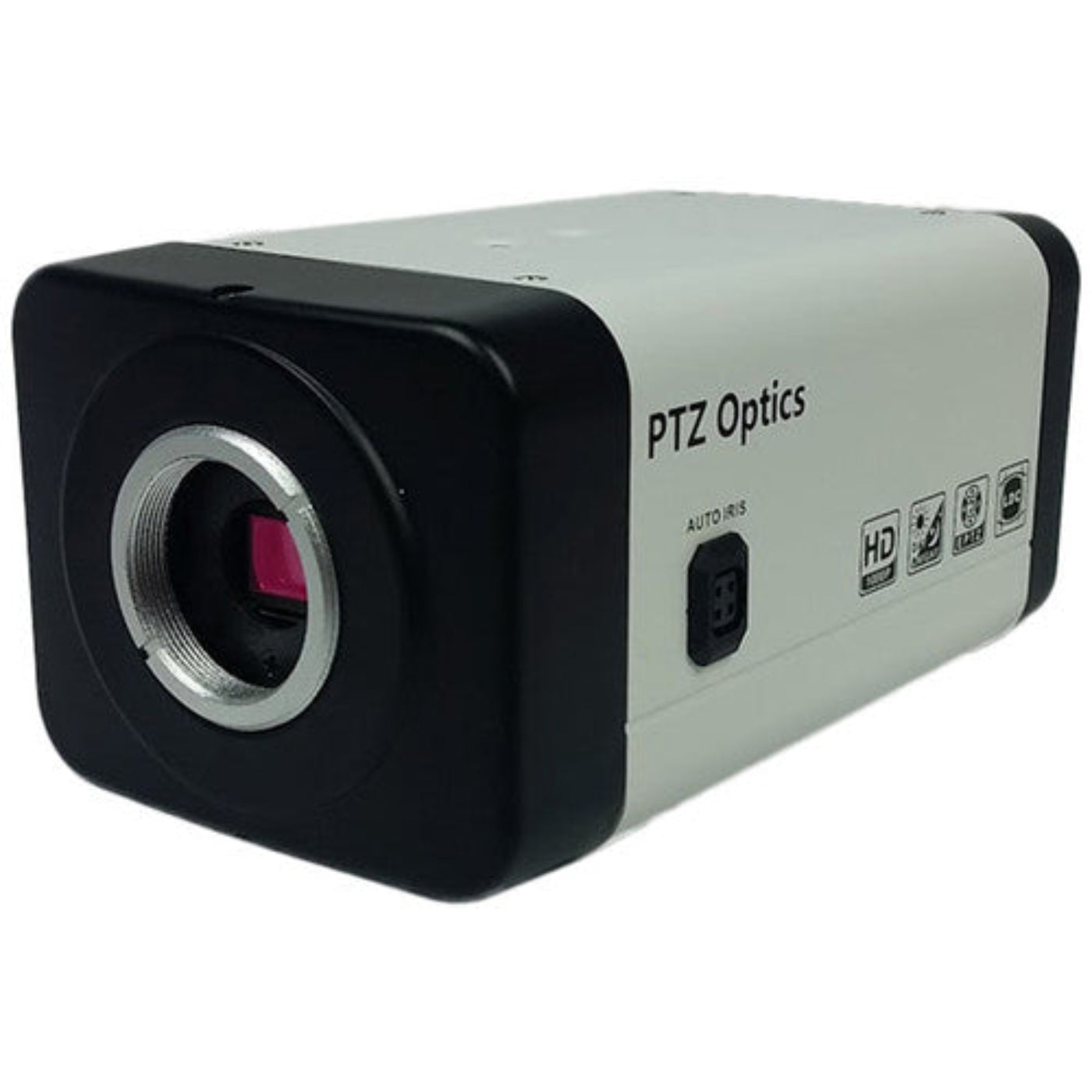

• C/CS Type Lens Mount

• Standard 1/4-20 female thread for camera mounting (top + bottom)

• PoE (Power over Ethernet) or 12VDC

• Hold left on Menu Navigation button for 5+ seconds to toggle Dynamic or Static IP addressing

• 3-year warranty

• Photobooth capable

Specifications

What Our Experts Think

• Full HD Video Quality: Captures sharp 1080p video at 60fps, ensuring professional-grade visuals for live streaming, broadcasting, and video production.
• 3G-SDI Output: Delivers high-quality, low-latency video transmission over long distances, ideal for professional AV and broadcast setups.
• Varifocal Lens for Adjustability: Equipped with a high-quality varifocal lens, allowing manual zoom and focus adjustments for precise framing.
• Compact & Discreet Design: The small form factor makes it easy to mount in tight spaces without compromising video quality.
• Wide Dynamic Range (WDR): Enhances video clarity in challenging lighting conditions, balancing exposure for a professional look.
• Flexible Installation Options: Compatible with tripods, wall mounts, and robotic PTZ systems for seamless integration into any production setup.
• PoE (Power over Ethernet) Support: Simplifies installation by reducing cable clutter and the need for separate power sources.

Q&A

Q: What is the PTZOptics PTVL-ZCAM 3G-SDI Box Camera?
A: The PTZOptics PTVL-ZCAM is a professional-grade box camera featuring 3G-SDI output, designed for high-quality video production, live streaming, and broadcasting.

Q: What are the key features of the PTZOptics PTVL-ZCAM?
A: This camera offers full HD 1080p resolution, 3G-SDI connectivity, wide dynamic range, excellent low-light performance, and seamless integration with PTZOptics systems.

Q: Is the PTZOptics PTVL-ZCAM easy to install?
A: Yes, its compact design allows for flexible mounting options, making it easy to integrate into professional AV setups for streaming or production.

Q: What is the PTZOptics PTVL-ZCAM ideal for?
A: Ideal for live streaming, video conferencing, houses of worship, remote monitoring, and professional video production.

Maintenance Tips

• Keep the Lens Clean – Use a microfiber cloth to remove dust and smudges for sharp image quality.
• Ensure Proper Ventilation – Avoid placing the camera in enclosed or hot areas to prevent overheating.
• Update Firmware Regularly – Check for updates to enhance performance and security.
• Use Quality Cables – Securely connect high-quality 3G-SDI and power cables to prevent signal loss.
• Minimize Dust Exposure – Keep the camera in a clean environment and cover it when not in use.
• Protect the Power Supply – Use a stable power source to avoid fluctuations that could damage the camera.
• Store Safely – When not in use, store the camera in a dry, dust-free area to extend its lifespan.
