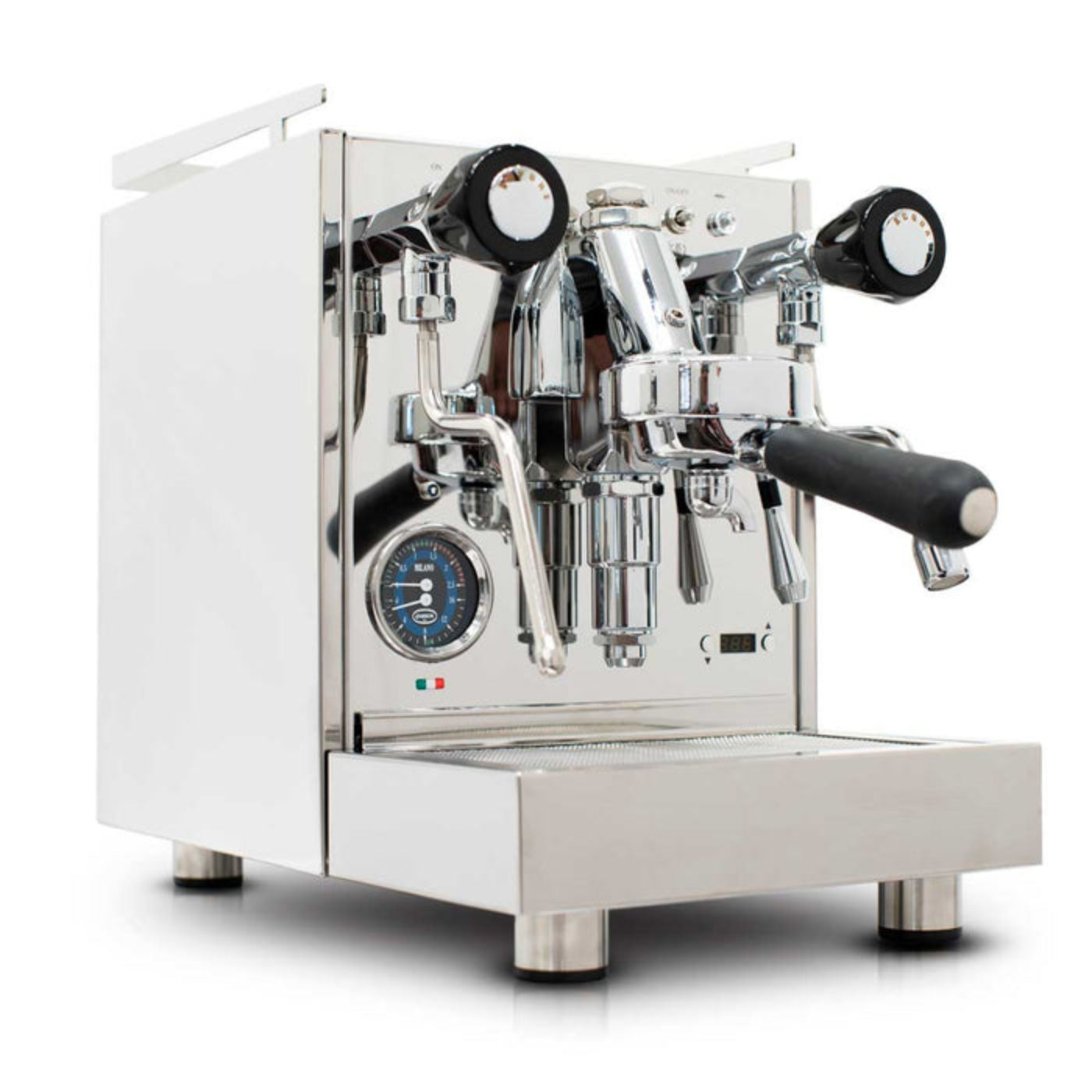

Experience the pinnacle of espresso craftsmanship with the new QM67, meticulously designed and handcrafted in Italy by Quick Mill. This modern marvel boasts stainless steel boilers, a cutting-edge PID featuring a shot timer, and individual monitoring of steam and coffee boiler temperatures, ensuring unparalleled precision in every cup. LED indicator lights and an eco-friendly standby mode exemplify its commitment to both performance and sustainability. With sleek body styling, a modern stainless brew lever, and a convenient cup rail, the QM67 is as aesthetically pleasing as it is functional.
Features
-
NEW PID display with shot timer on Evo version.
-
High-quality stainless steel construction #304
-
E-61 commercial group
-
2 hole steam tip
-
58 mm portafilter ( 1 single, 1 double spouted included)
-
Cup warmer
-
Hinged cover - No need to remove the cup warming tray to refill the water tank
-
Easy access expansion valve - No need to remove the outer shell to adjust
-
PID controller for the group boiler (with 1.0 degree Celsius or Fahrenheit adjustment)
-
PID controller also controls the steam boiler temperature (and thus pressure)
-
Programmable offset differential
-
Boiler and group pressure gauges
-
Power and heater lights
-
Power switches for the coffee and steam boiler
-
Stainless steel steam and hot water arms
-
Large pull-out stainless drip tray
-
Water reservoir
-

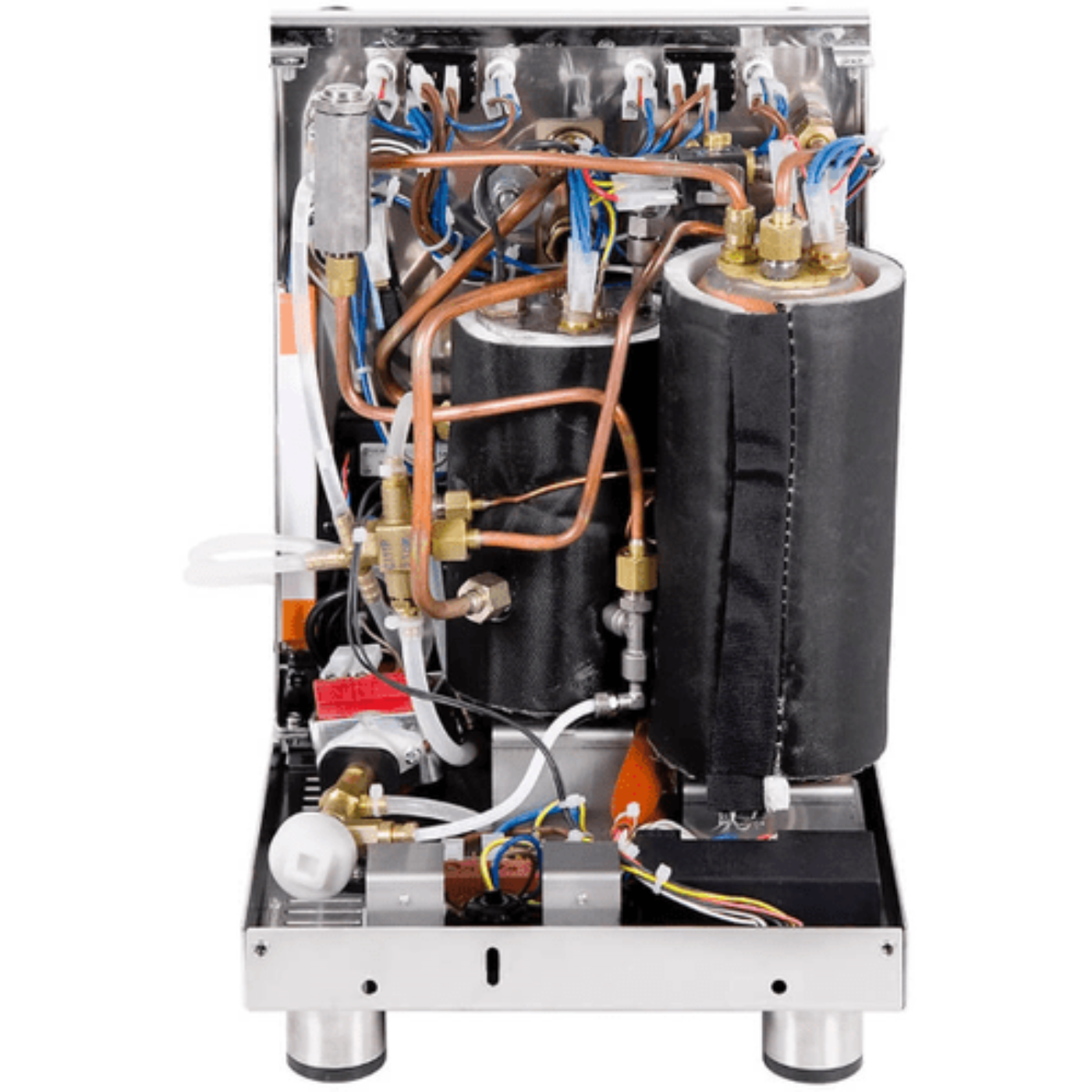

Dual insulated copper boilers
-
Ulka 52 watt vibratory pump with thermal overload protection
-
Pulsor equipped to the pump, equalizing pump pressure and improves noiselessness
-
Resettable hi-limit to protect the heating element
-
High-quality expansion valve for easy adjustment of brew pressure
-

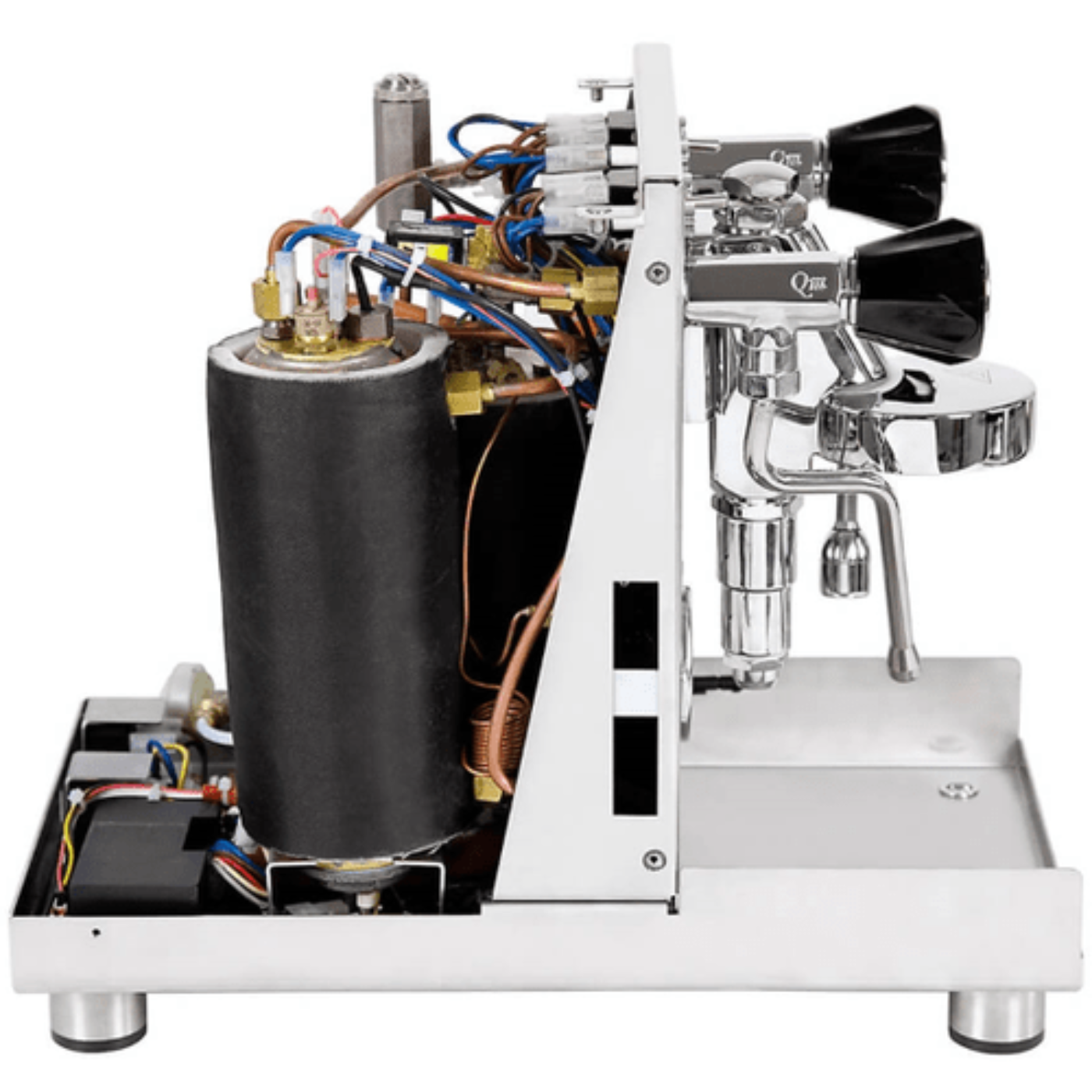

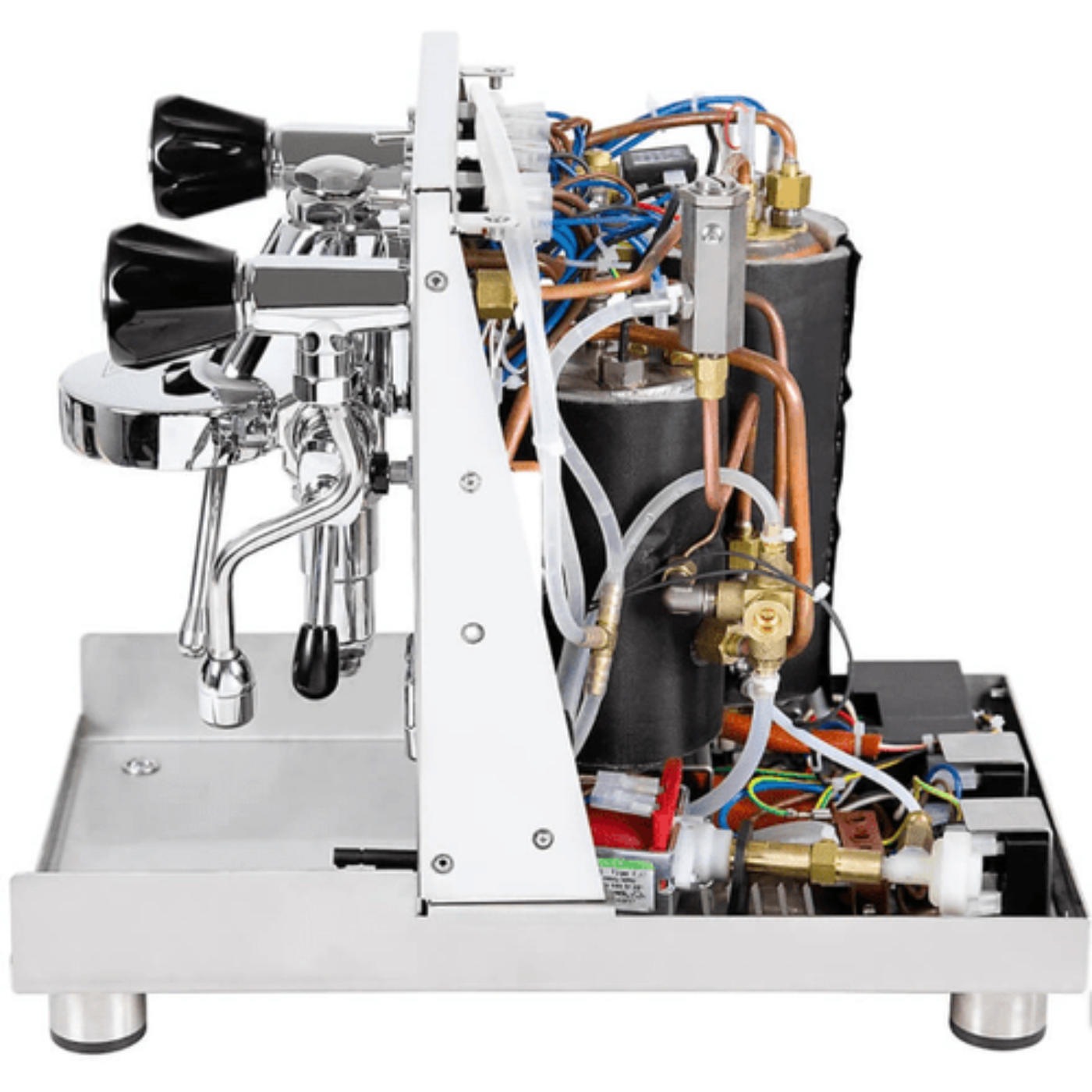

Easy-to-remove outer shell makes for easy service if necessary
-
Control board and transformer
-
Low water sensors
-
15 amp
-

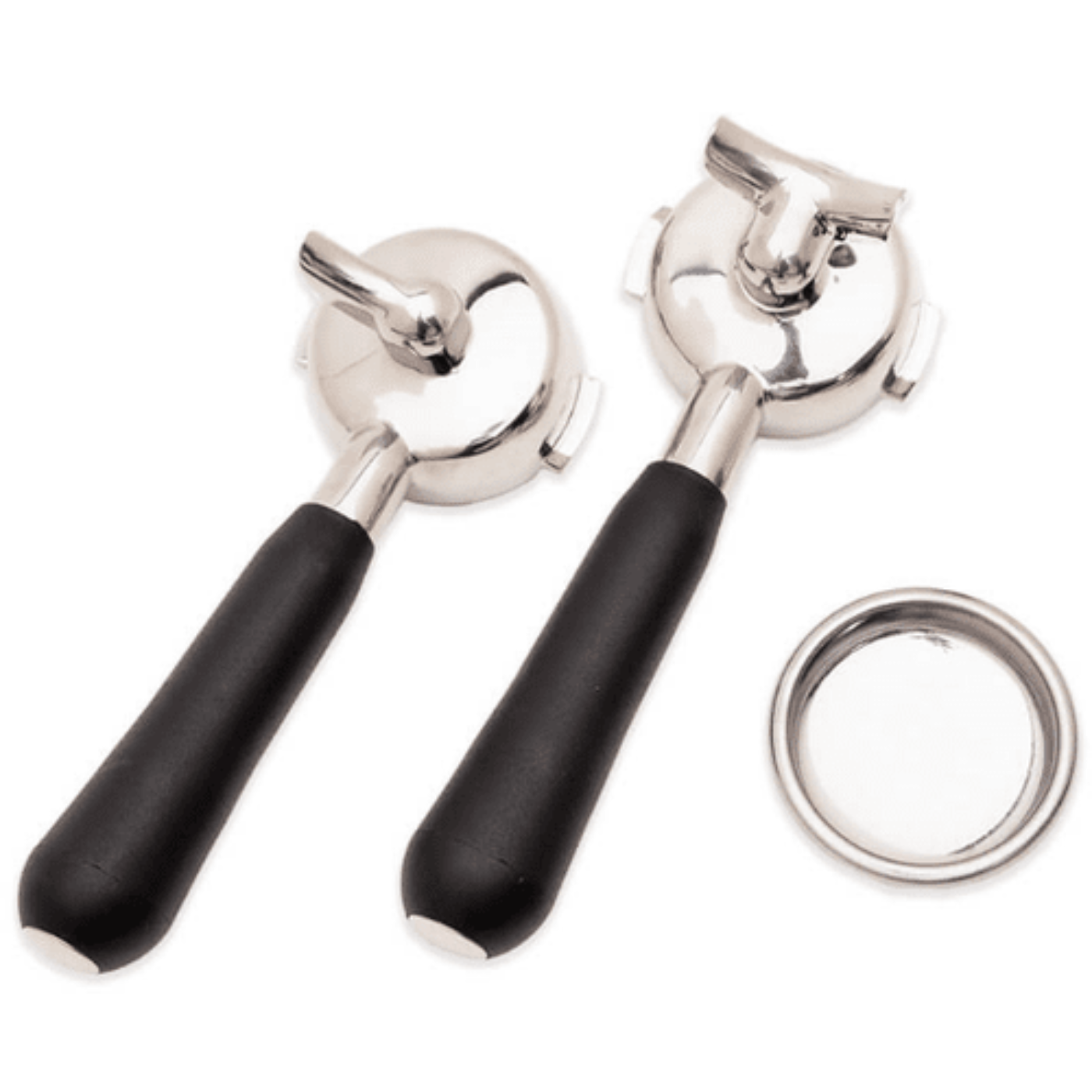

Two portafilters (a single and a double)
-
Blank for backflushing
-
3" clearance between the drip tray and the portafilter
Specifications
| Identification |
|
| Model |
QM67 |
| Manufacturer |
Quick Mill |
| Best Use |
Office \ Home |
| Engineering |
|
| Automation |
EE \ Semi-Automatic |
| Boiler |
Steam Boiler (1.0 liter capacity, 1400 watt heating element) \ Group Boiler with T.E.A coating (0.75 liter capacity, 800 watt heating element) |
| Cup Size |
Traditional Cup |
| Groups |
1 Group |
| Output Capacity |
20 Espressos Per Hour |
| PID Temperature Controller |
PID controller for the group boiler (with 1.0 degree Celsius or Fahrenheit adjustment). PID controller also controls the steam boiler temperature (and thus pressure). |
| Plumbing |
Reservoir (3 liter) |
| Pump |
Ulka 52 watt vibratory pump with thermal overload protection. Pulsor equipped to the pump, equalizing pump pressure and improves noiselessness. |
| Convenience / Functionality |
|
| Display |
Boiler pressure gauge. Group pressure gauge Power and heater lights. Low water sensors |
| Drain Tray |
Large pull-out stainless drip tray. |
| Hot Water Spigot |
1 Stainless steel hot water spigot |
| Controls |
|
| Steam Arms |
1 Stainless steel steam arm with 1.0 mm two hole steam tip. |
| Dimensions |
|
| Height |
16.50 inches \ 41.9 centimeters |
| Width |
11.00 inches \ 27.9 centimeters |
| Depth |
17.00 inches \ 43.2 centimeters |
| Weight |
50 pounds \ 22.7 kilograms |
| Electrical |
|
| Amps \ Volts |
15 Amps \ 110 Volts |
| Watts |
1400 Watt steam boiler \ 800 Watt group boiler |
| Colors \ Options |
|
| Colors |
Polished stainless steel |
| Includes |
Two portafilters (A single and a double), blank for backflushing |
What Our Experts Think
-
Dual Boiler Excellence: Brew espresso and steam milk simultaneously for true café performance.
-
PID Temperature Control: Guarantees stable brewing temps for consistent, rich flavor.
-
Quiet Rotary Pump: Delivers steady pressure with minimal noise.
-
Premium Stainless Steel Build: Combines durability with an elegant, professional look.
Q&A
Q: What makes the QM67 Evo special?
A: It pairs dual boilers with PID control and a rotary pump for top-tier home espresso results.
Q: Does it support direct water line connection?
A: Yes, it offers both direct-connect and reservoir operation.
Q: Is it suitable for daily heavy use?
A: Absolutely — it’s engineered for performance and reliability over years of brewing.
Maintenance Tips
-
Backflush the group head after each brewing session.
-
Descale boilers every 2–3 months, depending on water quality.
-
Clean the steam wand immediately after use.
-
Use filtered water to enhance flavor and protect components.
