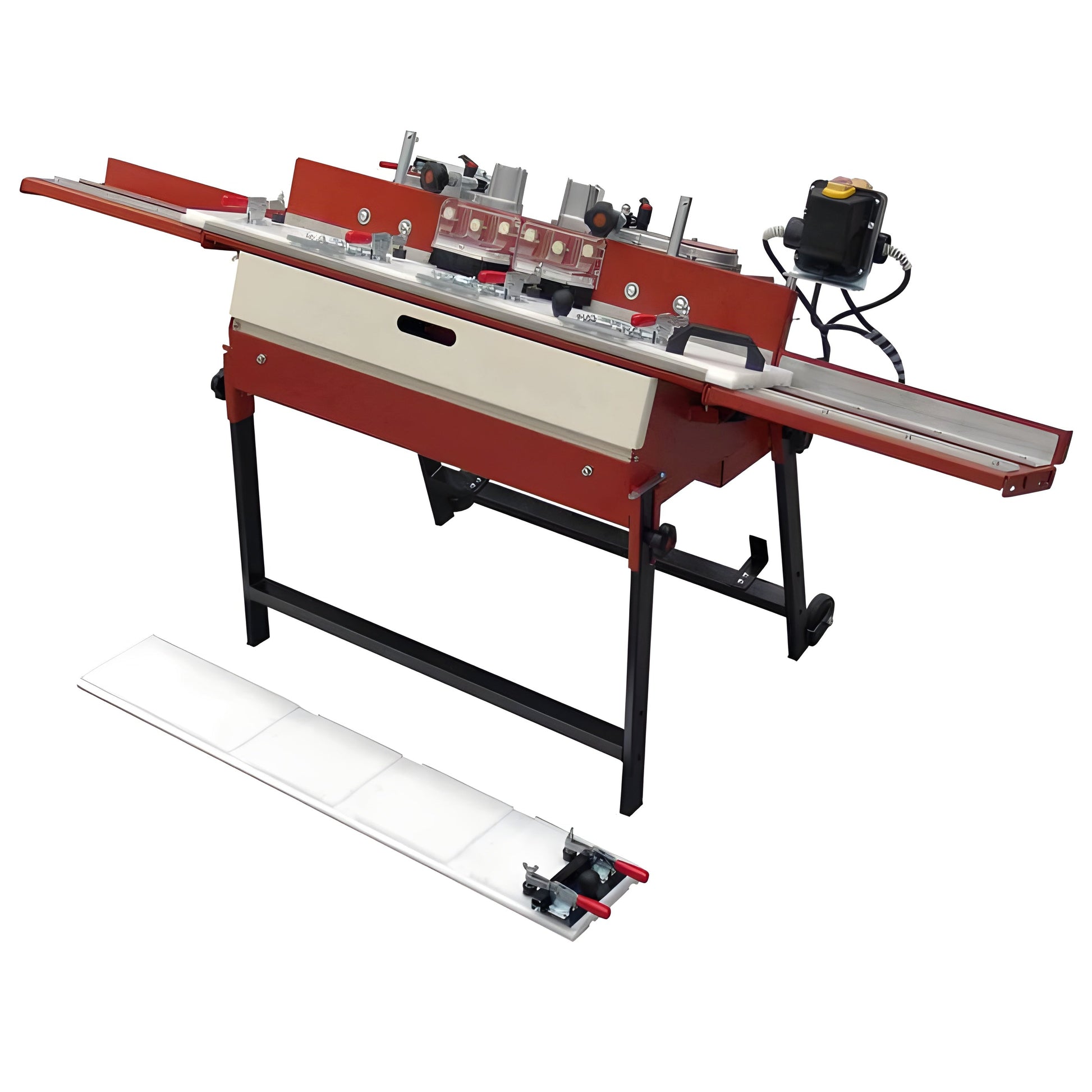

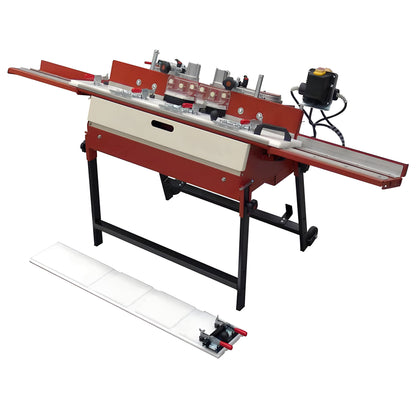

Raimondi Bulldog Advanced Dual-Head Bullnose Machine - BD2WD
Raimondi Dual-Head Bulldog Advanced Bullnose Machine will profile a perfect half/full bullnose, 45° bevel (Jolly) or finished flat edge on marble, porcelain tile or natural stone up to 1-3/16" (30 mm) thick. This machine provides a 47-1/2" maximum length of shaping and it's dual-head in-line connection supplies 3 levels of finishing for milling, rough finishes and polishing. The dual-head BD2WD is equipped with a powerful 1-1/2 hp electric motor that runs up to 3,360 RPM at 110 volts.
Features
-
Profile or bevel edges of porcelain, ceramic, stone, marble, granite and more
-
Powerful dual-head motor set up provides 3 levels of finishing
-
47-1/4" maximum profiling length
-
Can work on materials up to 1-3/16" thick
-
Two heavy duty water pumps will cool down profile wheels
-
Telescopic legs equipped with a wheel kit for easy transportation and set up
-
Machine has 20 mm arbor and wheel distance is adjustable
-
Clamping mechanism and adjustable pressure wheel will not allow material to shift
-
Magnetic splash guard keeps water and debris away from the operator
-
Includes 47" sliding table, tool kit, dressing stone and operator's manual
-
All bullnose wheels are sold separately
Specification
| Raimondi Dual-Head Bulldog Specifications |
| Power |
1-1/2 hp |
| Voltage |
110 V |
| Max Profiling Length |
47-1/4" (120 cm) |
| Max Profiling Depth |
1-3/16" (3 cm) |
| Min Tile Width |
1-1/2" (4 cm) |
| Max Tile Width |
23-5/8" (60 cm) |
| RPM (Motor/Wheel) |
3360/5370 |
| Arbor |
20 mm |
| Weight |
245 lb |
What Our Experts Think
-
Dual-Head Efficiency: Features two synchronized heads for faster and more precise bullnosing, polishing, and beveling.
-
Versatile Application: Handles various tile and stone materials, including porcelain, granite, and marble.
-
Adjustable Settings: Allows customization of profile dimensions and angles for tailored results.
-
Professional Finish: Delivers smooth, high-quality edges ideal for a polished, finished look.
-
Robust Construction: Built with industrial-grade components for durability and consistent performance on job sites.
-
User-Friendly Design: Intuitive controls and ergonomic setup for ease of operation, even on large projects.
Q&A
Q: What is the purpose of the Bulldog Dual-Head Bullnose Machine?
A: It’s a professional-grade tool designed for shaping, polishing, and finishing bullnose edges on ceramic, porcelain, and stone tiles, delivering a high-quality, precise finish.
Q: What are its key features?
A: The BD2WD includes dual adjustable heads for simultaneous grinding and polishing, variable speed control, an ergonomic design, and a water-cooling system to prevent overheating.
Q: What tile sizes can it handle?
A: It accommodates tiles up to 1-1/4" thick and various lengths, making it versatile for different project requirements.
Q: Is it easy to operate?
A: Yes, it features simple controls, a sturdy base for stability, and adjustable settings to achieve the desired edge finish effortlessly.
Q: How does it improve productivity?
A: The dual-head system allows for simultaneous operations, reducing labor time and ensuring consistent results across multiple tiles.
Q: Is it suitable for heavy-duty use?
A: Absolutely. Built with robust materials and a high-performance motor, it’s ideal for both residential and commercial projects.
Maintenance Tips
-
Daily Cleaning: After each use, clean the cutting heads, water nozzles, and working surfaces to remove debris and prevent buildup.
-
Blade Inspection: Regularly inspect diamond blades for wear and replace them as needed to maintain cutting precision.
-
Water System Care: Clean the water pump, filters, and hoses frequently to ensure a steady water flow and prevent clogs.
-
Lubrication: Lubricate moving parts and guide rails periodically according to the manufacturer’s guidelines for smooth operation.
-
Electrical Safety: Check power cords, plugs, and connections for damage before each use to avoid electrical issues.
-
Alignment Checks: Ensure the dual heads are properly aligned for consistent and accurate bullnose profiling.
-
Storage: Store the machine in a clean, dry environment to protect it from moisture and dust when not in use.
-
Periodic Inspection: Tighten screws and check all fittings regularly to ensure the machine remains stable and secure.
