50 “ 200 station capable Two-Wire Decoder Commercial Controller

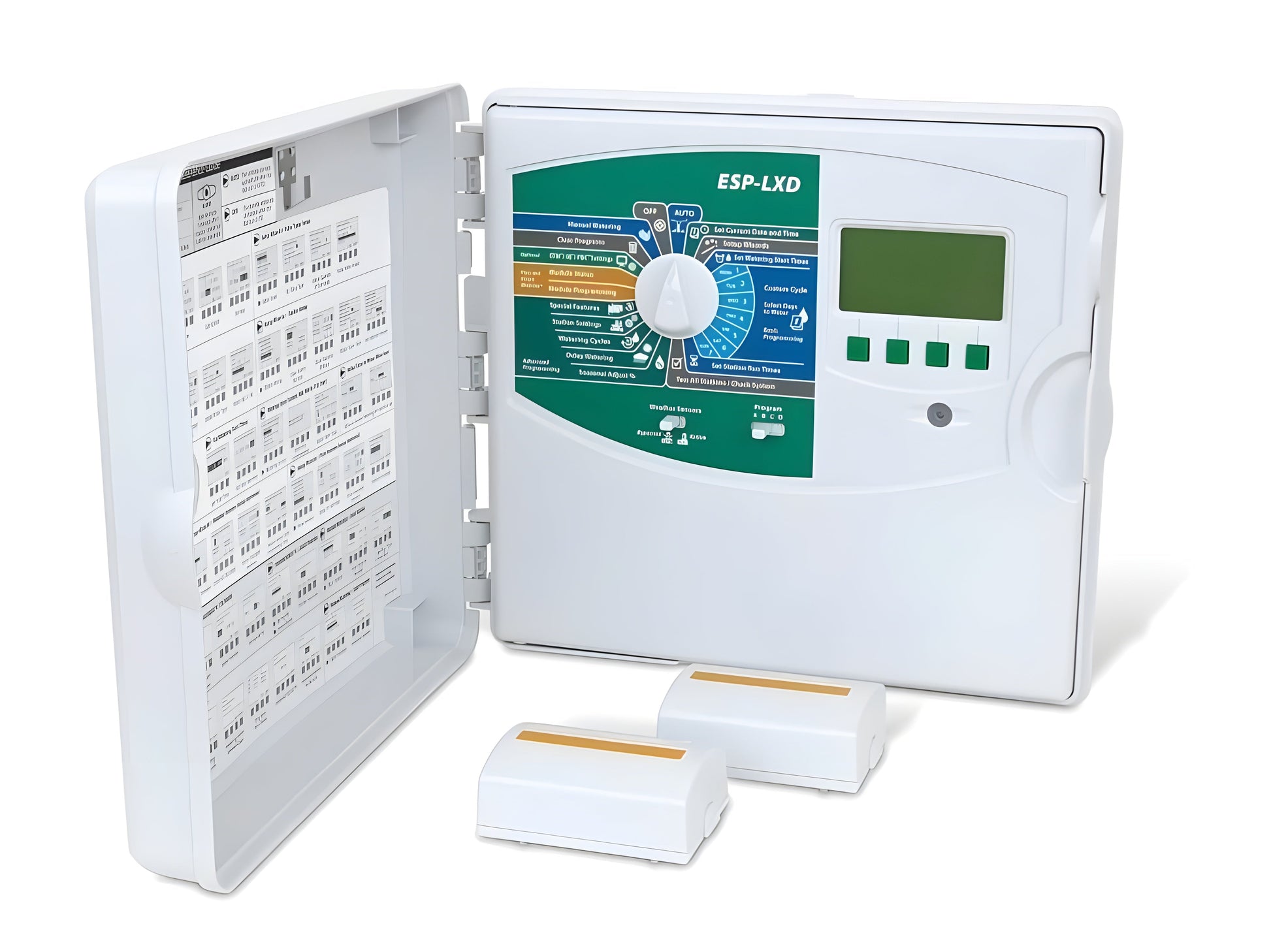

The ESP-LXD controller has been designed to maintain the look, feel and ease of programming of the ESP-LXME controller but with an interface to a two-wire path for decoder-based irrigation. The ESP-LXD controller can manage up to 50 stations but can easily be expanded for use with up to 200 stations. Flow Management is also built into every ESP-LXD controller.
Features
Controller Features
50-station capability standard expandable to 200 stations with optional
Four available sensor inputs (one wired plus up to three decoder managed) with override switch
Supports SD-210TURF sensor decoders (flow sensing and weather sensor support) and LSP-1 line surge protectors (one per 500 feet of two-wire path required)
Central Control capable with Rain Bird IQ Communications Cartridges and software (see pg. 102)
Advanced Features From Cycle+Soak„¢ to Contractor Default Program„¢, the ESP-LXD offers innovative features proven to cut installation expenses, troubleshooting time and water use
Program backup and barcode decoder address entry with the optional PBCLXD
Six user-selectable languages
Removable front panel is programmable under battery power
Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
Compatible with Rain Bird Landscape Irrigation and Maintenance Remote - Flow Smart Module„¢ factory installed or field upgradable
Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
Water Management Features
Cycle+Soak„¢ by station
Rain Delay
Calendar Day Off
Programmable Delay Between Stations by program
Master Valve programmable by station
Sensor programmable by station
Program & Monthly Seasonal Adjust
Diagnostic Features
Programming prompts
Alarm light with external case lens
Electronic circuit breaker
Program review
Variable test program
Two-wire diagnostics to simplify and expedite troubleshooting
Specification
Operating Specifications
Station timing: 0 min to 12 hrs
Program level and global Monthly Seasonal Adjust; 0% to 300% (16 hrs maximum station run time)
Efficient 2-Wire System: The 2-wire configuration significantly reduces installation costs by minimizing the amount of wiring needed, while still providing robust control across large irrigation systems.
Precise Control: Offers accurate zone control and remote diagnostics, allowing you to manage individual sprinkler stations and quickly address any issues.
Expandable: Supports scalable systems, making it ideal for both small and large applications. You can easily add more stations as your system grows.
Weather-Responsive: Compatible with Rain Bird weather sensors for adaptive irrigation based on current weather conditions, improving water efficiency.
User-Friendly Interface: The ESPLXD controller comes with an intuitive interface and programming options, ensuring ease of use for installers and operators.
Durability: Built to withstand outdoor conditions, ensuring long-lasting performance in a variety of climates.
Q&A
Q: What is the Rain Bird 2-Wire Decoder Controller - ESPLXD? A: The Rain Bird ESPLXD is a 2-wire decoder controller that helps simplify and improve the efficiency of your irrigation system. It allows for remote control and monitoring of individual irrigation zones using a two-wire system.
Q: How does the ESPLXD controller work? A: This decoder controller operates with a two-wire system, sending power and communication signals through a single pair of wires to multiple irrigation zones. Each zone is controlled by a decoder for efficient irrigation management.
Q: What are the benefits of using the ESPLXD decoder controller? A: The ESPLXD reduces the complexity of traditional wiring systems, offers greater flexibility in zone control, and improves system efficiency, making it ideal for large or complex landscapes.
Q: Is it compatible with other Rain Bird products? A: Yes, the ESPLXD is compatible with other Rain Bird products and is designed to work seamlessly with the Rain Bird 2-wire system for easy integration.
Q: Can I expand my system with this controller? A: Yes, the ESPLXD allows for easy system expansion. Additional decoders and zones can be added without the need for complex rewiring, making it a scalable solution.
Q: Is remote control possible with this system? A: Yes, the ESPLXD can be integrated with Rain Bird’s IQ platform for remote monitoring and control of your irrigation system from anywhere.
Maintenance Tips
Check Connections – Inspect all wiring connections to ensure they are secure and free of damage or corrosion, which can interfere with performance.
Test Decoders – Periodically test the decoders to ensure they are communicating correctly with the controller.
Clean the Controller – Wipe down the controller regularly with a soft, dry cloth to prevent dirt and debris buildup.
Verify Power Supply – Ensure the controller is connected to a reliable power source to maintain consistent operation.
Inspect Zones and Valves – Check irrigation zones and valves for blockages, leaks, or other issues to ensure efficient water distribution.
Update Firmware – If applicable, keep the controller’s firmware up to date to ensure optimal performance and system compatibility.
