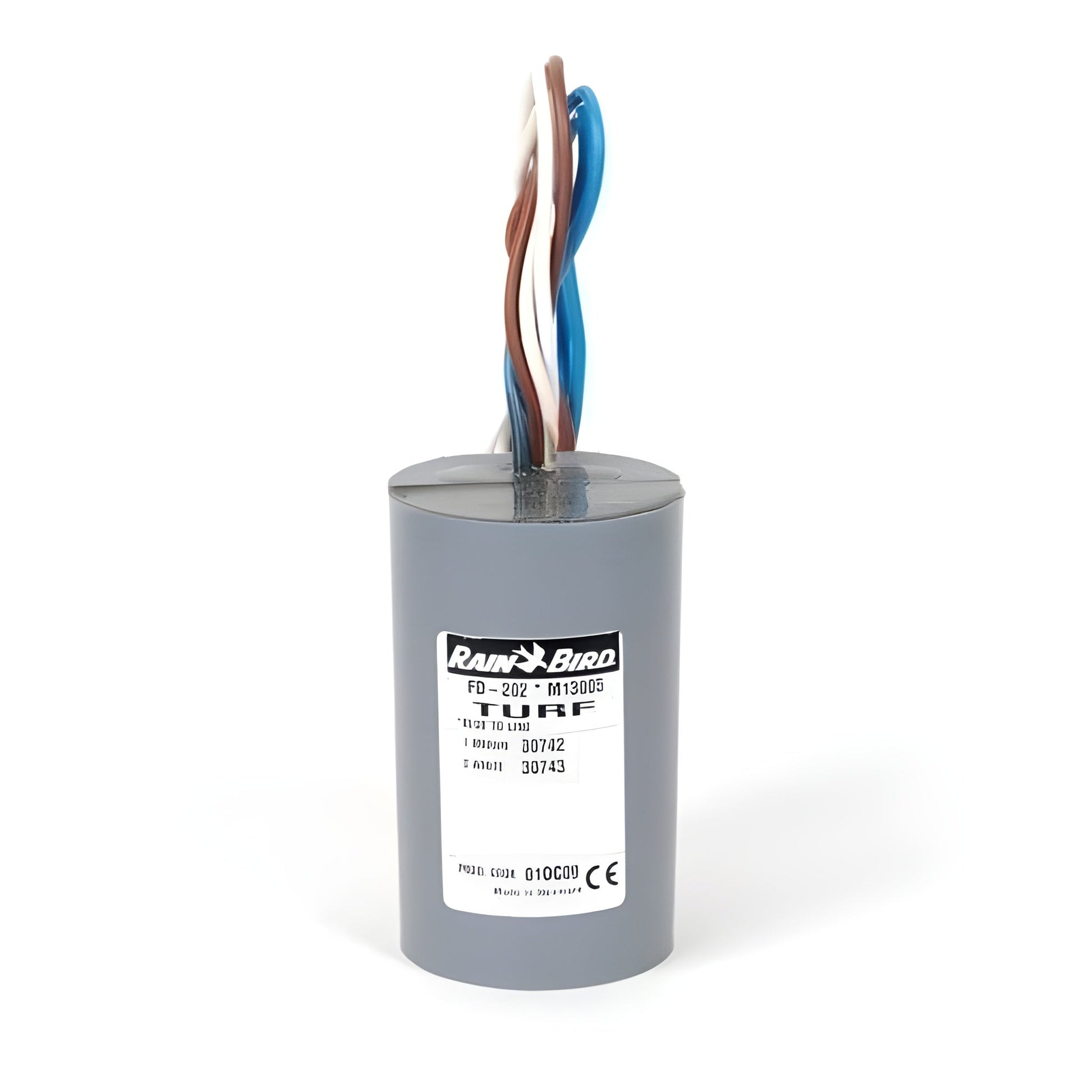

Rain Bird- FD Series 2-Wire Decoder - Signal Line, 2 Valves or 2 Pairs of Valves - FD202TURF
Operates 2 individual valves or 2 pairs of automatic irrigation valves
Specification
-
Mounting: In valve box (recommended) or direct burial
-
Power Draw:
- FD-202TURF: 1 mA (idle) 18 mA (per active solenoid)
-
Dimensions:
- FD-202TURF: Length: 3.35 in. (85 mm), Diameter: 1.97 in. (50 mm)
-
Solenoids:
- FD-202TURF: 1 to 4 simultaneously
-
Wires:
- FD-202TURF: Blue to cable, white and brown to solenoids
- Address pre-coded from the factory (no switches)
- Easy, cost-effective installation, expansion and upgrade for Rain Bird ESP-LXD and/or SiteControl two-wire decoder systems
- Installed out of sight and protected from the elements and vandalism
- Enables advanced diagnostics and sensor features
- Use with Rain Bird DB Series Wire Connectors for the most reliable, water-tight connections
Rain Bird Field Decoders provide easy, cost-effective installation and expansion for SiteControl Decoder or ESP-LXD Decoder Central Control Systems. Decoders are installed out of sight to help protect them from the elements and vandalism.
A technology long-since proven on golf courses around the world, Rain Bird decoders provide "best-in-class" field control on centrally controlled 2-wire irrigation systems. Installed underground and featuring simple, low-cost wiring, decoders are an aesthetically pleasing, full-featured, economical option for reliable in-field control.
A simple wiring configuration and absence of protective enclosures keeps installation and maintenance costs low. Rain Bird decoders are a "true lower than 30 volt system that utilize a two-wire path of 14-gauge wire connecting the central control system, decoders and valves or valve-in-head sprinklers.
With all electronic components fully sealed within a water-tight enclosure and buried underground, damage from floods, frost, rodents or vandals is virtually eliminated. Rain Bird decoders are an especially good choice for flood plains.
Downloads
What Our Experts Think
The Rain Bird FD Series 2-Wire Decoder (FD202TURF) is a highly reliable and efficient solution for controlling two valves or two pairs of valves on your irrigation system. Here’s why our experts recommend it:
-
Efficient 2-Wire System: The FD202TURF is part of Rain Bird's innovative 2-wire system, which reduces the complexity and cost of wiring, making it ideal for large systems with many stations.
-
Versatile Control: It can independently control two valves or two pairs of valves, offering flexibility in how you manage water distribution across different areas of your property.
-
Durability and Reliability: Built to withstand tough conditions, this decoder is designed for long-lasting performance, ensuring your irrigation system operates smoothly for years.
-
Precision Watering: The FD202TURF provides precise control over watering schedules, improving water efficiency and reducing waste by targeting specific zones based on need.
-
Easy to Install: With simple installation and setup, the FD202TURF can be quickly integrated into your existing system, making it a cost-effective upgrade.
-
Integration with Rain Bird Systems: It works seamlessly with other Rain Bird irrigation products, ensuring a cohesive and high-performance system.
Q&A
Q: What is the Rain Bird FD Series 2-Wire Decoder - FD202TURF?
A: The Rain Bird FD202TURF is a 2-wire decoder designed for use with Rain Bird’s FD Series controllers. It allows for efficient control of 2 valves or 2 pairs of valves using a single 2-wire system, making it ideal for managing irrigation in medium to large landscapes.
Q: How does the FD202TURF improve irrigation management?
A: The FD202TURF decoder helps optimize the performance of your irrigation system by providing precise control of multiple valves through a single wire, reducing installation complexity and simplifying system wiring.
Q: What are the benefits of using a 2-wire system with the FD202TURF?
A: A 2-wire system reduces the amount of wiring needed for irrigation zones, lowers installation costs, and makes future expansions or modifications easier. It provides reliable communication between the controller and valves, minimizing the need for excessive wiring.
Q: Can the FD202TURF support multiple valves?
A: Yes, the FD202TURF decoder can control 2 individual valves or 2 pairs of valves, making it suitable for managing small to medium irrigation zones.
Q: Is the FD202TURF compatible with other Rain Bird products?
A: Yes, the FD202TURF decoder is designed to work seamlessly with Rain Bird’s FD Series controllers and other compatible Rain Bird irrigation components, ensuring reliable and efficient operation.
Q: How does the FD202TURF support easy installation and maintenance?
A: The FD202TURF simplifies installation by using fewer wires, making it easier to set up and maintain. Its durable design ensures long-lasting performance with minimal maintenance requirements.
Maintenance Tips
-
Check for Proper Connections – Inspect wiring connections to ensure they are secure and free of corrosion or damage.
-
Regular Testing – Test the decoder system periodically to confirm that the valves are functioning correctly and responding to the controller.
-
Clean the Decoder – Keep the decoder clean from dirt, debris, or moisture to maintain proper signal transmission and system performance.
-
Inspect for Signal Loss – Regularly monitor for any signal loss or errors in valve operation, as these could indicate wiring or decoder issues.
-
Verify Valve Operation – Ensure that both valves or pairs of valves are operating as expected by manually testing them through the controller.
-
Check for Physical Damage – Examine the decoder for any signs of physical damage, including cracks, water ingress, or wear to the housing
