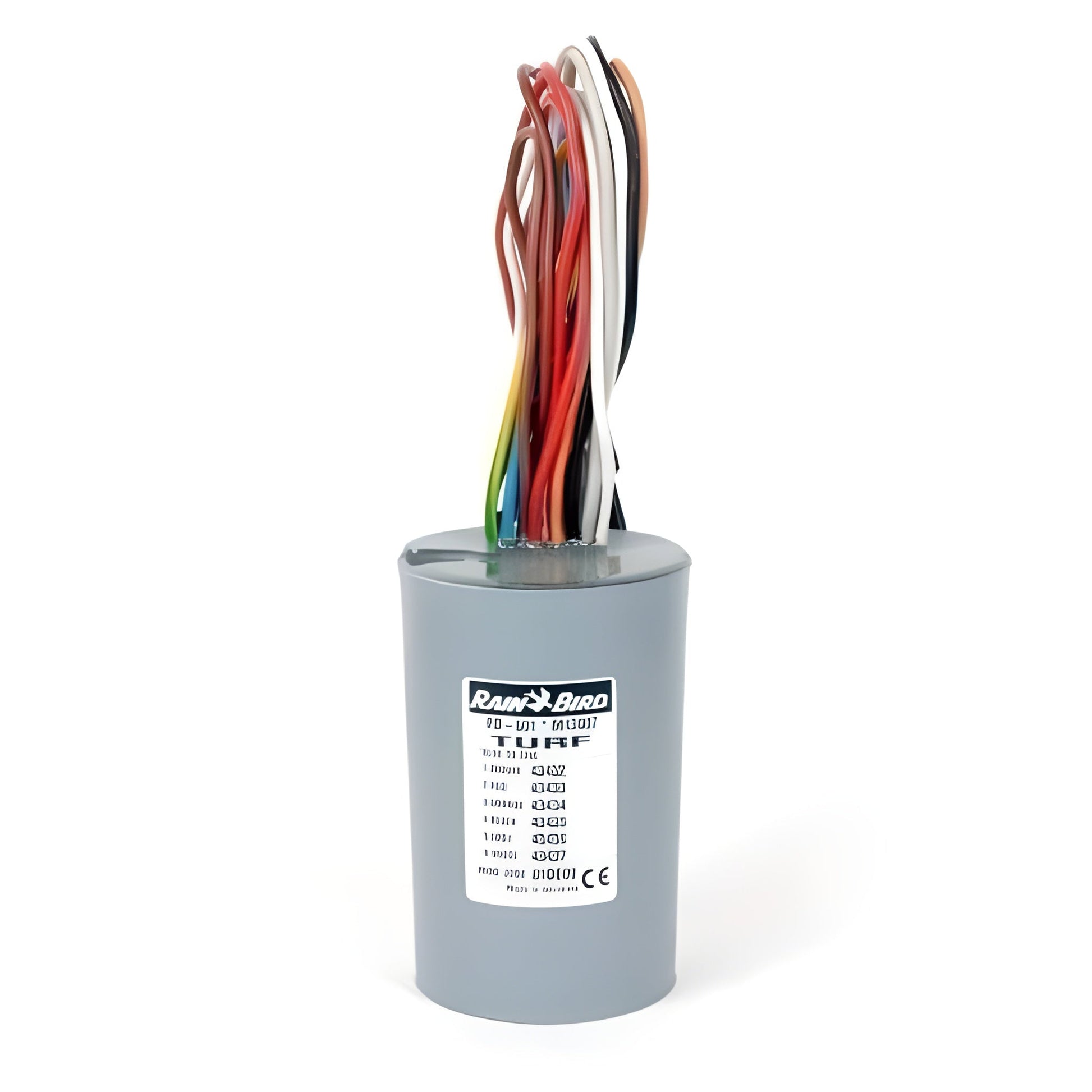

Rain Bird - FD Series 2-Wire Decoder - Signal Line, 6 Individual Valves - FD601TURF
Operates up to 6 individual automatic irrigation valves
Specification
-
Mounting: In valve box (recommended) or direct burial
-
Power Draw:
- FD-601TURF: 1 mA (idle) 18 mA (per active solenoid)
-
Dimensions:
- FD-601TURF: Length: 3.94 in. (100 mm), Diameter: 2.56 in. (65 mm)
-
Solenoids:
- FD-601TURF: 1 to 6 with individual control
-
Wires:
- FD-601TURF: Blue to cable, color-coded to solenoids
- Address pre-coded from the factory (no switches)
- Easy, cost-effective installation, expansion and upgrade for Rain Bird ESP-LXD and/or SiteControl two-wire decoder systems
- Installed out of sight and protected from the elements and vandalism
- Enables advanced diagnostics and sensor features
- Use with Rain Bird DB Series Wire Connectors for the most reliable, water-tight connections
Rain Bird Field Decoders provide easy, cost-effective installation and expansion for SiteControl Decoder or ESP-LXD Decoder Central Control Systems. Decoders are installed out of sight to help protect them from the elements and vandalism.
A technology long-since proven on golf courses around the world, Rain Bird decoders provide "best-in-class" field control on centrally controlled 2-wire irrigation systems. Installed underground and featuring simple, low-cost wiring, decoders are an aesthetically pleasing, full-featured, economical option for reliable in-field control.
A simple wiring configuration and absence of protective enclosures keeps installation and maintenance costs low. Rain Bird decoders are a "true lower than 30 volt system that utilize a two-wire path of 14-gauge wire connecting the central control system, decoders and valves or valve-in-head sprinklers.
With all electronic components fully sealed within a water-tight enclosure and buried underground, damage from floods, frost, rodents or vandals is virtually eliminated. Rain Bird decoders are an especially good choice for flood plains.
Downloads
What Our Experts Think
The Rain Bird FD Series 2-Wire Decoder - Signal Line, 6 Individual Valves (FD601TURF) is a top-tier solution for simplifying and optimizing irrigation systems. Here's what our experts love about it:
-
Up to 6 Valve Control: Efficiently controls up to 6 individual valves through a single 2-wire pathway, reducing the need for complex wiring and minimizing installation costs.
-
Signal Line Flexibility: Ideal for complex or large irrigation setups, the decoder handles signal line communication effectively, ensuring optimal performance across all zones.
-
Water Efficiency: The precision control over multiple zones ensures water is used exactly where and when needed, leading to a more efficient irrigation process and promoting water conservation.
-
Durability: Designed for rugged outdoor environments, the FD Series decoder is built to last, ensuring reliable performance season after season.
-
Easy Integration: It works seamlessly with other Rain Bird irrigation components, allowing for a flexible and expandable system to meet the needs of any landscape.
-
Simplified Troubleshooting: The decoder’s clear, easy-to-understand design makes maintenance and troubleshooting straightforward, helping to reduce downtime and keep your system operating at peak efficiency.
Q&A
Q: What is the Rain Bird FD Series 2-Wire Decoder - FD601TURF?
A: The Rain Bird FD601TURF is a 2-wire decoder designed to control up to 6 individual valves in an irrigation system. It simplifies wiring by transmitting signals over a single 2-wire path, improving efficiency and reducing installation complexity.
Q: How does the FD601TURF decoder work?
A: The FD601TURF decoder works by receiving a signal from the irrigation controller via a 2-wire system. It then decodes the signal and activates one of the 6 valves in the irrigation system, allowing for independent control of each zone.
Q: What is the maximum number of valves that can be controlled with the FD601TURF?
A: The FD601TURF decoder can control up to 6 individual valves, making it ideal for systems with multiple zones that require independent control.
Q: How does the FD601TURF improve irrigation system installation?
A: By using a 2-wire signal line, the FD601TURF reduces the amount of wiring needed, which cuts down on installation time and costs. It also simplifies maintenance and troubleshooting.
Q: Is the FD601TURF compatible with other Rain Bird products?
A: Yes, the FD601TURF is fully compatible with other Rain Bird controllers and components, making it easy to integrate into existing Rain Bird irrigation systems.
Q: Is the FD601TURF designed for outdoor use?
A: Yes, the FD601TURF is built for outdoor use and is designed to withstand various weather conditions, ensuring reliable performance year-round.
Maintenance Tips
-
Inspect Wiring Connections – Regularly check the wiring and connections for corrosion, wear, or loose fittings to ensure uninterrupted signal transmission to each valve.
-
Test Valve Functionality – Periodically test each of the six valves to ensure they respond correctly to the signals from the decoder.
-
Clear Obstructions – Ensure the decoder and signal line are clear of debris or obstructions that could affect performance.
-
Monitor Signal Integrity – Check for potential interference along the signal line and ensure there are no disruptions in signal transmission to the valves.
-
Clean the Decoder – Keep the decoder free from dirt and dust by gently wiping it with a soft cloth.
-
Update Firmware – If applicable, make sure the decoder's firmware is up to date for optimal compatibility with your system.
-
Routine System Checks – Perform routine checks on the irrigation system to ensure all components are functioning properly and the decoder is delivering accurate signals to the valves.
