Sensors
- Accuracy: +- 1% (full scale)
- Velocity: 1/2-30 feet (0.15 - 9.2 meters) per second depending on model
- Pressure: 400 psi (27.5 bars) (max) on metal models; 100 psi (6.9 bars) (max) on plastic models
- Temperature: 140° F (60° C) (max) on plastic models
Transmitters
- Input required:
- 12-30 VDC/VAC on PT322
- 12-24 VAC/VDC on PT 3002
- Output: Pulse output
- Operating Temp: -4° F-158° F (-20° C to 70° C)
Dimensions
- FS100P: 3.50" x 3.94" x 1.315" (89mm x 100mm x 33mm)
Configuration
-
For ESP-LXD Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
-
For ESP-LXMEF Systems, the Flow Sensor is attached to the FSM-LXME Flow Smart Module
-
For (Hard Wire) Two-Wire Satellite Systems (Maxicom²® and SiteControl), the Flow Sensor is installed with a Pulse Transmitter and a Rain Bird Pulse Decoder (DECPULLR)
-
For Link Radio Satellite Systems (Maxicom² and SiteControl), the Flow Sensor is installed with a Pulse Transmitter (no pulse decoder required)
-
For ESP-SITE Satellite Systems (Maxicom²), the Flow Sensor is installed with a Pulse Transmitter (no decoder required)
- For SiteControl Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
- Surge protection (FSSURGEKIT) is recommended for Maxicom and SiteControl systems “ One at the Pulse Transmitter, and if more than 50 of wire run, one at the Flow Sensor. FSSURGEKIT is not compatible with ESP-LXMEF and ESP-LXD Controllers
Downloads
What Our Experts Think

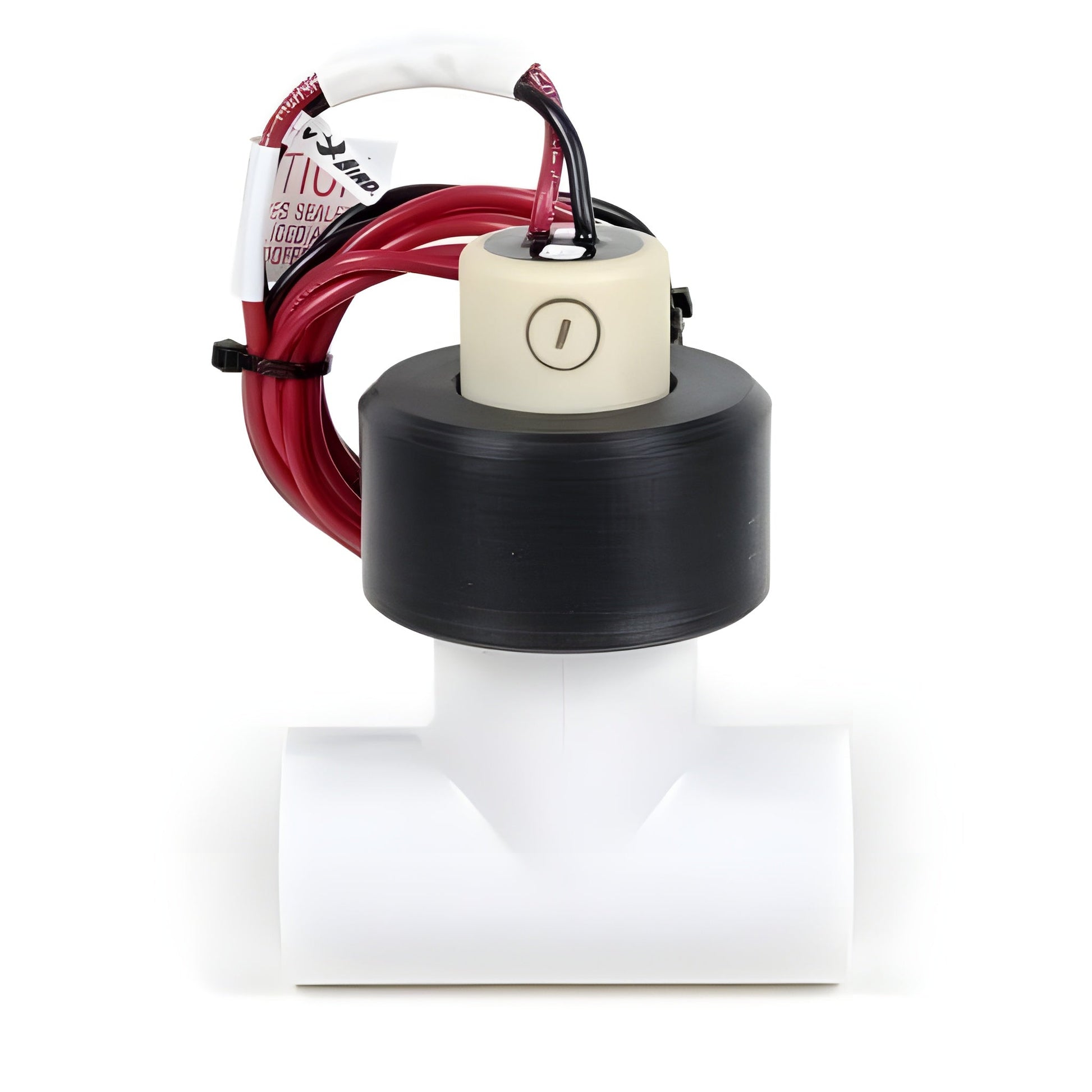

The Rain Bird 1" PVC Tee Flow Sensor (FS100P) is a high-performance solution designed to enhance the efficiency of your irrigation system. Here's why experts recommend it:
-
High-Quality PVC Construction: Crafted from durable PVC, this flow sensor ensures long-lasting performance and resistance to wear, making it suitable for both residential and commercial irrigation systems.
-
Precise Flow Measurement: The FS100P provides accurate water flow data, helping you maintain optimal irrigation schedules and conserve water by detecting any irregularities.
-
User-Friendly Installation: The sensor's 1-inch PVC tee fitting design allows for straightforward installation, integrating easily into your existing system without the need for complicated tools or adjustments.
-
Versatile Compatibility: Perfectly suited for use with Rain Bird controllers, the FS100P also works with various irrigation systems, providing seamless integration and reliable performance across different setups.
-
Prevents Waste and Overwatering: With accurate flow monitoring, it helps you detect leaks, blockages, and other issues early, allowing for timely repairs that save water and prevent unnecessary costs.
-
Long-Term Durability: Built to withstand harsh outdoor conditions, the FS100P is engineered for longevity, offering reliable performance season after season.
Q&A
Q: What is the Rain Bird 1" PVC Tee Flow Sensor - FS100P?
A: The Rain Bird FS100P is a 1" PVC tee flow sensor used to monitor and measure the flow of water in irrigation systems. It ensures precise control and water management for both residential and commercial irrigation systems.
Q: How does the FS100P flow sensor function?
A: The FS100P is installed in a 1" PVC pipe and detects water flow by measuring pressure changes within the pipe. It provides real-time data to irrigation controllers, ensuring efficient water usage and system performance.
Q: What benefits does the FS100P provide?
A: The FS100P ensures efficient water management by monitoring flow in real-time, helping detect leaks, system blockages, or irregular flow. This reduces water waste and helps maintain optimal irrigation performance.
Q: Is the FS100P sensor easy to install?
A: Yes, the FS100P is designed for easy integration into a 1" PVC irrigation pipe. Its simple tee design makes installation quick and straightforward, suitable for both DIY and professional setups.
Q: Can the FS100P be used for both residential and commercial systems?
A: Yes, the FS100P is versatile enough to be used in both residential and commercial irrigation systems, providing accurate and reliable flow measurements for various types of irrigation needs.
Q: What makes the FS100P durable?
A: The FS100P is made from durable, high-quality materials designed to withstand the pressures of irrigation systems. It is built to provide long-lasting and reliable performance.
Maintenance Tips
-
Regular Inspection – Check for debris or buildup around the sensor and clean as needed to ensure accurate readings.
-
Flush the Sensor – Periodically flush the sensor with water to remove any particles or sediment that could block flow.
-
Examine Connections – Inspect all connections for signs of leaks or wear, especially around the sensor’s PVC fittings.
-
Test Sensor Accuracy – Regularly test the sensor to confirm it is providing accurate flow readings and recalibrate if necessary.
-
Check for Cracks or Damage – Inspect the sensor body and components for cracks or damage that could impact performance and replace as needed.
-
Winterize the System – In colder climates, make sure the sensor is properly winterized to avoid freezing and potential damage.
