Rain Bird - 1 1/2'' PVC Tee Flow Sensor - FS150P

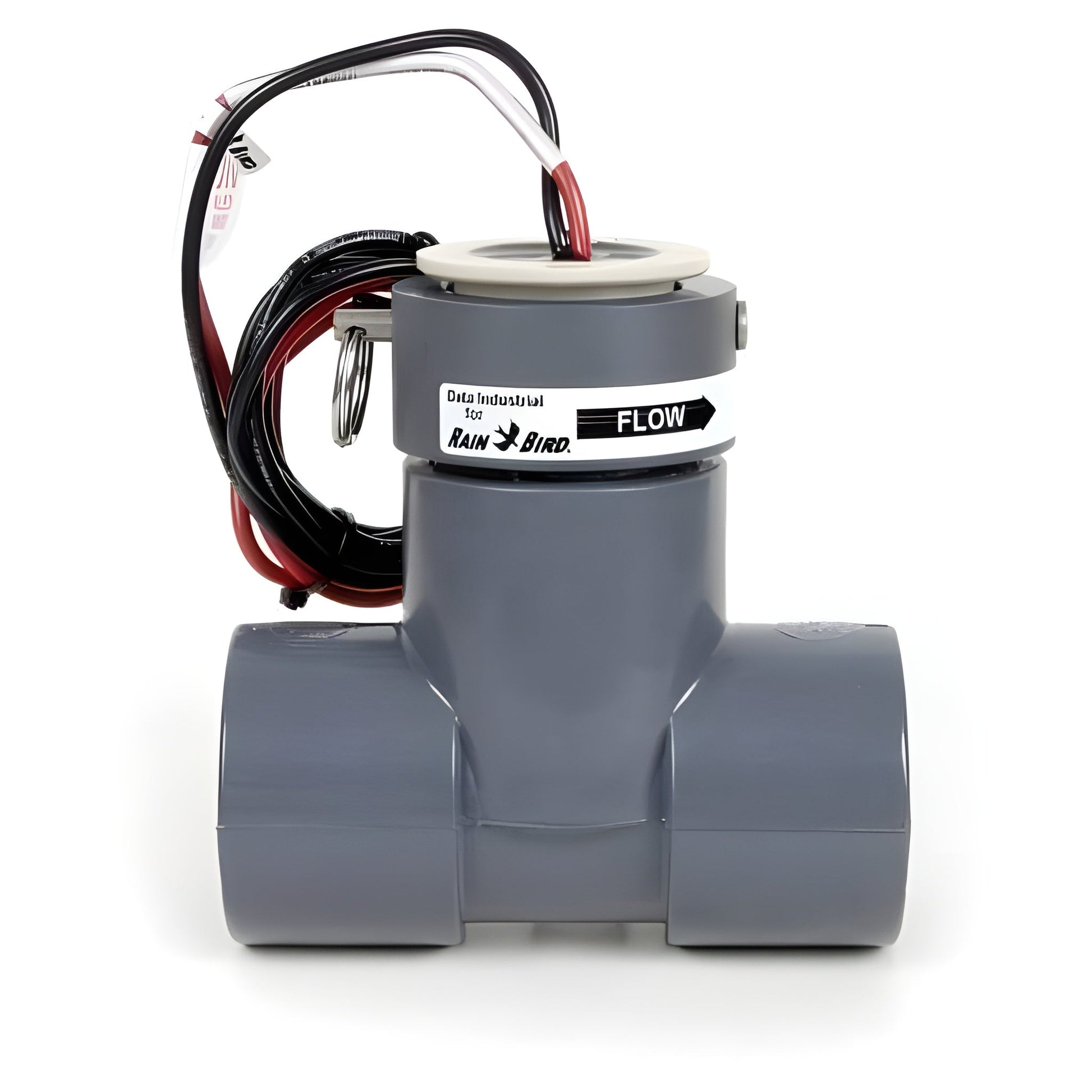

Rain Bird 1 1/2 PVC Tee Flow Sensor
Rain Bird flow sensors send flow data to central control or stand-alone controller systems for precise and accurate flow monitoring.
Rain Bird flow sensors enable you to capitalize on the advantages of Flow Management functionality. Use Rain Bird Flow Sensors with Rain Bird Maxicom², SiteControl and IQ v2.0 central control applications, or in standalone systems using Rain Bird ESP-LXD, ESP-LXME and ESP-LXMEF controllers, to benefit from:
-
Flo-Watch„¢. Flo-Watch constantly monitors for low flow and excess flow conditions caused by broken lines or heads, automatically quarantines and shuts down the problem area, and continues to irrigate non-affected areas. Saves water, saves plant material, and enables irrigation programs to continue and complete.
-
Learned Flow. The controller automatically learns station flow rates resulting in more accurate flow rates. The automatic collection prevents you from having to manually enter data from drawings, or physically visiting each valve to collect flow data and manually entering the data into a controller.
-
FloManager®. FloManager determines the optimal station irrigating sequence. The system runs at its fullest capacity until programs are complete. The controller automatically selects and runs multiple valves at the same time within hydraulic parameters, allowing for shorter water windows.
Features
Sensors
- Simple six-bladed impeller design
- Designed for outdoor or underground applications
Transmitters
- Programmable from a computer (PT322 “ Maxicom and SiteControl Systems only “ not required for ESP-LXMEF or ESP-LXD)
- Reliable solid-state design, available with or without LCD display
- Operates with MAXILink,„¢ and (hard-wire) two-wire satellite systems
- Easy-to-program, menu-driven design
Specification
Sensors
- Accuracy: +- 1% (full scale)
- Velocity: 1/2-30 feet (0.15 - 9.2 meters) per second depending on model
- Pressure: 400 psi (27.5 bars) (max) on metal models; 100 psi (6.9 bars) (max) on plastic models
- Temperature: 140° F (60° C) (max) on plastic models
Transmitters
- Input required:
- 12-30 VDC/VAC on PT322
- 12-24 VAC/VDC on PT 3002
- Output: Pulse output
- Operating Temp: -4° F-158° F (-20° C to 70° C)
Dimensions
- FS150P: 5.0" x 5.16" x 2.38" (127mm x 131mm x 60mm)
Configuration
-
For ESP-LXD Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
-
For ESP-LXMEF Systems, the Flow Sensor is attached to the FSM-LXME Flow Smart Module
-
For (Hard Wire) Two-Wire Satellite Systems (Maxicom²® and SiteControl), the Flow Sensor is installed with a Pulse Transmitter and a Rain Bird Pulse Decoder (DECPULLR)
-
For Link Radio Satellite Systems (Maxicom² and SiteControl), the Flow Sensor is installed with a Pulse Transmitter (no pulse decoder required)
-
For ESP-SITE Satellite Systems (Maxicom²), the Flow Sensor is installed with a Pulse Transmitter (no decoder required)
- For SiteControl Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
- Surge protection (FSSURGEKIT) is recommended for Maxicom and SiteControl systems “ One at the Pulse Transmitter, and if more than 50 of wire run, one at the Flow Sensor. FSSURGEKIT is not compatible with ESP-LXMEF and ESP-LXD Controllers
Downloads
What Our Experts Think
The Rain Bird 1 1/2" PVC Tee Flow Sensor (FS150P) is an essential component for maintaining accurate water flow readings and optimizing your irrigation system's efficiency. Here’s why it stands out:
-
Durable PVC Construction: Built from high-quality PVC, this flow sensor is designed to withstand the rigors of outdoor use, providing long-lasting reliability even in harsh conditions.
-
Accurate Flow Measurement: The FS150P sensor offers precise flow detection, allowing for better water management and efficient irrigation scheduling, ultimately helping to conserve water and reduce costs.
-
Easy Installation: With a simple tee fitting design, this sensor is easy to integrate into existing systems, making it a hassle-free upgrade for your irrigation setup.
-
Versatile Compatibility: Ideal for use with various irrigation systems, it’s designed to work seamlessly with Rain Bird controllers and other compatible equipment, ensuring consistent performance across the system.
-
Improved System Monitoring: By tracking water flow, the sensor helps detect leaks and other issues, promoting proactive maintenance and minimizing water wastage.
-
Long-Term Performance: Engineered for durability and longevity, the FS150P is built to perform efficiently over the long haul, making it a smart investment for both residential and commercial irrigation needs.
Q&A
Q: What is the Rain Bird 1 1/2" PVC Tee Flow Sensor - FS150P?
A: The Rain Bird FS150P is a 1 1/2" PVC tee flow sensor designed to monitor and measure water flow in irrigation systems. It is ideal for use in residential and commercial irrigation applications to ensure accurate water management.
Q: How does the FS150P flow sensor work?
A: The FS150P is installed in the irrigation system's PVC pipe, and it measures water flow by detecting changes in pressure as water passes through the sensor. It provides data to the irrigation controller, helping optimize water use and system efficiency.
Q: What are the advantages of the FS150P sensor?
A: The FS150P offers accurate flow measurement, allowing for real-time monitoring of water use. It helps prevent water waste by alerting users to flow abnormalities, such as leaks or blockages, and ensures the system operates efficiently.
Q: Is the FS150P sensor easy to install?
A: Yes, the FS150P features a tee design that easily integrates into a 1 1/2" PVC pipe. The sensor’s simple installation process makes it suitable for a wide range of irrigation systems, from residential lawns to larger commercial setups.
Q: Can the FS150P be used for both residential and commercial irrigation systems?
A: Absolutely! The FS150P is versatile and can be used for both residential and commercial irrigation, providing accurate flow measurements in various system sizes.
Q: What makes the FS150P sensor durable?
A: Constructed from high-quality materials, the FS150P is built to withstand the pressures of irrigation systems. It is designed for long-lasting performance in both residential and commercial applications.
Maintenance Tips
-
Inspect for Blockages – Regularly check the sensor for debris, sediment, or other obstructions that could impair water flow or sensor accuracy.
-
Clean the Sensor – Flush the sensor with water to remove dirt or build-up, and gently wipe it with a soft cloth to keep it clean.
-
Examine Seals and Connections – Inspect all connections for wear or leaks. Replace any damaged seals or parts to maintain effective operation.
-
Check for Proper Calibration – Periodically test and recalibrate the sensor to ensure it's reading flow accurately.
-
Monitor Flow Readings – Keep an eye on the readings to detect any discrepancies, which could indicate a problem with the system.
-
Protect Against Freezing – In cold climates, insulate or drain the system to prevent freezing and potential damage to the sensor.
