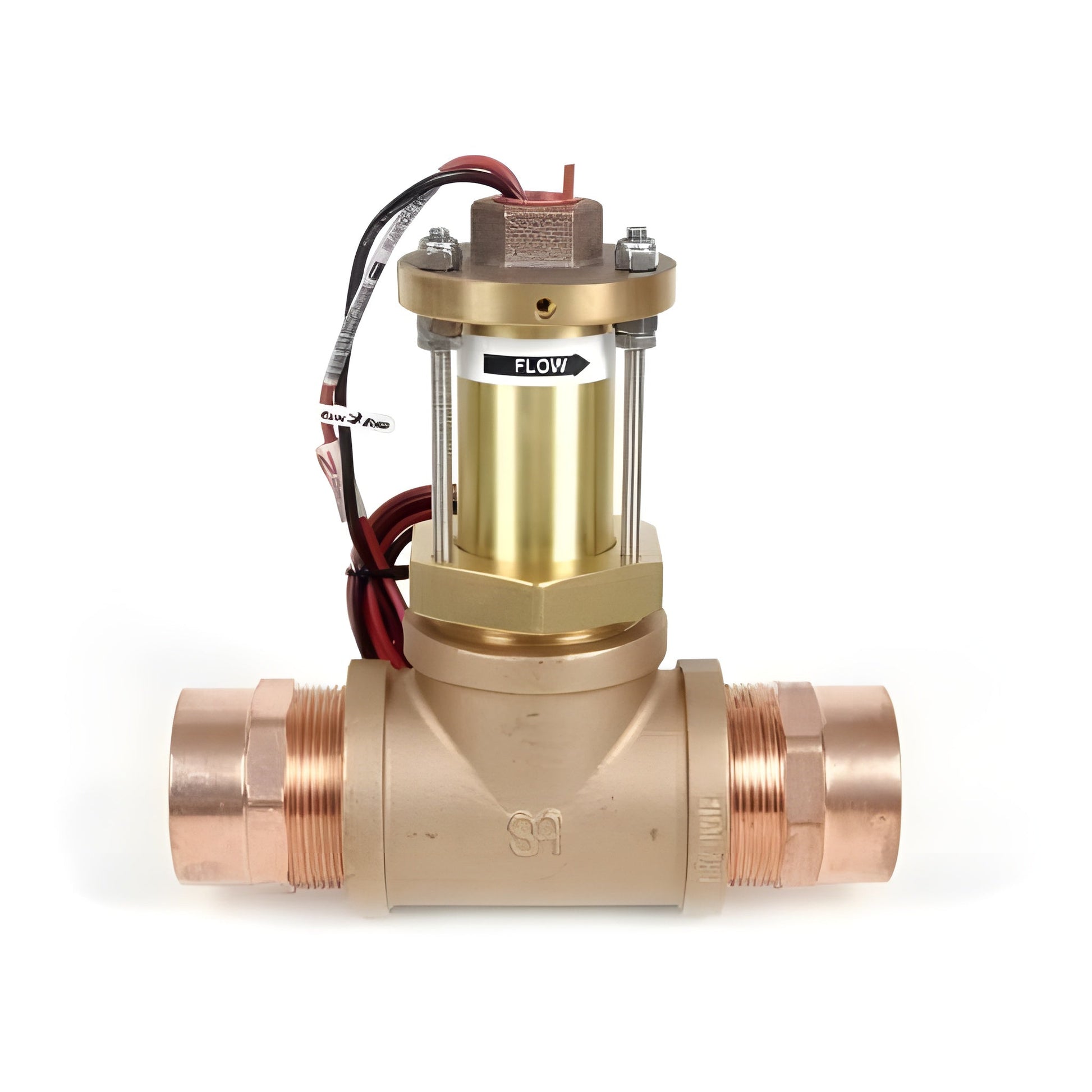

Rain Bird - 2'' Brass Tee Flow Sensor - FS200B
Rain Bird 2 Brass Tee Flow Sensor
Rain Bird flow sensors send flow data to central control or stand-alone controller systems for precise and accurate flow monitoring.
Rain Bird flow sensors enable you to capitalize on the advantages of Flow Management functionality. Use Rain Bird Flow Sensors with Rain Bird Maxicom², SiteControl and IQ v2.0 central control applications, or in standalone systems using Rain Bird ESP-LXD, ESP-LXME and ESP-LXMEF controllers, to benefit from:
-
Flo-Watch„¢. Flo-Watch constantly monitors for low flow and excess flow conditions caused by broken lines or heads, automatically quarantines and shuts down the problem area, and continues to irrigate non-affected areas. Saves water, saves plant material, and enables irrigation programs to continue and complete.
-
Learned Flow. The controller automatically learns station flow rates resulting in more accurate flow rates. The automatic collection prevents you from having to manually enter data from drawings, or physically visiting each valve to collect flow data and manually entering the data into a controller.
-
FloManager®. FloManager determines the optimal station irrigating sequence. The system runs at its fullest capacity until programs are complete. The controller automatically selects and runs multiple valves at the same time within hydraulic parameters, allowing for shorter water windows.
Features
Sensors
- Simple six-bladed impeller design
- Designed for outdoor or underground applications
Transmitters
- Programmable from a computer (PT322 “ Maxicom and SiteControl Systems only “ not required for ESP-LXMEF or ESP-LXD)
- Reliable solid-state design, available with or without LCD display
- Operates with MAXILink,„¢ and (hard-wire) two-wire satellite systems
- Easy-to-program, menu-driven design
Specification
Sensors
- Accuracy: +- 1% (full scale)
- Velocity: 1/2-30 feet (0.15 - 9.2 meters) per second depending on model
- Pressure: 400 psi (27.5 bars) (max) on metal models; 100 psi (6.9 bars) (max) on plastic models
- Temperature: 140° F (60° C) (max) on plastic models
Transmitters
- Input required:
- 12-30 VDC/VAC on PT322
- 12-24 VAC/VDC on PT 3002
- Output: Pulse output
- Operating Temp: -4° F-158° F (-20° C to 70° C)
Dimensions
- FS200B: 4.25" x 8.35" x 2.94" ( 108mm x 212mm x 75mm)
Configuration
-
For ESP-LXD Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
-
For ESP-LXMEF Systems, the Flow Sensor is attached to the FSM-LXME Flow Smart Module
-
For (Hard Wire) Two-Wire Satellite Systems (Maxicom²® and SiteControl), the Flow Sensor is installed with a Pulse Transmitter and a Rain Bird Pulse Decoder (DECPULLR)
-
For Link Radio Satellite Systems (Maxicom² and SiteControl), the Flow Sensor is installed with a Pulse Transmitter (no pulse decoder required)
-
For ESP-SITE Satellite Systems (Maxicom²), the Flow Sensor is installed with a Pulse Transmitter (no decoder required)
- For SiteControl Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
- Surge protection (FSSURGEKIT) is recommended for Maxicom and SiteControl systems “ One at the Pulse Transmitter, and if more than 50 of wire run, one at the Flow Sensor. FSSURGEKIT is not compatible with ESP-LXMEF and ESP-LXD Controllers
Downloads
What Our Experts Think
The Rain Bird 2" Brass Tee Flow Sensor (FS200B) is a top-tier component for ensuring optimal irrigation system performance. Here's what our experts have to say:
-
Reliable Material: Constructed from high-quality brass, ensuring durability and corrosion resistance, even in harsh outdoor environments.
-
Precision Flow Measurement: Accurately measures water flow within your irrigation system, allowing for precise monitoring and control.
-
Easy Installation: Designed to fit seamlessly into standard 2" irrigation piping, making it simple to integrate into existing systems without hassle.
-
Enhanced Water Management: Helps detect issues such as leaks or blockages by monitoring flow rates, ensuring water is being used efficiently and reducing waste.
-
Long-Lasting Performance: Brass construction offers superior longevity compared to plastic alternatives, making it a solid investment for long-term use.
-
Compatibility: Works effectively with Rain Bird's flow sensors and controllers for a fully integrated, optimized irrigation setup.
Q&A
Q: What is the Rain Bird 2" Brass Tee Flow Sensor - FS200B?
A: The Rain Bird FS200B is a 2-inch brass tee flow sensor designed to monitor water flow in irrigation systems. It provides real-time data to ensure accurate and efficient water usage by detecting flow rates and any changes in the system.
Q: How does the FS200B flow sensor work?
A: The FS200B is installed within a 2-inch pipe and measures the water flow as it passes through. It sends this data to your irrigation controller, helping you monitor system performance and detect any irregularities.
Q: What are the benefits of using the FS200B flow sensor?
A: The FS200B allows for accurate monitoring of irrigation flow, helping to prevent overwatering or underwatering. It also detects leaks or blockages, promoting water conservation and ensuring system efficiency.
Q: Is the FS200B compatible with other Rain Bird products?
A: Yes, the FS200B is designed for seamless integration with Rain Bird irrigation controllers and other Rain Bird components, making it easy to incorporate into your existing irrigation system.
Q: Is the FS200B flow sensor durable?
A: Yes, the FS200B is made of high-quality brass, ensuring long-lasting durability and reliability, even in outdoor and harsh weather conditions.
Q: Can I monitor my irrigation system flow remotely with this sensor?
A: Yes, when integrated with compatible Rain Bird controllers, the FS200B allows for remote monitoring of water flow through the Rain Bird IQ platform.
Maintenance Tips
-
Inspect for Debris – Regularly check the sensor for dirt or debris buildup that could interfere with the flow readings.
-
Ensure Secure Connections – Verify that all connections to the sensor are tight and free from leaks to ensure accurate flow measurement.
-
Clean the Sensor – Gently clean the sensor body using a soft cloth to remove any buildup that could affect performance.
-
Check for Leaks – Inspect around the brass tee and sensor connections for signs of leakage that may require tightening or sealing.
-
Verify Calibration – Periodically verify the sensor’s calibration to ensure it provides accurate flow data for the irrigation system.
-
Monitor Flow Readings – Regularly monitor flow readings to ensure proper operation and detect any significant flow changes.
