Rain Bird - 3'' PVC Tee Flow Sensor - FS300P

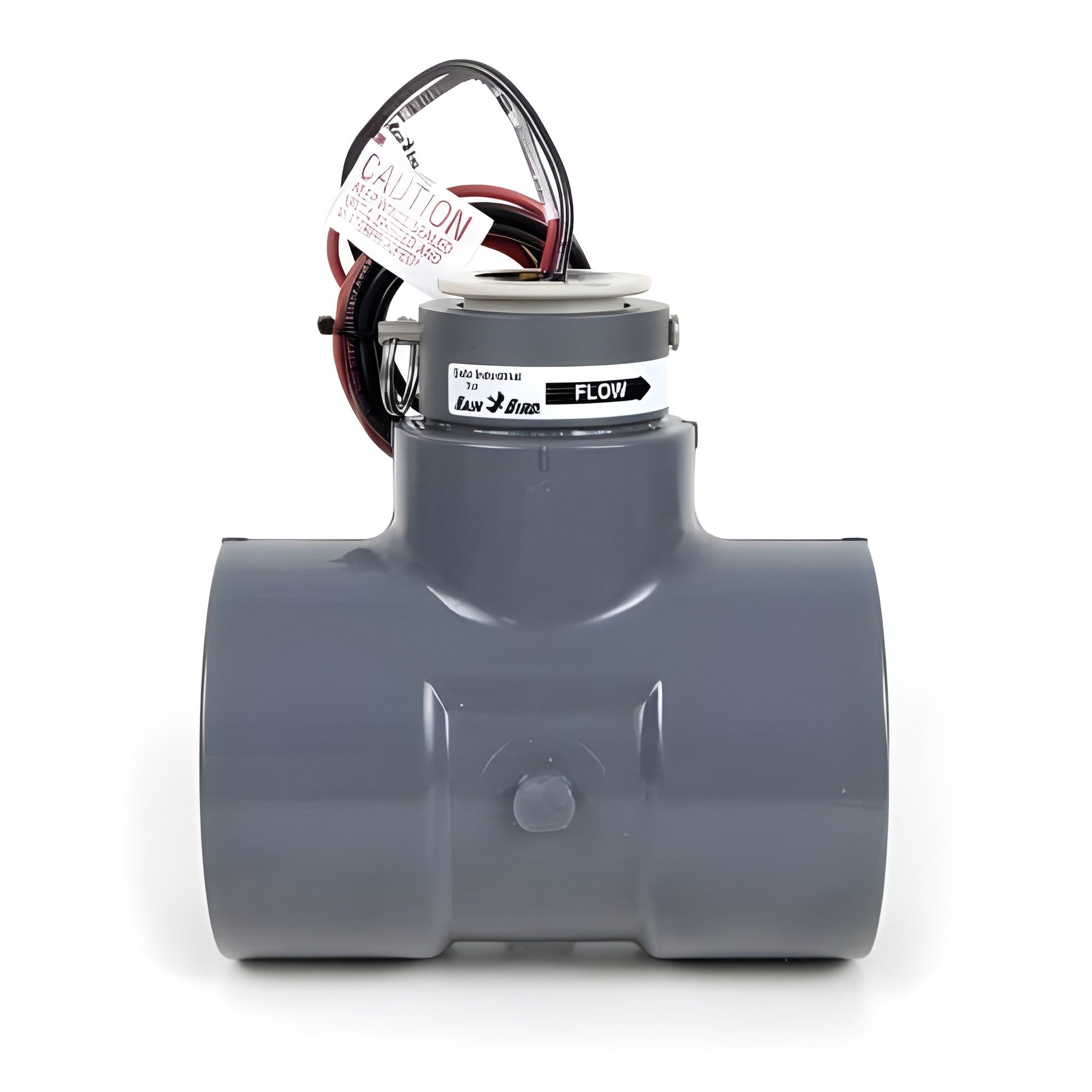

Rain Bird 3'' PVC Tee Flow Sensor
Rain Bird flow sensors send flow data to central control or stand-alone controller systems for precise and accurate flow monitoring.
Rain Bird flow sensors enable you to capitalize on the advantages of Flow Management functionality. Use Rain Bird Flow Sensors with Rain Bird Maxicom², SiteControl and IQ v2.0 central control applications, or in standalone systems using Rain Bird ESP-LXD, ESP-LXME and ESP-LXMEF controllers, to benefit from:
-
Flo-Watch„¢. Flo-Watch constantly monitors for low flow and excess flow conditions caused by broken lines or heads, automatically quarantines and shuts down the problem area, and continues to irrigate non-affected areas. Saves water, saves plant material, and enables irrigation programs to continue and complete.
-
Learned Flow. The controller automatically learns station flow rates resulting in more accurate flow rates. The automatic collection prevents you from having to manually enter data from drawings, or physically visiting each valve to collect flow data and manually entering the data into a controller.
-
FloManager®. FloManager determines the optimal station irrigating sequence. The system runs at its fullest capacity until programs are complete. The controller automatically selects and runs multiple valves at the same time within hydraulic parameters, allowing for shorter water windows.
Features
Sensors
- Simple six-bladed impeller design
- Designed for outdoor or underground applications
Transmitters
- Programmable from a computer (PT322 “ Maxicom and SiteControl Systems only “ not required for ESP-LXMEF or ESP-LXD)
- Reliable solid-state design, available with or without LCD display
- Operates with MAXILink,„¢ and (hard-wire) two-wire satellite systems
- Easy-to-program, menu-driven design
Specification
Sensors
- Accuracy: +- 1% (full scale)
- Velocity: 1/2-30 feet (0.15 - 9.2 meters) per second depending on model
- Pressure: 400 psi (27.5 bars) (max) on metal models; 100 psi (6.9 bars) (max) on plastic models
- Temperature: 140° F (60° C) (max) on plastic models
Transmitters
- Input required:
- 12-30 VDC/VAC on PT322
- 12-24 VAC/VDC on PT 3002
- Output: Pulse output
- Operating Temp: -4° F-158° F (-20° C to 70° C)
Dimensions
- FS300P: 6.50" x 6.83" x 4.23" (165mm x 173mm x 107mm)
Configuration
-
For ESP-LXD Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
-
For ESP-LXMEF Systems, the Flow Sensor is attached to the FSM-LXME Flow Smart Module
-
For (Hard Wire) Two-Wire Satellite Systems (Maxicom²® and SiteControl), the Flow Sensor is installed with a Pulse Transmitter and a Rain Bird Pulse Decoder (DECPULLR)
-
For Link Radio Satellite Systems (Maxicom² and SiteControl), the Flow Sensor is installed with a Pulse Transmitter (no pulse decoder required)
-
For ESP-SITE Satellite Systems (Maxicom²), the Flow Sensor is installed with a Pulse Transmitter (no decoder required)
- For SiteControl Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
- Surge protection (FSSURGEKIT) is recommended for Maxicom and SiteControl systems “ One at the Pulse Transmitter, and if more than 50 of wire run, one at the Flow Sensor. FSSURGEKIT is not compatible with ESP-LXMEF and ESP-LXD Controllers
Downloads
What Our Experts Think
The Rain Bird 3" PVC Tee Flow Sensor (FS300P) is an essential component for monitoring and managing irrigation systems. Here’s what our experts recommend:
-
Accurate Flow Monitoring: With its precision design, the FS300P provides reliable flow measurement, ensuring that your irrigation system runs efficiently.
-
Durable Construction: Made of high-quality PVC, this sensor resists corrosion and can withstand harsh weather conditions, making it perfect for long-term use in outdoor irrigation setups.
-
Easy Installation: The 3" PVC Tee design allows for a quick and seamless installation within your irrigation system, minimizing downtime.
-
Compatibility: It integrates easily with Rain Bird’s 2-wire systems and other irrigation controllers for seamless operation.
-
Versatile Applications: Ideal for both residential and commercial irrigation systems, it ensures consistent and precise water distribution across various landscapes.
-
Enhanced Performance: By accurately measuring water flow, it helps optimize water usage, conserve resources, and prevent over-watering.
Q&A
Q: What is the Rain Bird 3" PVC Tee Flow Sensor - FS300P?
A: The Rain Bird FS300P is a 3-inch PVC tee flow sensor designed to monitor the flow of water in irrigation systems. It provides accurate flow data to help optimize system performance and water usage.
Q: How does the FS300P flow sensor work?
A: The FS300P flow sensor detects the rate of water flow through the irrigation system and sends the data to the controller for monitoring and management, allowing for real-time tracking of water usage.
Q: What is the primary purpose of the FS300P flow sensor?
A: The FS300P flow sensor helps to ensure that the irrigation system is operating efficiently by providing accurate flow measurements. It can also detect issues like blockages, leaks, or overflows to prevent water wastage.
Q: Is the FS300P compatible with all Rain Bird controllers?
A: Yes, the FS300P is compatible with various Rain Bird controllers that support flow sensing, providing seamless integration and efficient monitoring of your irrigation system.
Q: What are the installation requirements for the FS300P flow sensor?
A: The FS300P flow sensor is designed to be installed in-line within a 3-inch PVC pipe. It is easy to install and can be integrated into your irrigation system with minimal disruption.
Q: Can the FS300P detect flow issues such as leaks?
A: Yes, the FS300P flow sensor is capable of detecting irregular flow patterns, helping to identify leaks, blockages, or other issues in the system that may need attention.
Maintenance Tips
-
Inspect for Blockages – Periodically check the sensor for debris or mineral buildup that could impede water flow and sensor readings.
-
Clean the Sensor – Flush the flow sensor with clean water to remove any buildup. Use a soft cloth to wipe down the exterior.
-
Check Seals and Connections – Inspect the sensor's seals and connections for leaks or wear. Replace any damaged seals to maintain proper function.
-
Test Sensor Calibration – Regularly test the sensor’s calibration to ensure accurate flow readings.
-
Monitor Flow Readings – Keep an eye on flow readings to spot any irregularities, which may indicate a need for maintenance or replacement.
-
Protect from Freezing – In colder climates, ensure the flow sensor is protected from freezing temperatures to avoid damage.
