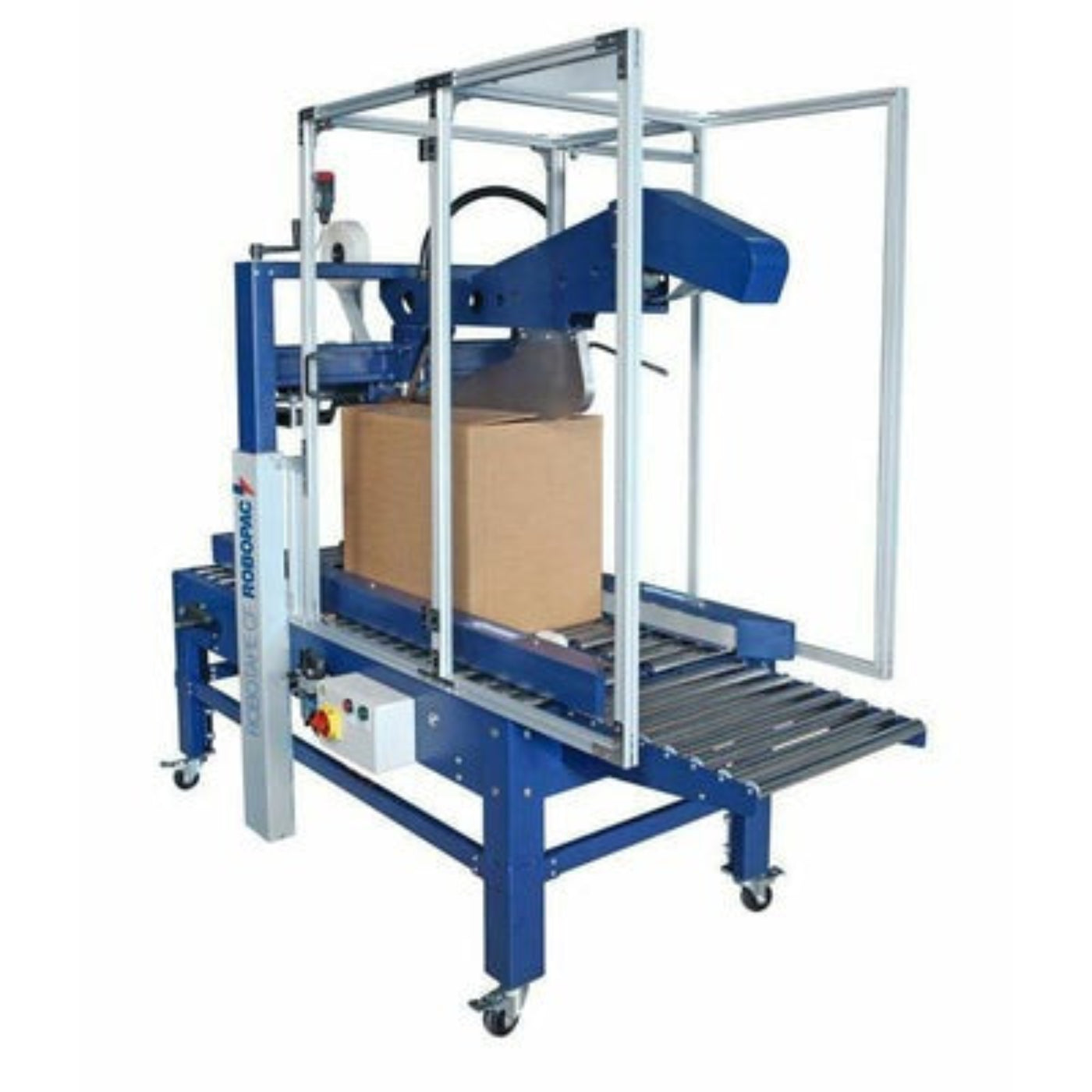

Robopac Automatic Box Taper Machine, Fixed Format, Side Belt Driven - Robotape CF
The Robopac Robotape CF is a sophisticated automatic box taper machine designed for fixed format boxes. This model, featuring side belt drive technology, offers seamless and efficient box sealing for uniform sizes. It is equipped with advanced features, including motorized side belt conveyors and an automatic top flaps folding device, making it ideal for high-volume packaging operations. Available in two models, 50CF and 65CF, the Robotape CF ensures precise and reliable performance in diverse industrial environments.
Advanced Automation and Versatile Features
The Robotape CF combines automatic functionality with flexible operation, featuring motorized top and bottom gripping belt conveyors for consistent box handling. Its taping head accommodates 50 mm and 75 mm wide tapes, providing versatility for various packaging needs. Manual adjustments for conveyor height and width allow for easy adaptation to different box sizes, while the automatic top flaps folding device enhances efficiency. The machine handles boxes up to 725 mm high (50CF) or 875 mm high (65CF) with adjustable bridge settings, catering to a wide range of box dimensions and weights.
Features
MOTORIZED SIDEÂ BELT CONVEYORSÂ - The motorized top and bottom gripping belt conveyors ensure a constant mesh on the products.
TAPING HEAD TBDÂ - Two types of taping head for 50 mm or 75 mm wide tapes.
MANUAL ADJUSTMENT OF DIMENSIONSÂ - You can adjust manually height and width of conveyors.
AUTOMATIC FOLDINGÂ - Automatic top flaps folding device.
Specifications
| Height Conveyor Belt: |
50 mm |
| Infeed Speed: |
22 m/min |
| Tape Width: |
50 - 75 mm |
| Taping Heads: |
Upper and lower (optional) |
| Minimum Box Dimensions (LxWxH): |
150x110x110 mm |
| Maximum Box Dimensions (LxWxH): |
650x500x500 mm (50 CF), 800x650x650 mm (65 CF) |
| Minimum Box Weight: |
1 kg |
| Maximum Box Weight: |
50 kg |
| Power Supply Voltage: |
400 V 3Ph + T |
| Power Supply Frequency: |
50 Hz |
| Installed Power: |
0.4 kW |
What Our Experts Think
-
Fully automatic operation – Speeds up packaging with minimal manual input.
-
Fixed format design – Ideal for consistent box sizes to maximize efficiency.
-
Side belt driven – Provides stable box movement for precise tape application.
-
Heavy-duty construction – Built for continuous industrial use in high-volume settings.
Q&A
Q: Is this machine suitable for uniform box sizes?
A: Yes, it’s optimized for fixed-size boxes in production lines.
Q: Can it be integrated into conveyor systems?
A: Absolutely, designed for seamless line integration.
Maintenance Tips
-
Regularly inspect belts and rollers for wear.
-
Keep tape heads clean for smooth operation.
-
Lubricate moving parts according to the manual.
-
Disconnect power before servicing.
