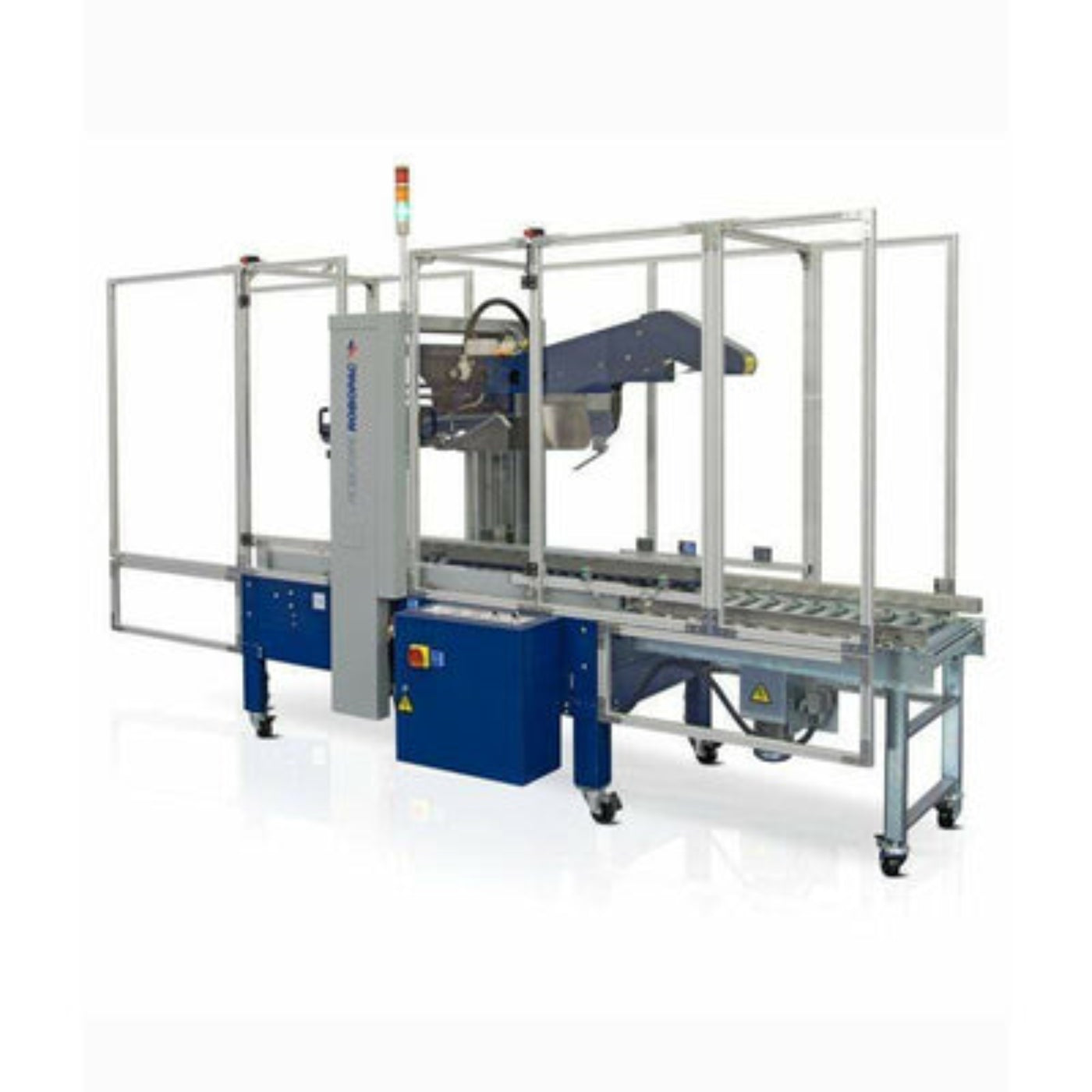

Robopac Automatic Self-Sealing Box Taper Machine, Side Belt Driven -Robotape 50 Cfa
The Robopac Semi-Automatic Box Taper Machine, Fixed Format - Robotape TBDE, is the ideal solution for efficient and reliable box sealing. Designed with motorized top and bottom drive conveyors, this machine ensures a constant grip on products, enhancing stability and precision during the taping process. Perfect for sealing fixed format boxes, the Robotape TBDE integrates seamlessly into any packaging line, offering high performance and minimal maintenance.
This advanced box taper machine features versatile taping heads for both mm and 75 mm wide tapes, accommodating a range of packaging needs. The robust design and user-friendly interface make it easy to operate, while the machine's high infeed speed of 22 meters per minute maximizes productivity. The Robotape TBDE is engineered to handle boxes of various sizes, with minimum box dimensions of 150x135x110 mm and maximum dimensions of ∞x500x500 mm, ensuring flexibility in your packaging operations.
Features
MOTORIZED SIDEÂ BELT CONVEYORSÂ - The motorized top and bottom gripping belt conveyors ensure a constant mesh on the products.
TAPING HEAD TBDÂ - Two types of taping head for 50 mm or 75 mm wide tapes.
AUTOMATIC FOLDINGÂ - Automatic top flaps folding device.
FORMAT SELF-SIZINGÂ - The machine self-sizes to close the upper flaps and to tape the upper and lower sides of the different format and sized boxes.
Specifications
| Height conveyor belt |
50 std. 75 opt.mm |
| Infeed speed |
24m/min |
| Tape width |
50 - 75mm |
| Minimum boxes dimensions (LxWxH) |
150x110x110mm |
| Maximum boxes dimensions (LxWxH) |
650x500x500 mm |
| Minimum box weight |
1kg |
| Max box weight |
50kg |
| Power supply voltage |
400 V 3 Ph + N +Pe -V |
| Power supply frequency |
50Hz |
| Installed power |
0,4 kW |
| Air consumption |
50Nl/min |
| Working pressure |
6±1bar |
What Our Experts Think
-
Fully automatic – Self-seals boxes without manual intervention.
-
Side belt drive – Provides stable movement for consistent sealing.
-
High-speed performance – Ideal for continuous production lines.
-
Industrial-grade build – Durable for heavy-duty packaging operations.
Q&A
Q: Does it require an operator to position boxes?
A: No, it automatically processes and seals incoming boxes.
Q: Can it handle a variety of box sizes?
A: Yes, it adjusts to a wide range within its specifications.
Maintenance Tips
-
Inspect belts and tape heads regularly.
-
Keep sensors clean for accurate operation.
-
Lubricate moving parts per schedule.
-
Power off before performing maintenance.
