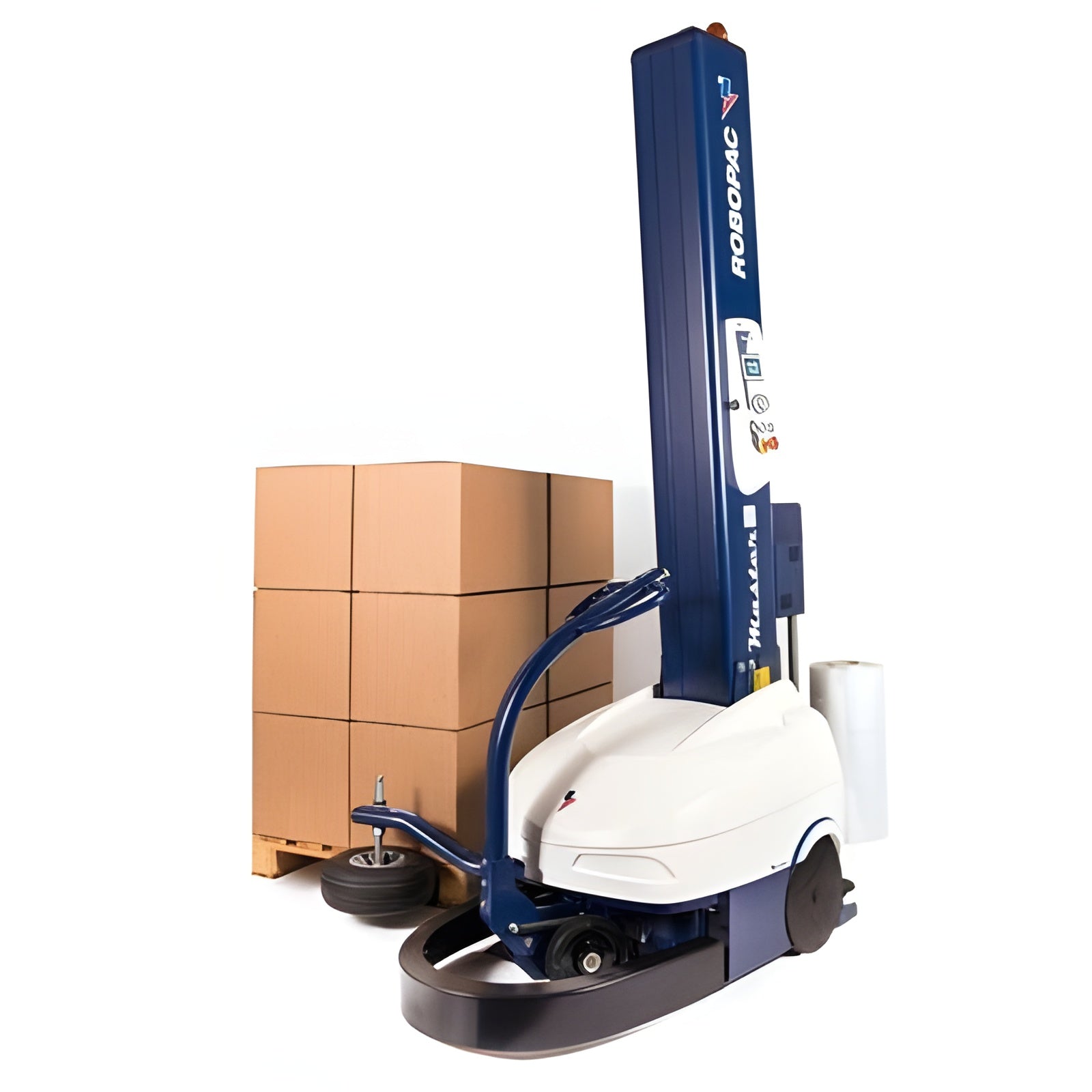

Robopac Robot Master Plus Semi-Automatic Pallet Wrapping Machine, Stretch Wrapper
Attractive design and sophisticated technology combine in Master to create a solid and reliable robot that wraps loads on pallets. Master was constructed according to the design, construction and safety criteria used to build top performance robots. Master is an agile and compact packaging tool based on Robopac’s experience with over 25,000 robots sold worldwide. While intended for typically industrial use, Master is simple to use, taking various and severe working conditions into account. Robot Master is also equipped with Technical, solutions such as start cycle siren, blinker visible during product wrapping, immediate stop button and emergency bumpers that ensure high safety levels.
Features
-

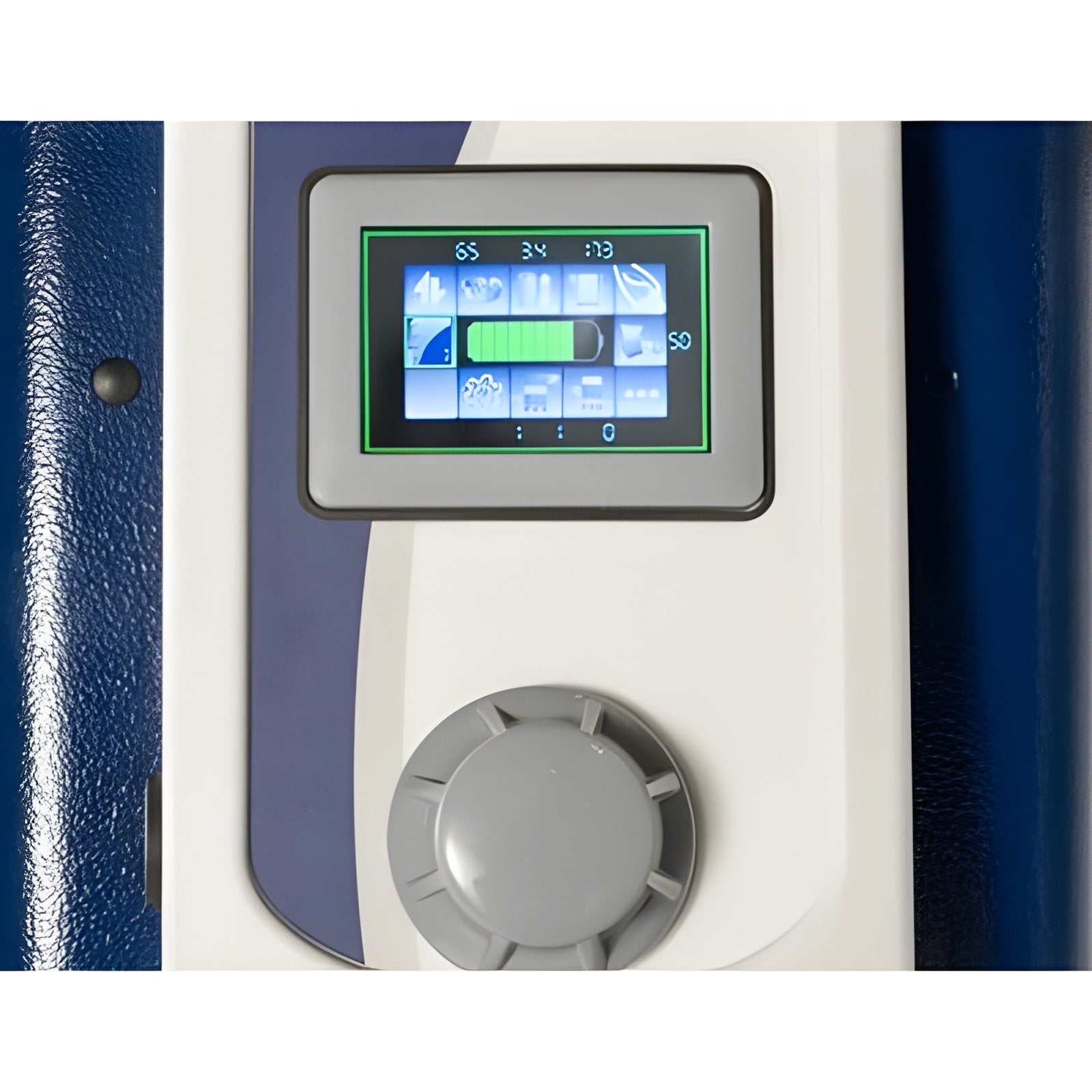

New 3.5 Inches Control Panel with Color Graphic Display.
-
Spool Carriage with Mechanical Brake Onreturn Roller. Constant Stretch of the Film Independently of the Diameter of the Spool.brake Engagement/release Device to Facilitate Hooking the Film to the Base of the Pallet. Auxiliary Metal Rolls Ensure a Higher Contact Surface Between Film and Return Roller.
-

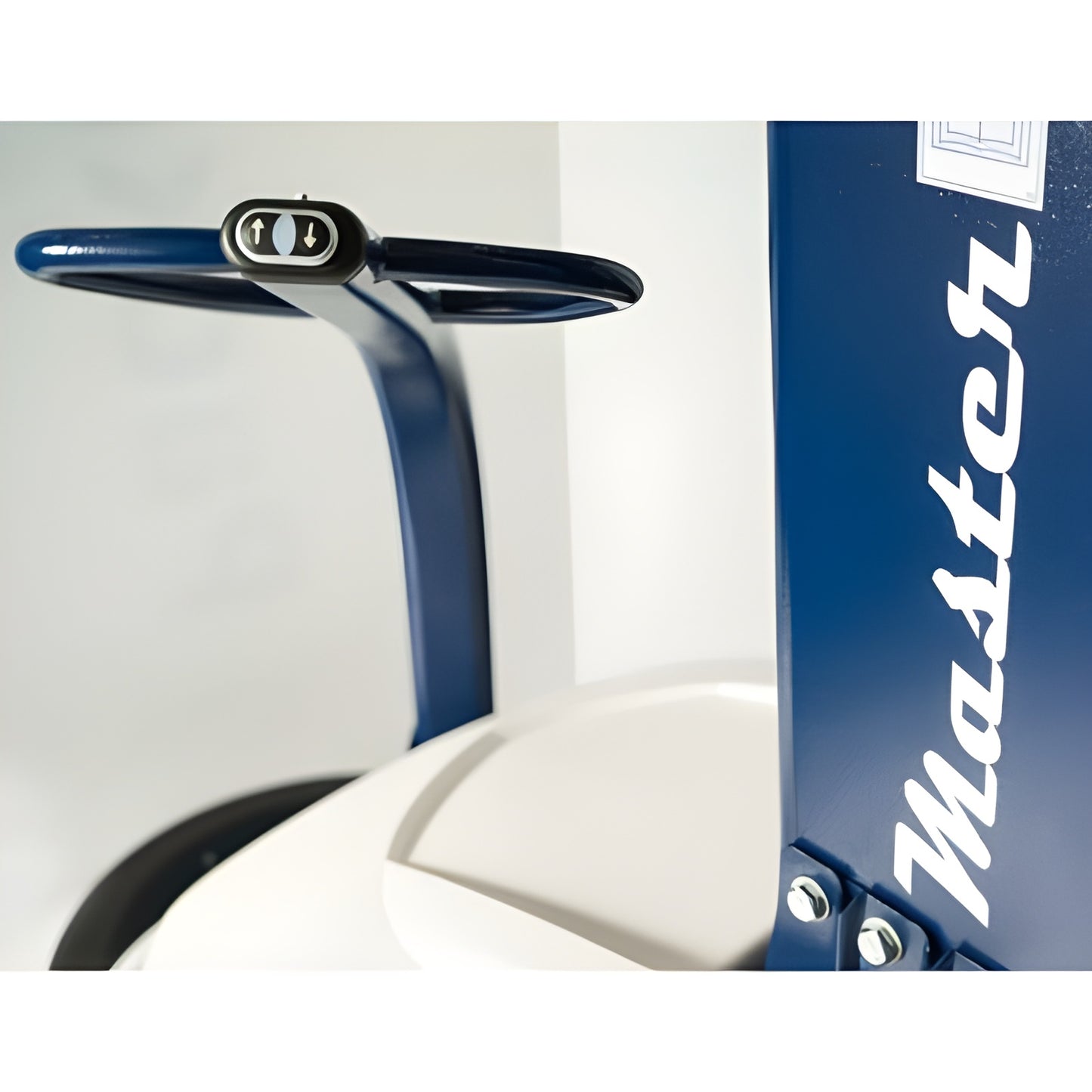

with the Rudder You Can Easily Carry the Robot from One Point to Another Without the Use of Forklifts. Manual Movement Controls in Ergonomic Position for Easy Use of the Robot.
-

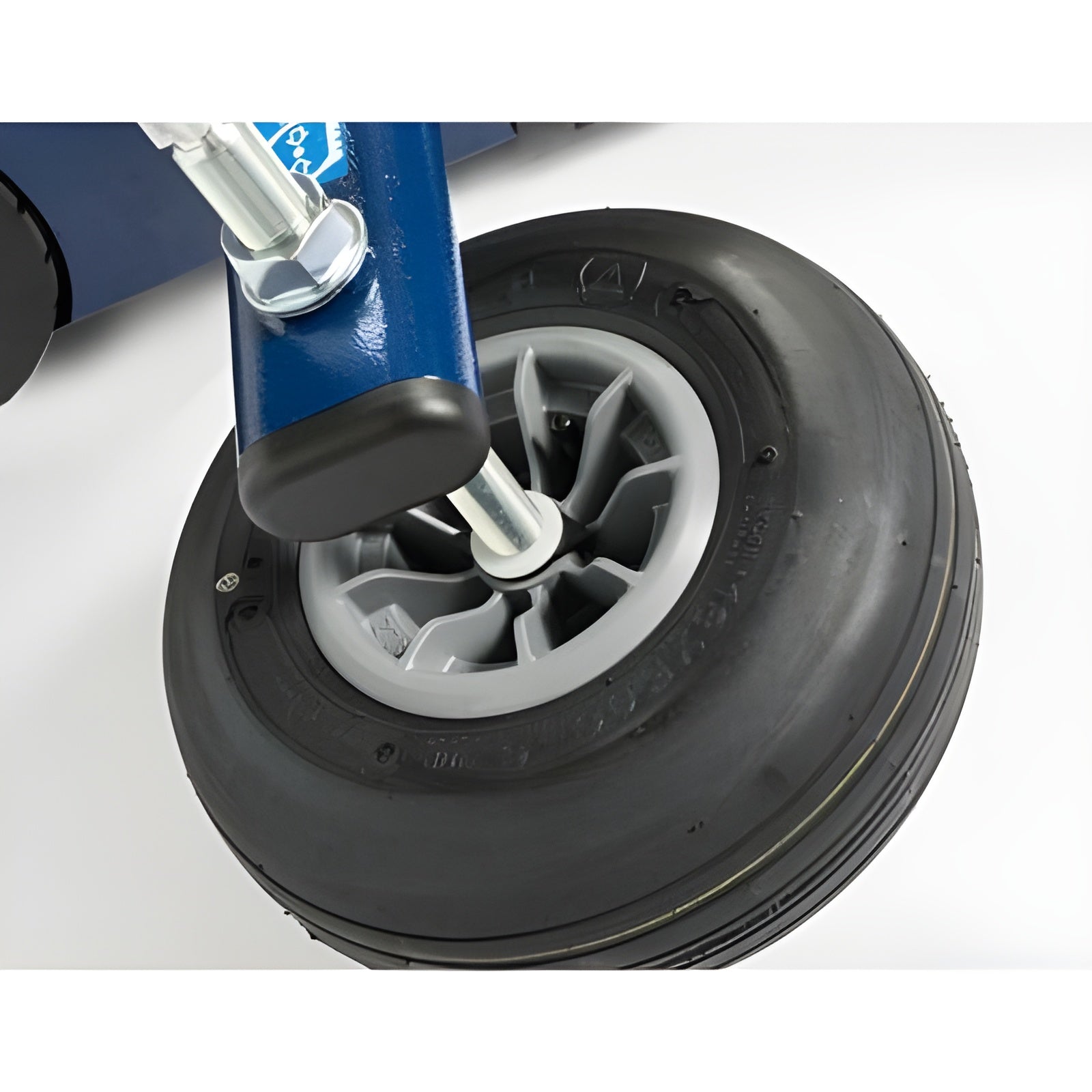

the Tracing Wheel Allows to Safely Follow the Profile of All the Pallets, Allowing the Robot to Wrap the Product in Complete Autonomy.
Specifications
| Production Speed: |
Up to 30 loads per hour |
| Rotation Speed: |
Variable from 1-3 miles/hr. |
| Cycle Expectancy: |
200 loads based on wrapping pattern |
| Maximum Load Dimensions: |
Unlimited length x Unlimited width x 86” or 110” height |
| Minimum Load Dimensions: |
24” length x 24” width x 10” height |
| Maximum Load Weight: |
Unlimited |
| Minimum Load Weight: |
200 lbs. |
| Film Width: |
20” |
| Film System: |
Roller stretch variable to 100%, patented S-pattern threading |
| Power Supply: |
115V, 20 AMP, 60 Hz |
| Battery: |
24V Battery System |
| Warranty: |
1 Year |
| Batteries: |
2 x 12V 75 Ah (C5) or 2 x 12V 110 Ah (C5) |
| Number of Pallets per Charge: |
>150 (M80) / >250 (M110) |
| Machine Rotation Speed: |
35-65 m/min |
| Carriage Up-Down Speed: |
1.5-4.6 m/min |
| Minimum Product Dimensions (LxW): |
600x600 mm |
| Maximum Product Height: |
2200 mm (standard), 2400 mm (optional) |
| Film Carriage Type: |
FRD, FR (M80) / FRD, FR, PDS (M110) |
| Film Stretch: |
Manual or adjustable from panel |
| Film Pre-Stretch: |
Fixed 250% (PDS) |
What Our Experts Think
-
Semi-automatic operation – Balances efficiency and user control for pallet wrapping.
-
Adjustable tension control – Ensures secure load wrapping without damage.
-
Portable and versatile – Suitable for various pallet sizes and shapes.
-
Durable build – Designed for reliable performance in industrial settings.
Q&A
Q: Is it easy to move between workstations?
A: Yes, its compact design and wheels enable portability.
Q: Can it handle different pallet sizes?
A: Yes, adjustable settings accommodate various pallet dimensions.
Maintenance Tips
-
Regularly clean the film carriage and rollers.
-
Inspect tension settings before each use.
-
Lubricate moving parts as recommended.
-
Store in a dry environment to prevent rust.
