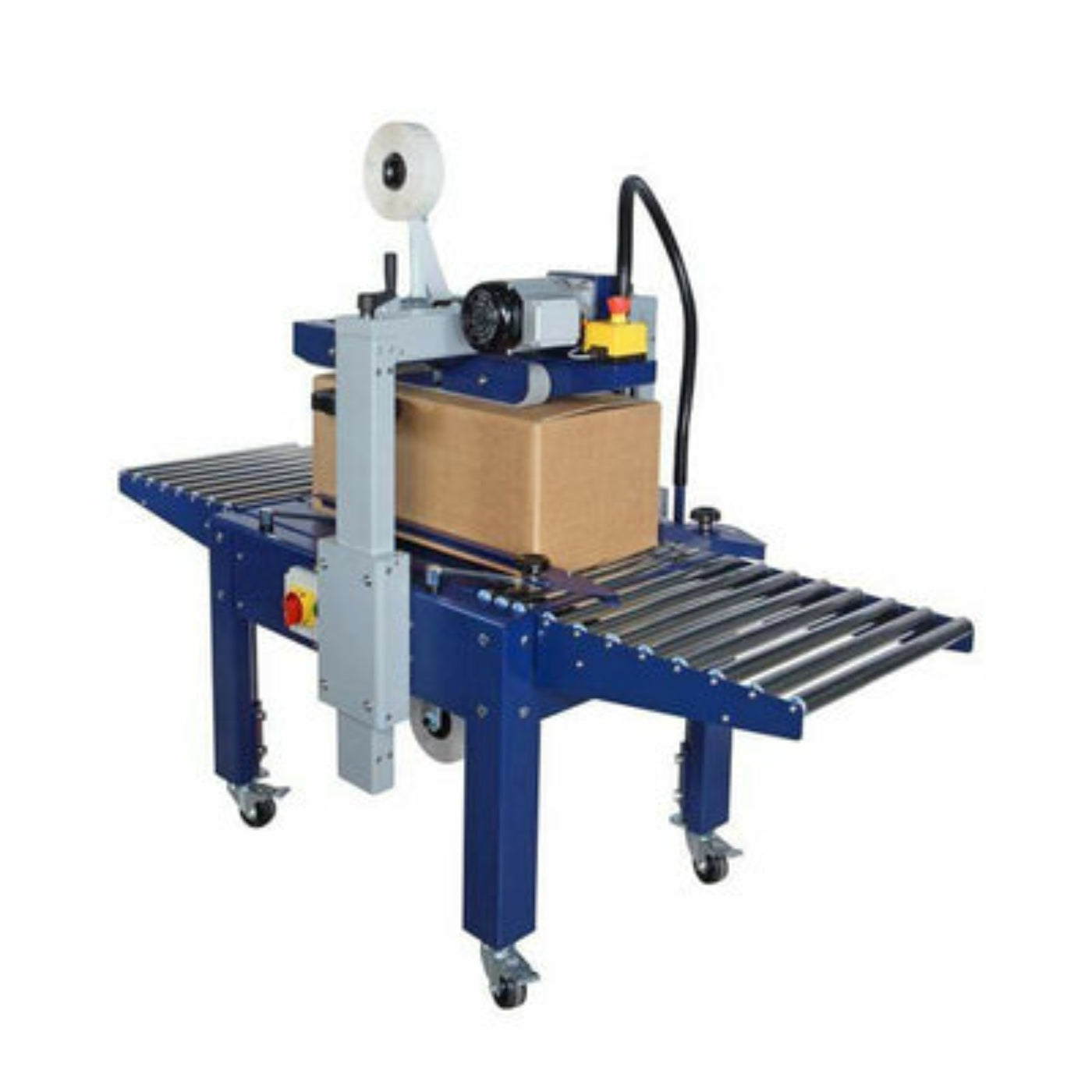

Robopac Semi-Automatic Box Taper Machine, Fixed Format - Robotape Tbd
The Robopac Semi-Automatic Box Taper Machine, Fixed Format - Robotape TBDE, is the ideal solution for efficient and reliable box sealing. Designed with motorized top and bottom drive conveyors, this machine ensures a constant grip on products, enhancing stability and precision during the taping process. Perfect for sealing fixed format boxes, the Robotape TBDE integrates seamlessly into any packaging line, offering high performance and minimal maintenance.
This advanced box taper machine features versatile taping heads for both mm and 75 mm wide tapes, accommodating a range of packaging needs. The robust design and user-friendly interface make it easy to operate, while the machine's high infeed speed of 22 meters per minute maximizes productivity. The Robotape TBDE is engineered to handle boxes of various sizes, with minimum box dimensions of 150x135x110 mm and maximum dimensions of ∞x500x500 mm, ensuring flexibility in your packaging operations.
Features
-
Motorized Top and Bottom Belt Conveyors: Ensure a constant grip on the products, enhancing stability during the sealing process.
-
Versatile Taping Heads: Two types of taping heads for 50 mm or 75 mm wide tapes, offering flexibility for different packaging requirements.
-
User-Friendly Operation: Simple interface and robust design for easy operation and minimal maintenance.
-
High Infeed Speed: 22 meters per minute for efficient and fast sealing operations.
-
Wide Box Size Range: Handles boxes from a minimum of 150x135x110 mm to a maximum of ∞x500x500 mm.
Specifications
| Height conveyor belt |
50 (50-65 TBD) / 50 top-115 bottom (80 TBD)
|
| Infeed speed |
22 m/min |
| Tape width |
50 (50 TBD W=135mm) 50-75 (50 TBD W=160 mm) / 50-75 (65-80 TBD)
|
| Minimum boxes dimensions (LxWxH) |
150x135x110 (50 TBD W=135 mm) 150x160x110 (50 TBD W=160 mm) / 150x160x110 (65-80 TBD)
|
| Maximum boxes dimensions (LxWxH) |
∞x500x500* (50 TBD) / ∞x650x650* (65 TBD) / ∞x800x800* (80 TBD) |
| Minimum box weight |
1kg |
| Max box weight |
50kg |
| Power supply voltage |
400V 3Ph + T-V |
| Power supply frequency |
50Hz |
| Installed power |
0,4 kW |
What Our Experts Think
-
Fixed format design – Perfect for packaging runs with uniform box sizes.
-
Semi-automatic operation – Increases throughput while reducing manual effort.
-
Heavy-duty build – Engineered for long-term industrial use.
-
Accurate sealing – Ensures clean, secure tape application every time.
Q&A
Q: Is this machine ideal for same-size boxes?
A: Yes, it’s designed for consistent box dimensions in high-volume production.
Q: Can it be connected to conveyors?
A: Yes, it integrates smoothly into conveyor-based packaging lines.
Maintenance Tips
-
Inspect belts and rollers for wear weekly.
-
Clean tape head regularly for smooth operation.
-
Lubricate moving parts as per guidelines.
-
Always disconnect power before servicing.
