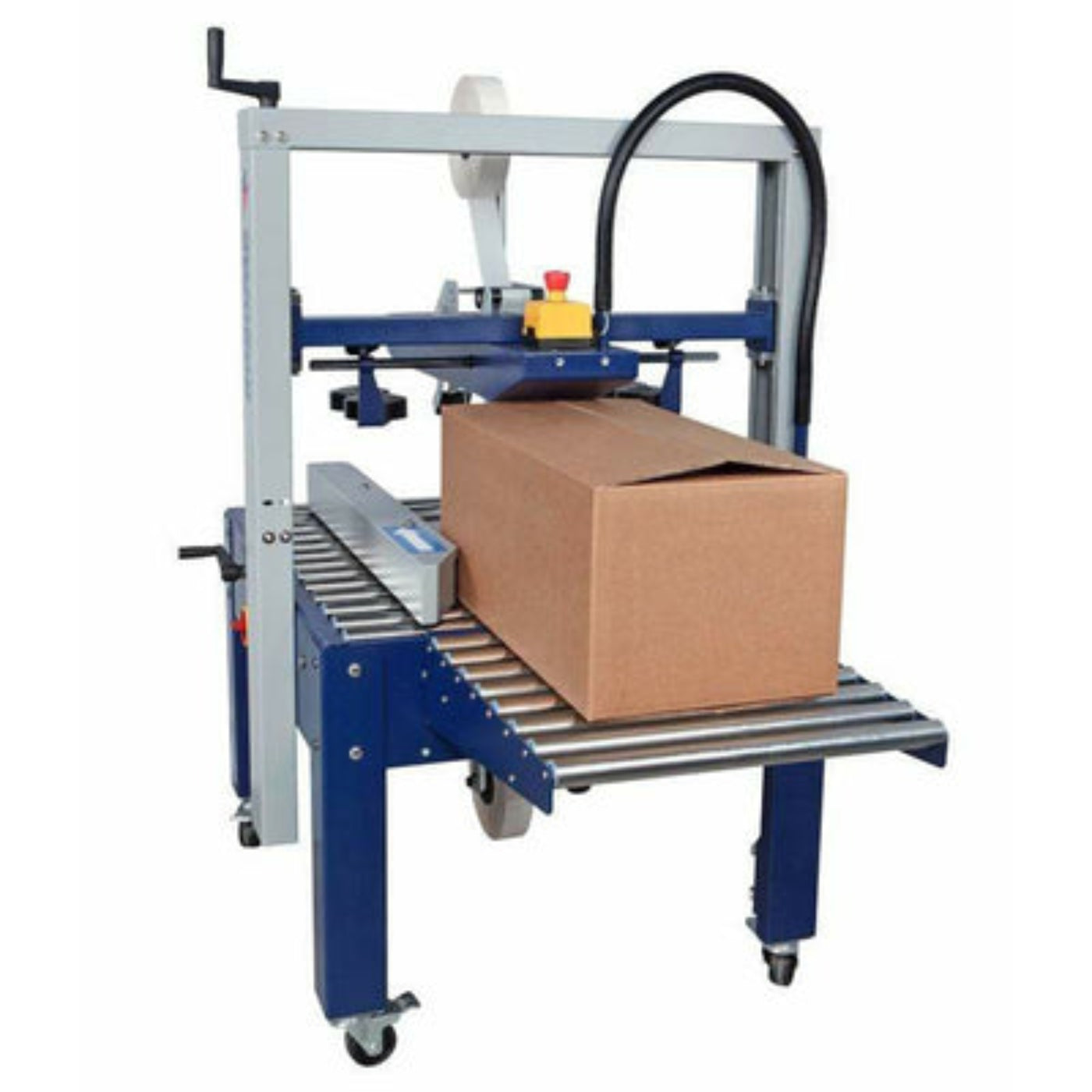

Robopac Semi-Automatic Box Taper Machine with Fixed Format - Robotape 50M
The Robopac Robotape 50M is a semi-automatic box taping machine designed for sealing fixed format boxes with efficiency and precision. Available in three versions (50M, 65M, and 80M), this versatile machine is equipped with side drive capabilities, ensuring consistent and secure sealing for a variety of box sizes. Ideal for businesses looking to streamline their packaging process, the Robotape 50M provides a reliable and cost-effective solution for box taping needs.
The Robotape 50M features an adjustable height conveyor belt, with options ranging from 50 mm to 115 mm, allowing it to accommodate different box heights. With an infeed speed of 22 m/min and the ability to handle tape widths from 50 mm to 75 mm, this machine is designed for high productivity. The Robotape 50M can manage box dimensions from as small as 150x110x110 mm to virtually any length, making it suitable for a wide range of packaging requirements. Its robust construction and easy-to-use design ensure optimal performance and longevity.
Features
MOTORIZED SIDE BELT CONVEYORSÂ -Â The motorized side gripping belt conveyors ensure a constant mesh on the products.
TAPING HEADÂ -Â Two types of taping head for 50 mm or 75 mm wide tapes.
MANUAL ADJUSTMENT OF DIMENSIONS -You can adjust manually height and width of conveyors.
Specifications
| Height conveyor belt |
50 std - 75 opt (50 M) 50 std 75-115 opt. (65 M) 115 (80 M) mm |
| Infeed speed |
22 m/min |
| Tape width |
50 - 75 mm |
| Minimum boxes dimensions (LxWxH) |
150x110x110 (50-65 M) 150x110x150 (80 M)mm   |
| Maximum boxes dimensions (LxWxH) |
∞x500x500* (50 M) ∞x650x650* (65 M) ∞x800x800* (80 M)mm   |
| Minimum box weight |
1kg |
| Max box weight |
50 kg |
| Power supply voltage |
400 V 3Ph + T |
| Power supply frequency |
50 Hz |
| Installed power |
0,4 kW |
What Our Experts Think
-
Reliable fixed format – Ideal for consistent box sizes in repetitive packaging.
-
Semi-automatic operation – Enhances packing speed while reducing manual effort.
-
Robust construction – Designed for industrial durability and long-term use.
-
Accurate tape application – Ensures clean, secure sealing every time.
Q&A
Q: Is this machine suited for fixed box sizes?
A: Yes, it’s optimized for uniform box dimensions.
Q: Can it be integrated into existing packaging lines?
A: Yes, it easily fits into conveyor systems for smooth workflow.
Maintenance Tips
-
Check belts and rollers regularly for wear.
-
Clean the tape head frequently to avoid jams.
-
Lubricate moving parts according to the manual.
-
Always disconnect power before maintenance.
