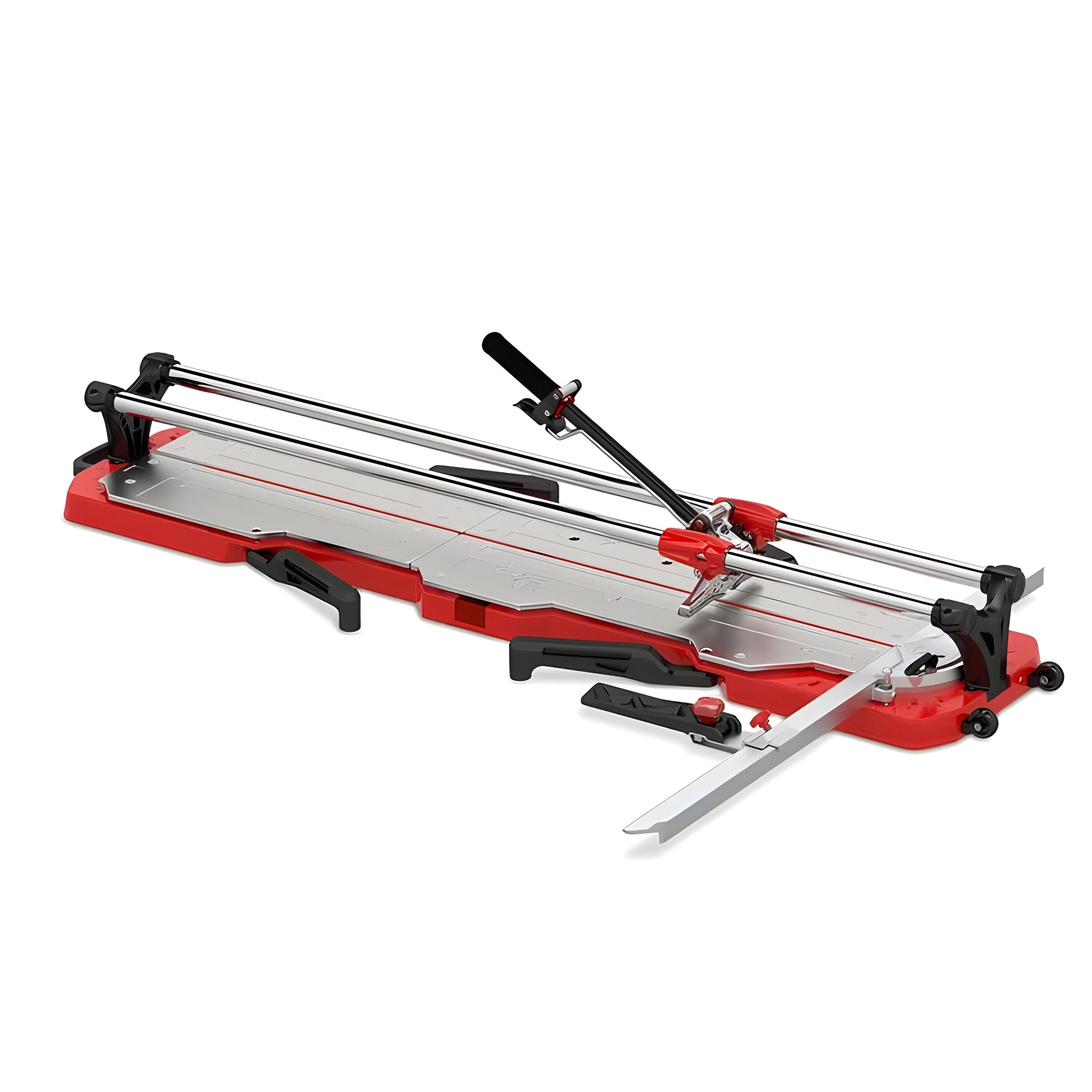

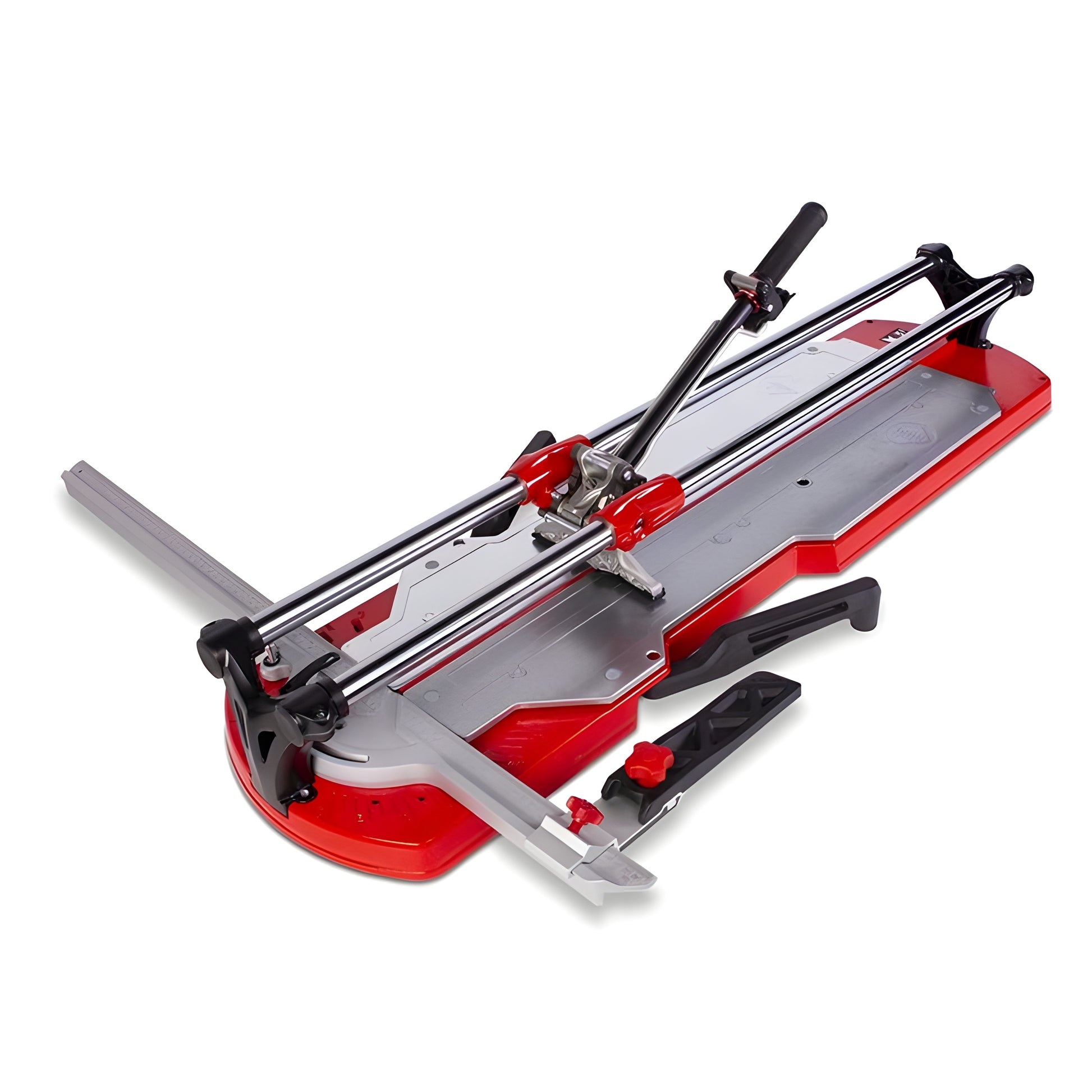

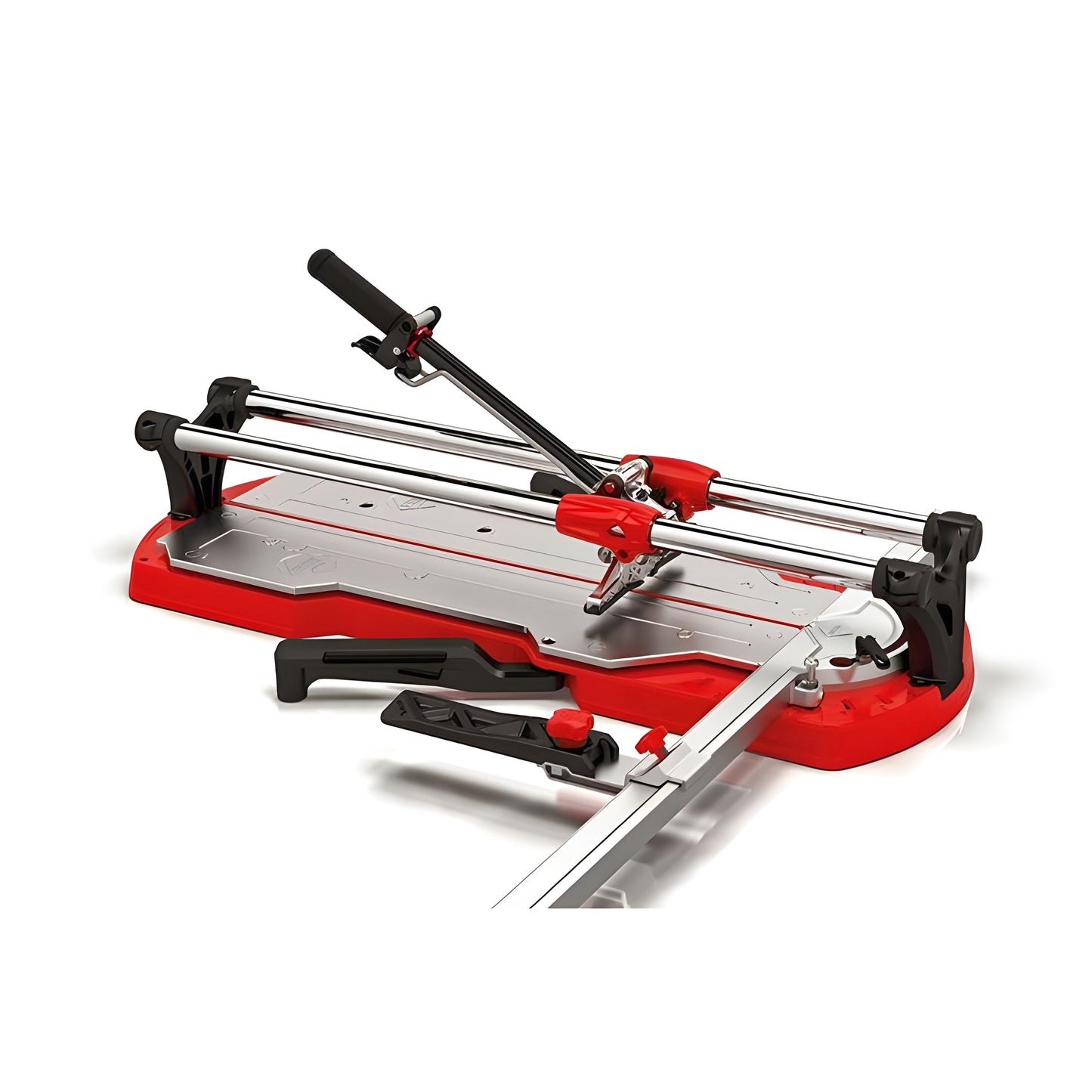

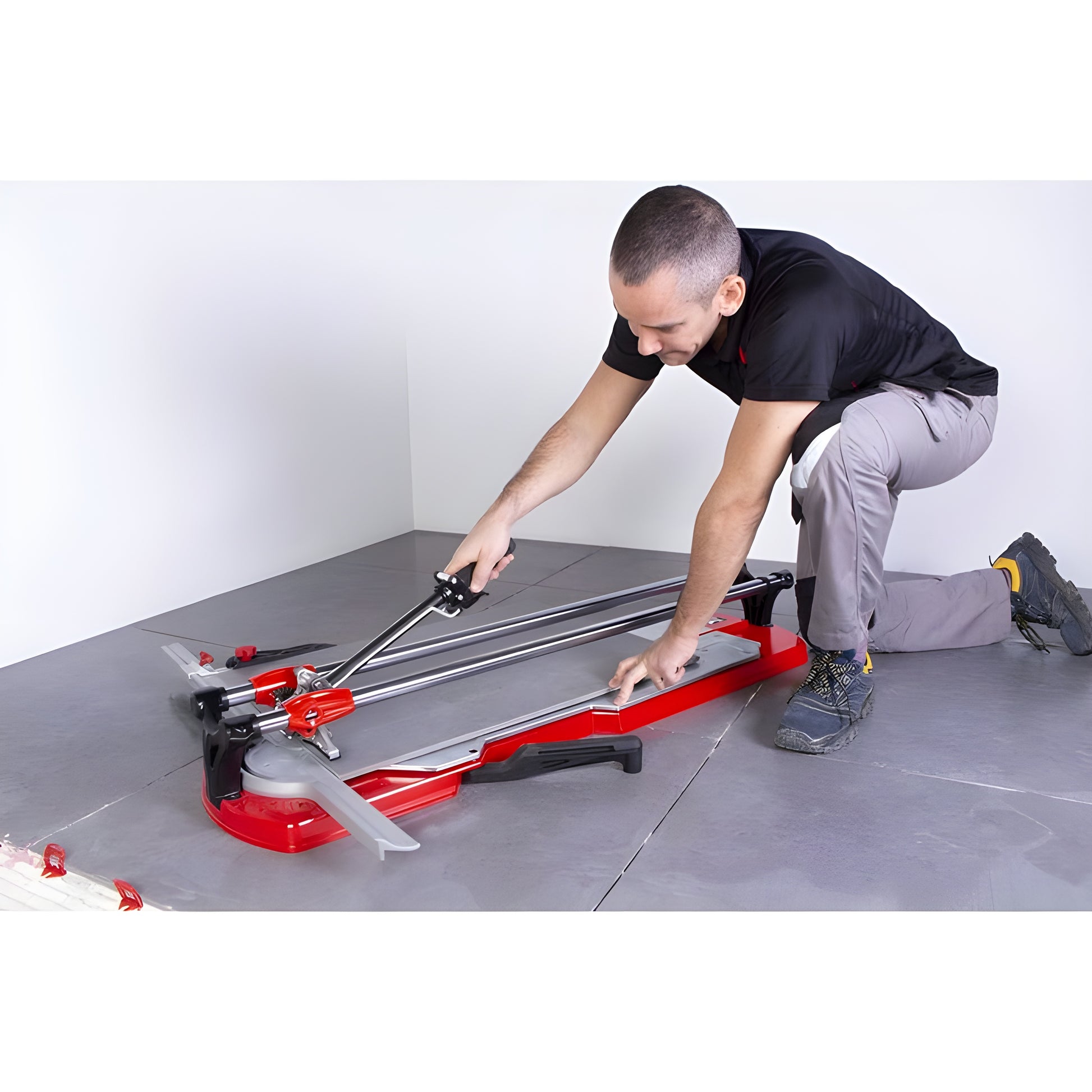

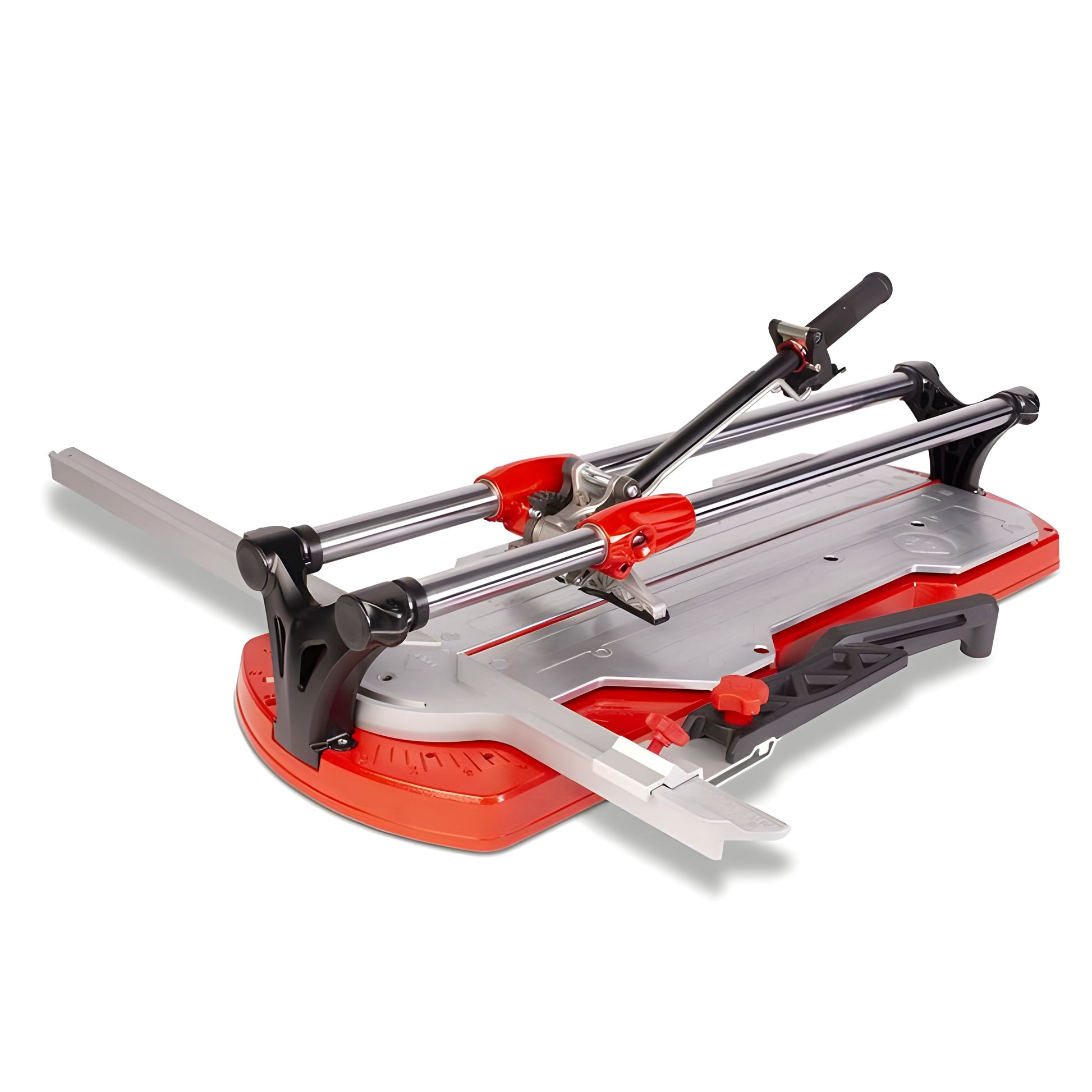

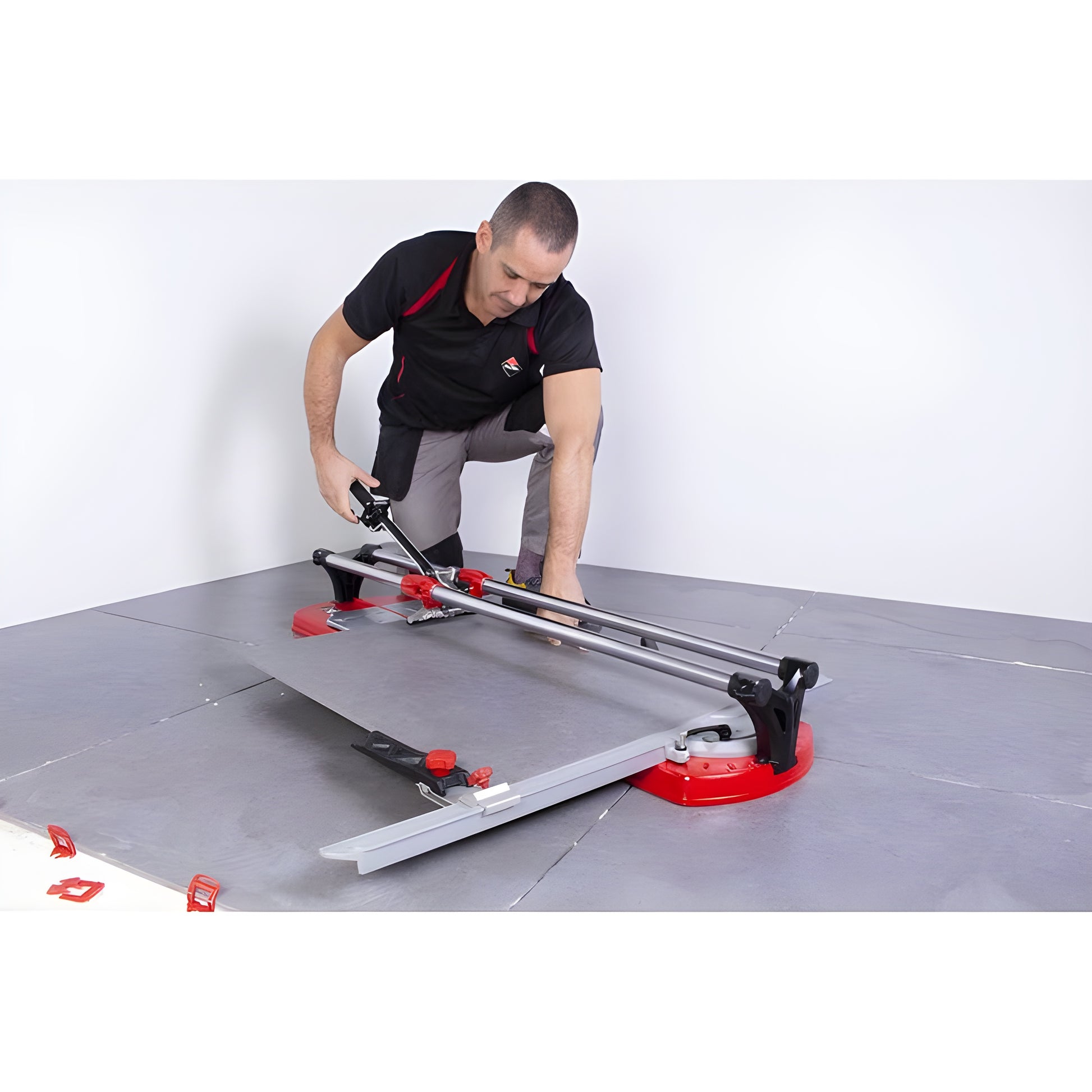

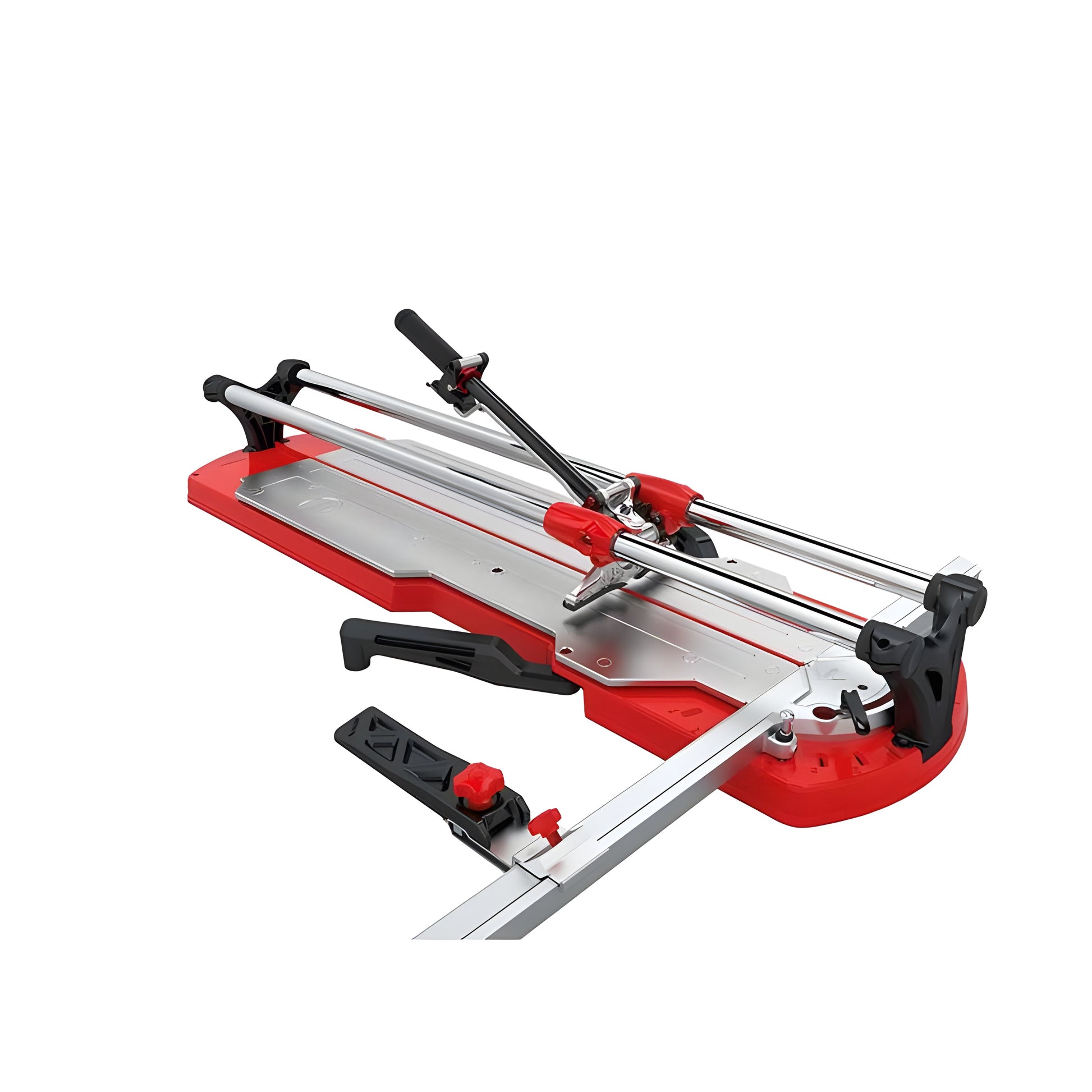

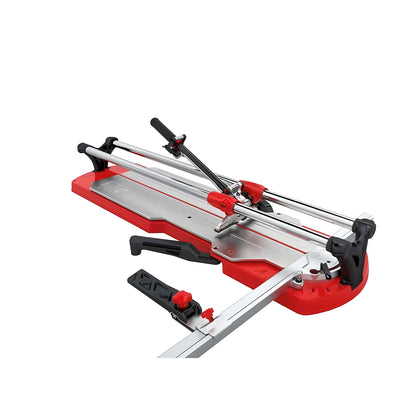

Rubi Tools TX-MAX Professional Tile Cutters - 17910
Elevate your tiling projects with the Rubi Tools TX-MAX Professional Tile Cutters. Designed for high-performance and durability, these tile cutters are ideal for intensive cutting of all ceramic tiles, including porcelain and extruded varieties. Available in three sizes—TX-710 MAX with a 28" rip cut, TX-1020 MAX with a 40-3/16" rip cut, and TX-1250 MAX with a 49-3/16" rip cut—each model is engineered to deliver precise, efficient results. Featuring a heavy-duty build with reinforced components and a high one-handed breaking power of 2,646 lbs, these cutters ensure reliability and ease of use in demanding environments.
The TX-MAX series stands out with its robust design and advanced features. The extra-long aluminum sliders with self-lubricating friction bearings enhance cutting visibility and precision. The portable breaker includes an aluminum pressure pad and a plastic protector to safeguard delicate surfaces. The injected-aluminum base, floating tables, and supplementary arms provide enhanced stability for large tiles. Precision is further improved with a rotating square featuring a central pivot point and lateral end stop. Each cutter comes with high-quality scoring wheels and a molded plastic carrying case (wheeled for easy transport on the TX-1250 MAX). Experience superior ergonomics with the soft-grip handle and efficient one-handed operation for all your tiling needs
Features
-
Designed for maneuvering large format and heavier slabs
-
Easy and quick assembly with an easy fix connection system
-
Ultra-light and compact for easy portability
-
Extendable support arm for improved ergonomics during loading and unloading
-
Maximum load capacity: 309 lbs (140 kg) including material and transport system
-
Compatible exclusively with SLAB TRANS HD (Ref. 18936) and SLIM EASY TRANS systems (Ref. 18910, 18819)
Specifications
| Model |
TX-710 MAX |
TX-1020 MAX |
TX-1250 MAX |
| Cutting Length |
28" |
40-3/16" |
49-3/16" |
| Diagonal Cut |
20" x 20" |
27-9/16" x 27-9/16" |
33-7/16" x 33-7/16" |
| Material Thickness |
1/8" - 13/16" |
1/8" - 13/16" |
1/8" - 13/16" |
| Breaking Force |
2,646 lb |
2,646 lb |
2,646 lb |
| Weight |
29.3 lb |
42.8 lb |
57 lb |
What Our Experts Think
-
Heavy-duty professional tile cutter designed for maximum precision and efficiency.
-
Equipped with a powerful breaking system to handle thick ceramic and porcelain tiles.
-
Reinforced base and ergonomic handle ensure stability and user comfort.
-
Ideal for large-format tiles and demanding professional projects.
-
Built with Rubi’s reliability for long-lasting performance.
Q&A
Q: What types of tiles can the TX-MAX cut?
A: It’s designed for ceramic, porcelain, and large-format tiles.
Q: Does it have a strong breaking system?
A: Yes, it provides exceptional breaking power for thick, durable tiles.
Q: Is it easy to use on big projects?
A: Absolutely, its ergonomic design reduces fatigue and increases accuracy.
Q: Is it durable enough for daily professional use?
A: Yes, the reinforced construction ensures long-term reliability.
Maintenance Tips
-
Clean rails and scoring wheel after each use to maintain smooth operation.
-
Replace scoring wheels when worn to ensure precise cuts.
-
Check alignment periodically for accuracy.
-
Lubricate moving parts occasionally per manufacturer’s guidelines.
-
Store in a dry place to protect against rust and wear.
