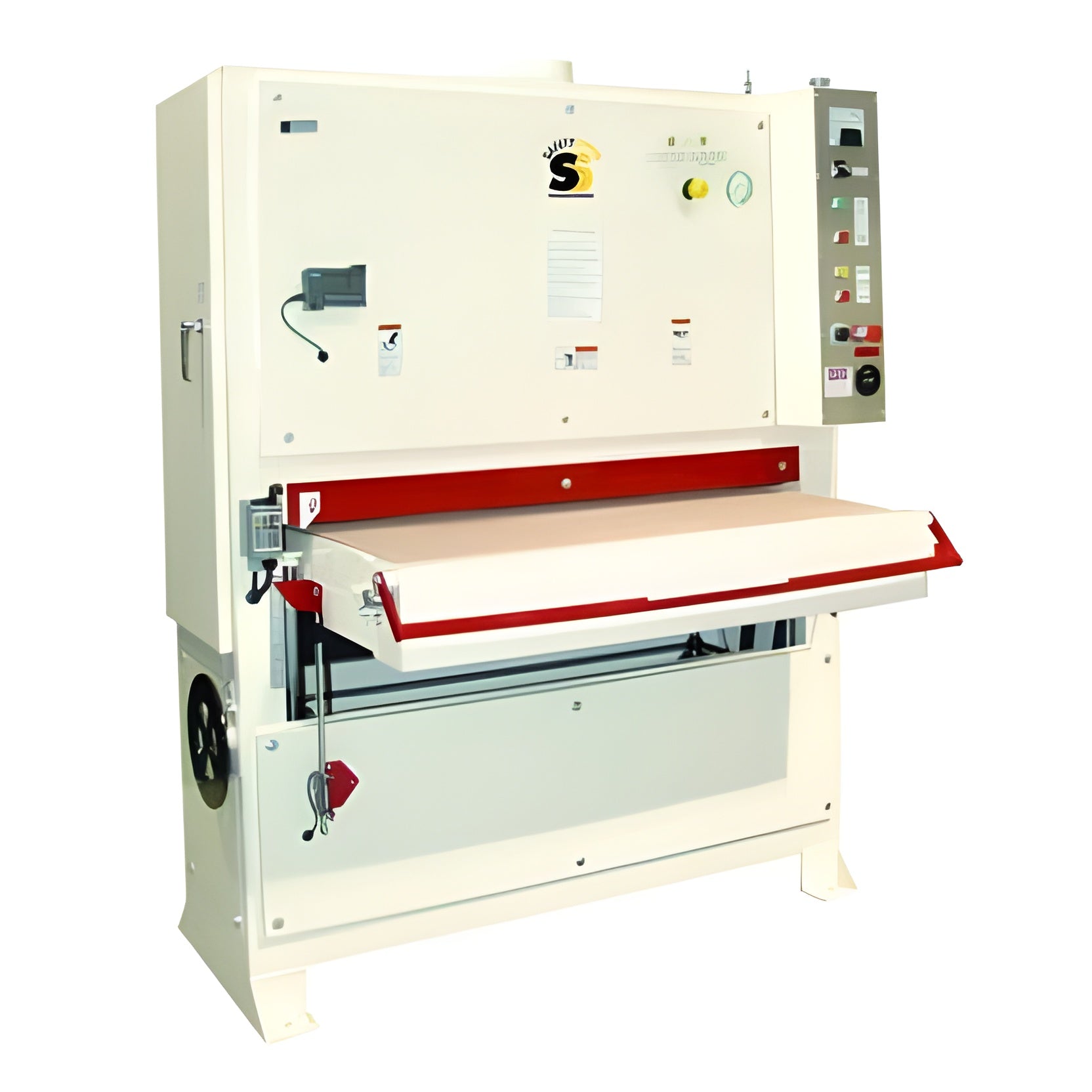

The 43″ Wide Belt Sander features a 75” belt, providing 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time.
Offering woodworkers a maximum sanding width 43″, and available in single or three phase power, this American Made Wide Belt Sander will likely outlive you. Don’t take our word for it! Jeff Roltgen of Roltgen Woodworks, had the following to say “Even the fussiest of finishes only need a cursory random orbit sanding after coming out of this machine.
Safety Speed Wide Belt Sanders
An Introduction to our American Made Wide Belt Sanders
Standard Equipment
Photo electric belt tracking.
Pneumatic belt tension.
2 ½” graphite covered felt pad and adjustable platen.
2 rubber-covered pinch rollers 2 ½” OD.
2 machined idler rollers 4 ¼” OD with 1″ bearings.
Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing.
Conveyor table set on four 1″ acme thread jackscrews.
2 height adjustment indicators.
6″ internal dust chute.
5 emergency stops.
3 year warranty.
Specifications
Weight
1946 lbs
Dimensions
60 × 62 × 71 in
Max. Working Length
Unlimited
Min. Working Length
12'/305mm
Main Motor Options
10 Hp, Single Phase (1~), 220 Volt, 20 Hp, 3 Phase (3~), 208 Volt / 230 Volt, 30 Hp, 3 Phase (3~), 208 Volt / 230 Volt
