Safety Speed 6400 Panel Saw

The 6400 provides a 64″ maximum crosscut while the 6800 provides a 74″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.

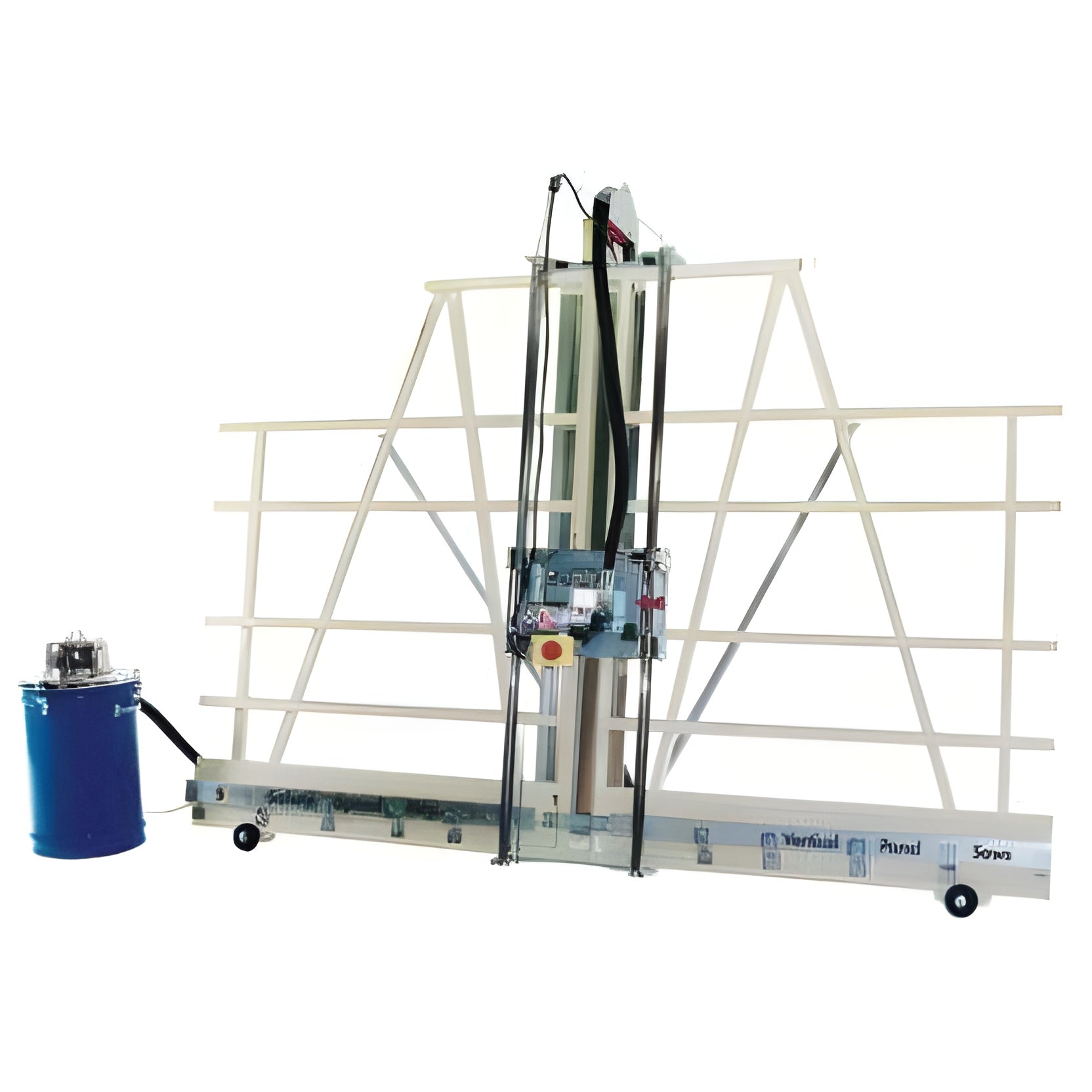

Photos are shown shown with a stand, wheels, and a dust kit,  which are optional accessories

Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:

• An upgraded, worm drive motor providing greater longevity.
• 1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series Machines that’s made possible by additional bearings.
• Additional steel welded at a diagonal plane adding significant weight to the frame.
• A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance.
• Additional bearings within the motor providing a tighter cutting tolerance.
• Aluminum material rollers  instead of red material rollers .

Standard Equipment

• 3 Hp worm driven heavy-duty saw motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 3/4″ guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Integrated dust collection bonnet.
• TUV certified to UL/CSA standards.

Specifications

Documents

Product manual

Product parts

6400 Panel Saw Sheet

What Our Experts Think

• Precision panel cutting – Provides clean, accurate cuts for various wood panels.

• Robust industrial design – Built for reliability and heavy use.

• User-friendly controls – Ensures easy operation and efficient workflow.

• Adjustable cutting settings – Supports angled and straight cuts.

Q&A

Q: Is this saw fit for professional workshops?
A: Yes, designed for industrial woodworking applications.

Q: Can it perform bevel cuts?
A: Yes, it supports both straight and angled cutting.

Maintenance Tips

• Keep blades sharp and clean.

• Lubricate moving components regularly.

• Check alignment and calibration routinely.

• Schedule regular professional maintenance.
