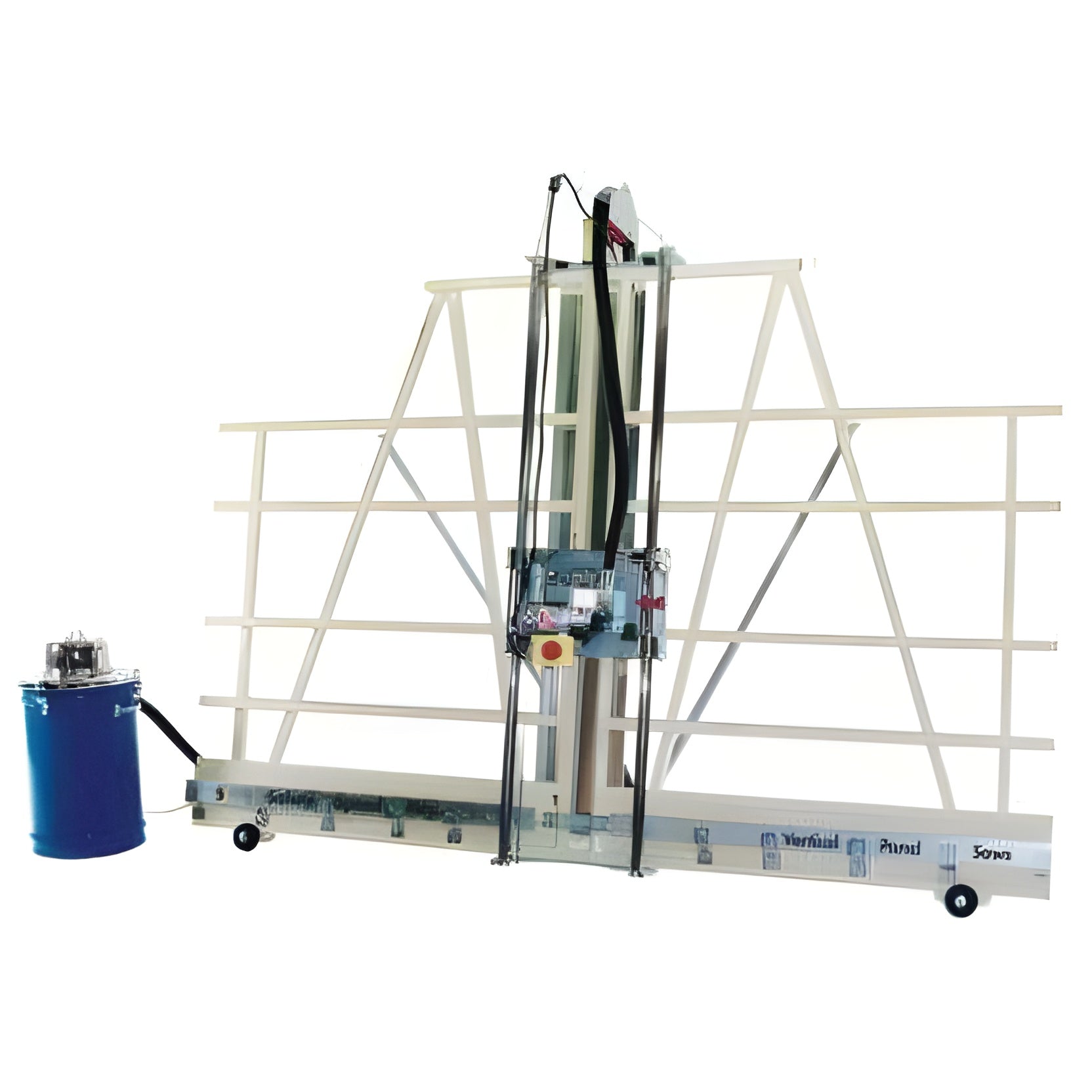

Featuring a heavy duty worm drive motor, additional steel frame supports, aluminum wheels and double bearings, this machine will deliver an accuracy of 1/64″. The 6800 can cut sheets up to 74″ without blinking an eye.
The 6800 provides a 74″ maximum crosscut while the 6400 provides a 64″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.
Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:
An upgraded, worm drive motor providing greater longevity.
1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series Machines that’s made possible by additional bearings.
Additional steel welded at a diagonal plane adding significant weight to the frame.
A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance.
Additional bearings within the motor providing a tighter cutting tolerance.
Aluminum material rollers instead of red material rollers .
