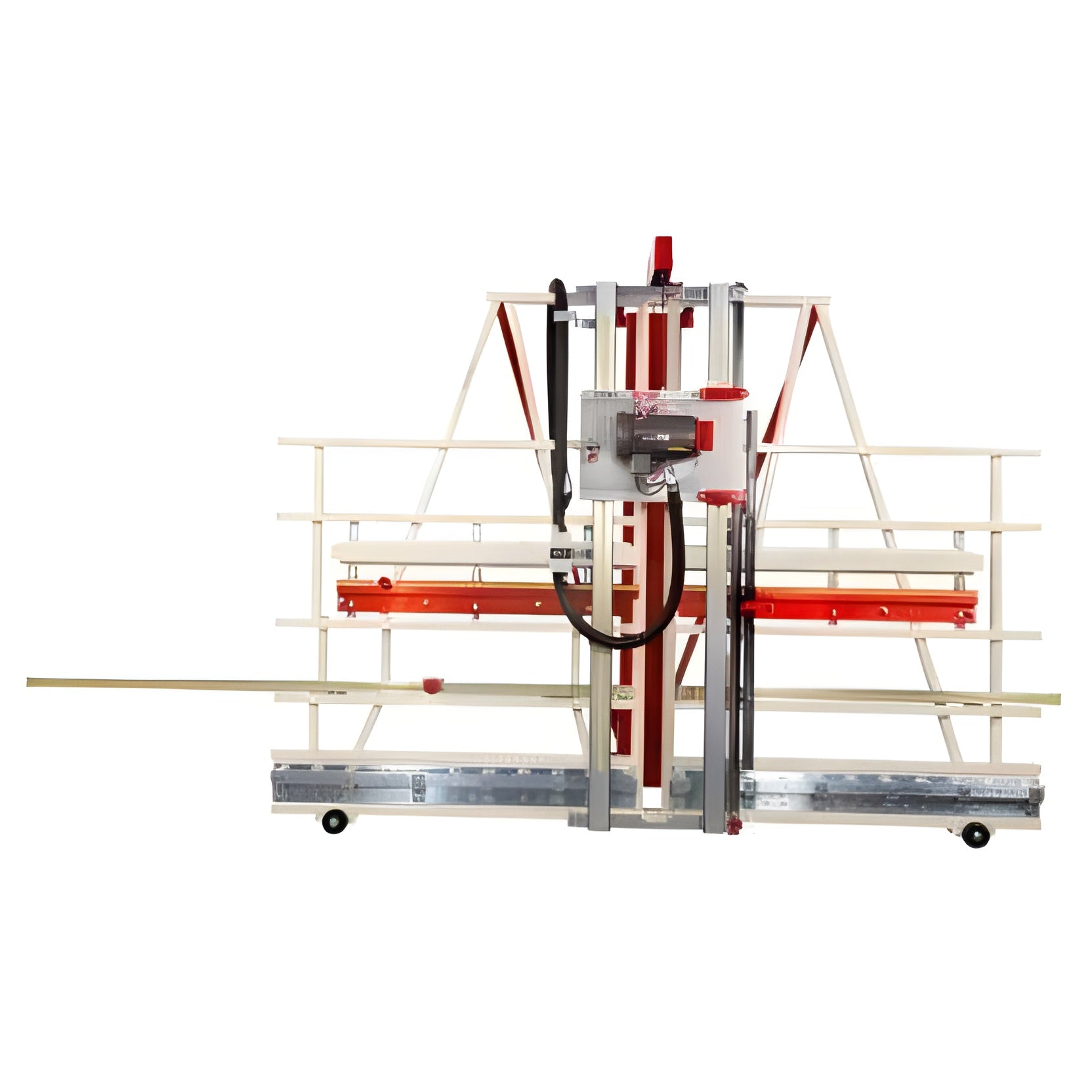

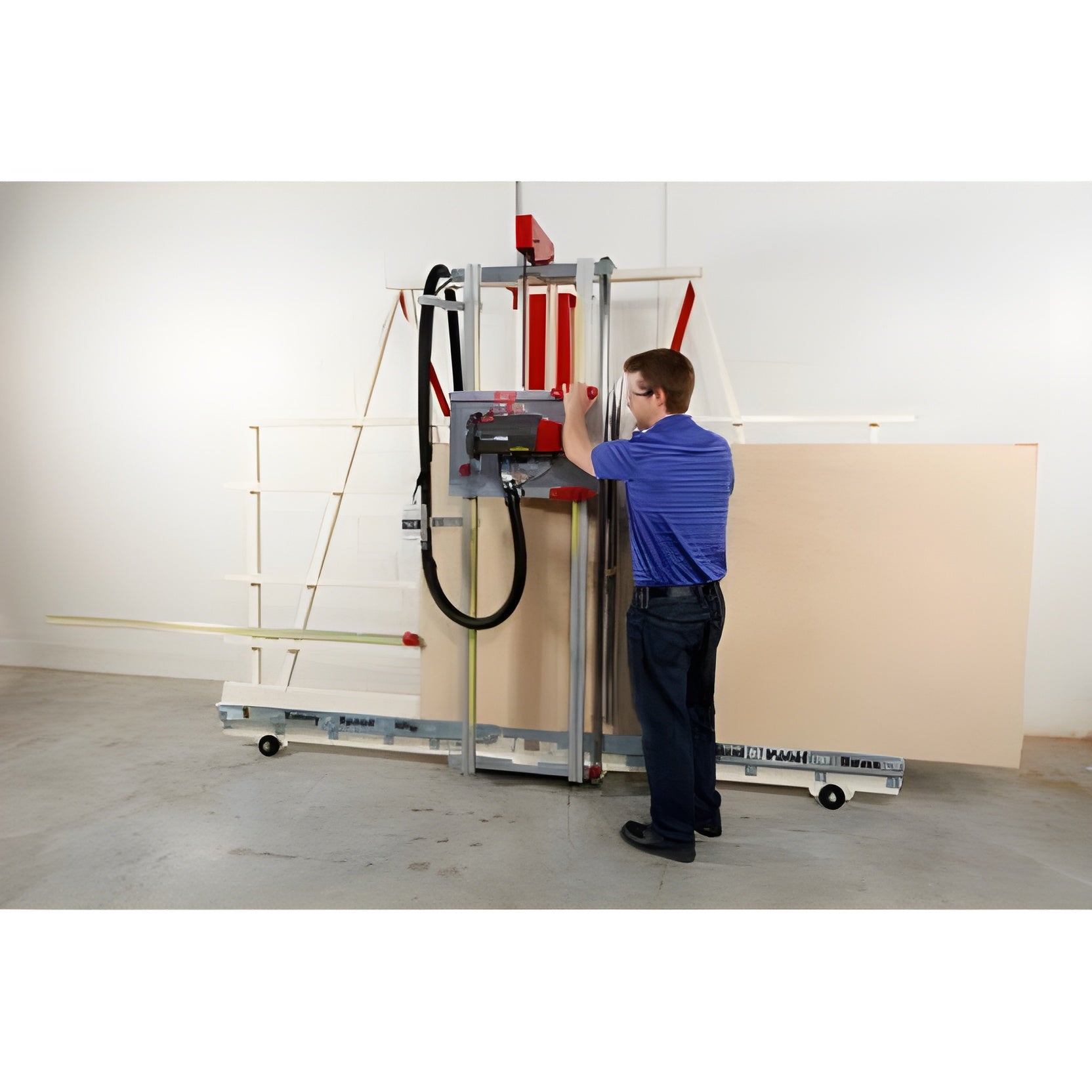

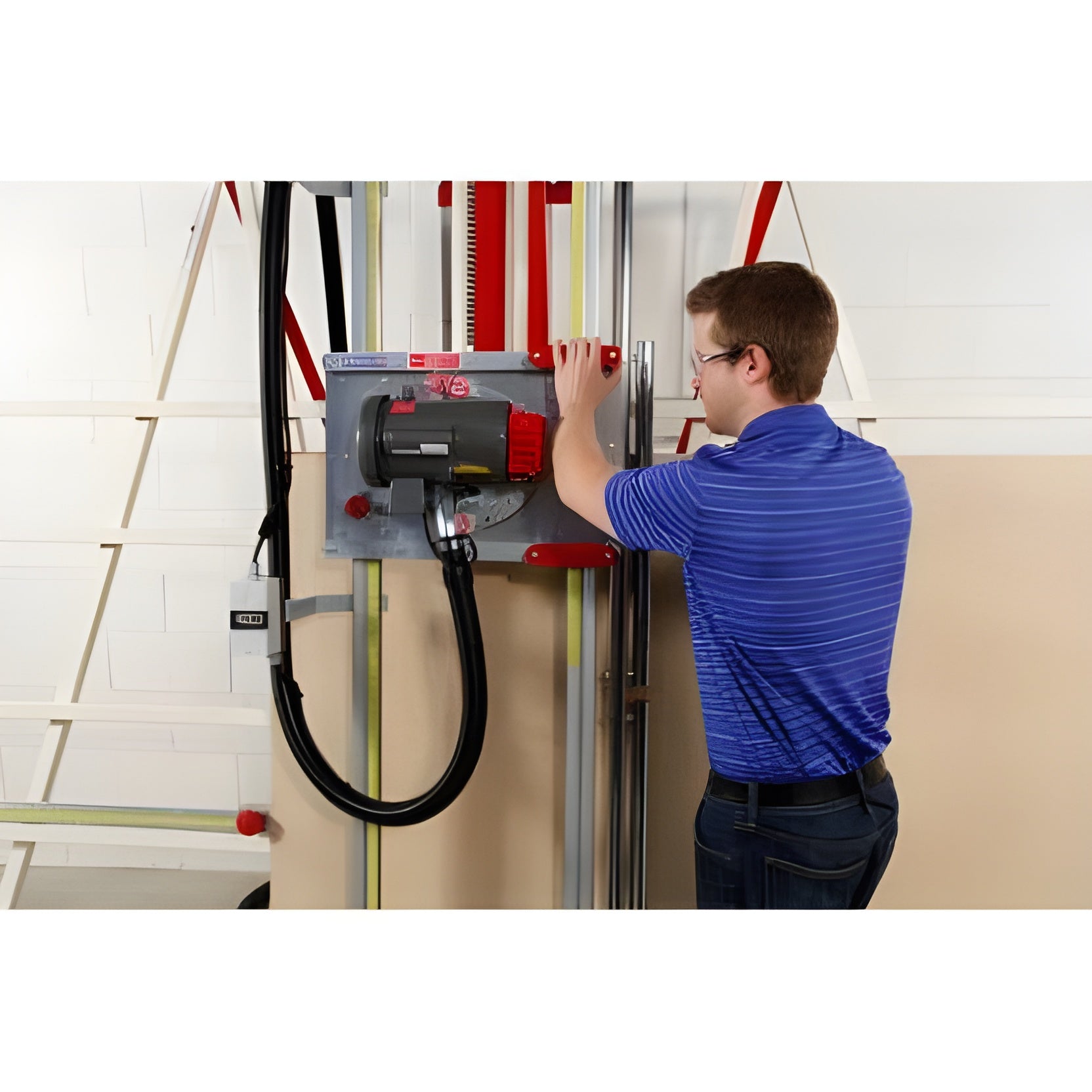

Safety Speed 7000 Panel Saw
The model 7000 is the latest entry into our high capacity machine lineup. Meant for continuous production, the 7000 Panel Saw cuts within 1/64″ straight and square and up to 2″ deep. Pick from three different motor configurations.
VIDEO
Features
Three different high induction saw motor configurations
Heavy-Duty welded steel frame
Low voltage switch protection
Saw blade
Vertical and horizontal rulers
Quick change from vertical to horizontal cutting
Integrated stand
Solid aluminum rollers
Dust collection ready
Hold down bar
Enclosed counterweight
Quick stop gauges with stop block
Floating pressure saw foot
Wheels
3 year warranty
Specifications
Weight
950 lbs
Dimensions
124 × 42 × 95 in
Max. Crosscut
64'/1625mm
Max. Rip Cut
Unlimited
Cut Depth
2'/50mm
Cut Accuracy
1/64'/.4mm
Frame Length
120'/3050mm
Daily Usage
Continuous (8+ Hours)
Rollers
14
Saw Blade Diameter
8'/210mm
Motor
2HP, 1~ 230V, 3HP, 3~ 230V, 3HP, 3~ 460V
Shipping Weight
670 lbs/304 kg
Documents
What Our Experts Think
Reliable panel cutting – Offers precise, clean cuts for various wood panels.
Heavy-duty design – Built for durability in industrial woodworking settings.
Simple controls – Facilitates easy and efficient operation.
Adjustable cutting angles – Supports straight and angled cuts.
Q&A
Q: Is this panel saw fit for industrial use?A: Yes, designed for professional woodworking shops.
Q: Can it handle angled cuts?A: Yes, it features adjustable settings for bevel cuts.
Maintenance Tips
Keep blades sharp and clean.
Regularly lubricate moving parts.
Check alignment and calibration often.
Schedule routine professional servicing.
