Safety Speed C5 Panel Saw

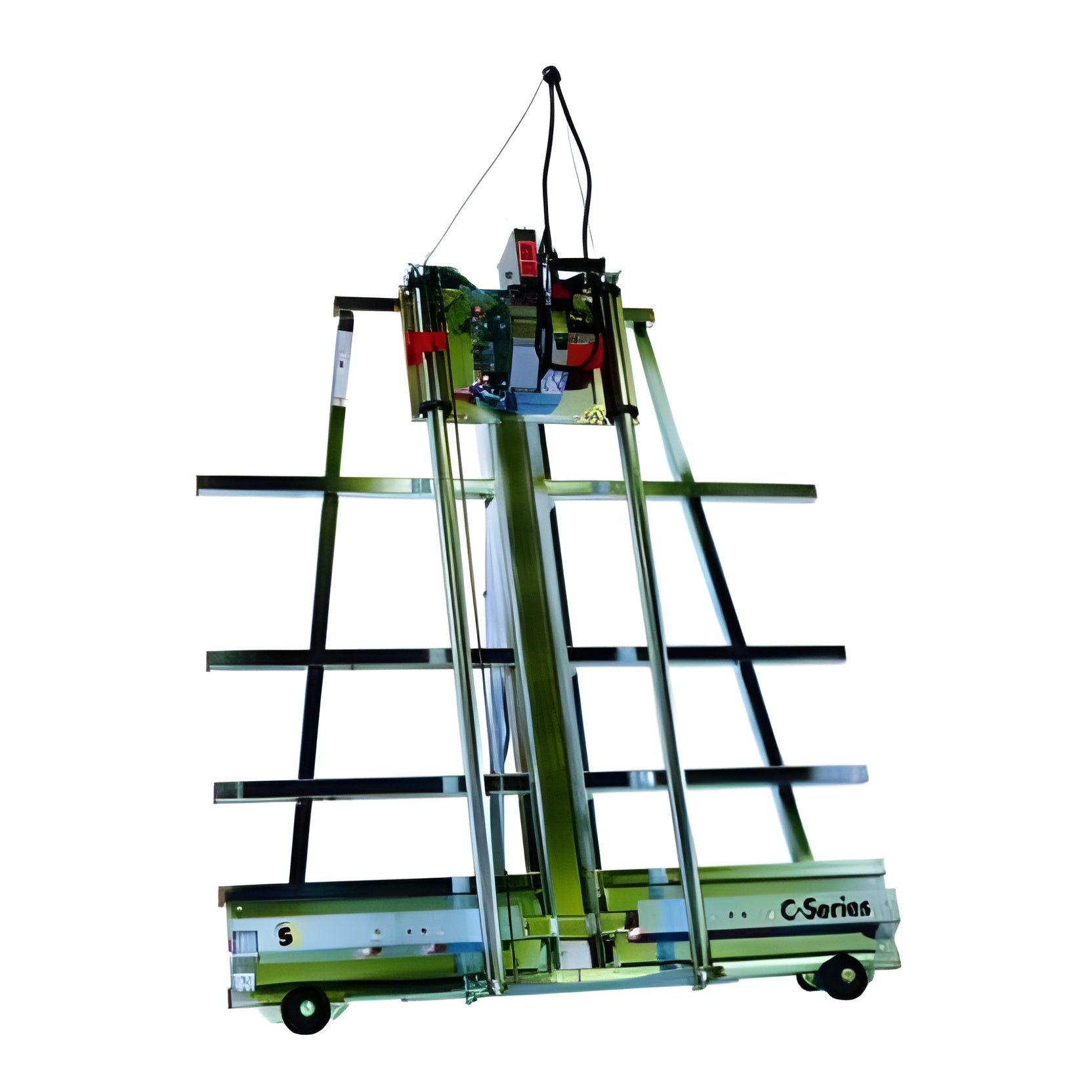

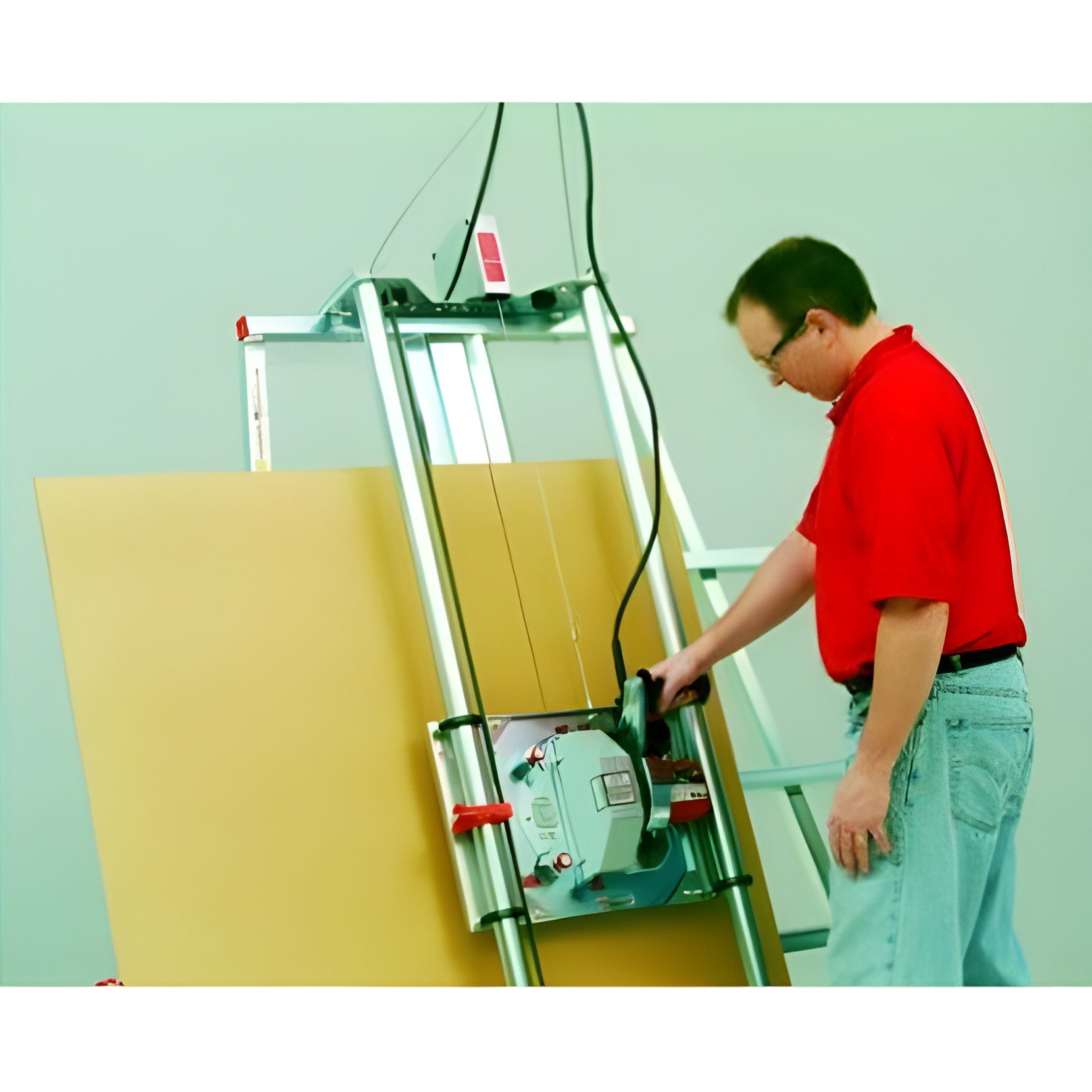

The C5 portable panel saw features a 64″ maximum crosscut and cuts material up to 1.75″ thick. Photos are shown shown with a stand and which are optional accessories
This panel saw can travel to work sites and fit into shops with limited floor space. The only difference between this machine and the C4 Panel saw are the maximum crosscut lengths.
Standard Equipment
- Zinc plated 1 ¾” steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
| Weight |
219 lbs |
| Dimensions |
60 × 11 × 83 in |
| Max. Crosscut |
64'/1625mm |
| Max. Rip Cut |
96'/2450mm |
| Cut Depth |
1 ¾'/45mm |
| Cut Accuracy |
1/32'/.8mm |
| Frame Length |
60'/ 525mm |
| Daily Usage |
1-3 Hours |
| Rollers |
8 |
| Saw Blade Diameter |
8'/210mm |
| Motor |
15 amp, 120V, 220V |
Documents
What Our Experts Think
-
Precision panel cutting – Delivers clean, accurate cuts for various wood materials.
-
Heavy-duty construction – Built to withstand continuous industrial use.
-
User-friendly controls – Simplifies operation for efficient workflow.
-
Adjustable cutting settings – Allows customization for thickness and angle.
Q&A
Q: Is this saw suitable for large panels?
A: Yes, designed for cutting large wood panels with ease.
Q: Can it perform angled cuts?
A: Yes, adjustable settings support angled and straight cuts.
Maintenance Tips
-
Keep blades sharp and clean.
-
Lubricate moving parts regularly.
-
Inspect saw alignment periodically.
-
Schedule routine professional servicing.
