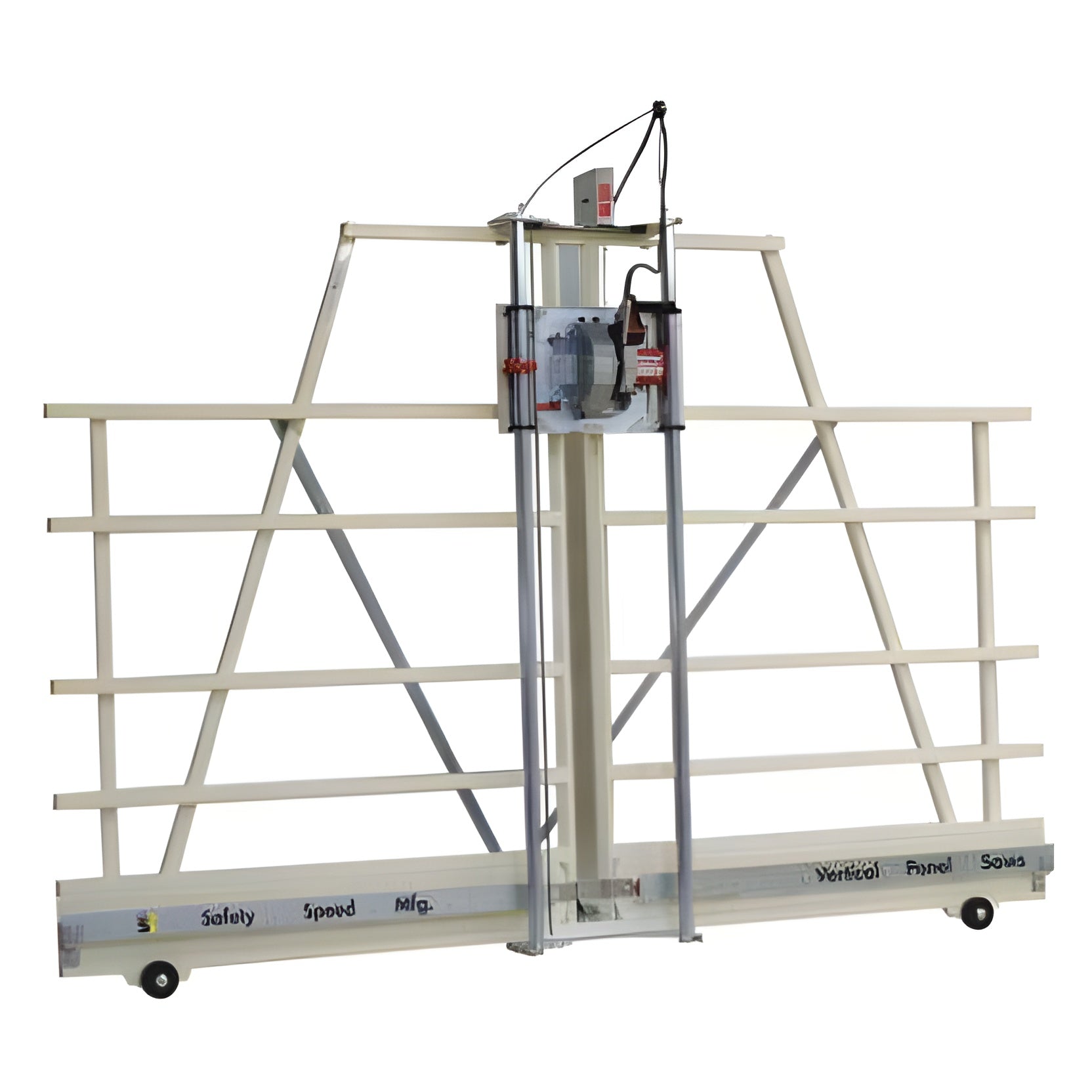

Safety Speed H6 Panel Saw

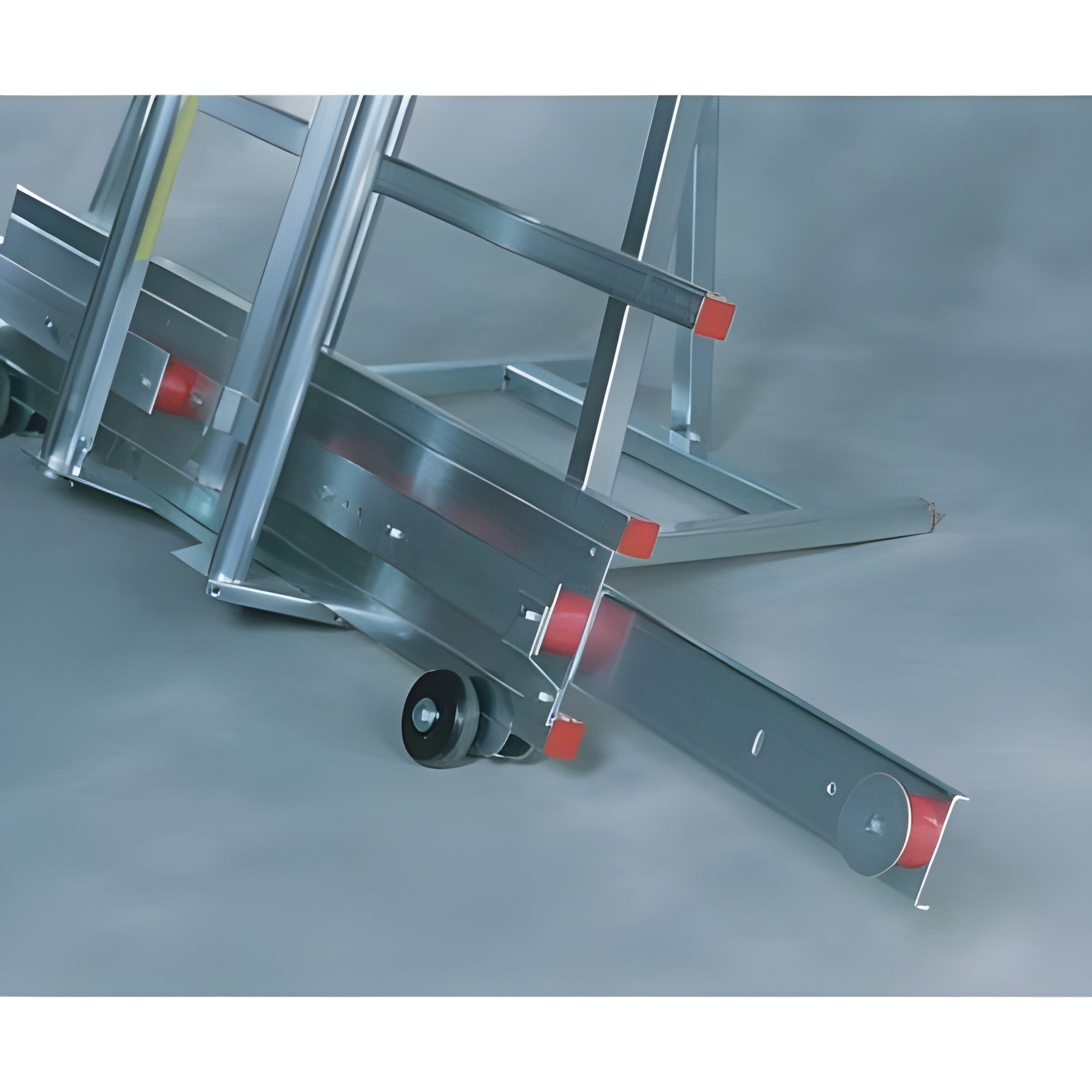

The H6 Panel Saw provide a 74″ crosscut, ideal for cutting a 10′ X 6′ piece of material, up to 1.75″ thick while only occupying 30 square feet of floor space. Photos are shown shown with a stand, and wheels which are optional accessories.
Standard Equipment
Zinc plated 1¾”steel guide tubes.
4 Nylatron roller bearing systems.
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard.
Injection-molded plastic material rollers.
Spring loaded counter balance system.
Integrated dust collection bonnet.
Extended warranty.
TUV certified to UL/CSA standards
VIDEO
Specifications
Weight
359 lbs
Dimensions
120 × 11 × 95 in
Max. Crosscut
74'/1850mm
Max. Rip Cut
Unlimited
Cut Depth
1 ¾'/45mm
Cut Accuracy
1/32'/.8mm
Frame Length
120'/3050mm
Daily Usage
1-3 Hours
Rollers
14
Saw Blade Diameter
8'/210mm
Motor
15 amp, 120V, 220V
Documents
What Our Experts Think
High-precision cutting – Delivers clean, accurate cuts on various panel materials.
Heavy-duty construction – Built for durability in industrial woodworking shops.
User-friendly controls – Simplifies operation for efficient workflow.
Adjustable cutting angles – Supports both straight and bevel cuts.
Q&A
Q: Is this saw suitable for professional use?A: Yes, designed for high-volume industrial applications.
Q: Can it handle angled cuts?A: Yes, fully adjustable for precise bevel cuts.
Maintenance Tips
Keep blades sharp and clean.
Lubricate moving parts regularly.
Inspect alignment and calibration frequently.
Schedule professional servicing routinely.
