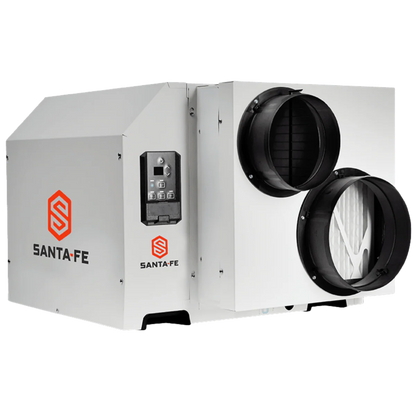

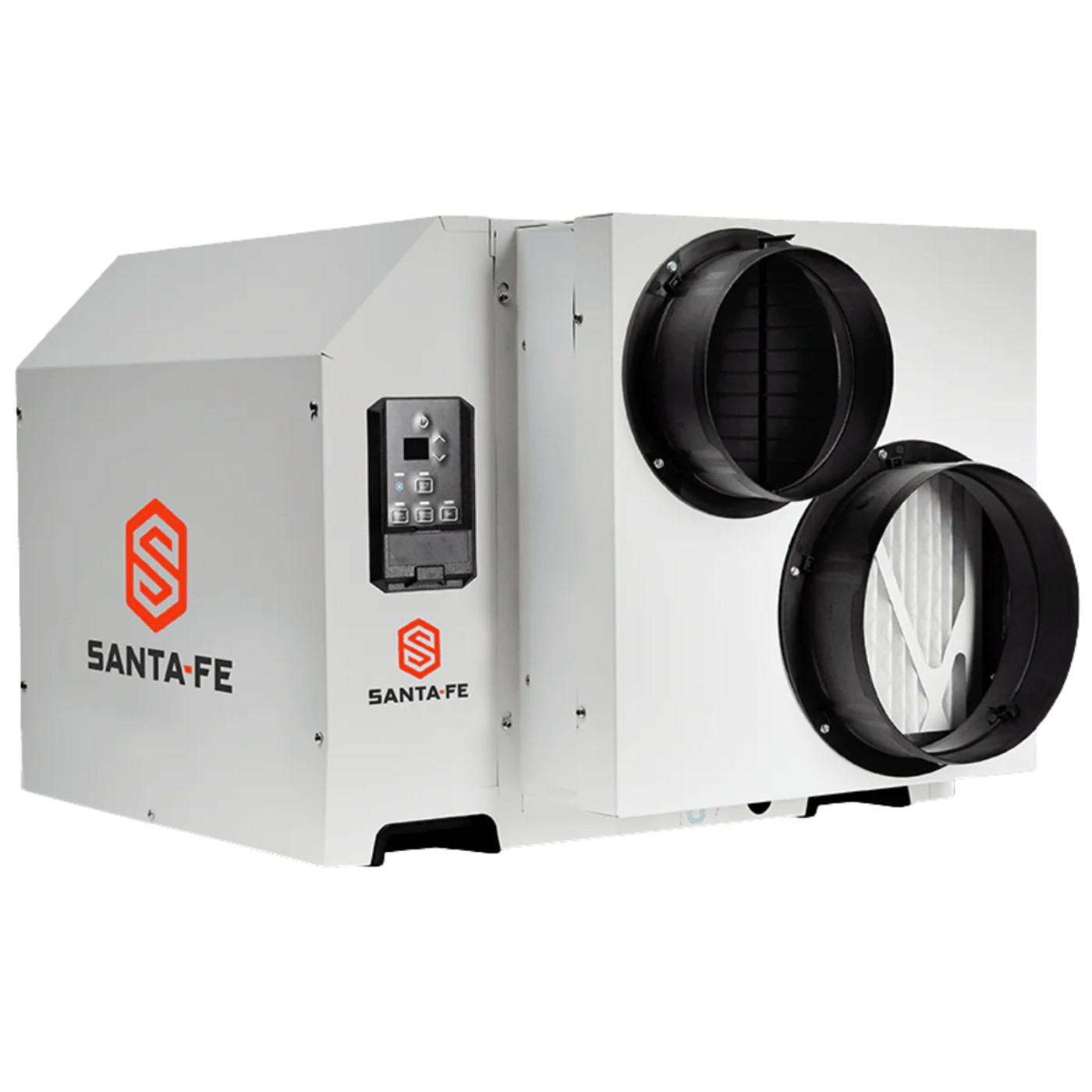

Take control of humidity and air quality in your home with the Santa Fe Ultra V205 Ventilating Dehumidifier.

Perfectly engineered for basements, crawl spaces, attics, and whole-house applications up to 5,000 square feet, this high-performance dehumidifier removes up to 205 pints of moisture a day,  protecting your family’s comfort and your home’s structural integrity.

With Santa Fe’s innovative Efficiency Capacity Coil Optimization (ECCO) technology, this Energy Star-rated basement dehumidifier ensures maximum moisture removal and energy efficiency, making it a smart investment for year-round comfort.

Installation and Ducting Considerations

The Santa Fe Ultra V205 Ventilating Dehumidifier's performance effectiveness depends significantly on proper installation and thoughtful ducting. Install this unit either on the floor or suspended from the ceiling, providing versatility in managing airflow and accessibility.

Featuring standard 10-inch round inlet and outlet duct collars and an 8-inch round outdoor air intake duct collar connections for both supply and return air, the system accommodates 10-inch flex ducts and an optional 8-inch flex duct for outdoor air intake.

Ensure adequate clearance around the Santa Fe dehumidifier to facilitate easy maintenance and optimal air distribution. When integrating with existing HVAC systems, include a backdraft damper to prevent reverse airflow, and adhere strictly to local and national HVAC installation standards.

Sylvane's Expert Take

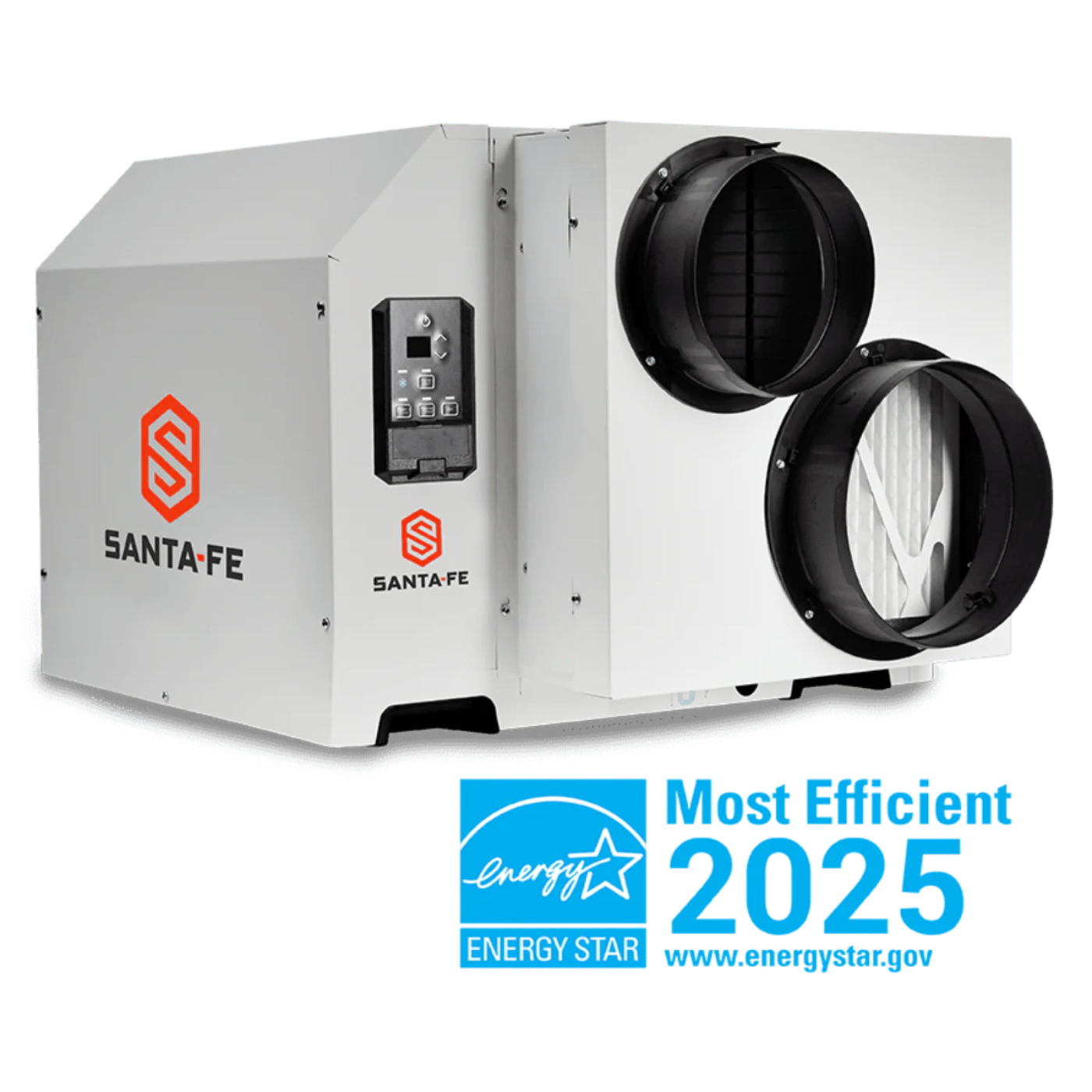

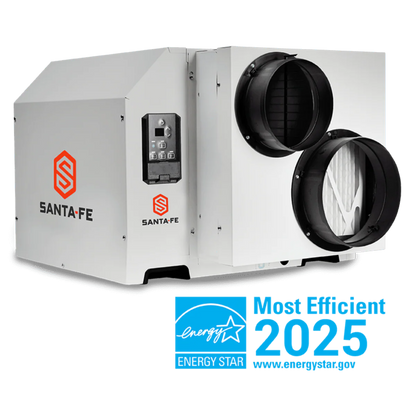

The Santa Fe Ultra V205 Ventilating Dehumidifier stands out for its exceptional balance of moisture control, air filtration, and energy efficiency, meeting Energy Star’s Most Efficient 2025 requirements. Its ability to remove significant moisture quickly makes it perfect for large homes and challenging environments like basements and crawl spaces. The integrated outdoor ventilation capability enhances air quality in addition to helping homes comply with ventilation standards.

For those seeking a reliable, powerful, and energy-efficient dehumidifier, the Ultra V205 is a great choice. Santa Fe dehumidifiers deliver the high-humidity management and performance customers have grown to trust

Features

•  High-Performance Dehumidification: Removes up to 205 pints of moisture per day at AHAM conditions (80 degrees F and 60 percent RH), maintaining consistent humidity levels in demanding, high-humidity environments.
•  Energy-Efficient Operation: Uses patented ECCO technology and a highly efficient fan capable of removing 7.5 pints/kWh at 80 degrees F and 60 percent relative humidity, providing superior moisture removal at lower operating costs.
•  Environmentally-Friendly Refrigerant: Designed with R-454B refrigerant, it has a lower environmental impact and global warming potential than older refrigerant formulas.
•  Whole House Ventilation: Integrates easily into your HVAC system and meets  ASHRAE 62.2 requirements when installed using the outdoor air intake for improved ventilation, bringing in fresh outdoor air.
•  Superior Air Filtration: Includes a MERV-13 filter for enhanced indoor air quality by effectively removing allergens, dust, spores, and contaminants.
•  Intuitive Control: Equipped with an onboard digital control panel and compatible with the SmartAire Remote Sensor and the DEH3000 Digital Controller or other external 24V controllers for custom humidity management.
•  Simple Drainage: Drain condensate using the provided gravity drain setup or upgrade with a Santa Fe Condensate Pump to move condensate vertically for up to 15 feet. It's recommended to use a drain trap with a float switch to prevent backflow and leaks.
•  Reliable Construction: Built with corrosion-resistant dual-coated coils and durable materials, ensuring lasting operation even in harsh conditions.

Specifications

What our Experts Think

• Ventilating Whole-House Design – Controls humidity while introducing fresh, filtered air.

• High-Capacity Moisture Removal – Protects against mold, mildew, and allergens.

• Energy Efficient – Engineered for continuous use with low operating costs.

• Quiet Operation – Runs smoothly without disrupting household comfort.

• Santa Fe Reliability – Trusted brand known for durable, high-performance dehumidifiers.

Q&A

Q: What is the capacity of the Santa Fe Ultra V205?
A: It removes up to 205 pints of moisture per day, making it one of the most powerful whole-house dehumidifiers.

Q: What size area can it cover?
A: Designed for large homes and commercial spaces up to 6,000 sq. ft.

Q: Does it also provide ventilation?
A: Yes, the Ultra V205 combines dehumidification with fresh air ventilation for improved indoor air quality.

Q: Is it energy efficient?
A: Yes, it is Energy Star certified, offering high performance with reduced energy consumption.

Q: How is it installed?
A: It can be ducted into your HVAC system or used as a standalone unit for flexible integration.

Maintenance Tips

• Clean or replace the air filter every 3–6 months to ensure maximum efficiency.

• Inspect and clean the condensate drain line regularly to prevent clogs.

• Wipe down exterior vents and housing to keep dust-free.

• Ensure unit remains level and in a well-ventilated space.

• Adjust humidity and ventilation settings seasonally for best performance.

• Schedule annual professional servicing to maintain long-term reliability.
