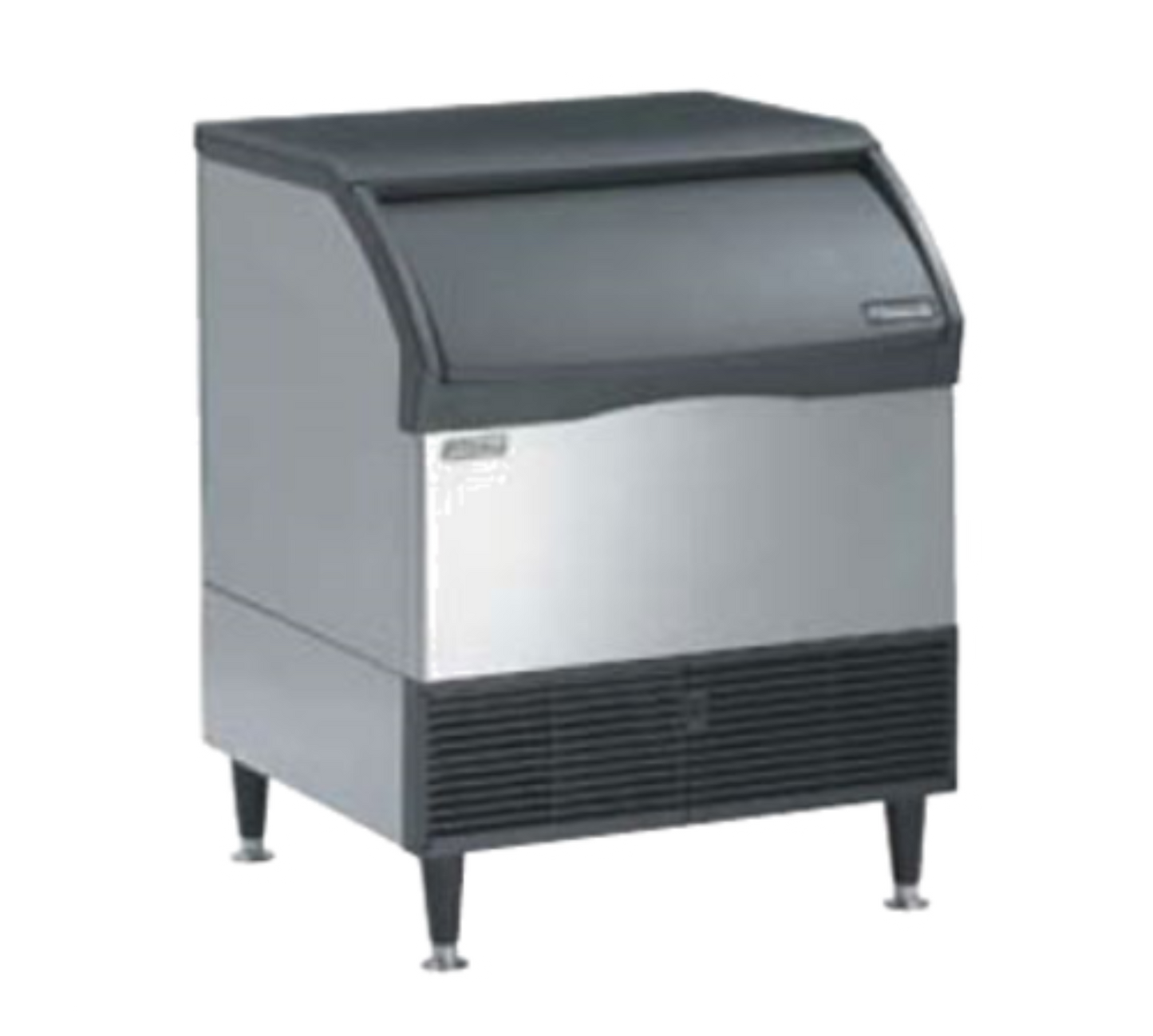

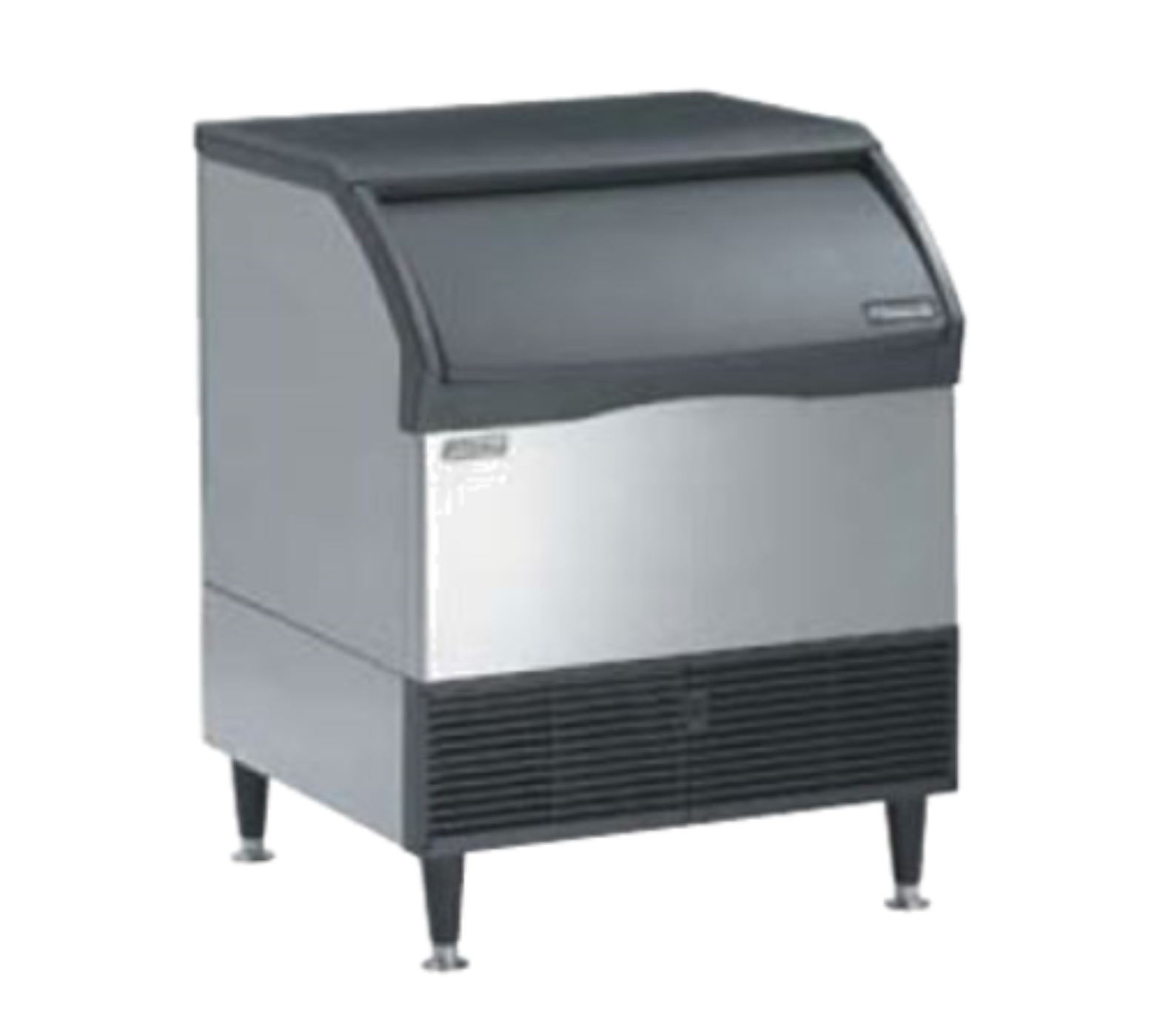

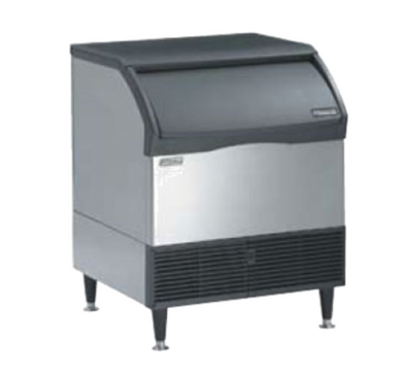

Scotsman CU3030SA-6 Prodigy™ Ice Machines - CU3030SA-6
Undercounter Ice Maker With Bin, cube style, air-cooled, 30" width, self-contained condenser, production capacity up to 287 lb/24 hours at 70°/50°, 110 lb bin storage capacity, small cube size, AutoAlert™ indicator lights, WaterSense adaptive purge control, unit specific QR code, metallic finish, includes 6" legs, 230v/50/1-ph, 5.9 amps engineered and assembled in USA (Export Model, 50hz version)
Specifications
| Manufacturer |
Scotsman |
| Brand Name |
Prodigy™ |
| Certifications |
NSF, cULus, AHRI |
| Height |
39.5 in |
| Width |
30.0 in |
| Depth |
30.0 in |
| Shipping Weight |
230.0 lbs |
| Production per 24 hr |
301 - 400 lb (137 - 181 kg) |
| Finish |
Stainless steel |
| Condenser Type |
Air-cooled |
| Bin Storage Capacity |
101 - 199 lb |
| Cube Type |
Full size / dice |
| Specifications |
Undercounter Ice Maker with Bin, cube style, air-cooled, 30" width, self-contained condenser, production up to 313 lb/24 hr at 70°/50° (224 lb AHRI certified at 90°/70°), 110 lb bin storage capacity, medium cube size, AutoAlert™ indicator lights, WaterSense adaptive purge control, unit-specific QR code, metallic finish, includes 6" legs, includes power cord with NEMA 5-15P plug, 115v/60/1-ph, 12.8 amps, NSF, cULus, engineered and assembled in USA |
What our Experts Think
-
High Production Capacity: Produces up to 287 lbs of half-dice (small cube) ice per day, ideal for businesses with moderate to high ice demands.
-
Energy Efficient: Consumes only 7.35 kWh per 100 lbs of ice, surpassing federal energy efficiency standards, reducing operational costs.
-
Water-Saving Technology: Incorporates WaterSense adaptive purge control to minimize scale buildup, which reduces maintenance needs and extends the life of the machine.
-
User-Friendly Interface: The AutoAlert™ control panel features LED indicators, notifying users when it’s time for cleaning or maintenance, ensuring smooth operation.
-
Compact Design: With a 30" width, the unit fits into tight spaces, making it perfect for undercounter installations without sacrificing performance.
-
Durable Construction: Stainless steel exterior combined with a corrosion-resistant polyethylene liner ensures long-term durability and ease of maintenance.
-
Flexible Installation: Comes with 6" adjustable legs and is compatible with various installation setups, offering versatility for your space.
Q&A
Q: What type of ice does the Scotsman CU3030SA-6 produce?
A: The Scotsman CU3030SA-6 produces half-dice cube ice, ideal for beverages and foodservice applications, with a size of 7/8" x 7/8" x 3/8".
Q: What is the daily ice production capacity?
A: This model can produce up to 287 pounds of ice per day under optimal conditions.
Q: Does it include a storage bin?
A: Yes, the CU3030SA-6 includes a built-in storage bin with a capacity to hold up to 110 pounds of ice.
Q: Is the Scotsman CU3030SA-6 energy-efficient?
A: Yes, it is highly energy-efficient, exceeding federal energy efficiency regulations by up to 15%, using only 7.35 kWh per 100 lbs of ice produced.
Q: What are the dimensions and weight of the Scotsman CU3030SA-6?
A: The unit measures 30" W x 30" D x 39" H and weighs approximately 230 lbs.
Q: Is the Scotsman CU3030SA-6 suitable for international use?
A: Yes, it is designed for export markets with a 230V/50Hz power supply and is CE certified.
Maintenance Tips
-
Clean Water System: Sanitize the water system every 6 months to prevent scale buildup. Replace the water filter during cleaning.
-
Ice Storage Bin: Empty and clean the ice storage bin with a mild cleaner. Rinse and dry thoroughly to avoid contamination.
-
Air Filter: Clean the air filter every 6 months. Use a vacuum or wash with warm water and mild detergent, ensuring it is fully dry before reinstalling.
-
Condenser Coils: Inspect and clean the condenser coils every 6 months to maintain energy efficiency and prevent overheating.
-
Exterior Cleaning: Wipe the exterior with warm, soapy water to remove spills and stains. Avoid abrasive cleaners to protect the surface.
