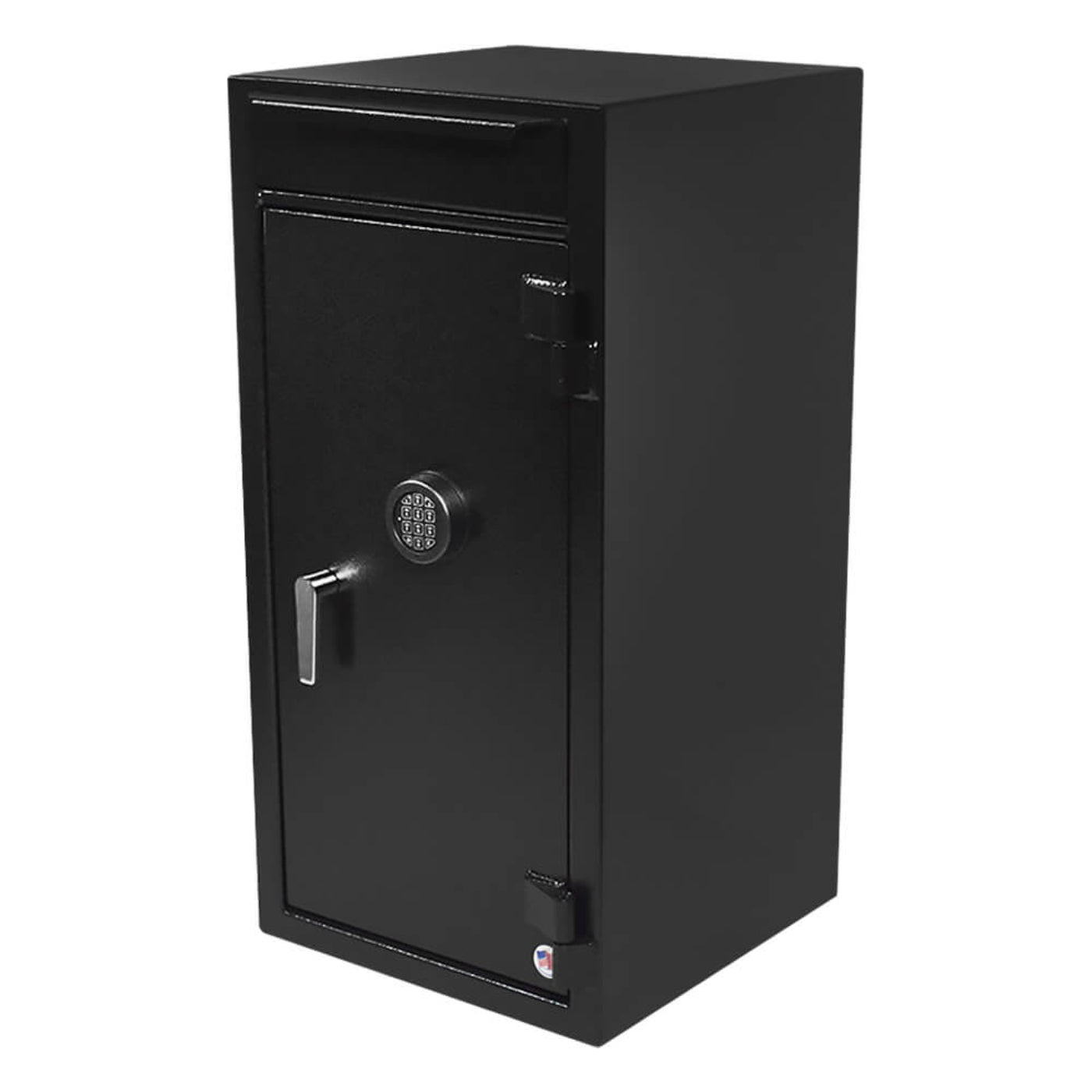

Liberty Safe Stealth DS4020FL12 Drop Safe Depository Vault - STL DS4020FL12 Drop Safe
An essential item for any business.
A Business Owner's Nightmare:
It's time to go to the bank, you go into your cash register and find that your cash is $100 short for the third day in a row. You ask your employee where the cash is and they stare at you with a blank face. Unfortunately, employee theft and shrinkage is a fact of life. In today's competitive marketplace every dollar counts, don't let yourself become a victim of this harsh reality.
Constructed of solid heavy gauge steel, this Made in USA Stealth DS4020FL12 drop safe is a real safe, not the cheap, thinly constructed versions you see all over the internet. Ideal for gas stations, restaurants, hotels, motels or any retail business handling cash, receipts and items of value, this sturdy depository safe will watch your cash closer than your mom would.
Weighing a whopping 235 pounds you'll notice the Stealth DS4020FL12 is heavier than its nearest competitors. That's because there's a significant amount of steel in this safe with its 12 Gauge Steel Body, 1/2" Thick Steel Door and 7 Gauge Steel Hopper. This adds considerable strength against a forced entry attempt such as a pry attack.

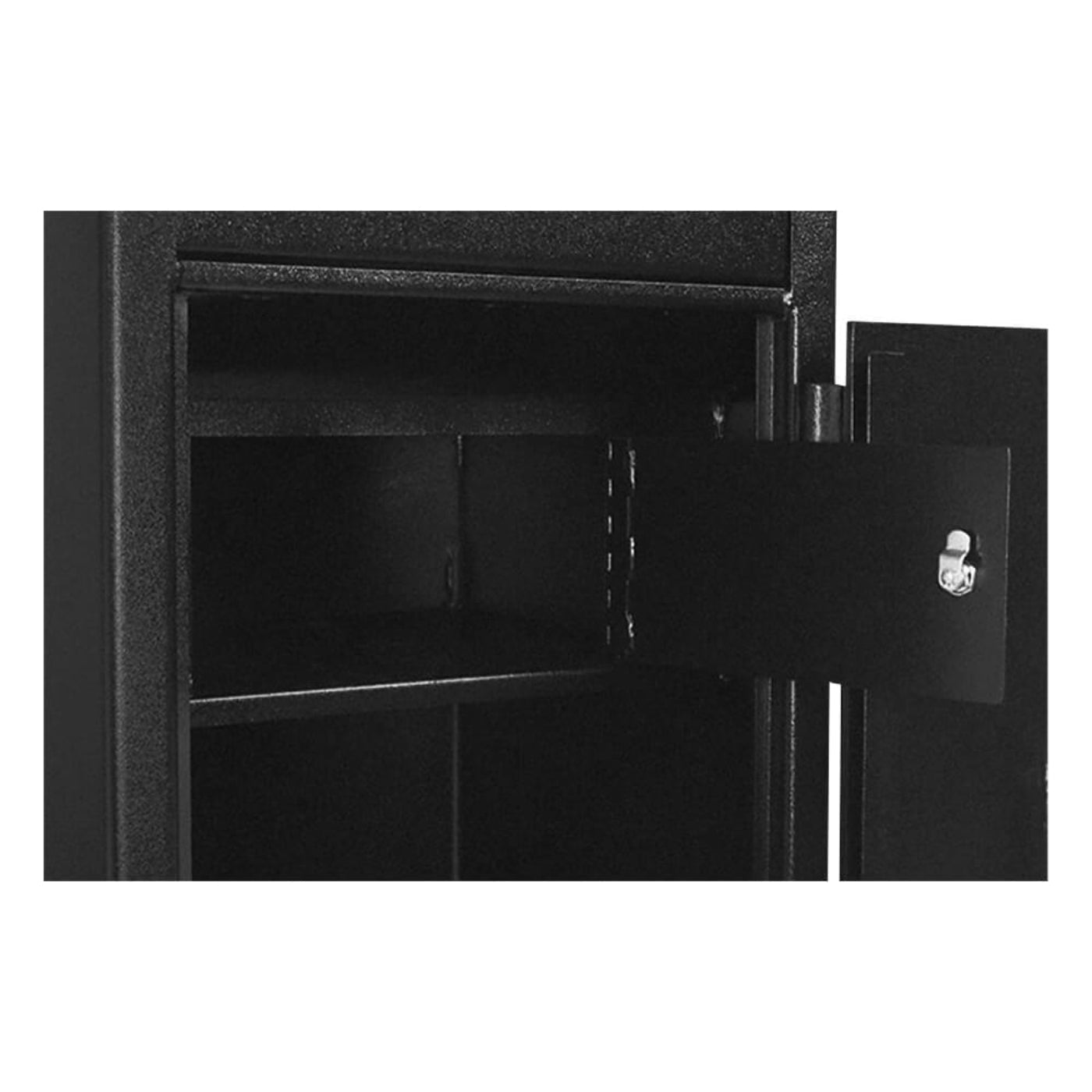

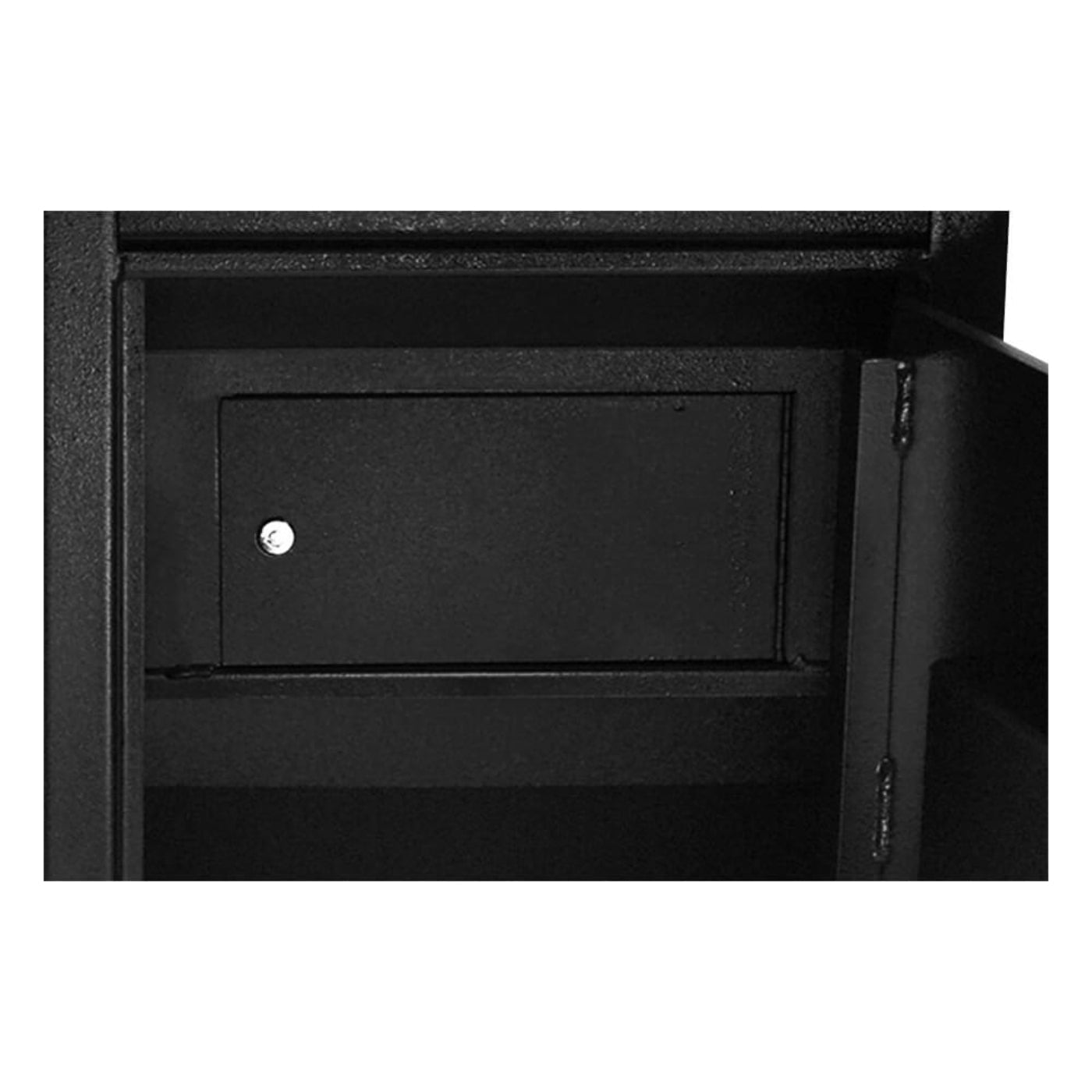

Just inside the door and below the drop is an inner steel locker with a tubular cam key lock that provides an additional layer of security. This allows employees to have access to the inside of the safe to pull out a cash drawer but only allows the manager or owner access to the deposits.
Unique to the Stealth DS4020FL12 Drop safe is a concave deposit door and because it caves in behind the door it makes a fishing attack near impossible where a thief will take a fishing line with a hook and attempt to pull out the cash through the top door. At the back of the drop door, you'll find jagged teeth, anti-fish baffles that will prevent any paperwork or cash from being removed.
On the front of the 1/2" solid steel door lies the UL Approved NL UR-2020 High Security Electronic Lock and brushed nickel handle. This lock is the most reliable lock in the safe industry, assembled and tested in the USA. The lock is also protected by a 1/4" Thick Rockwell hard plate and an internal re-locker that will keep the bolts locked if a thief were to attempt a punch or drill attack.

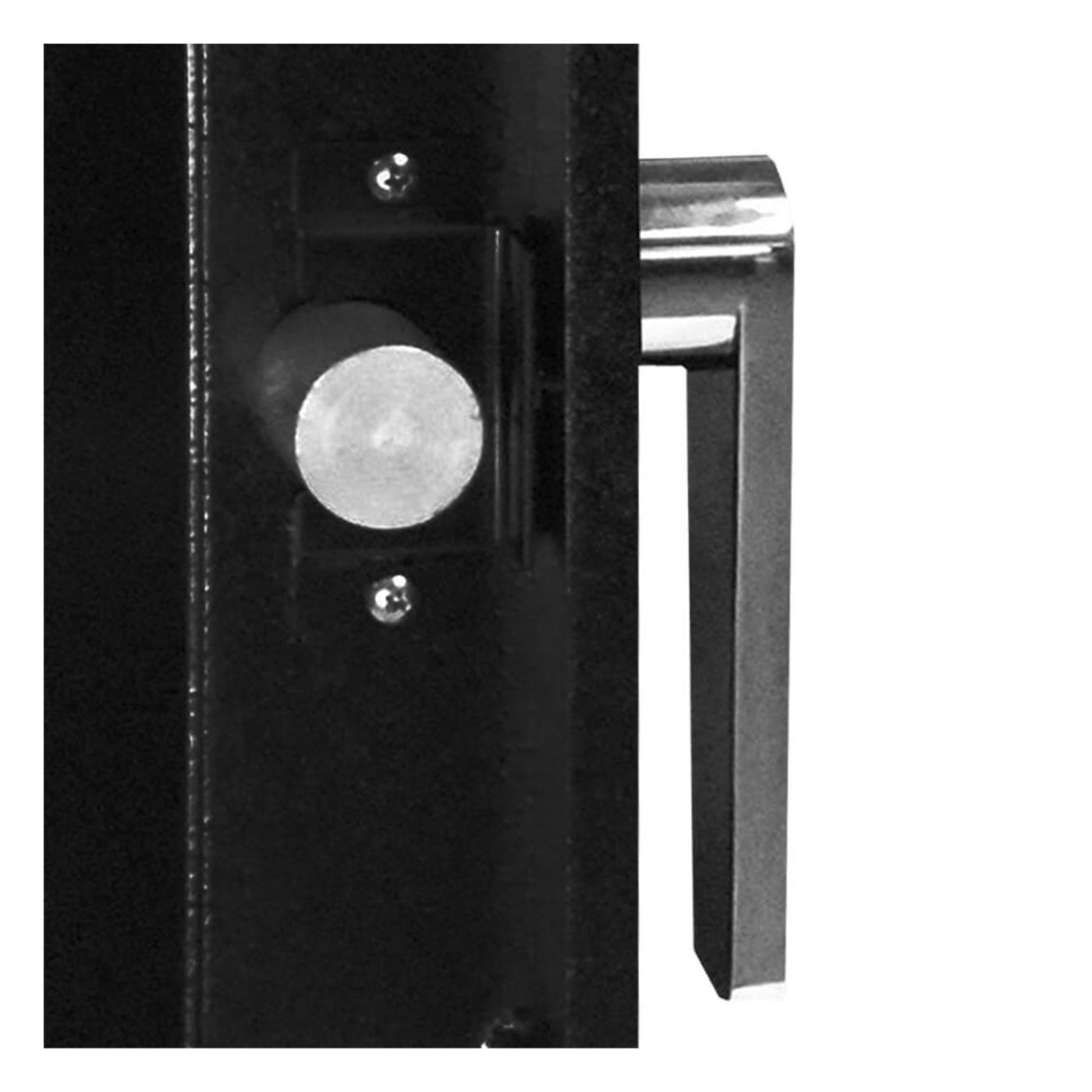

Just inside the door of the Stealth DS4020FL12, you'll see an auto-detent system that locks three 1" solid steel bolts automatically for you when the door closes. You'll never have to worry about making sure it is fully locked, the safe does it for you. On the other side of the door is a full length steel dead bar that hooks behind the cast iron door hinges ensuring you can't access the safe even if you cut off the hinges.

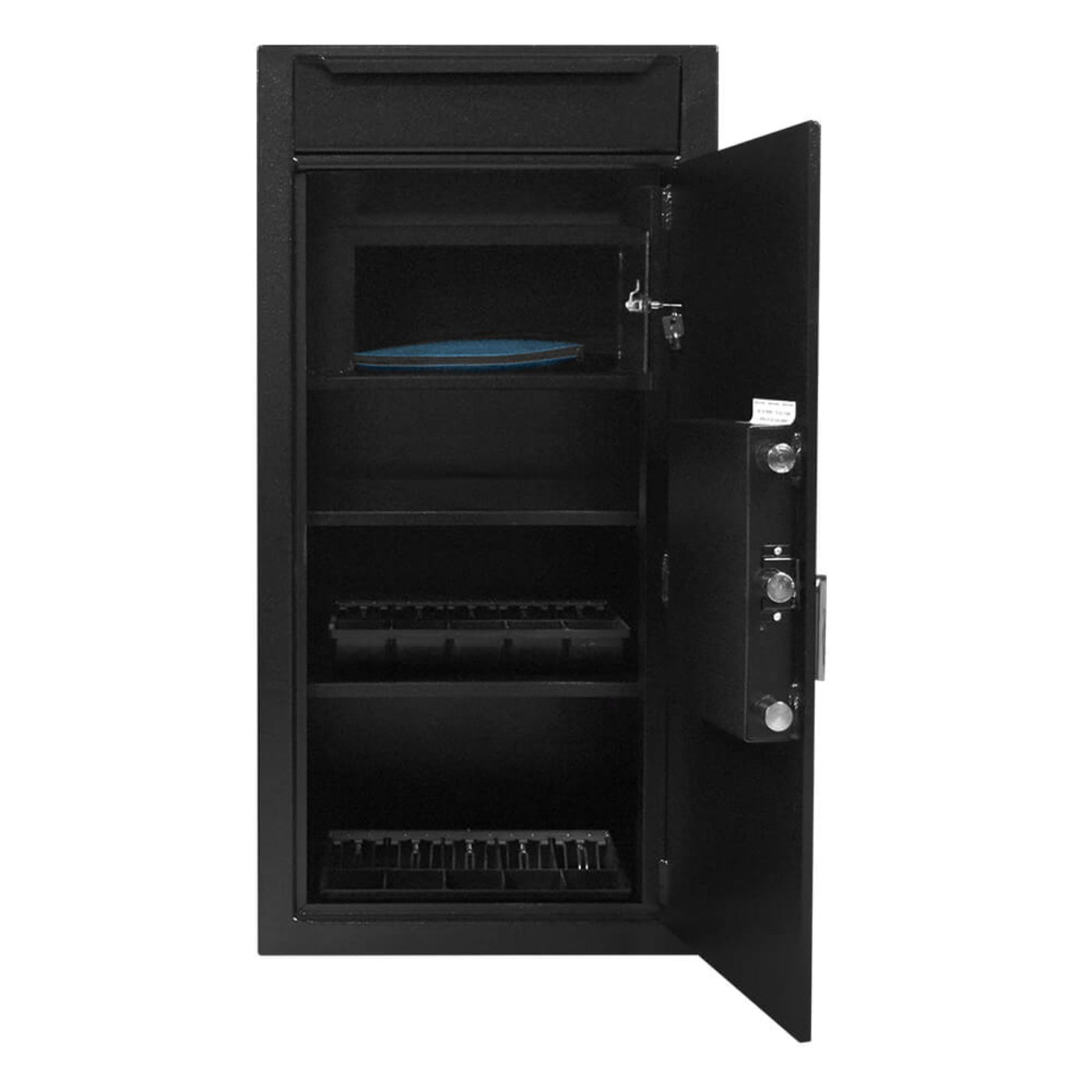

On the bottom of the Stealth DS4020FL12 are 4 bolt down holes that will allow you to secure the safe and prevent a burglar from just picking it up and opening it on their own time. Mounting hardware is included with every safe. Four 3/8” D x 4” L concrete wedge anchors are included. Two adjustable or removable shelves and 8 shelf clips are included for internal organization.
Stealth believes in and stands behind the DS4020FL12 Made in USA Drop Safe by offering a five year warranty on the hinges and welds PLUS a two year parts and labor warranty.
Broad Form & Mercantile Insurance Classification, Built to exceed the classification for a "B" Rated Burglary Safe.
If you're looking for a high quality Made in USA Drop Safe, you've just found your perfect safe, the Stealth Drop Safe DS4020FL12!
Please Note: Front Load Depository Safes are not meant for overnight storage. These safes are a deterrent during a holdup and keep employees honest.
STEP 1: Installing a Battery
Use a brand new Duracell Coppertop 9-Volt Battery expiring at least 5 years in the future.
WHY THIS BATTERYBecause this battery has the highest amperage output that is needed to operate the safe lock and open the door of the safe.
The battery compartment is located on the bottom side of the keypad
Simply slide open the compartment door and pull out the battery connector
Hook up a Duracell Coppertop 9-Volt battery to the battery connector with the + and - lined up
Push the connected battery back up into the compartment & slide the door shut
STEP 2: Changing the Default Code to your own Personal 6-Digit Code
NOTE:The following instructions are for changing the combination for the first time from the set default combination (1-2-3-4-5-6).Before you start this process make sure you know the 6-digit code you will set your safe to so the lock doesn't time out while you are setting your code.
Enter default code to unlock the safe: 1-2-3-4-5-6
Open the door and extend the bolts
Press and HOLD [0] on keypad until double beep. (LED light will remain on during next steps)
Enter DEFAULT code: 1-2-3-4-5-6 [double beep]
Enter NEW personalized 6-digit code [double beep]
Re-Enter NEW personalized 6-digit code [double beep]
Your new code has been successfully set
Replacing an Existing 6-Digit User Code:
Enter existing 6-digit user code to unlock the safe
Open the door and extend the bolts
Press and HOLD [0] on keypad until double beep. (LED light will remain on during next steps)
Enter existing 6-digit user code
Enter NEW 6-digit user code [double beep]
Re-Enter NEW 6-digit user code [double beep]
Your new code has been successfully set
TROUBLESHOOTING
LOW BATTERY: A series of beeps indicate that the battery is weak and must be replaced.
LOCKOUT MODE: If the wrong code is entered 4 times in a row, the lock will go into lockout mode - where it will constantly beep and flash for 5 minutes. Simply wait 5 minutes until the beeping/flashing stop and try again.NOTE: Removing the battery will only pause this 5 minute timer. The battery must be connect the whole 5 minutes.
Features
Massive ½” Thick Steel Plate Door
12 Gauge Steel Body
Three 1” Solid Steel Locking Bolts
UL Approved High Security Electronic Lock
NL UR-2020 Type 1 Electronic Lock
Protected by Hard Plate & Internal Re-Locker
Bolt Detent System
Extreme Pry Resistance
All Steel Cast Iron External Hinges
MADE IN USA
Front Load Deposit Door
Protected by Jagged Teeth “Anti-Fish Baffles”
Brushed Nickel Turn Handle
Bolt Down Holes & Mounting Hardware
5 Year Warranty on Hinges & Welds
2 Year Parts & Labor Warranty
Specifications
External Dimensions
40"H x 20"W x 20"D (Add 1-5/8” to D for Handle)
Internal Dimensions
24 ½"H x 19 ½”W x 17"D
Main Clear Door Opening
32 ½”H x 15 ½”W
Int. Locker Dimensions
6" H x 19 ½" W x 15" D
Int. Locker Door Opening
12 ÂĽ"W x 6"H
Height from Bottom of Locker to Bottom of Safe
24" High
Drop Safe Hopper
4"H x 10 ½"W x 6"D
Weight
235 lbs
Burglary Rating
B-Rate
Video
What our Experts Think
Secure Depository Vault – Designed with a front-loading deposit slot, allowing for easy and secure deposits of cash, checks, or documents without opening the safe.
Heavy-Duty Protection – Built with solid steel construction for maximum security against unauthorized access, tampering, or break-ins.
Compact and Practical – Offers a space-saving design ideal for retail businesses, offices, or anywhere fast and secure deposits are needed.
Reliable Locking Mechanism – Features a high-security electronic lock, providing quick access while ensuring your valuables stay protected.
Perfect For – Businesses that require a secure and efficient drop safe for daily deposits, such as retail stores, restaurants, or offices.
Q&A
Q: What is the Liberty Safe Stealth DS4020FL12 Drop Safe? A: The Stealth DS4020FL12 is a high-security drop safe designed for secure cash, check, and document deposits, making it ideal for businesses with high-volume transactions.
Q: Who is the DS4020FL12 Drop Safe ideal for? A: Perfect for retail stores, restaurants, offices, and businesses needing a reliable and secure deposit system to handle cash and document drops during working hours.
Q: Is the DS4020FL12 Drop Safe easy to use and install? A: Yes, it includes a user-friendly electronic lock with backup key access and pre-drilled holes for secure mounting to the floor, ensuring long-term stability.
Q: Why choose the Stealth DS4020FL12 Drop Safe? A: Offering advanced security features, efficient deposit functionality, and strong theft prevention, the DS4020FL12 is the perfect solution for businesses looking to securely manage cash deposits.
Maintenance Tips
Lock & Key Care: Regularly test the lock to ensure smooth functionality. Replace the batteries in the electronic lock annually, or sooner if you notice delays or inconsistent responses. For mechanical locks, use a graphite-based lubricant for smooth operation.
Drop Slot Inspection: Ensure the drop slot is clear and free from debris to prevent jams. Check the hopper mechanism regularly to ensure it rotates properly and remains obstruction-free.
Moisture Control: To prevent rust and mildew, use a dehumidifier rod or silica gel packets inside the safe. This is particularly important in high-humidity areas.
Hinges & Locking Bolts: Lubricate door hinges lightly and check that the locking bolts engage properly when the door closes. Ensure smooth door operation and alignment.
Exterior Cleaning: Clean the exterior of the safe with a soft, damp cloth and mild cleaner. Avoid abrasive or chemical cleaners that can damage the finish.
Interior Care: Wipe down the interior with a dry cloth to remove dust and debris that could interfere with the lock or drop mechanism.
Anchor Check: Ensure the safe is securely anchored to the floor to prevent theft or tampering. Tighten any mounting bolts as needed.
Routine Function Testing: Open and close the safe periodically to ensure the locking bolts engage properly, and test the drop slot to ensure smooth, unobstructed operation.
